| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-B6 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P6.67mm | Size: | 960X960mm |
|---|---|---|---|
| Weight: | 28kg | Module Size: | 480X320mm |
| Service Type: | Front/Rear | Waterproof: | IP66 |
| Highlight: | IP66 Outdoor Advertising LED Display,Customized Outdoor Advertising LED Display,P6 Outdoor Fixed LED Display |
||

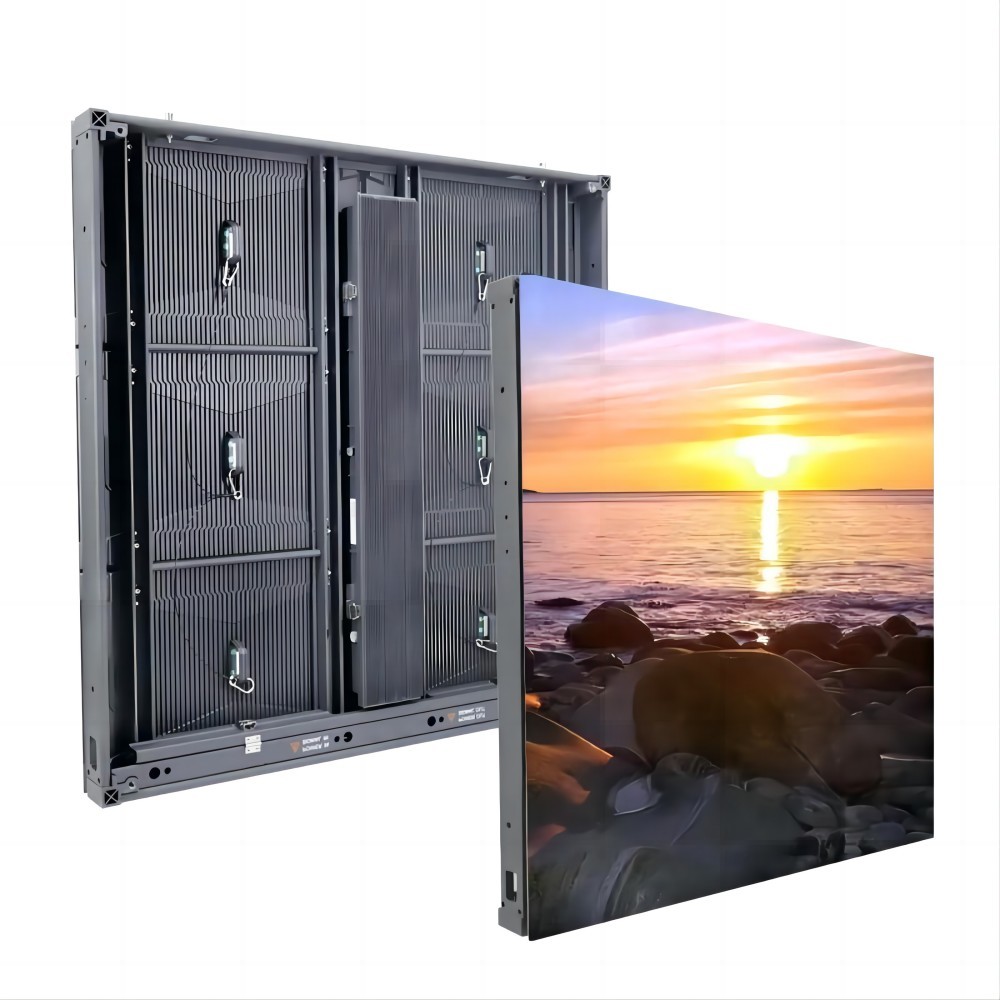

Customized Size Outdoor Advertising LED Display P6 Outdoor Fixed LED Screen
Outdoor P6 Fixed LED Video Wall, IP66 Outdoor Waterproof LED Billboard
Features:
- Durable fresh color and 6000nits high brightness for outdoor.
- Common cathode power supply, reduce energy consumption, Energy-saving 29% by using high efficiency IC driver, high brightness leds and improved PCB.
- Short viewing distance range design for outdoor.
- IP66 protection grade, durable nature enables the screen to work in all outdoor weather conditions.
- Aluminum cabinet, light weight,Fast lock for quick installation, only takes 10 seconds
- Support Full frontal maintenance, direct wall mounting with high-precision led screen cabinet, extending service life
- Brilliant picture, vivid colors, stable picture quality, suitable for outdoor environment use.
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch P6.67mm

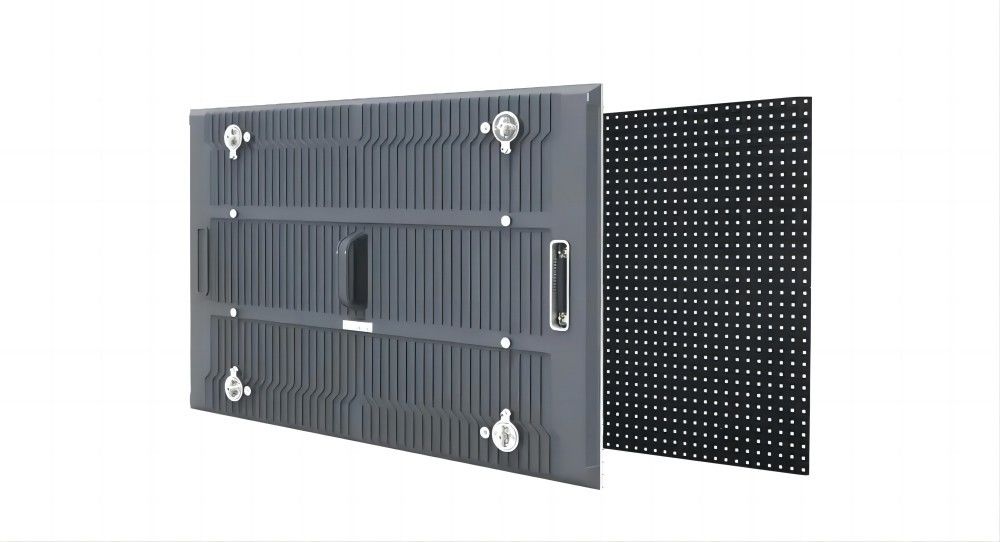

- LED Module Size 480X320mm, Aluminum bottom suit corver
-Color choosing, white or Black
- Support front and rear service
- High energy efficiency
- Support Directly on Wall
- Perfect seamless corner cabinet for naked-eye 3D solution.
| Model | S-B6 |
| Pixel Pitch | 6.67mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 22500 pixels/m2 |
| Module Dimensions(W x H) (mm) |
480 x 320 |
| Panel Dimensions (mm) | 960 x960 x 90 |
| Modules Per Cabinet (W x H) | 2 x 3 |
| Module Resolution | 72 x 72 |
| Cabinet Resolution | 144 x 144 |
| Panel Material | Aluminum |
| Weight per Cabinet | 28kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
