| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-A8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | 8mm | Size: | 960X960mm |
|---|---|---|---|
| Weight: | 29kg | Service: | Front/Rear |
| Material: | Aluminum | Refresh Rate: | 3840hz |
| Highlight: | P8mm Outdoor Advertising LED Display,Aluminum Outdoor Advertising LED Display,3840hz p8 outdoor led display |
||

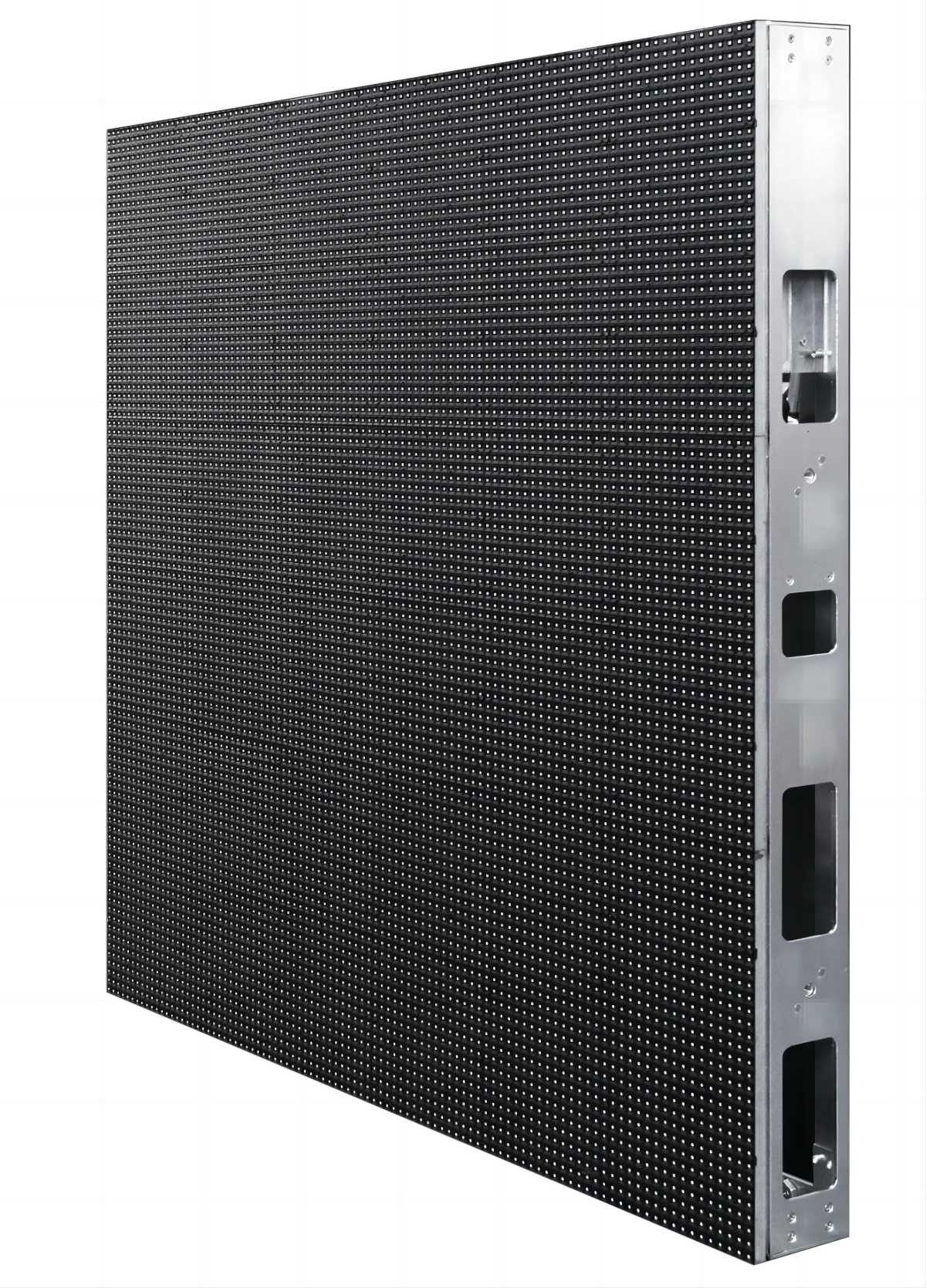

Good Heat Radiation Outdoor Advertising LED Display P8mm Aluminum LED Cabinet
Outdoor P8 Fixed LED Display, Permanent Install LED Video Wall
Features:
- Aluminum cabinet, light weight,Zinc Alloy Edge Lock Design
- Support Full frontal maintenance, direct wall mounting with high-precision led screen cabinet, extending service life
- IP68 waterproof module, support front and rear maintenance;
- Support Common cathode energy saving Solution with pointed power supply, LED lamp and IC, reduce energy consumption;
- High brightness and high contrast, clear viewing in outdoor bright environment;
- Brilliant picture, vivid colors, stable picture quality, suitable for outdoor environment use.
- Reduce operating costs,effectively extend led screen life
- Anti-Flaming Performance
- Aluminum Cabinet Compares with Iron Cabinet Available for choose
Aluminum cabinet 29kg for 960x960mm size, Iron Cabinet 36kg for 960X960mm cabinet
- Cabinet size could be customized according to LED Module size 320X320mm
Regular size 960X960mm, other size 1280X960mm, 1280X1280mm,960X640mm,640X640mm...

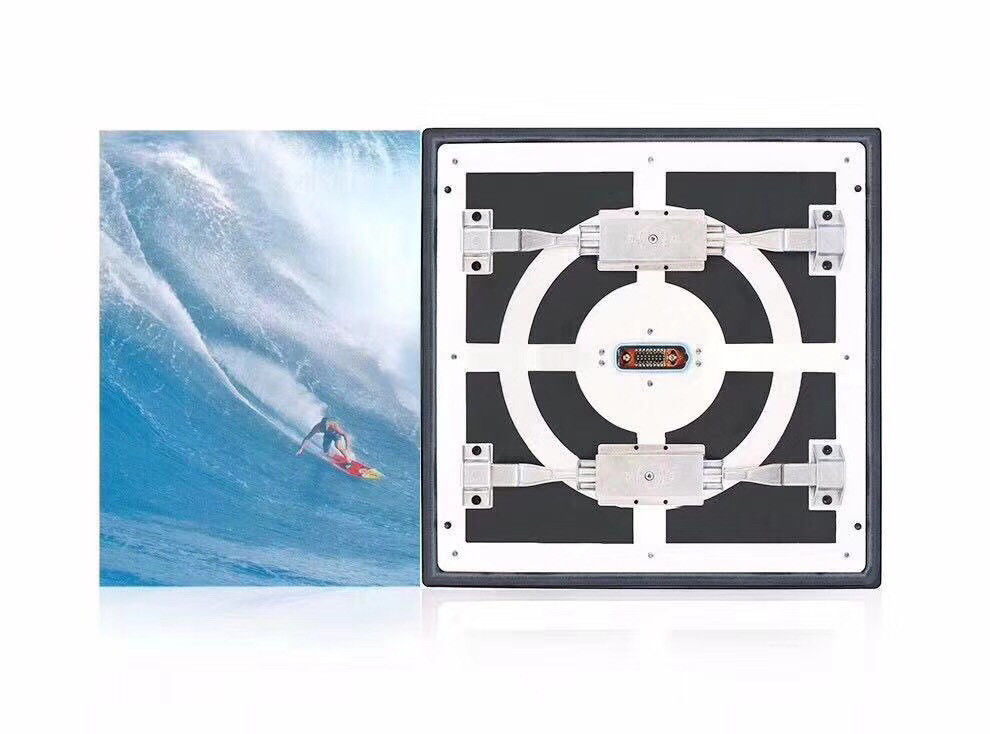

- LED Module Advantages
a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.
LED Module protected by Aluminum Bottom case with better heat radiation and stronger, Flame resistance.
Moisture-proof, water-proof, anti-corrosion, dust-proof
Signal and Power in one Cable(waterproof) with trianle screw fixing structure design. safter, Faster and more stable.

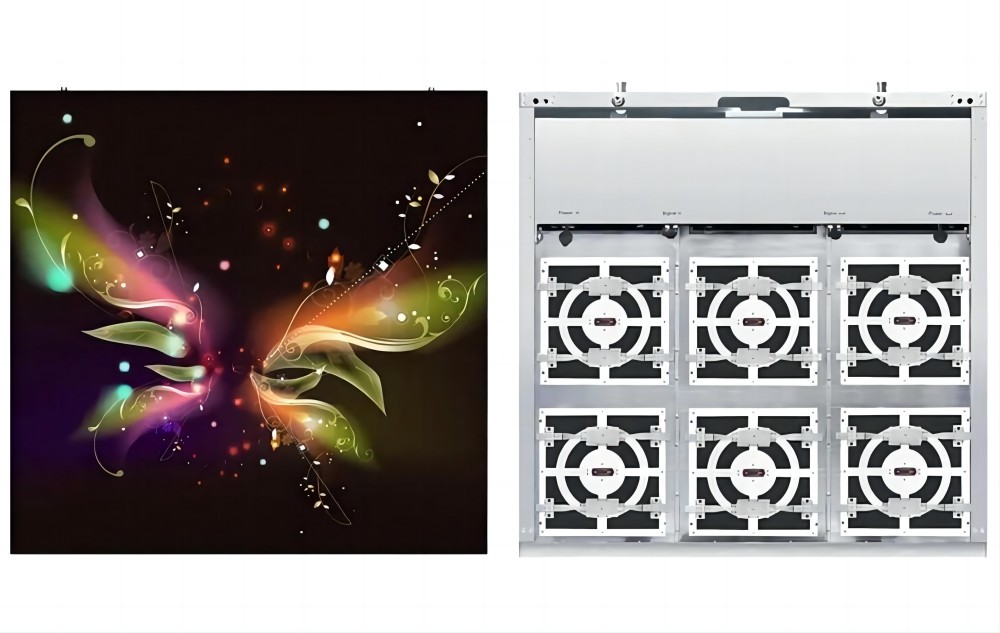

- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm cabinet. also could be design steel cabinet 36kg.
LED Module, Power supply could be taken from front and rear.
Also could be designed for different size according to LED Module size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
Brilliant cabinet design making installation easy and with enough installation space.

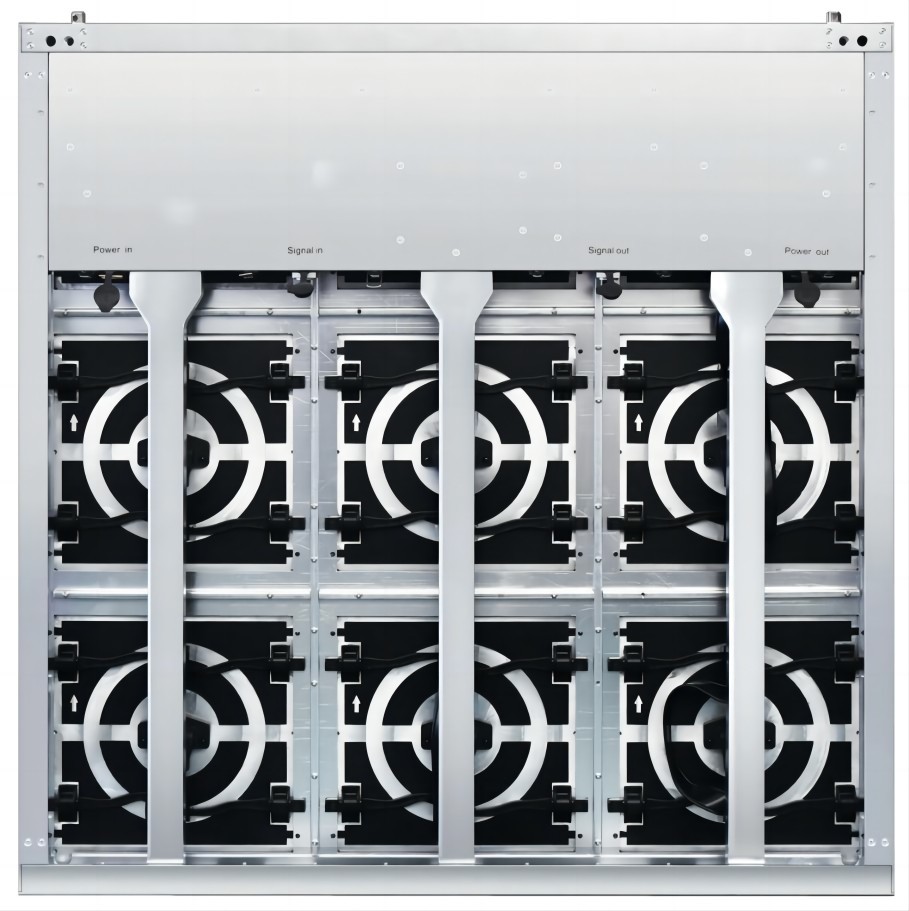

Fast Assemble with plugs, Marked “Power in/out” “Signal in/out” on cabinet. Keep safe and save install time.
| Model | S-A8 |
| Pixel Pitch | 8mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 15625 pixels/m2 |
| Module Dimensions(W x H) (mm) |
320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 100 |
| Modules Per Cabinet (W x H) | 3 x 3 |
| Module Resolution | 40 x 40 |
| Cabinet Resolution | 120 x 120 |
| Panel Material | Aluminum |
| Weight per Cabinet | 29kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP68 / IP68 |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
