| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-A6 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P6.67mm | Size: | 960X960mm |
|---|---|---|---|
| Weight: | 29kg | Material: | Aluminum |
| Module Size: | 320X320mm | Service: | Front/Rear |
| Highlight: | Outdoor LED Video Wall Panels,LED Video Wall Panels P6,SMD Pixel Fixed LED Screen |
||
Outdoor LED Video Wall Panels , P6 SMD LED Pixel Display Fixed LED Screen
Outdoor P6 LED Display Advertising, P6 Outdoor Fixed LED Display
LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post andtelecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports,industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Features and Details:
- Front and Rear Waterproof IP68
- Anti-Flaming Performance with good heat radiation
- Aluminum cabinet Compares with Iron Cabinet Available for choose
Aluminum cabinet 29kg for 960x960mm size, Iron Cabinet 36kg for 960X960mm cabinet
- Common Cathode Aluminum Display choosing: Energy-Saving by 75%
- Zinc Alloy Edge Lock Design, Easily Front and Rear Maintenance
- Pixel pitch is P5.33mm P6.67mm, P8mm and P10mm for option.
- Cabinet size could be customized according to LED Module size 320X320mm
Regular size 960X960mm, other size 1280X960mm, 1280X1280mm,960X640mm,640X640mm...

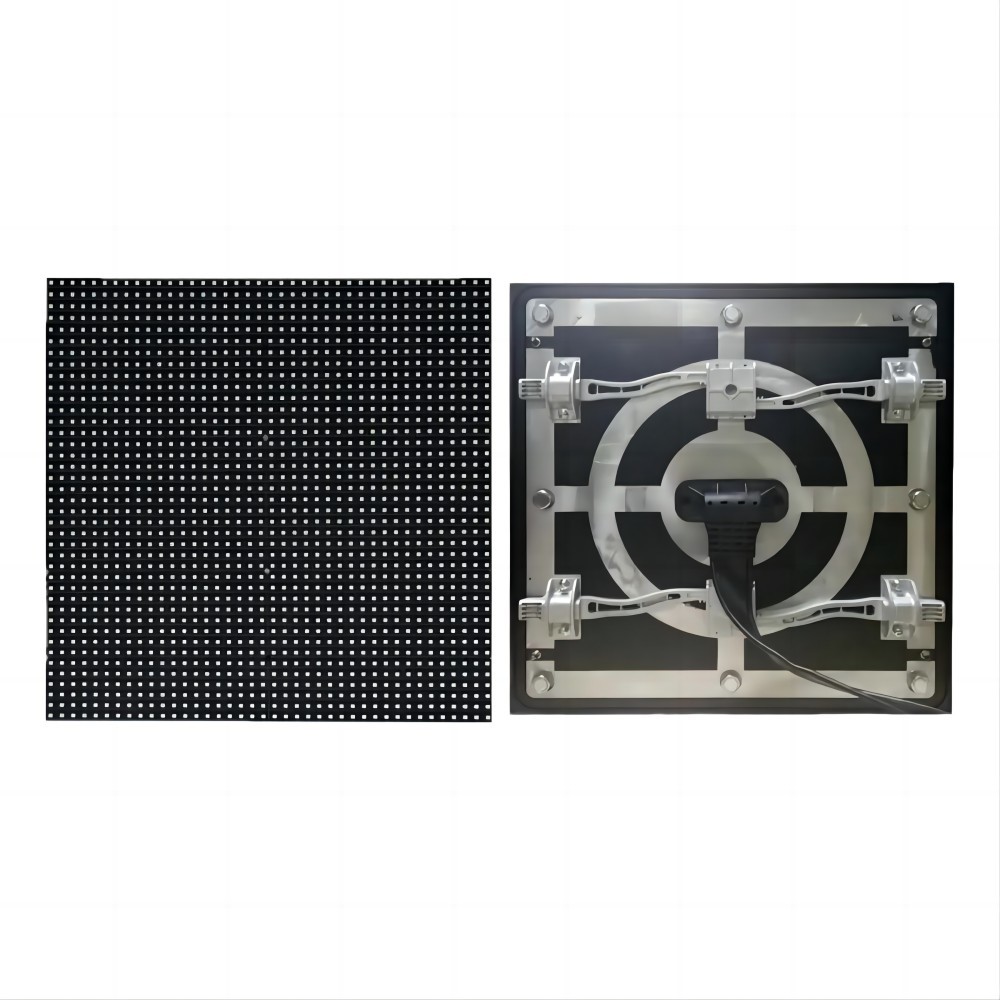

- LED Module Advantages
a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.

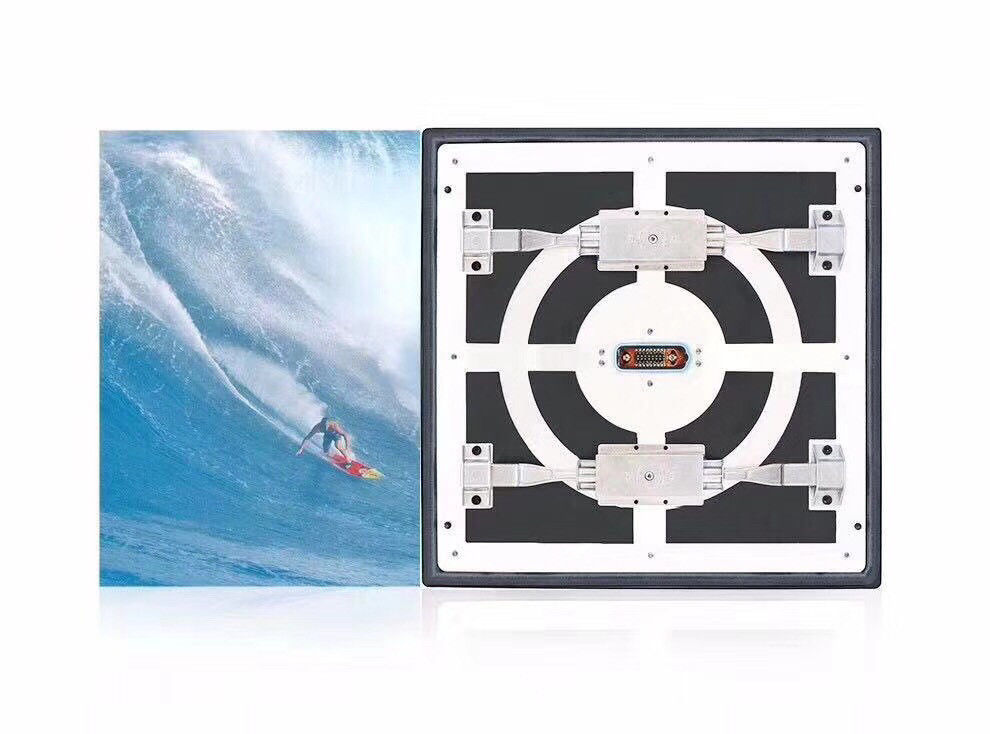

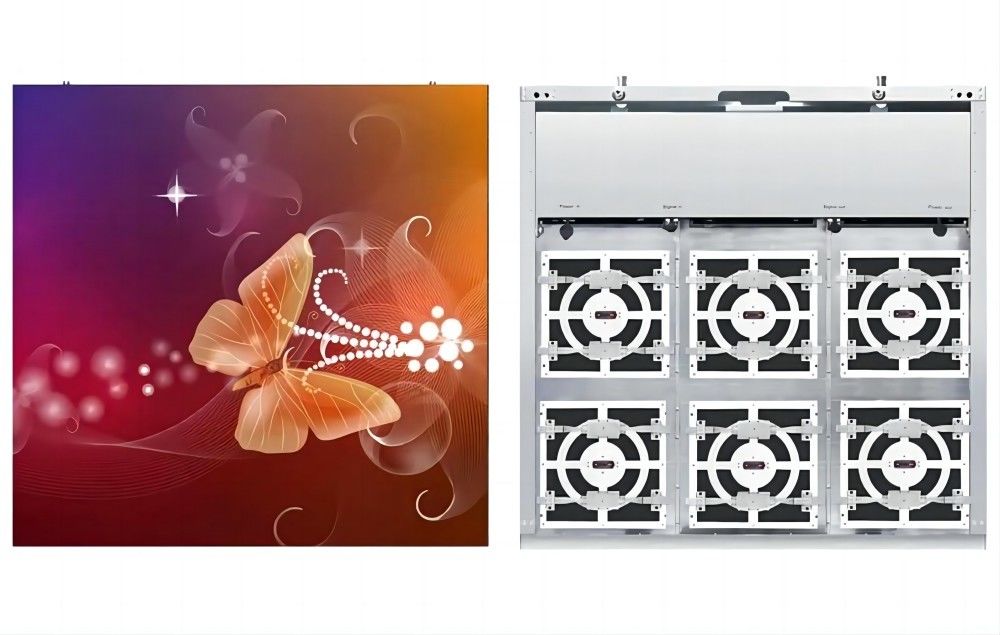

- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm cabinet. also could be design steel cabinet 36kg.
LED Module, Power supply could be taken from front and rear.
Also could be designed for different size according to LED Module size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
IP68 front and rear, Moisture-proof, water-proof, anti-corrosion, dust-proof.
Parameters:
| Model | S-A6 |
| Pixel Pitch | 6.67mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 22500 pixels/m2 |
| Module Dimensions(W x H) (mm) |
320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 100 |
| Modules Per Cabinet (W x H) | 3 x 3 |
| Module Resolution | 48 x 48 |
| Cabinet Resolution | 144 x 144 |
| Panel Material | Aluminum |
| Weight per Cabinet | 29kgs |
| Colors | 281 trillion |
| Contrast Ratio | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm |
| Brightness | >5,500 nits |
| Refresh Rate | >3,840Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 160° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP68 / IP68 |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
