| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | E-N4, E-N5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P4mm, P5mm | Size: | 960X960mm |
|---|---|---|---|
| Module Size: | 320X320mm | Weight: | 35kg |
| Service Type: | Front/Rear | Refresh Rate: | 3840hz |
| Highlight: | P4 Outdoor Advertising LED Display,Outdoor Advertising LED Display Waterproof,High Definition P5 Outdoor LED Display |
||

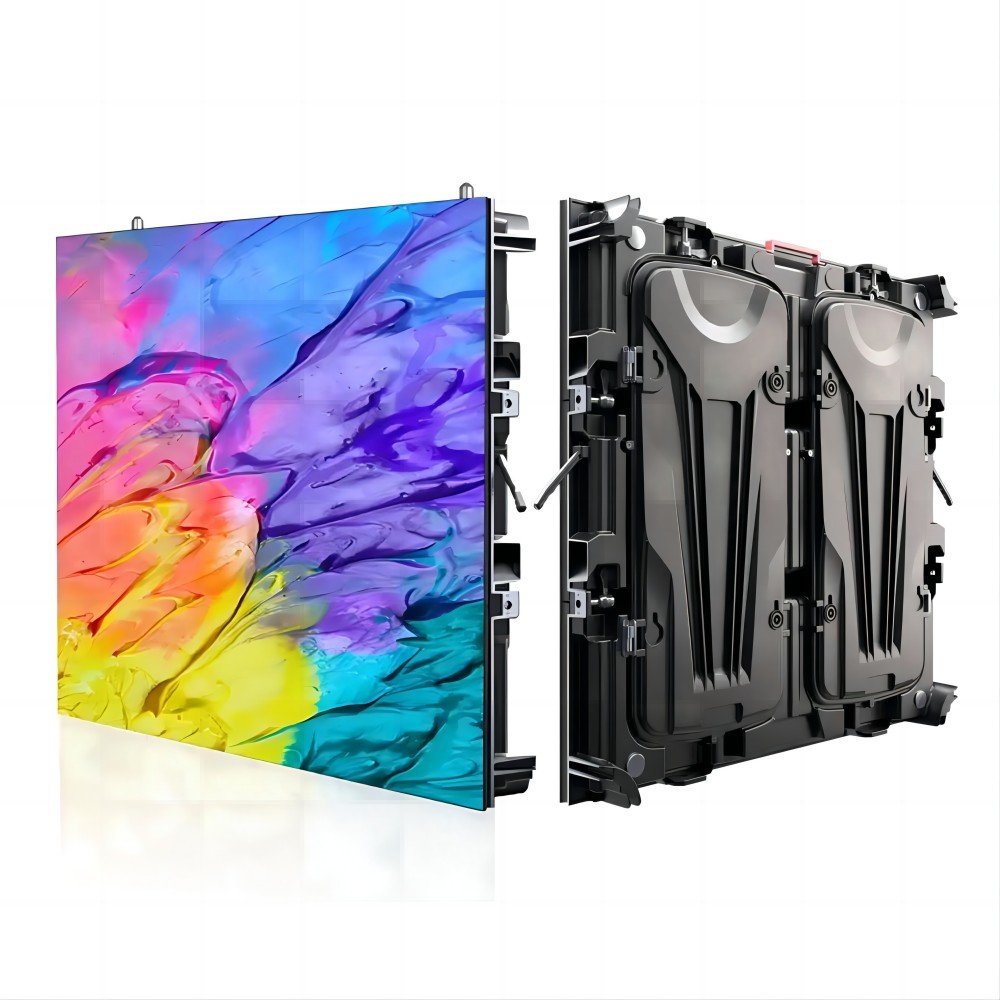

P4 P5 Outdoor Advertising LED Display High Definition Waterproof LED Panel
Waterproof High Brightness Fixed LED Display, LED Billboard
Feature:
- Die-cast aluminum cabinet, light weight,Fast lock for quick installation, only takes 10 seconds
- Front/Rear maintenance, direct wall mounting with high-precision led screen cabinet, extending service life
- IP65 waterproof
- High brightness and high contrast, clear viewing in outdoor bright environment
- Brilliant picture, vivid colors, stable picture quality, suitable for outdoor environment use
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch: 4mm, 5mm

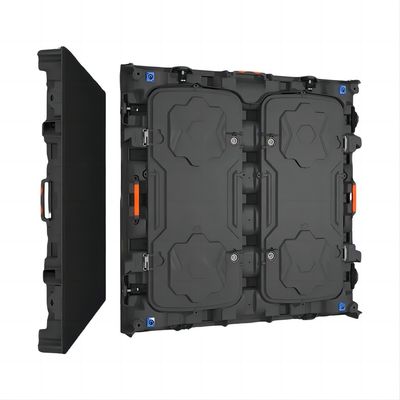

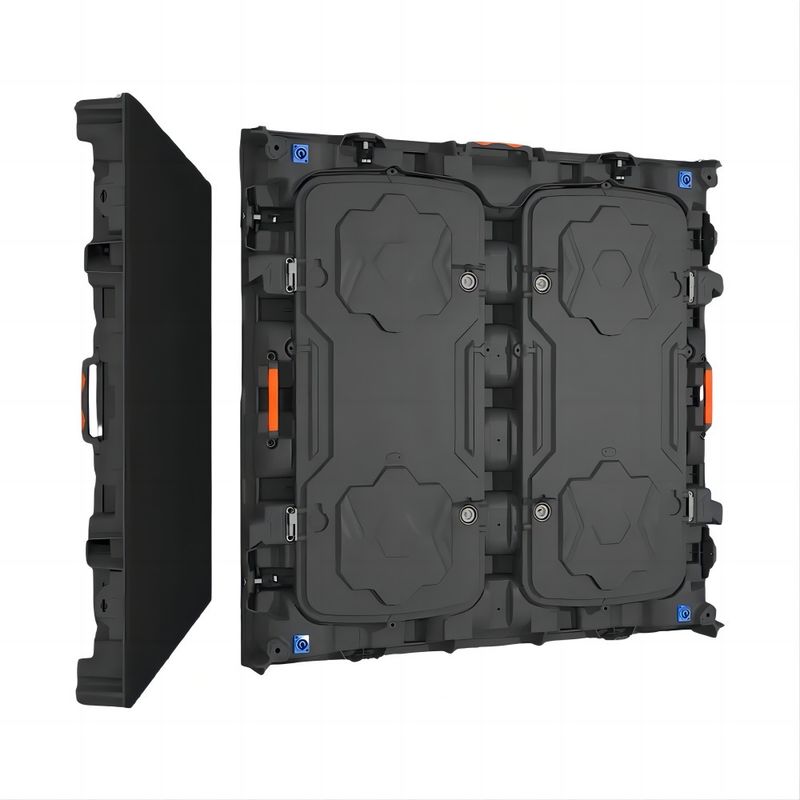

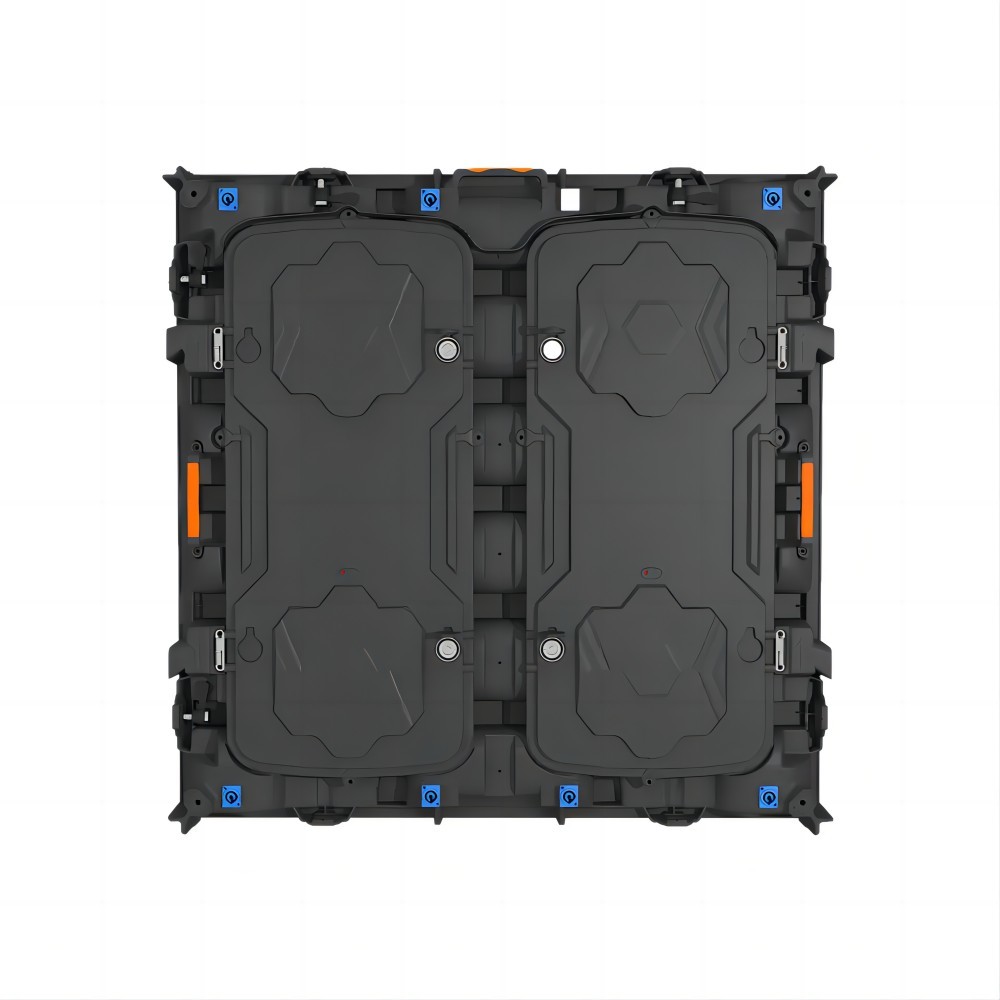

- Cabinet size: 960x960mm Die-casting Aluminum Cabinet
- Recommended Viewing Distance: 4m,5m
- Refresh Rate: 3840Hz

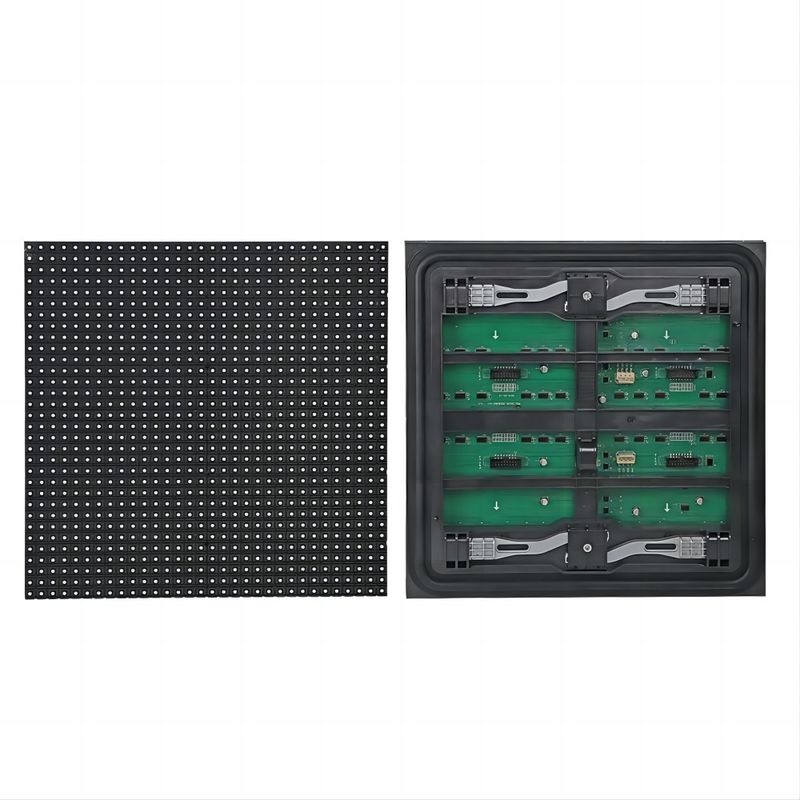

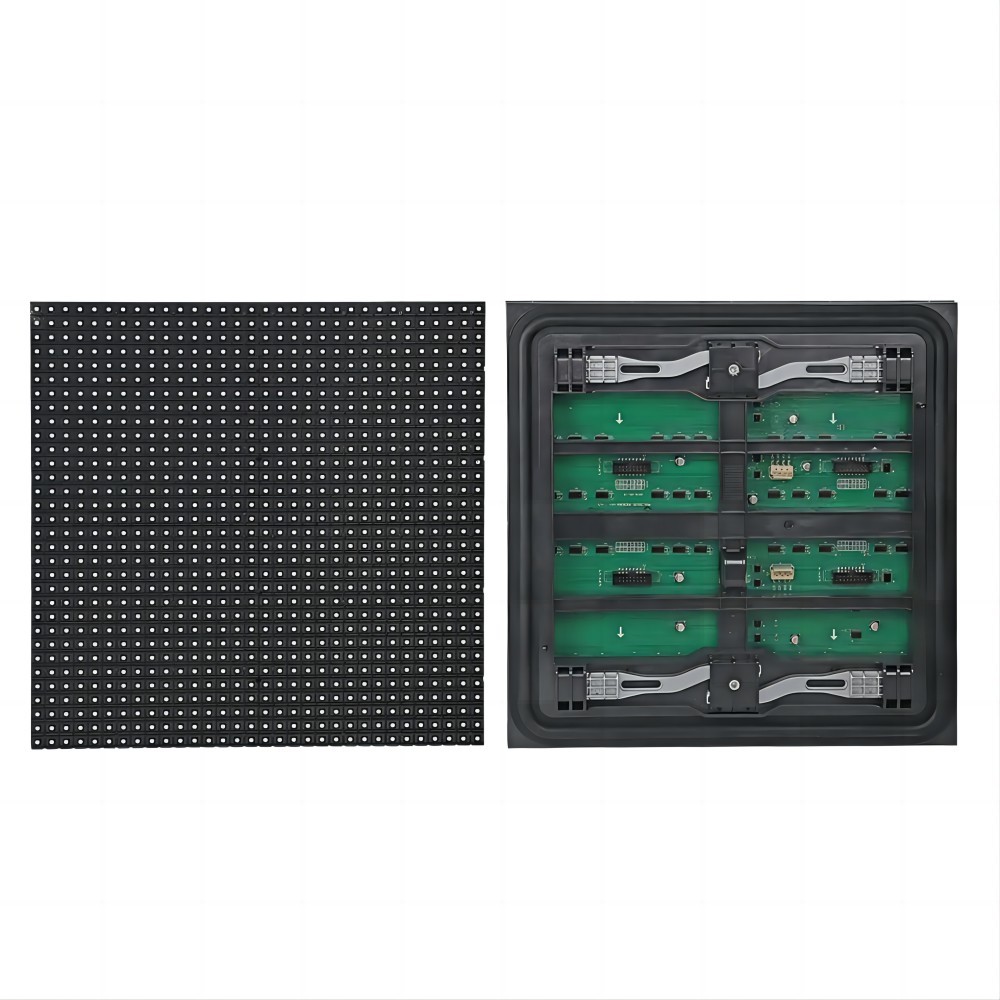

- LED Module size 320X320mm
Rear Service: 320X160mm LED Module
Front Service 320X320mm LED Module
- Multi Installation Way of Cabinet
- IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and stable operation in all kinds of outdoor environments.
- Seamless Splicing
Equipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions
Parameters:
| Model | E-N4 | E-N5 |
| Pixel Pitch | 4mm | 5mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 62500 pixels/m2 | 40000 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 |
| Module Resolution | 80 x 80 | 64 x 64 |
| Cabinet Resolution | 240 x 240 | 192 x 192 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Weight per Cabinet | 35kgs | 35kgs |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
