| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-C2.6, S-C2.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Front/Rear Service | Pixel Pitch: | P2.604mm, P2.976mm |
|---|---|---|---|
| Cabinet Size: | 500x500mm/500x750mm/500x1000mm | Service: | Front Service |
| Material: | Aluminum | Refresh Rate: | 3840Hz |
| Highlight: | Outdoor Advertising Display Screens P1.95mm,Outdoor Advertising Display Screens P2.6mm,P2.9mm outdoor advertising screen display |
||

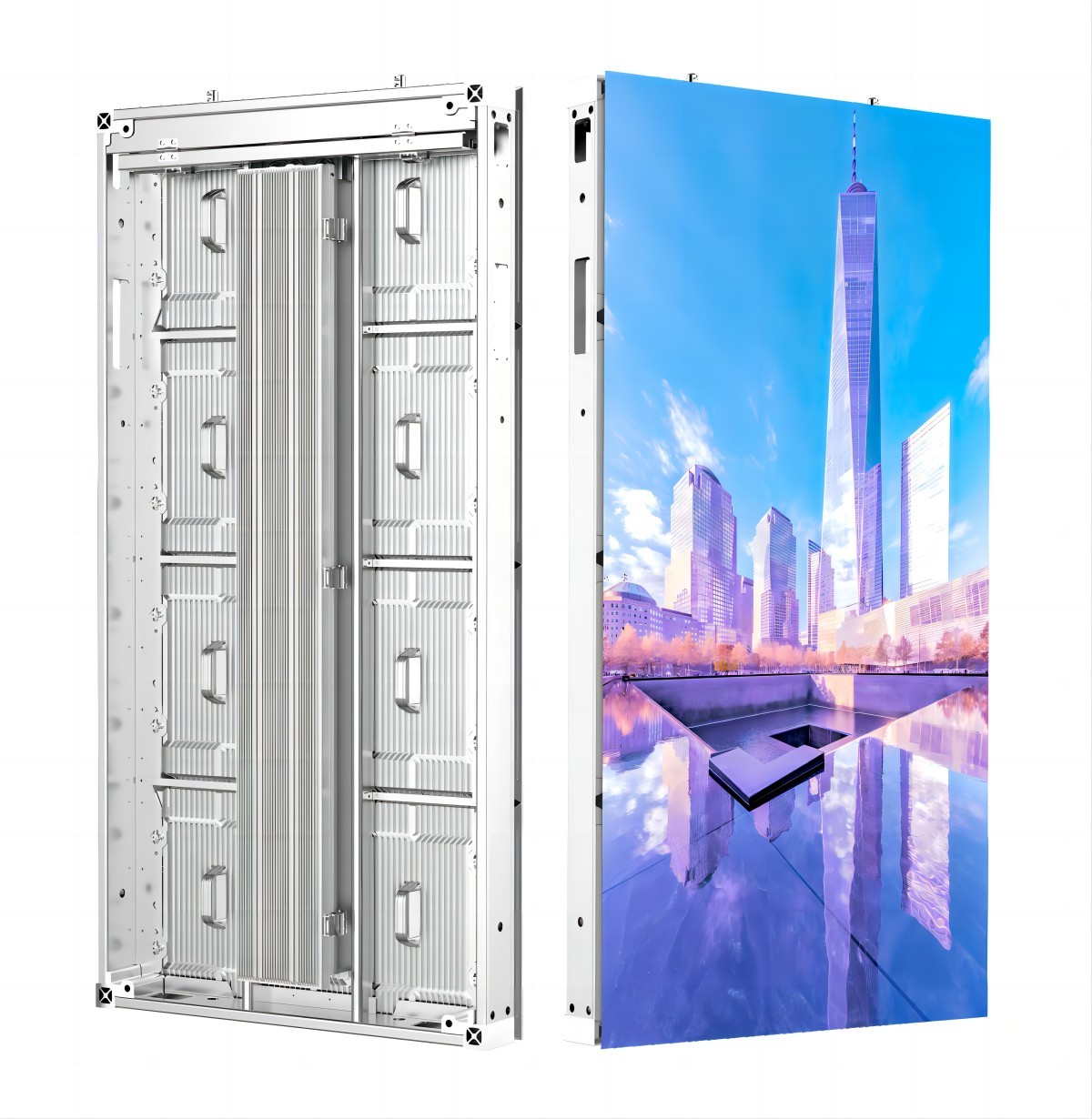

HD LED Outdoor Advertising Display Screens P2.6 P2.9mm 500X1000mm LED Cabinet
Outdoor Front Service advertising LED Display,
Features:
- Pixel Pitch P2.604mm,P2.96mm, aluminum chasis module;
- Direct wall mount design, no need steel structure;
- Magnetic front service and IP66 protection level
- Cabinet Size could be 500X500mm, 500X750mm and 500X1000mm.
- Die-casting Alumimun module ,High temperature durability ,Corrosion protection
Protection Level from high to low in UL94: 5VB>V0>V1>V2>HB
- Weight: 33KG/㎡ Thickness: 77mm
-Ultra Slim and Light Weight

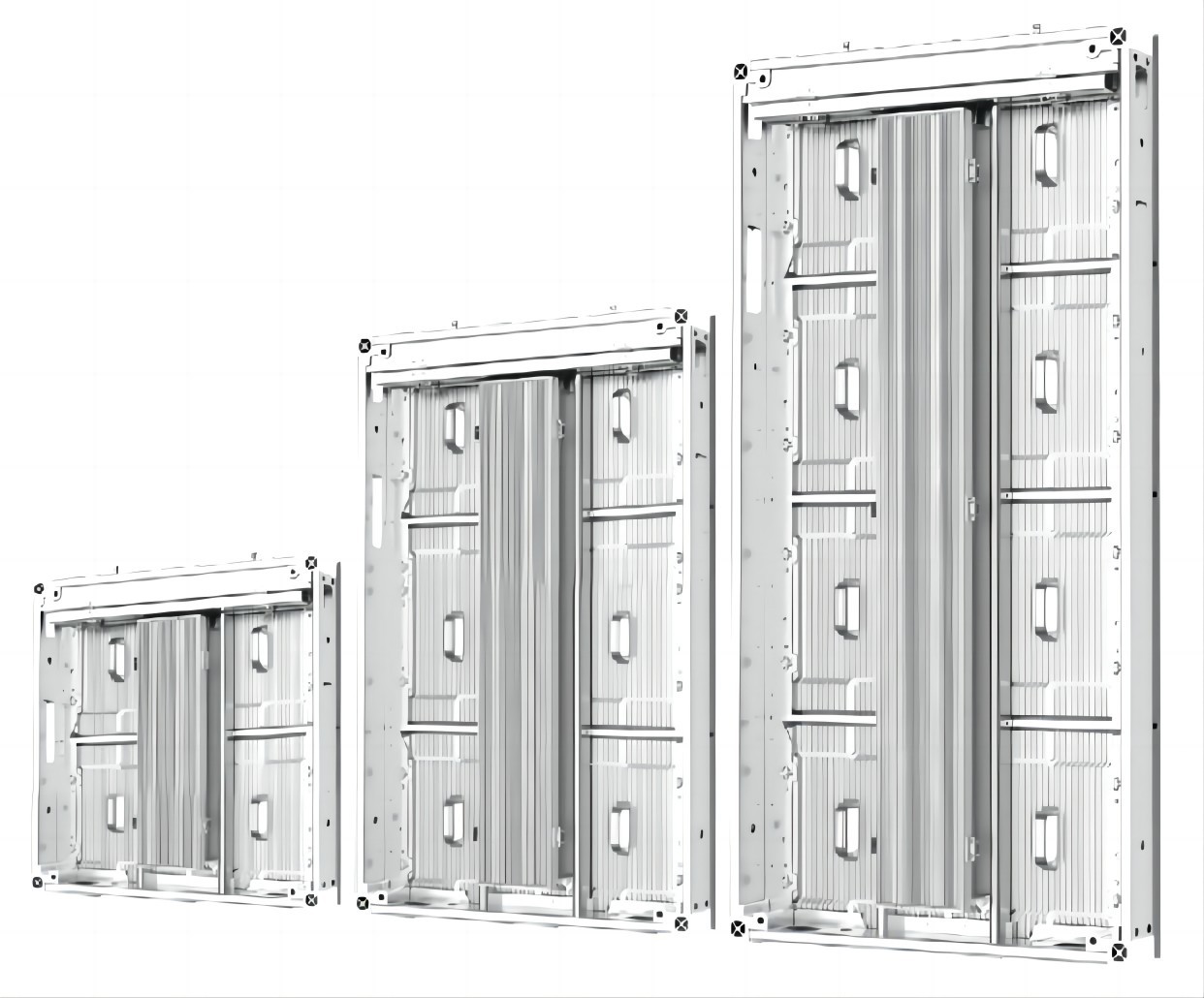

Different size choosing 500X1000mm, 500X750mm and 500X500mm
Elegant and Smart Cabinet Design
Cable less design, clean look; module pin connection with high stability; support 90 degree seamless corner
Saving Maintenance Costs
Direct wall mount design, no need steel structure; full magnetic front service, easy to take off modules
Support Front/Rear Service
Fireproof Protective Performance
Direct wall mount design, no need steel structure; full magnetic front service, easy to take off modules
Parameters:
| Model | S-C2.6 | S-C2.9 |
| Pixel Pitch | 2.604mm | 2.976mm |
| Pixel Configuration | SMD1515 | SMD1515 |
| Pixel Density | 147456 pixels/m2 | 112896 pixels/m2 |
| Module Dimensions(W x H)(mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500X500mm ,500X750mm 500X1000mm | 500X500mm ,500X750mm 500X1000mm |
| Module Resolution | 96 x 96 | 84 x 84 |
| Panel Material | Aluminum | Aluminum |
| Weight | 33kgs/sqm | 23kgs/sqm |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 750 W /Sqm | 750 W /Sqm |
| Brightness | >4,500 nits | >4,500 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP66 / IP66 | IP66 / IP66 |
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
