| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | E-M2.5 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Type: | Outdoor LED Advertising Display | Pixel Pitch: | P2.5mm |
|---|---|---|---|
| Cabinet Size: | 960x960mm | Service: | Rear Service |
| Weight: | 33kg | LED Type: | High Brightness SMD |
| Highlight: | SMD P4 LED Display Screen,High Brightness P4 LED Display Screen,Advertising p4 outdoor led display |
||
High Brightness HD P2 P2.5mm Outdoor LED Display Fine Pitch LED Cabinet
High Definition Led Display Screen For Advertising

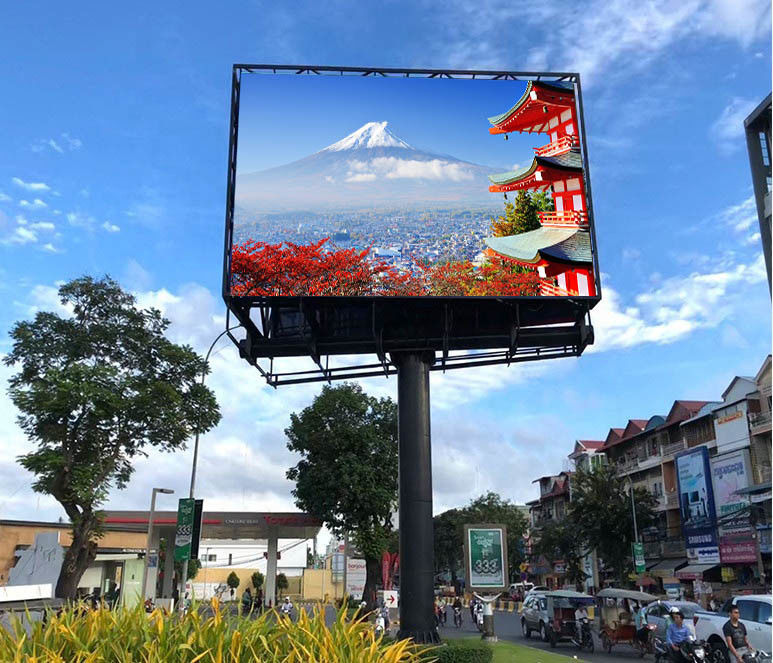

Application Of Outdoor LED Advertising Display
The front turning screen has the characteristics of convenient installation, light weight, capability of being hung on a wall and capable of being hoisted against the wall. The whole display screen can be made thin, which is very suitable for display screen settings in some special places. The products are mainly used in information announcements, image advertisements, activity advertisements, etc. Its advantage is to save the trouble of removing the whole screen when there is no maintenance space on the back, and its disadvantage is that the connection part of the two boxes needs several times more power lines and flat cables than the ordinary box. And the information content on the display screen can be changed at any time to display different information and advertisements for different customers all day long. The high-efficiency optical fiber transmission system effectively reduces the signal delay caused by long transmission distance and ensures the consistency of picture playing. It is believed that with the increasing segmentation of the display market demand, the demand for front maintenance LED display (LED front flip screen) is also increasing.
Quick Details
- Pixel Pitch: 2.5mm
- Cabinet size: 960x960mm Aluminum Cabinet
- Recommended Viewing Distance: 2.5m
- Refresh Rate: 3840Hz
- Ingress Rate: IP65 Outdoor Standard

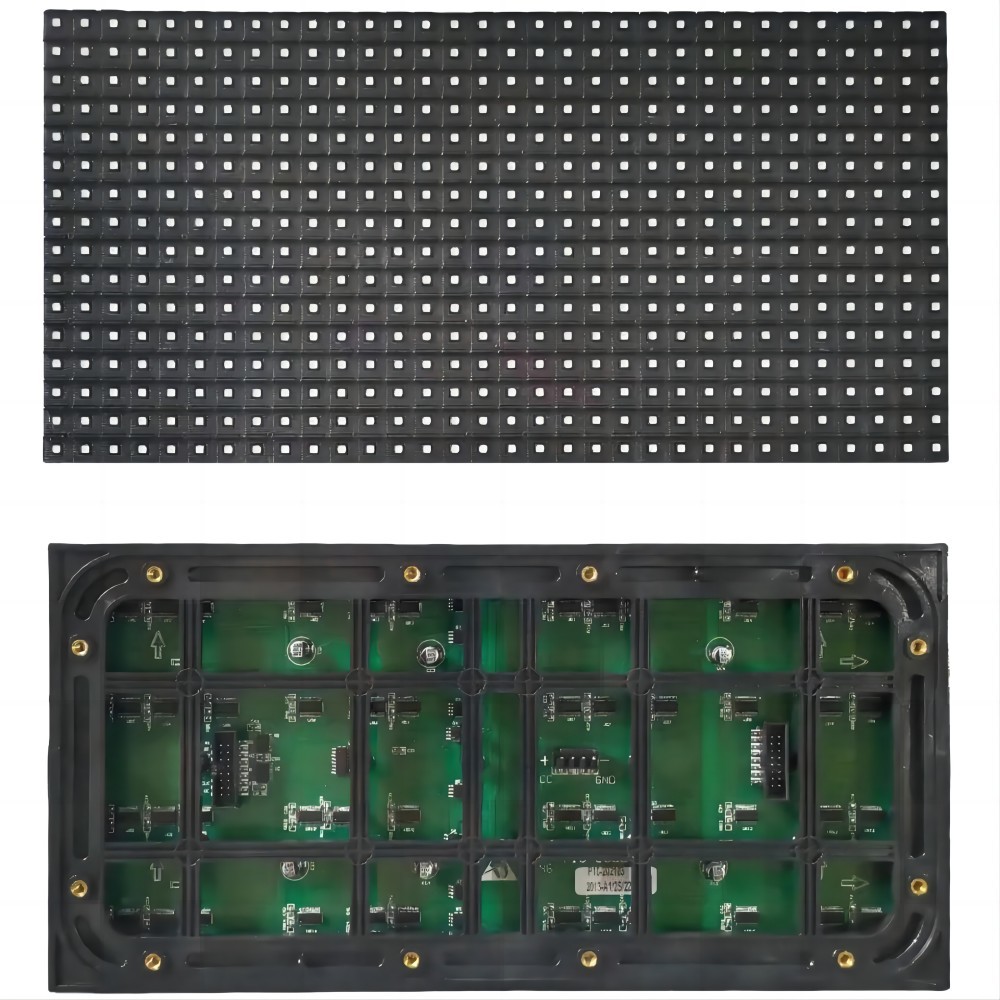

- LED Module size 320X160mm
Parameters:
| Model | E-M2.5 | E-M3 |
| Pixel Pitch | 2.5mm | 3.0769mm |
| Pixel Configuration | SMD1415 | SMD1921 |
| Pixel Density | 160000 pixels/m2 | 105625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 128 x 128 | 104 x 104 |
| Cabinet Resolution | 384 x 384 | 312 x 312 |
| Panel Material | Aluminum | Aluminum |
| Weight per Cabinet | 33kgs | 33kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
