| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | E-N6, E-N8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Outdoor LED Advertising Display | Pixel Pitch: | P6.67mm,P8mm |
|---|---|---|---|
| Cabinet Size: | 960x960mm | Service: | Front And Rear Service |
| Weight: | 35kg | LED Type: | High Brightness SMD |
| Highlight: | IP65 Outdoor Advertising LED Display,Outdoor Advertising LED Display P8mm,3840Hz advertising outdoor led display |
||
IP65 Outdoor Advertising LED Display P6.67mm P8mm 3840Hz Refresh Rate
Outdoor LED Advertising Display P8mm 3840Hz Refresh Rate

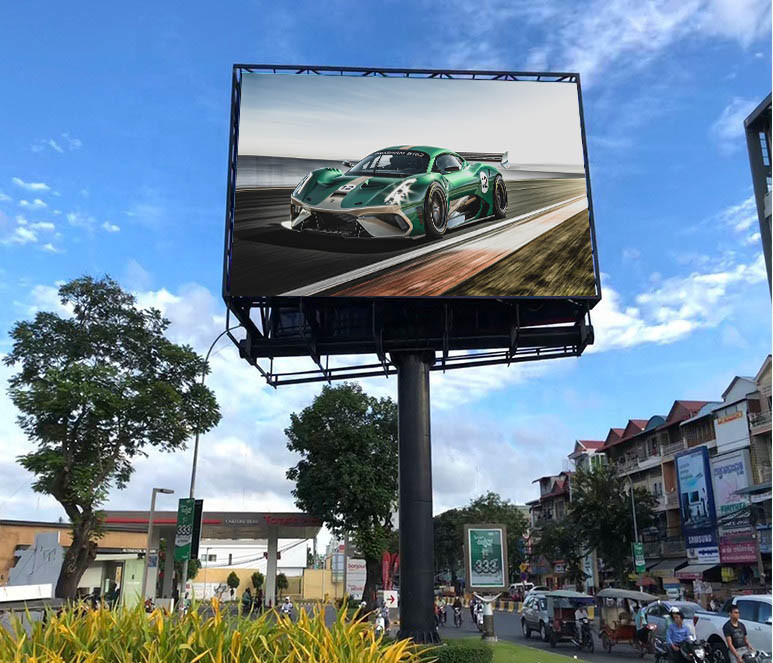

Application Of Outdoor LED Advertising Display
Front maintenance: Front maintenance is characterized by saving space. For wall-mounted structures, space is extremely expensive, so there will not be too many places left as maintenance channels. Therefore, the pre-maintenance can greatly reduce the overall thickness of the LED full-color display screen structure, which can not only be well integrated with the surrounding building environment but also save space while ensuring the effect. However, this structure has high requirements for the heat dissipation function of the equipment. The advantage of front maintenance is that the price is slightly lower, which is suitable for roof type, column type and other installation scenarios, and the inspection and maintenance are convenient and fast. For those large LED full-color display screens installed on the exterior walls of buildings, maintenance channels must be designed so that maintenance personnel can maintain and repair them from the back of the screen body.
- Die-cast aluminum cabinet, light weight,Fast lock for quick installation, only takes 10 seconds
- Front/Rear maintenance, direct wall mounting with high-precision led screen cabinet, extending service life
- IP65 waterproof
- High brightness and high contrast, clear viewing in outdoor bright environment
- Brilliant picture, vivid colors, stable picture quality, suitable for outdoor environment use
- Reduce operating costs,effectively extend led screen life
- Pixel Pitch: 6.67mm, 8mm
- Cabinet size: 960x960mm Die-casting Aluminum Cabinet
- Recommended Viewing Distance: 6m,8m
- Refresh Rate: 3840Hz

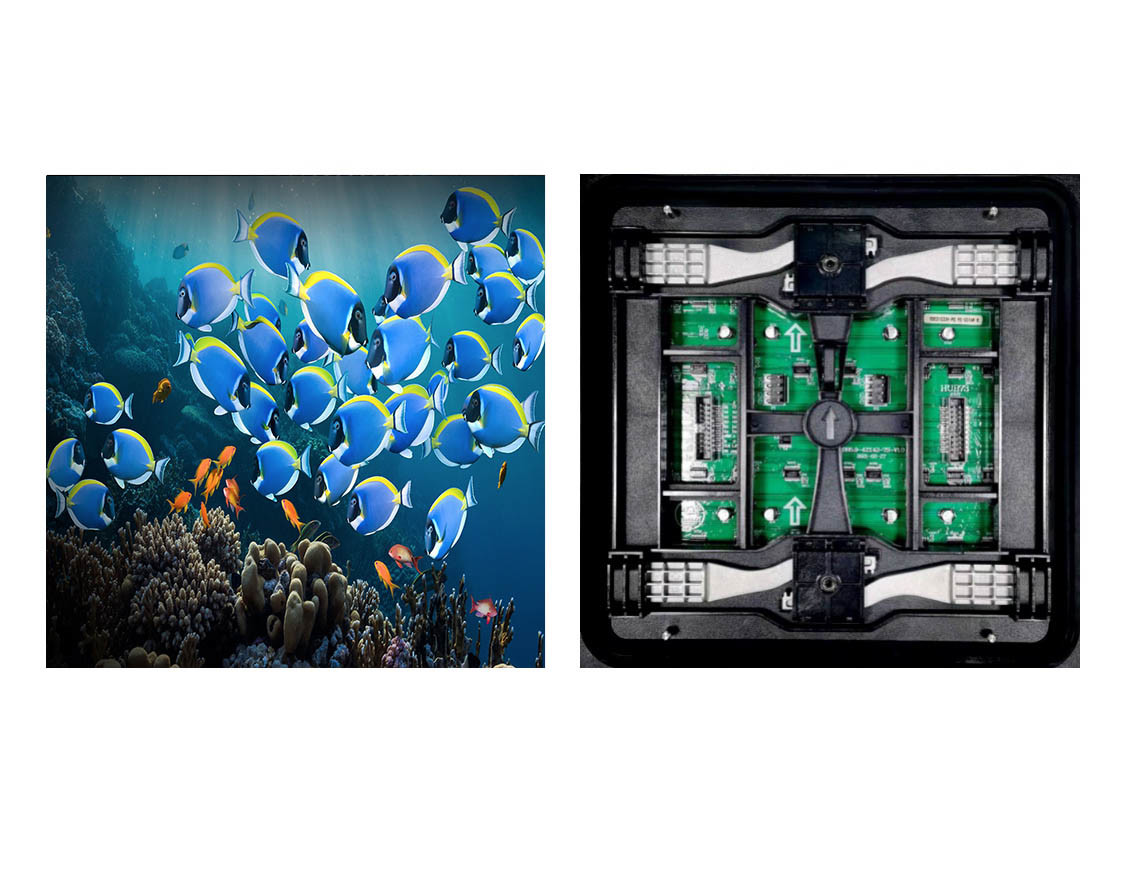

- LED Module size 320X320mm
Rear Service: 320X160mm LED Module
Front Service 320X320mm LED Module

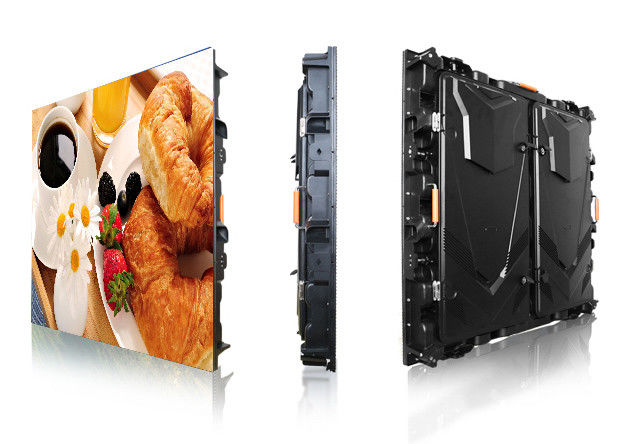

- Multi Installation Way of Cabinet

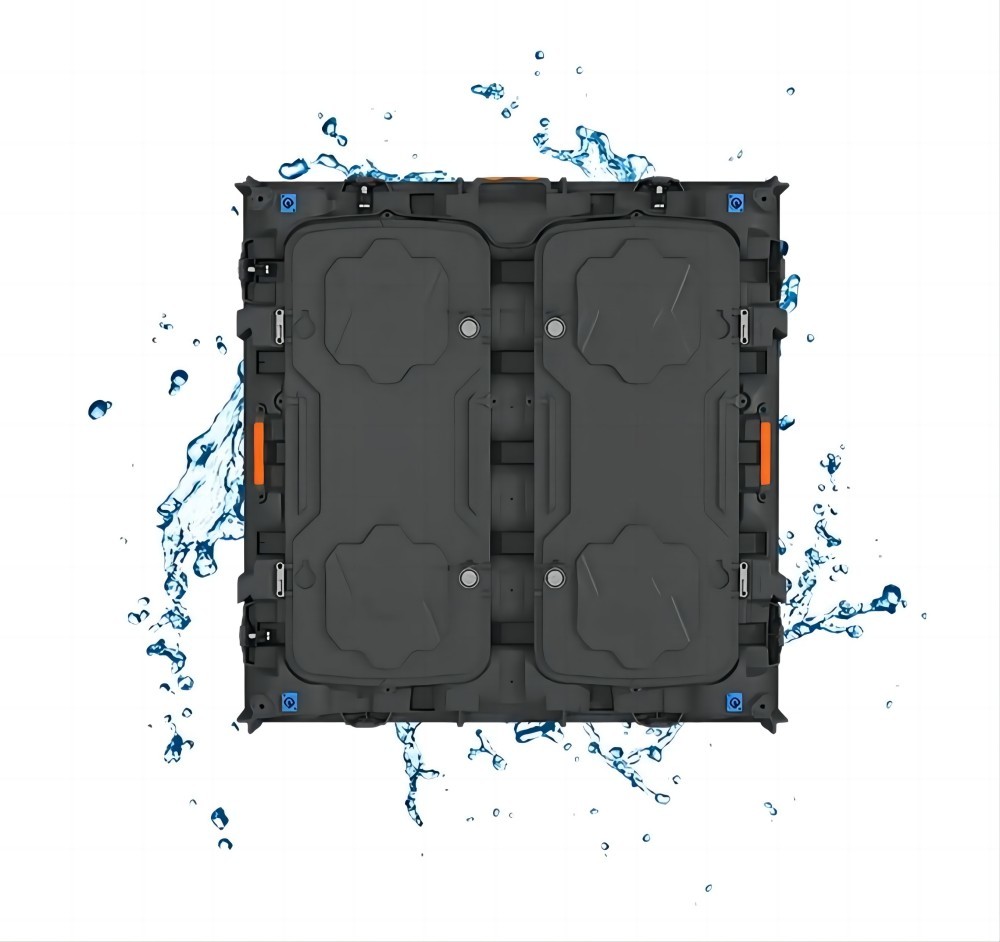

- IP65 Waterproof
IP65 waterproof protection on the front side ensures continuous and stable operation in all kinds of outdoor environments.
- Seamless Splicing
Equipped with unique lock, the position of each cabinet can be precisely adjusted from Six directions
| Model | E-N6 | E-N8 |
| Pixel Pitch | 6.67mm | 8mm |
| Pixel Configuration | SMD2727 | SMD2727 |
| Pixel Density | 22500 pixels/m2 | 15625 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 120 | 960 x960 x 120 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 |
| Module Resolution | 48 x 48 | 40 x 40 |
| Cabinet Resolution | 144 x 144 | 120 x 120 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Weight per Cabinet | 35kgs | 35kgs |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
