| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | E-C3.9, E-C4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 3.91mm,4.81mm | LED Type: | SMD |
|---|---|---|---|
| Cabinet Size: | 1000x1000mm | Viewing Angle: | 160°/160° |
| Brightness: | 6000nits | Ingress Rate: | IP65 |
| Highlight: | 6000 Nits LED Advertising Screen Outdoor,LED Advertising Screen Outdoor P3,High Definition P4 Outdoor LED Screen |
||
P3 P4 High-Definition LED Advertising Screen Outdoor LED Video Wall
Outdoor SMD Electronic Message Sign High Definition Led Advertising Video Wall
Widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports,
industry and commerce, taxation, customs, monitoring centers and advertising.
Features and Quick Details:
- High Visibility
Bright create high visibility even when in sunny days
Higher color uniformity and consistence
Higher definition and contrast

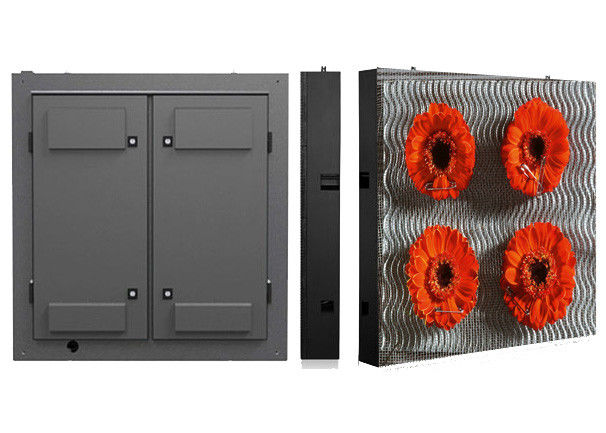

- Smart cabinet Design
IP65 Ingress rate for extreme weather protection
Cold rolled steel with good powder coating for anti-rust
Side handle convienent design for easy installation
- High Clarity SMD Technology
Closer viewing distance
Wider viewing angle
Front or rear serviceable

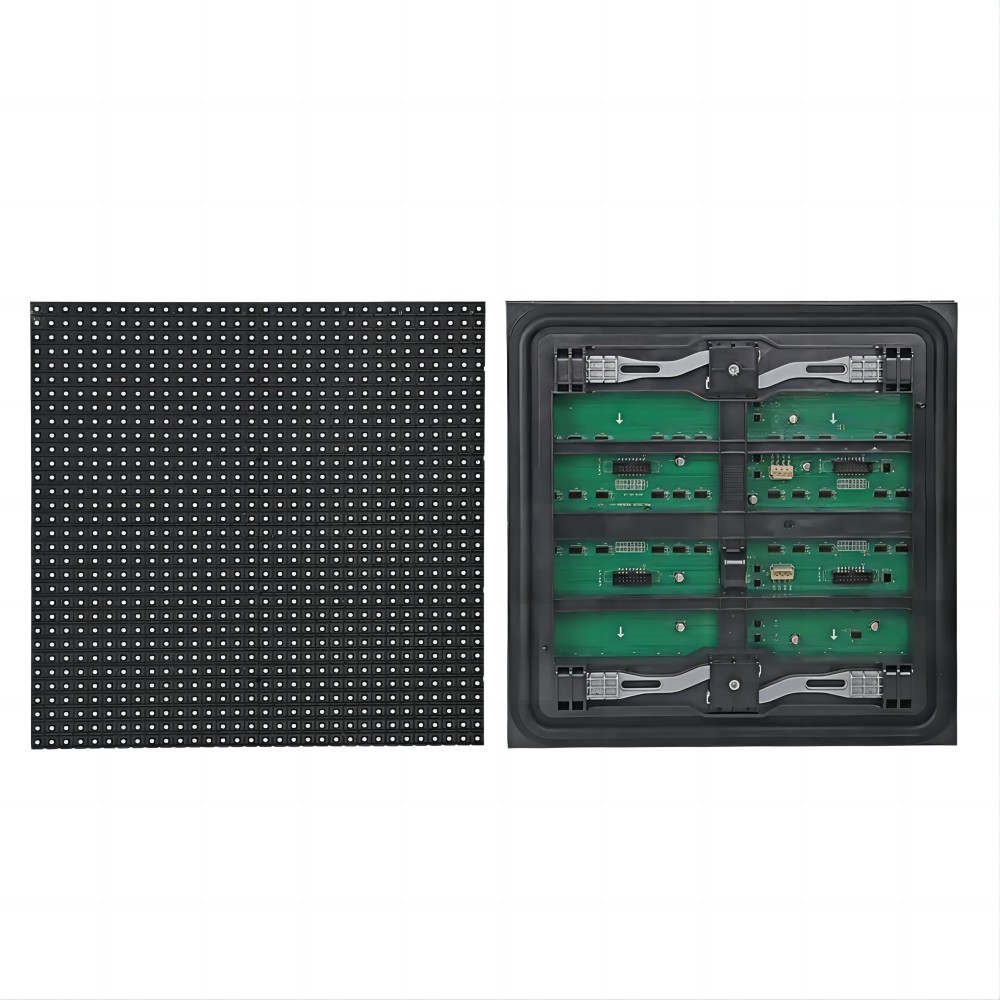

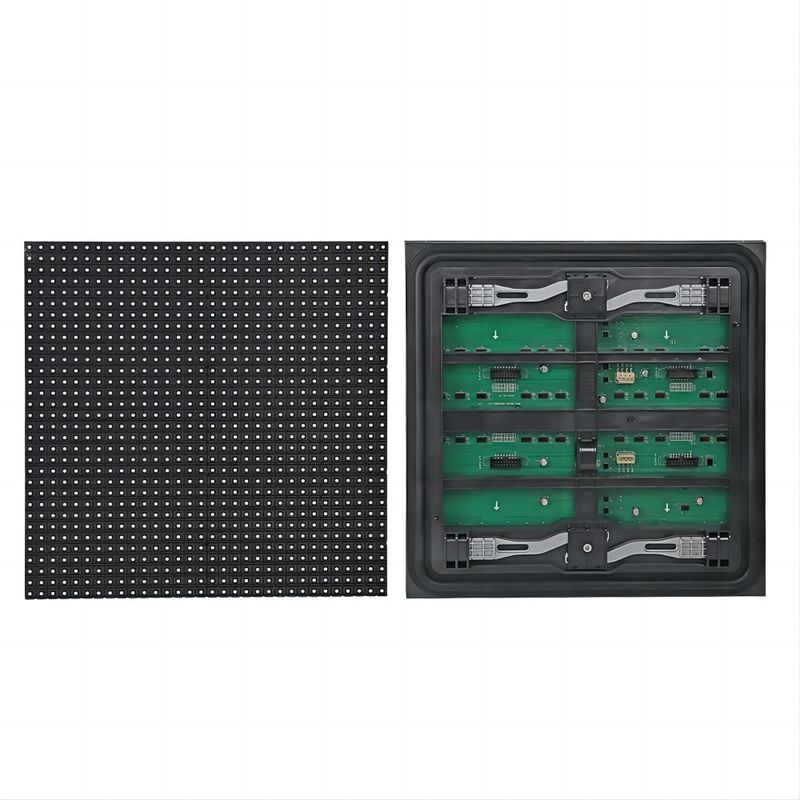

- LED Module size 250X250 front service
- IP rating: front: IP65/ rear: IP54, waterproof
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 4m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 250X250mm
Regular size 1000X1000mm, other size 1000X750mm,1000X500mm,1250X1000mm....
- Cabinet Look
Screw in cabinet or Plug surface
Parameters
| Model | E-C3.9 | E-C4.8 |
| Pixel Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 65536 pixels/m2 | 43264 pixels/m2 |
| Module Dimensions(W x H)(mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 1000 x 1000 x 150 | 1000 x 1000 x 150 |
| Modules Per Cabinet (W x H) | 4 x 4 | 4 x 4 |
| Module Resolution | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 256 x 256 | 208 x 208 |
| Panel Material | Cold steel | Cold steel |
| Weight per Cabinet | 44kgs | 44kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 300 W /Sqm | 300 W /Sqm |
| Max Power Consumption | 900 W /Sqm | 900 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |

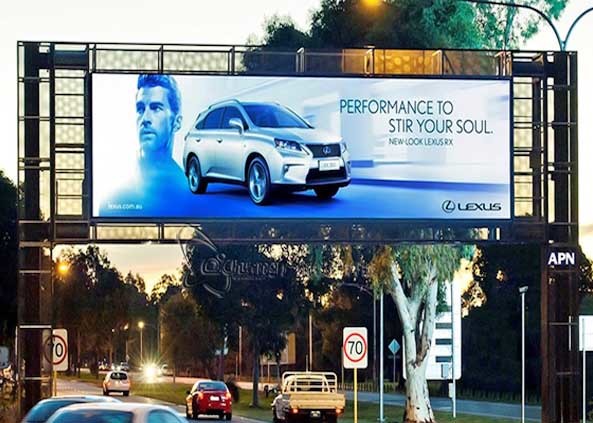

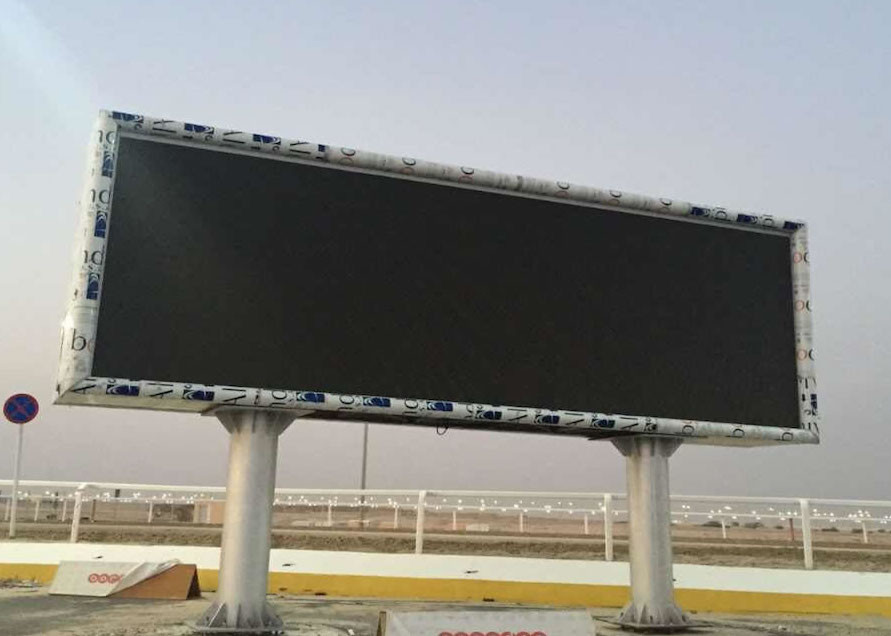

Pictures:
