HD P2 P2.5 Outdoor Advertising LED Display Real SMD 3 In 1 With High Brightness
Outdoor Advertising LED Display High Brightness HD LED Video Wall
E-A Series Advertising led displays pixel various from 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 6.77mm, 8mm, 10mm ...
Widely used for commercial advertising and broadcasting in school, airport, station, shopping mall, square, public places, advertising media and so on.
Quick Details:
- Pixel Pitch: 2mm,2.5mm
- IP rating: front: IP65/ rear: IP54, waterproof
- SMD LEDs, Wide viewing angle: 160°/ 160°
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 2m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X160mm
Regular size 960X960mm, other size 960X640mm,960X800mm,1280X960mm....
- Traditional Design
- Power/Signal cable plug choosed design
- Different Intsllation Types
Parameters:
| Model |
E-A2 |
E-A2.5 |
| Pixel Pitch |
2mm |
2.5mm |
| Pixel Configuration |
SMD1211 |
SMD1415 |
| Pixel Density |
250000 pixels/m2 |
160000 pixels/m2 |
| Module Dimensions(W x H)(mm) |
160 x 160 |
320 x 160 |
| Panel Dimensions (mm) |
960 x960 x 170 |
960 x960 x 170 |
| Modules Per Cabinet (W x H) |
6 x 6 |
3 x 6 |
| Module Resolution |
80 x 80 |
128 x 128 |
| Cabinet Resolution |
480 x 480 |
384 x 384 |
| Panel Material |
Cold steel |
Cold steel |
| Weight per Cabinet |
39kgs |
39kgs |
| Colors |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
330 W /Sqm |
330 W /Sqm |
| Max Power Consumption |
950 W /Sqm |
950 W /Sqm |
| Brightness |
>6,000 nits |
>6,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
| Vertical Viewing Angle |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Rear |
Rear |

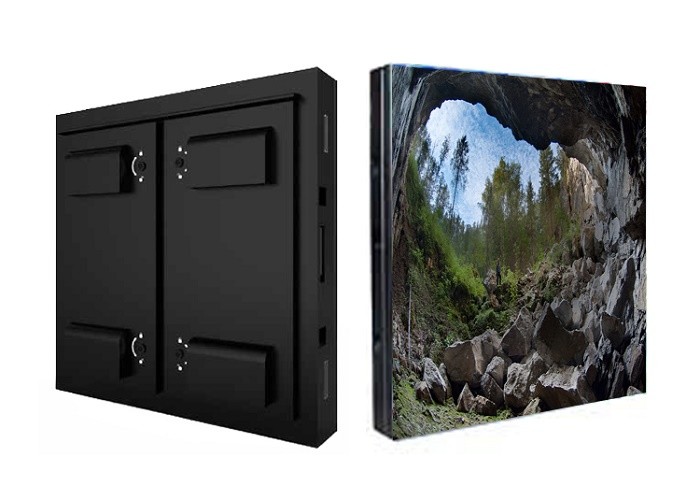

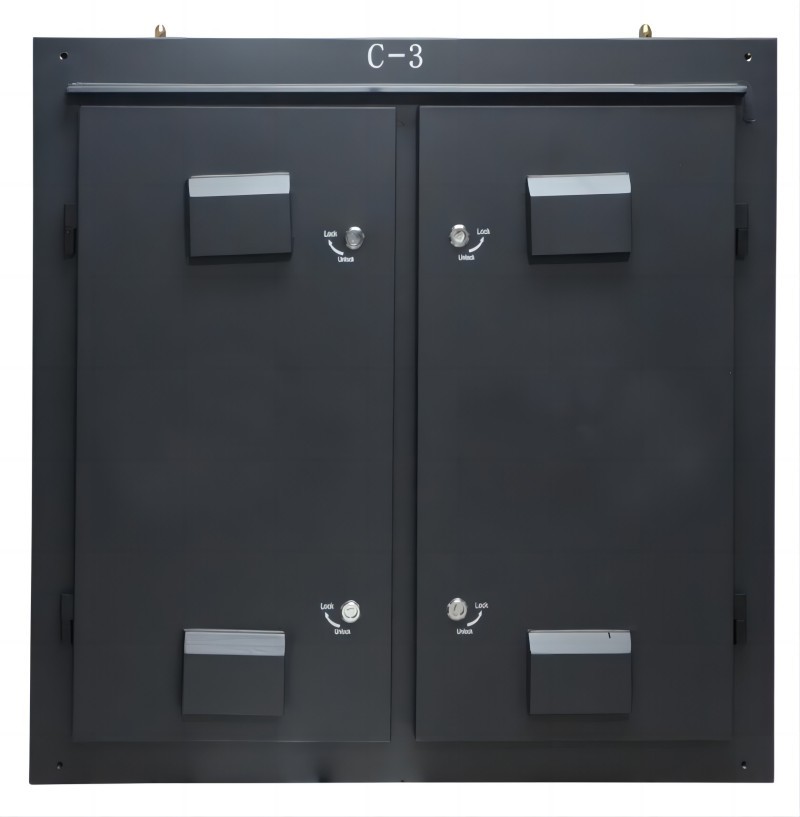

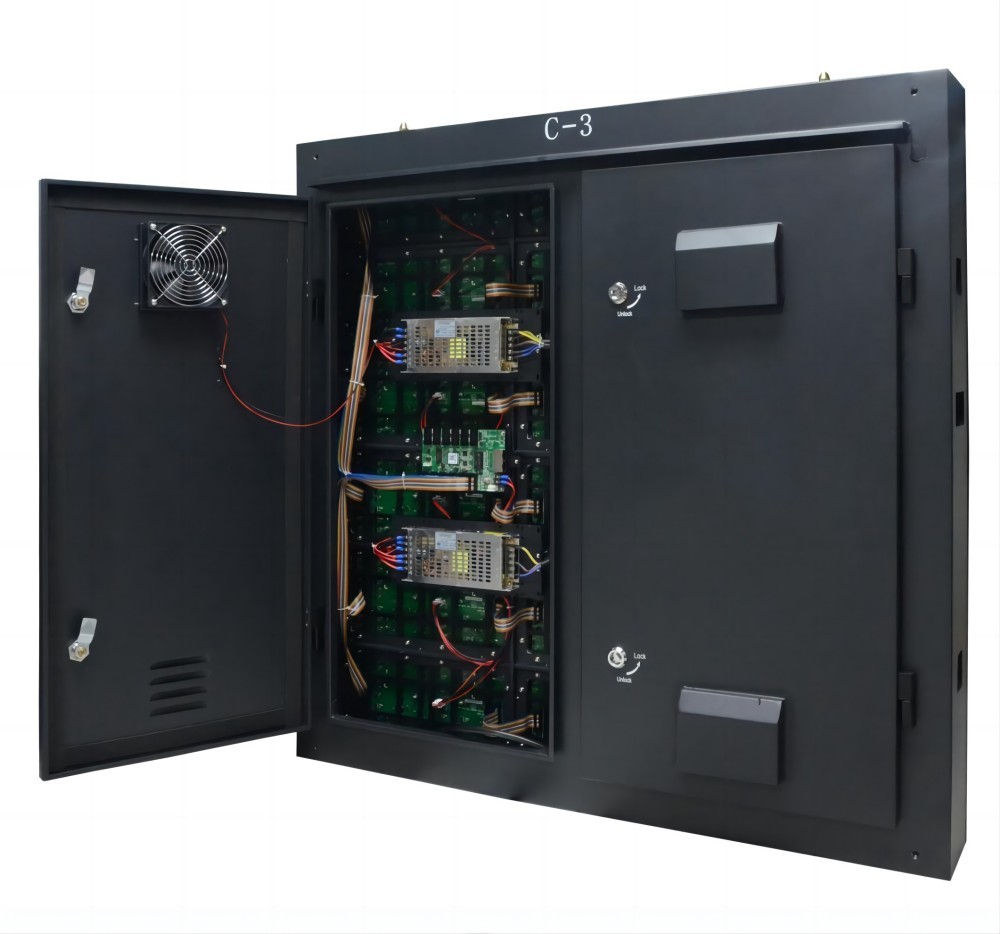

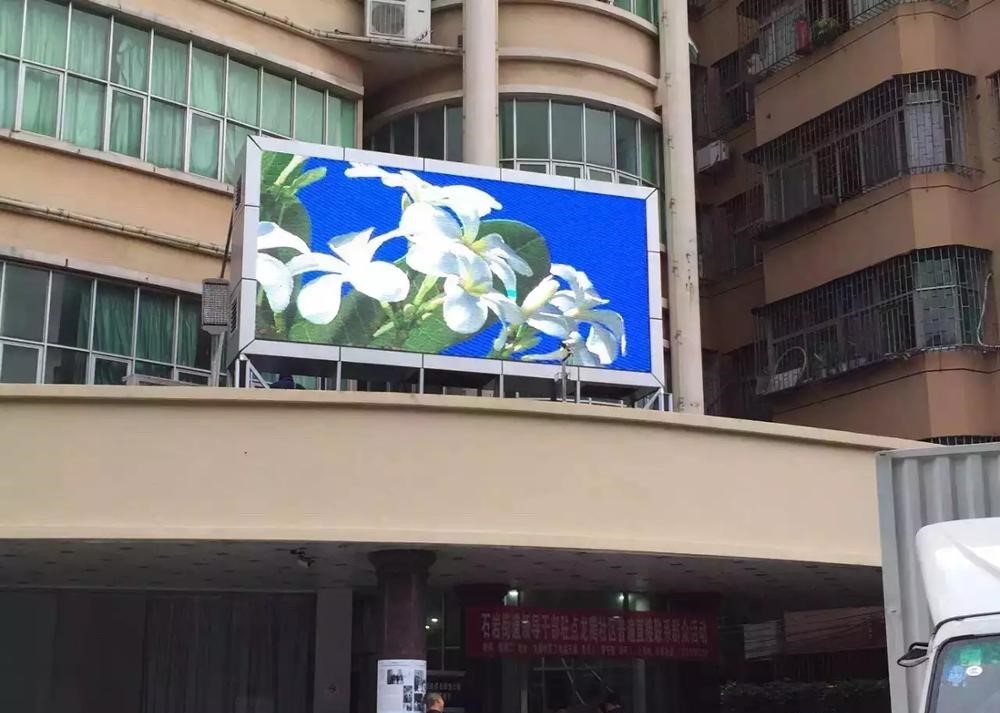

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
