| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | E-A5, E-A6 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 5mm,6.67mm | Color: | RGB Full Color |
|---|---|---|---|
| LEDs: | SMD 3in1 | Material: | Steel/Aluminum |
| Cabinet Size: | 960mmx960mm | Refresh Rate: | 3840hz |
| Highlight: | P6 Outdoor Advertising LED Display,Outdoor Advertising LED Display Customized,Digital Billboard P6 LED Display |
||

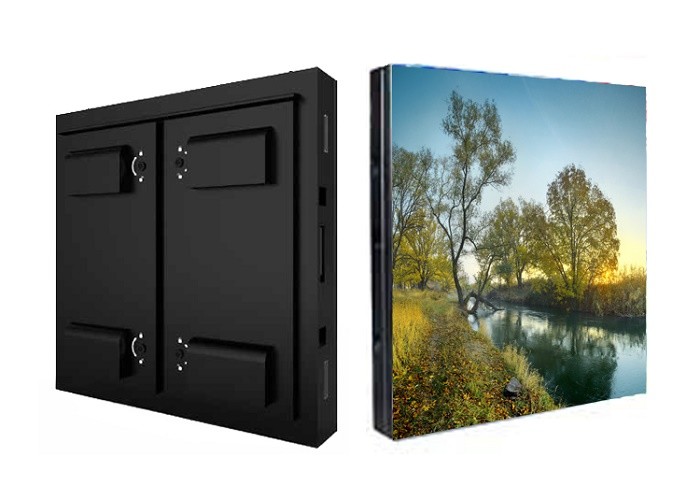

Outdoor Digital Billboard P5 P6 LED Video Wall Screen Waterproof
High Definition Advertising LED Display Outdoor Customized Digital Billboard
Led display introduction:
- High intensity and can be adjusted, so can meet the request of the customers according the application environment.
- Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
- To pictures and character, have clear, exquisite and real display effect
- Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

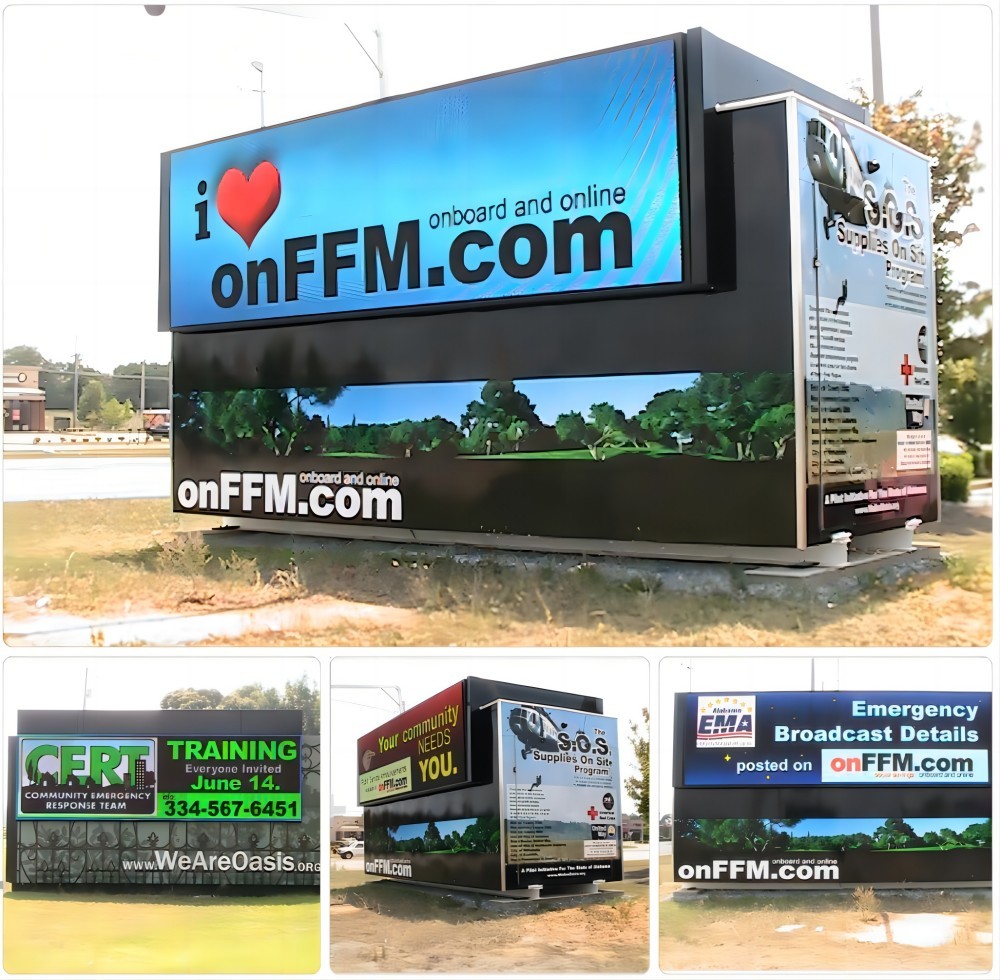

- Widely using in physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
Quick Details:
- Pixel Pitch: 5mm,6mm
- IP rating: front: IP65/ rear: IP54, waterproof
- SMD LEDs, Wide viewing angle: 160°/ 160°
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 5m,6m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X160mm
Regular size 960X960mm, other size 960X640mm,960X800mm,1280X960mm....

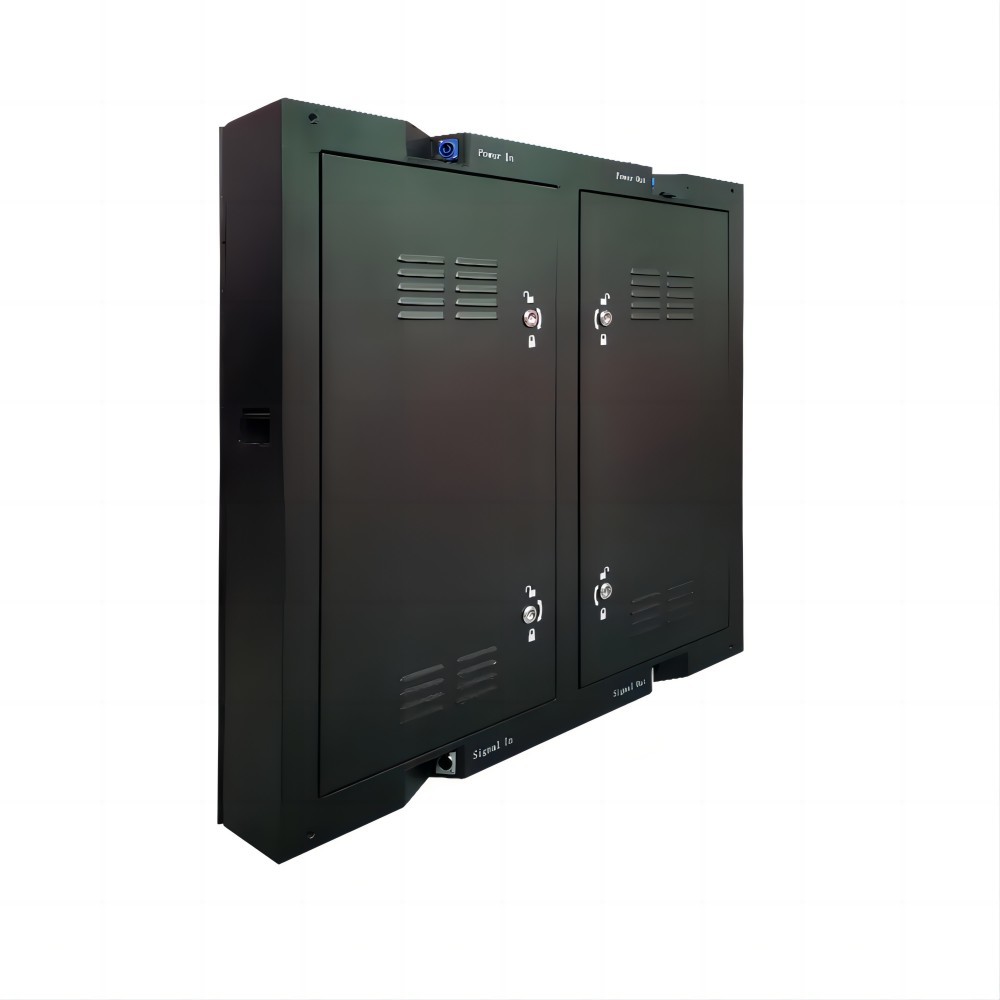

- Traditional Cabinet Design
- Power/Signal cable plug choosed design
- Support 90 degree or curve splicing
Support eye naked 3D LED Screen
-Support customized LED lamp,power supply and engery saving IC, making LED cabinet/display engergy saving.
Parameters:
| Model | E-A5 | E-A6 |
| Pixel Pitch | 5mm | 6.67mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 40000 pixels/m2 | 22500 pixels/m2 |
| Module Dimensions(W x H)(mm) | 320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 180 | 960 x960 x 180 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 64 x 64 | 48 x 48 |
| Cabinet Resolution | 192 x 192 | 144 x 144 |
| Panel Material | Cold steel | Cold steel |
| Weight per Cabinet | 39kgs | 39kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |

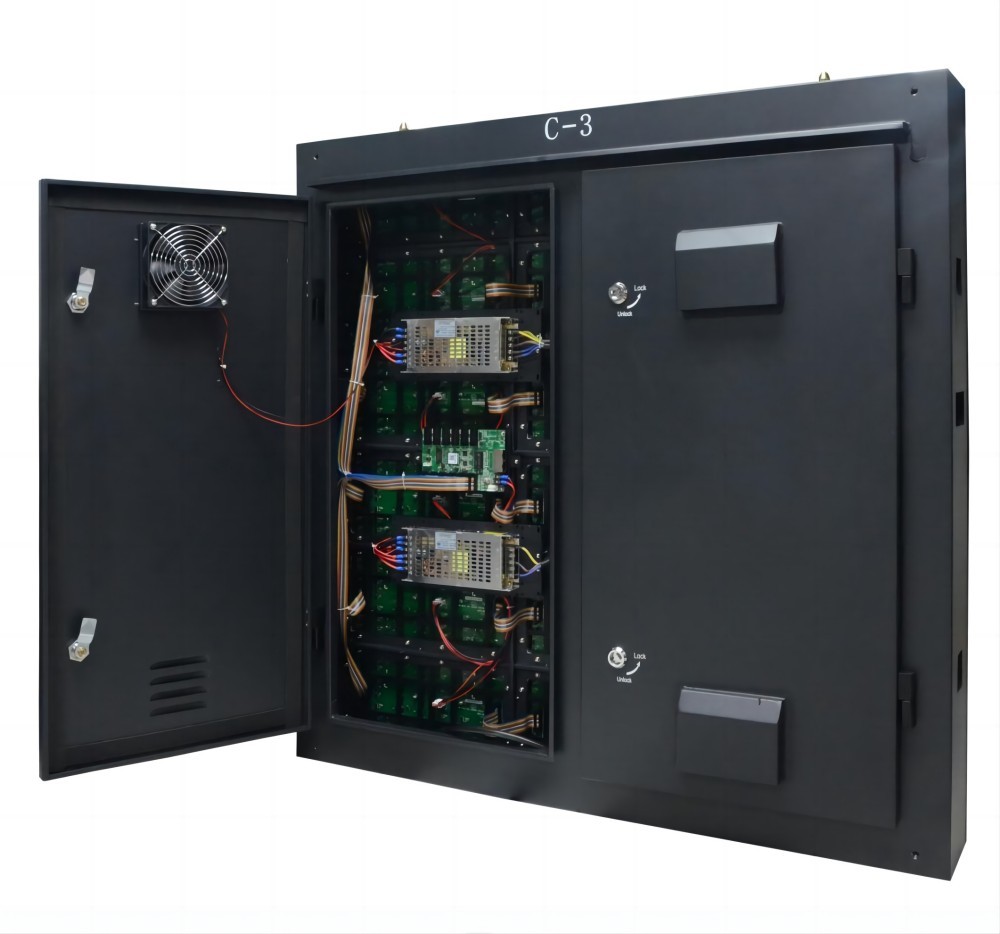

| Servicing | Rear | Rear |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
