| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | E-A8, E-A10 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000sqm/month |
| Pixel: | 8mm,10mm | LEDs: | Real SMD 3in1 |
|---|---|---|---|
| Cabinet Size: | 960X960mm | Material: | Steel/Aluminum |
| Module Size: | 320X160mm | Refresh Rate: | 3840hz |
| Highlight: | LED Advertising Screen Outdoor,LED Advertising Screen P8mm,High Definition Outdoor LED Display Screen |
||
High Definition P8mm P10mm Full Color Outdoor Fixed LED Display Screen
High Definition Led Advertising display P8mm Outdoor Electronic Billboard
LED display screens are widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, customs, securities markets, bidding markets, schools, factories, ports, stadiums, airports,industry and commerce, taxation, customs, monitoring centers and advertising. The entertainment industry, and real estate trading centers and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.
Quick Details:
- Pixel Pitch: 8mm,10mm
- IP rating: front: IP65/ rear: IP54, waterproof
- SMD LEDs, Wide viewing angle: 160°/ 160°
- Input voltage: 110V/220V AC, 50/60Hz
- Recommended minimum viewing distance: 8m,10m
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 320X160mm
Regular size 960X960mm, other size 960X640mm,960X800mm,1280X960mm....
- Power/Signal cable plug choosed design
- Support 90 degree or curve splicing
Support eye naked 3D LED Screen
-Support customized LED lamp,power supply and engery saving IC, making LED cabinet/display engergy saving.
Parameters:
| Model | E-A8 | E-A10 |
| Pixel Pitch | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD3535 |
| Pixel Density | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions(W x H) (mm) |
320 x 160 | 320 x 160 |
| Panel Dimensions (mm) | 960 x960 x 180 | 960 x960 x 180 |
| Modules Per Cabinet (W x H) | 3 x 6 | 3 x 6 |
| Module Resolution | 40 x 40 | 32 x 32 |
| Cabinet Resolution | 120 x 120 | 96 x 96 |
| Panel Material | Cold steel | Cold steel |
| Weight per Cabinet | 39kgs | 39kgs |
| Colors | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm |
| Brightness | >6,000 nits | >6,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |

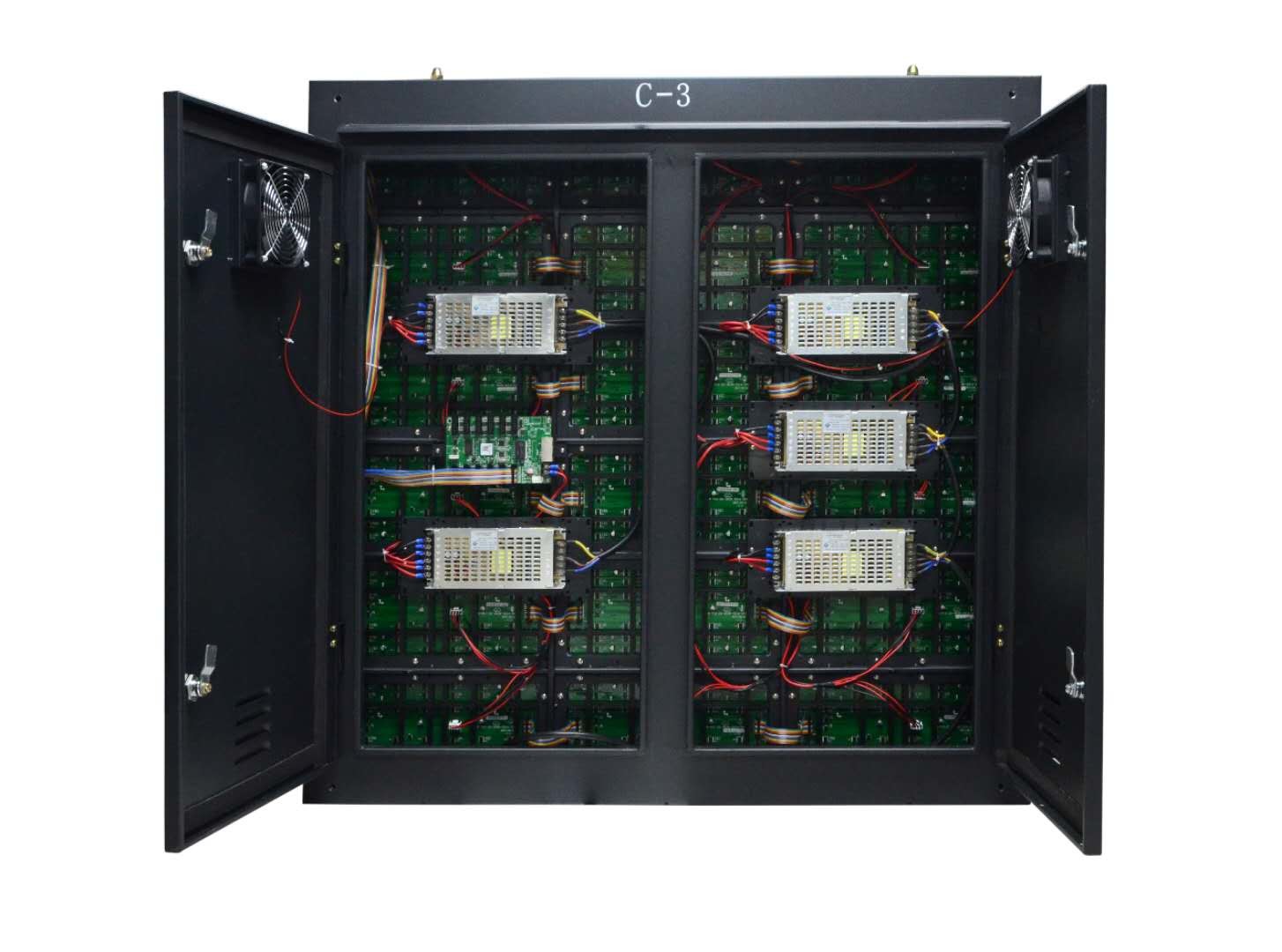

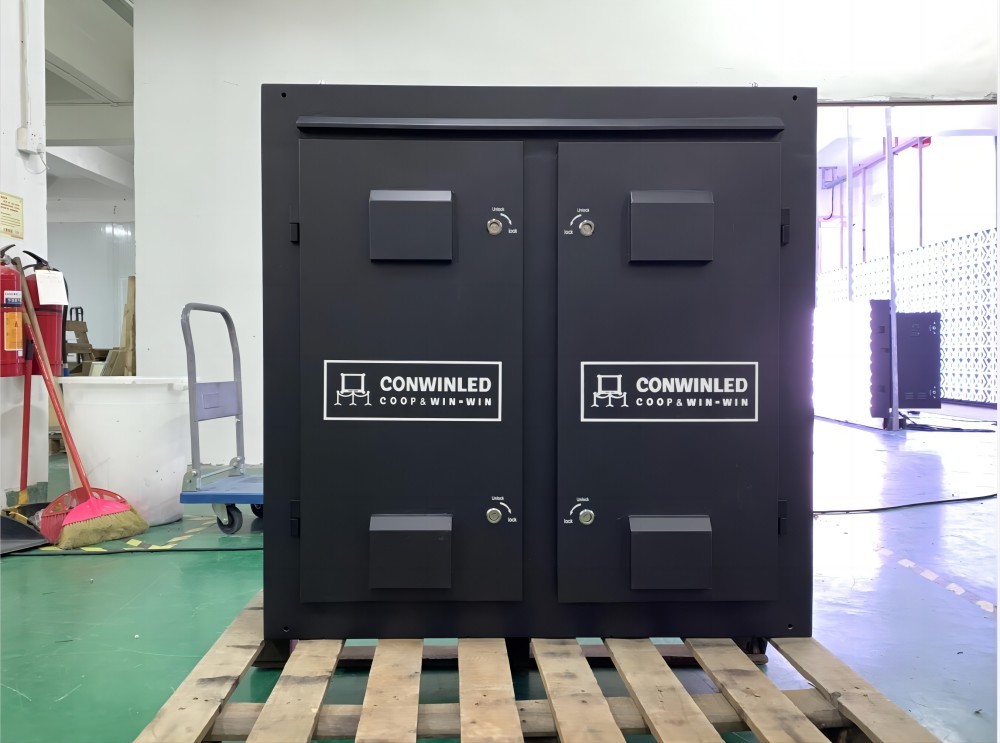

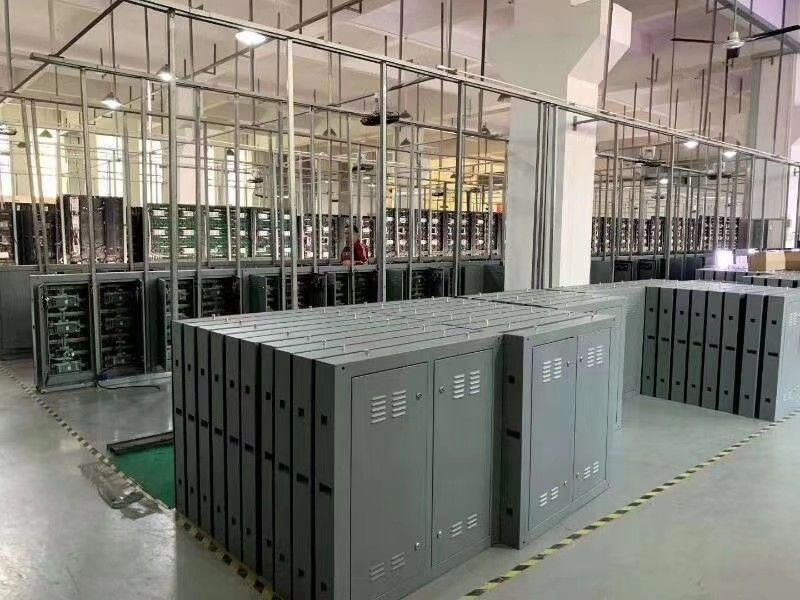

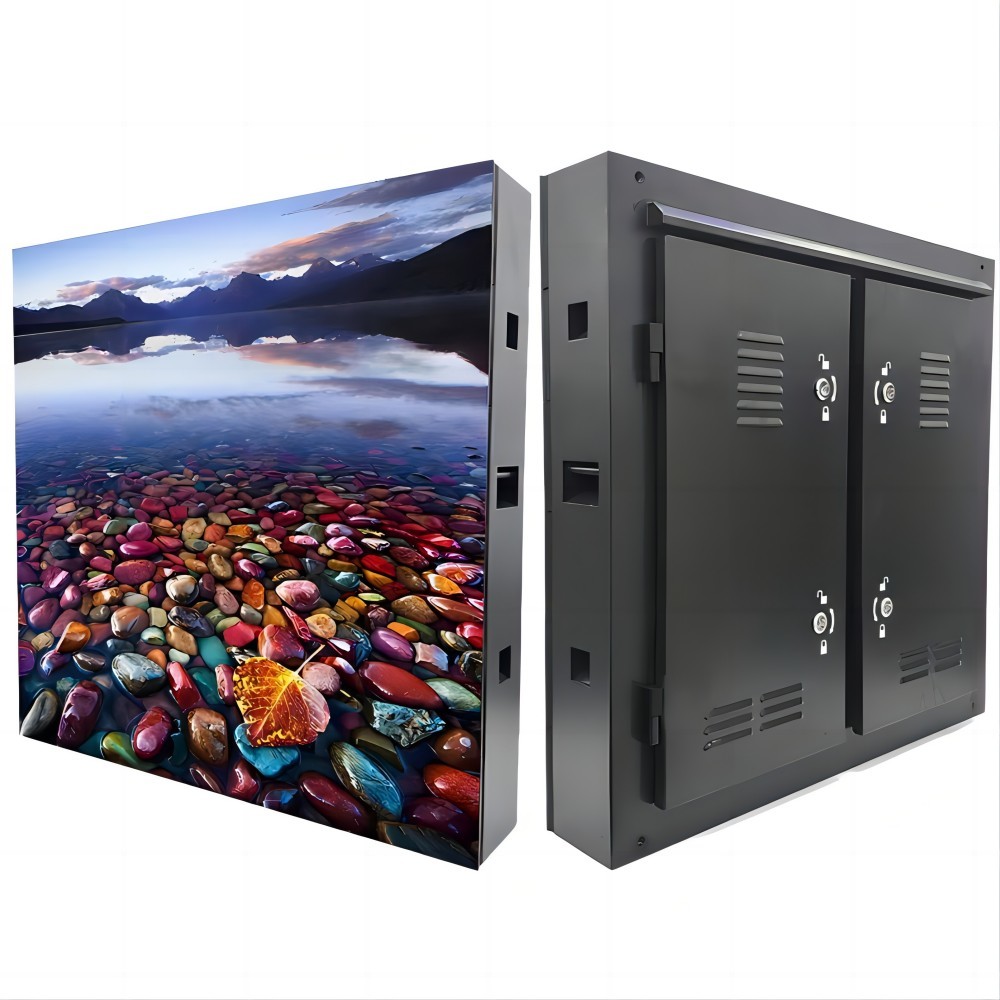

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
