Indoor Interactive Gravity Sensing Non-slip LED Dance Floor Display Panel Mall Booth Floor Tile Video Wall

Characteristics of Interactive Tile LED Screen

1. Supports intelligentinteractivefunction, people can interactwith the dance floor leddisplay,enhance the interestingness,reach highrealistic immerslve sceneexperience.Built-in interaction system,16 sensors in each module.

2. Installs and offers support and maintenance for Digital LED screens for a variety of applicatlons.

3. A selection of Pixel Pitches and brightness optionsare available from only 2.5mm upwards and we willadvise on the most appropriate pitch dependingupon the content to be displayed.

4. Featured with point-to-face contact and support technology,the loading capacity is over 2000kg/㎡

5.The modules mask is constructed from high transparency andwear-resistant material, for excellent anti-scratch and anti-wear performance.

Product Description

Features:

* No delay in interaction effects
* Easy to repair
* Highly stable
* Wide viewing angle
* Adjustable height

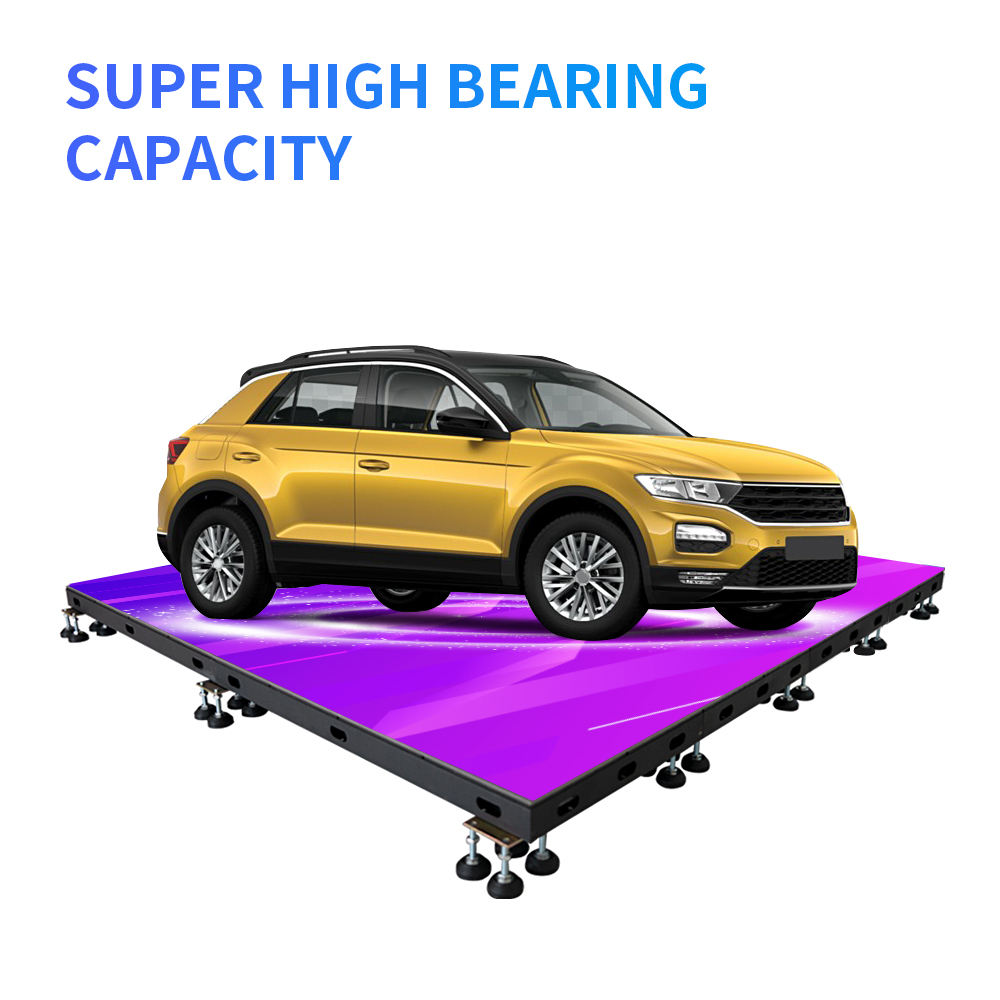

* Super load bearing performance

Interactive floor LED display is the ideal choice for brands or sellers to interact with customers. Among all the similar products, it stands out with its unique competitive advantages.

◆ Uniform color, high contrast, brightness can be adjusted, clear natural
◆ Low power, low calorie, energy saving
◆ Ultra-wide angle of view, expand audience
◆ Patented mask design plus unique ink treatment, presenting industry-leading super high contrast
◆ Signal, power supply is stable, safe and reliable
◆ Box multiple waterproof design, single box detection factory, protection rating IP66
◆ Classic module design, superior product performance, stable
◆ The cabinet does not need to add any peripheral protection equipment, such as tempered glass, acrylic, PC board, etc., directly stepping on!

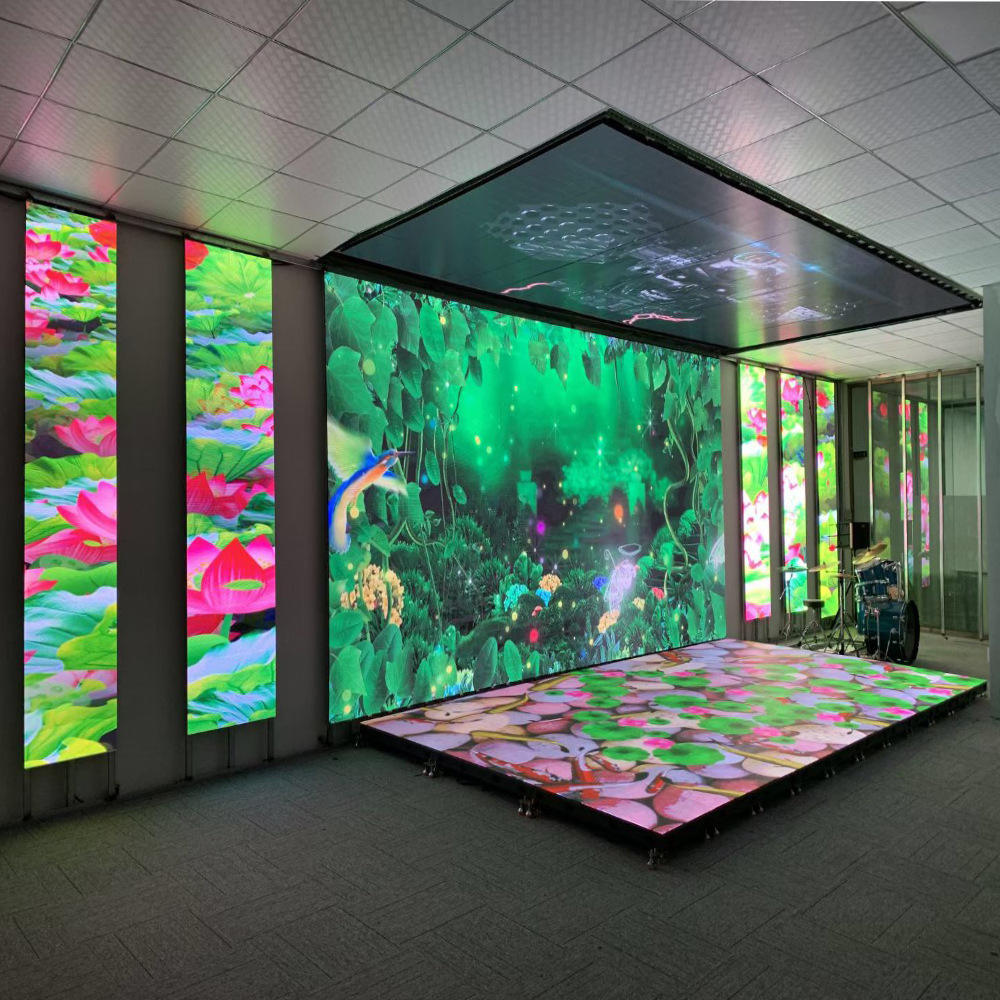

Product Case

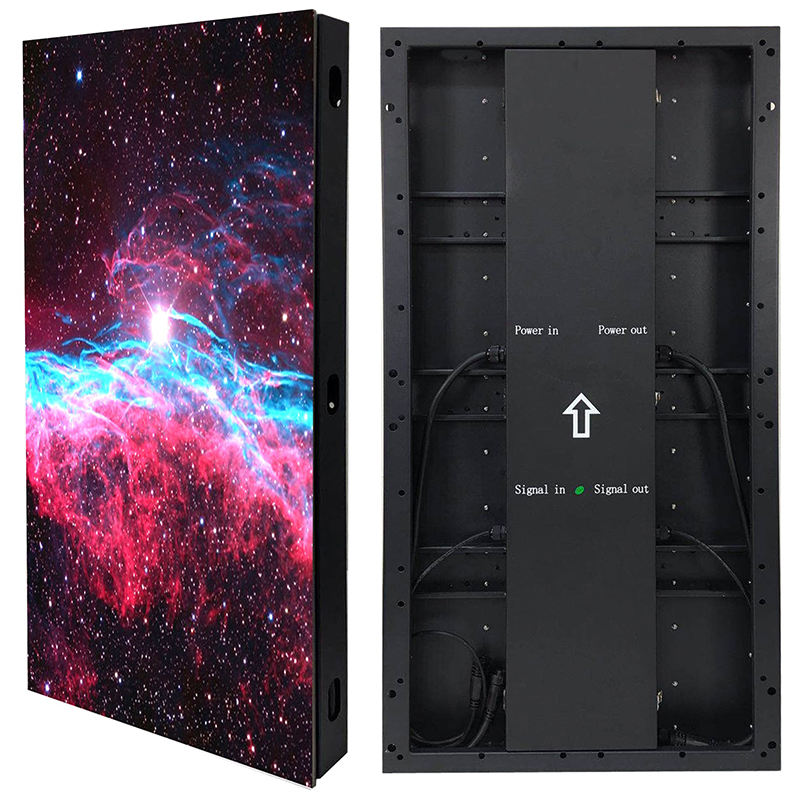

Iron Cabinet Details

Product Paramenters

Usage	indoor/outdoor	indoor/outdoor	indoor/outdoor	indoor/outdoor
Pixel Pitch	2.5 mm	2.604 mm	2.976 mm	3.91 mm
LED Type	SMD1415	SMD1415	SMD1415	SMD1921
Physical Density	160000 dot/m²	112896 dot/m²	112896 dot/m²	65536 dot/m²
Scanning Mode	1/25	1/32	1/28	1/16
Panel Size (W×H×D)	500x500x120 mm/500x1000x120 mm
Panel Material	Die Casting Aluminum/iron
Panel Weight	8kg/16kg
Panel Flatness	≤0.10 mm
Brightness	≥2500 cd/㎡
Viewing Angle	≥140° (H) / 140° (V)
Refresh Rate	1920-3840Hz
Input Voltage AC	110~220V
Max. Power Consumption	≤700 w/㎡
Ave. Power Consumption	≤300 w/㎡
Working Temperature	-10℃～+40℃
Working Humidity	10%～90%RH
Loading Capacity	1.5-2.2t/㎡
Protection Grade	IP65
Lifespan	≥100,000 hrs

Tag:

Place of Origin:	CHINA
Brand Name:	CONWIN
Certification:	CE,ROHS

Minimum Order Quantity:	1sqm
