Transparency Rate:	Above 80%	Installation:	Glass Paste Installation
Display Function:	Video Picture Graphic Text Message	Contrast:	300:1Audio
Driver Chip:	MBI 5024	Gray Scale:	14(bit)
Point Defect Rate:	Three-tenths, Divided Into Discrete	Scaning:	1/16
Powerinput Voltage:	DC12V-2A	Led Lamps:	DIP/SMT
Brightness Control:	Manual / Automatic Adjustment	Installation Method:	Hoisting / Base / Floor / Fixed
Model Name:	F4.8	Video Frame Rate:	60Hz
Resolution:	1080P 2K 4K
Highlight:	Glass Window Transparent Led Display Screen , Transparent Glass Ultra Thin LED Film , P6 Ultra Thin LED Film

Product introduction

1.LED film screen is a high-end product that breaks the conventional LED display. Sunrise focuses on transparent display, innovates boldly, breaks the traditional thinking, and invests a lot in RESEARCH and development. It has the main control right from IC bare crystal structure and functional design, LED bracket, LED packaging and electronic circuit design. Currently has the world's leading return to zero code patent technology, dozens of film screen related inventions and practical patent technology, powerful technology to push transparent screen to a new height

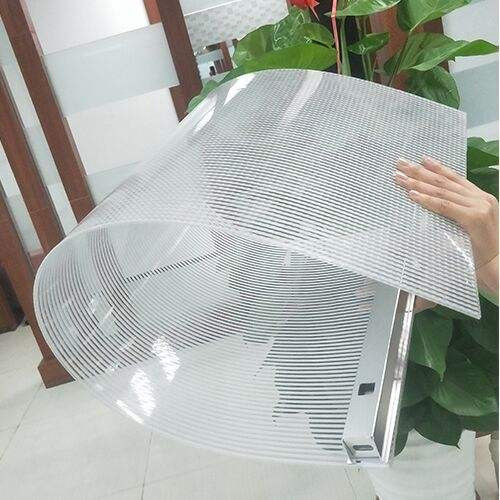

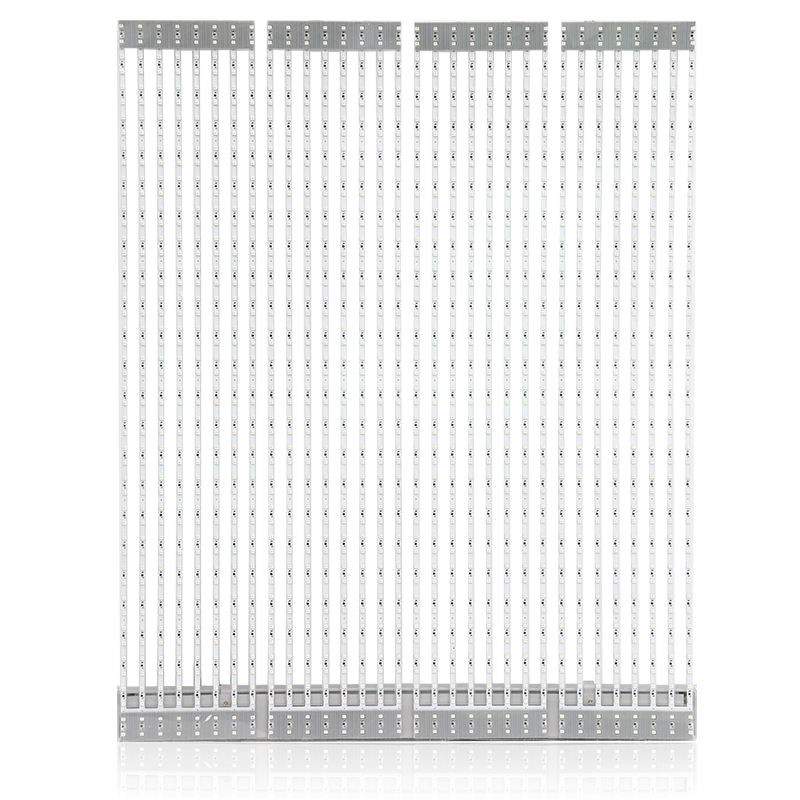

2.Light (3 kg / ㎡), thin (3-6 mm), transparent, and arbitrary cut, joker modelling, beautiful atmosphere, simple installation is the biggest trend of countries better film screen, the better the development of film screen, is committed to meet the needs of global LED film screen, using our specific raw silicon chip, the components of solid loading on the high of PCB board, through the special cover process, The display module is integrated into an optical lens substrate with high transparency and luminescent display.

Mode No.	F4*8	F5*10	F6	F6.5	F8	F10	F16
Module size(mm)	960x256	960x320	960x192	962X208	960x256	960x320	960x192
Transparent rate	55%	68%	50%	60%	65%	68%	75%
Film weight(Kg/㎡)	1~3	1~3	1~3	1~3	1~3	1~3	1~3
Film thickness(mm)	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Pixel pitch(mm)	4X8	5X10	6X6	6.5X6.5	8X8	10X10	16X16
Pixel density(点/㎡)	31250	20000	27777	23716	15625	10000	3906
Brightness(cd/㎡)	1500-4500	1500-4500	1500-4500	1500-4500	1500-4500	1500-4500	1500-3000
Brightness scope	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003	±0.003
View angle( °)	160	160	160	160	160	160	160
Pixel configure	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Rfresh rate(Hz)	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920	≥1920
Averange power(w/㎡)	≤200	≤200	≤200	≤200	≤200	≤240	≤200
Max power(w/㎡)	≤600	≤600	≤600	≤600	≤600	≤800	≤600
Working temper.(℃)	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃	-20℃-55℃
Working humidity(RH)	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%	10%-90%
Dtive type	static	static	static	static	static	static	static
Control system	Novastar	Novastar	Novastar	Novastar	Novastar	Novastar	Novasta

Tag:

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	F4.81

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month
