P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel

P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: T3
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Module Resolution: 128(W)*32(H) Point Spacing: Horizontal 3.91mm Longitudinal 7.8125mm
Function: SDK Pixels: P3.9-7.8mm
Main Ic: ICN2038S Audio Number: 4Channels
Driver Chip: MBI 5024 Item No: TI-P5.2
Dimensions: 104x104x28MM Input Voltage: AC100-240V
Material: Aluminum Gray Level: 8bits Input, 4096 Levels (212)
Max Power Consumption: 800W/㎡ Shipment: By Express, Air, Ship
Refrash Rate: ≥3840Hz
Highlight:

P2.8 Transparent LED Display Screen

,

P10 Transparent LED Display Screen

,

P15.6 Transparent LED Display Screen

Product Description


Product name
Transparent grille LED display
Item
P1
P2
P3
P5
Pixel pitch(mm)
1.9*3.9
2.8*5.6
3.9*7.8
5.2*10.4
Module size
500*125mm
Cabinet size
1000*500mm
Pixel density(dot/㎡)
129024
61952
32768
18432
Transparency
42%
45%
65%
75%
Module resolution
252*16
176*22
128*16
96*12
Cabinet resolution
504*128
352*88
256*64
192*48
Contrast
4000:1
Refresh rate
≥1920 Hz
IP rating
IP43
Operating Voltage
AC:110V~240V,50~60Hz
Operating temperature
-40℃-45℃
Item
P8
P10
P15
Pixel pitch(mm)
7.8*7.8
10.4*10.4
15.625*15.625
Module size
500*125mm
Cabinet size
1000*500mm
Pixel density(dot/㎡)
16384
9216
4096
Transparency
65%
75%
85%
Module resolution
64*16
48*12
32*8
Cabinet resolution
128*64
96*48
64*32
Contrast
4000:1
Refresh rate
≥1920 Hz
IP rating
IP43
Operating Voltage
AC:110V~240V,50~60Hz
Operating temperature
-40℃-45℃

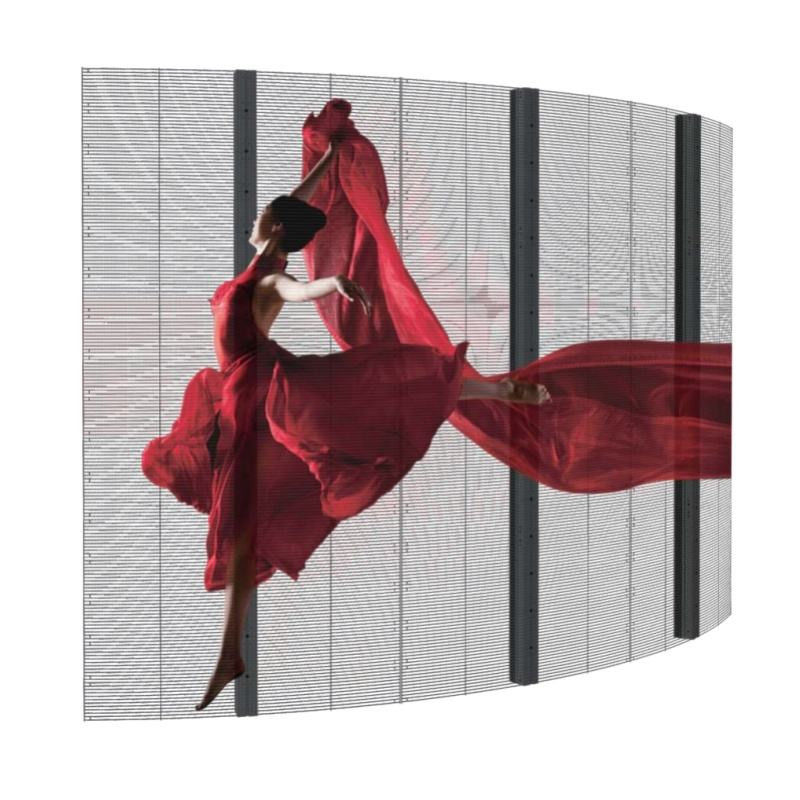

Transparent Grille LED screen
1. High Transparency 85% make it different from traditional LED displays, does not block sight and light from the back
2. Customized Size for different window glass structure size
3. Durable and Stable
4. Easy Installation & Maintenance
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 0
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 1
High-definition Grille LED display
Pixel Pitch: P1.9/P2.8/P3.9/P5.2/P7.8/P10.4/P15.6
Cabinet Size: 1000*500mm/3.28*1.64ft
Transparency: 85%
Brightness: 800~5500cd/㎡
Refresh rate: 1920Hz
Operating temperature:
-40°C ~ 50°C/-40°F~122°F
Viewing angle: 120°(H/V)
Transparent Grille LED display
Frame material: Aluminum
Input voltage: AC100~240V, 50~60Hz
Customization: Free seamless stitching, support customization, meet a variety of modeling needs
Modular design: easy installation and maintenance
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 2
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 3
Durable Grille LED display
Operating temperature
-40°C ~ 50°C, Storage temperature: -55°C ~ 80°C, be cable to operate both at very cold and hot environment,excellent for Russia and Middle East
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 4
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 5
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 6
P2.8 P4 P10 P15.6 Indoor Outdoor HD Full Color Rental Led Video Screen Fixed Transparent Glass LED Display Panel 7
