3D 4K Led Video Wall with IP40 / IP20 LED Holographic Invisible Transparent Screen

Basic Information

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	H3.91

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Led Configuration:

SMD2727

Ip Rate:

IP40 / IP20

Drive Mode:

Constant Current Drive

High Transparency:

66%

Cabinet Size:

500mm X 1000mm

Dimensions:

104x104x28MM

Screen Weight:

15kg/m2

Package:

Carton

Resolution:

800*480 Transparent LeD Display

Powerinput Voltage:

DC12V-2A

Highlight:

IP40 Led Video Wall

Holographic Invisible Transparent Screen

3D 4K Led Video Wall

Led Holographic invisible transparent screen install on glass player 3d 4k led video wall led flexible film screen

Specification

Key attributes
Application	Indoor
Type	LED
Brand Name	CONWIN

Other attributes
Place of Origin	Guangdong,China
use	advertising publish, retail store, shopping mall, display of dishes, welcome display, self-service business, exhibition hall, wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies, education, medical treatment
Specification	video wall

Color	full color
Model Number	PH6.25
Pixel Pitch	p6.25
Pixel color	1R1G1B
Transparency rate	90%
Brightness	5000cd
Waterproof	IP45

Product Parameters

Model	PH3.508	PH3.91	PH5	PH6.25	PH8	PH10	PH16
Pixel pitch(mm)	3.508	3.91	5	6.25	8	10	16
LED chip	SMD1515	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020	SMD2020
Module size(mm)	1150*225	1152*125	1150*160	1150*200	1160*256	1150*320	1152*256
Pixel density px/㎡	81225	65536	40000	25600	15625	10000	3906
Color	1R1G1B
The optimal viewing distance	3-250m	4-250m	6-250m	8-250m	10-250m	10-250m	16-250m
Transparency	70%	80%	85%	90%	90%	92%	93%
Weight kg/㎡	3
Thickness	1-3mm
Viewing angle	Horizontal ≥160°, Vertical ≥140°
Average power w/㎡	≤300
Max consumption w/㎡	≥800
Refresh rate	≥3840
Brightness cd/㎡	5000
Waterproof grade	IP45
Life	≥100000hrs

Product Description

Ultra Thin and Beautiful

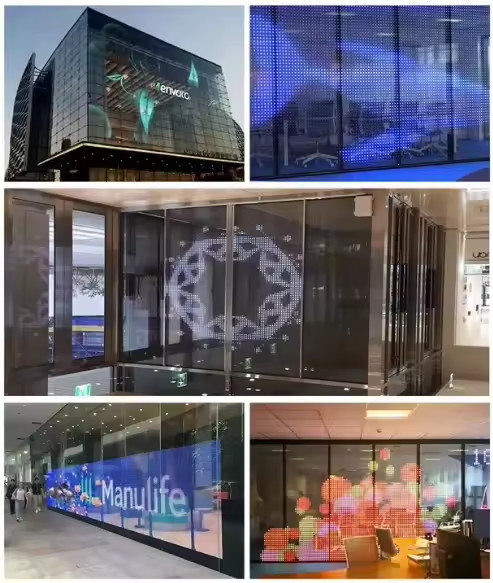

The hologram film screen with thickness of only 2mm, no frame design. seamless surface mounting, and integrated with transparent glass, presenting excellent visual effects.

Lightweight and Easy installation

Weighing only 2kg/ ㎡, the hologram film screen is easy and quick to install. Just one person can easily install and handle products, save installation time and cost.

Customizable

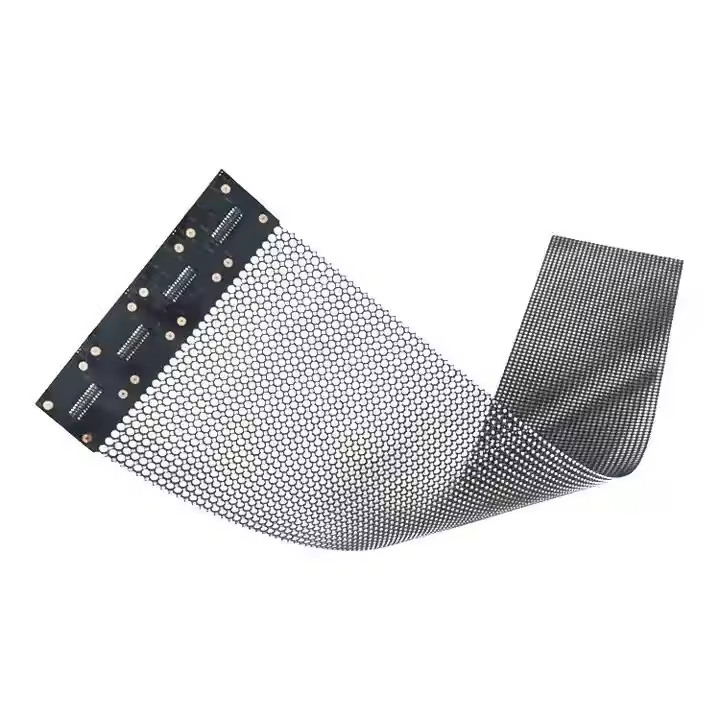

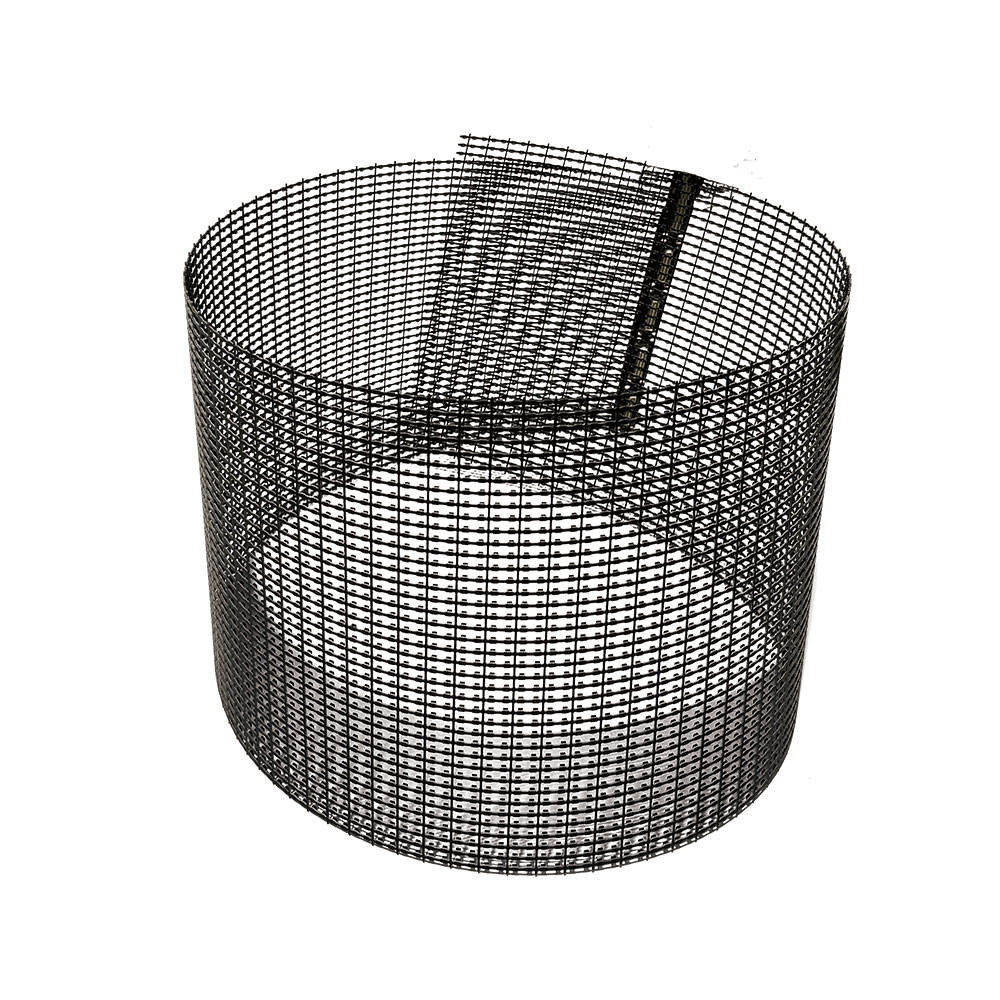

With great flexibility, the panel of hologram film screen can be bent and arbitrarily cut into the desired shape to meet more applications.

Great heat dissipation effect

Adopting light and driving integrated design, the holographic film screen without PC carrier, showing superb heat dissipation effect.
