Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display

Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display
Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: M10
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Large Viewing Angle: H: 120°; V : 120° Led Packing: Nationstar SMD3535 Black LED
Refresh Frequency: ≥3840Hz Protection: IP65
B Chip: 522-531nm Lifespan: ≥100000hours
Control System: Nova/Linsn/Colorlight Panel Material: Steel Or Aluminum
Driving Scan: 1/8 Scan
Highlight:

Glass Wall Curtain led screen

,

Glass Advertising led screen

,

Outdoor transparent led screen

Product Description

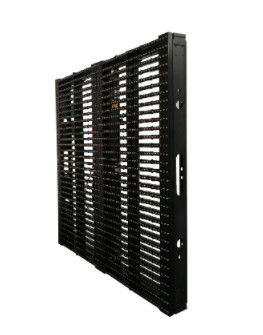

Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display 0

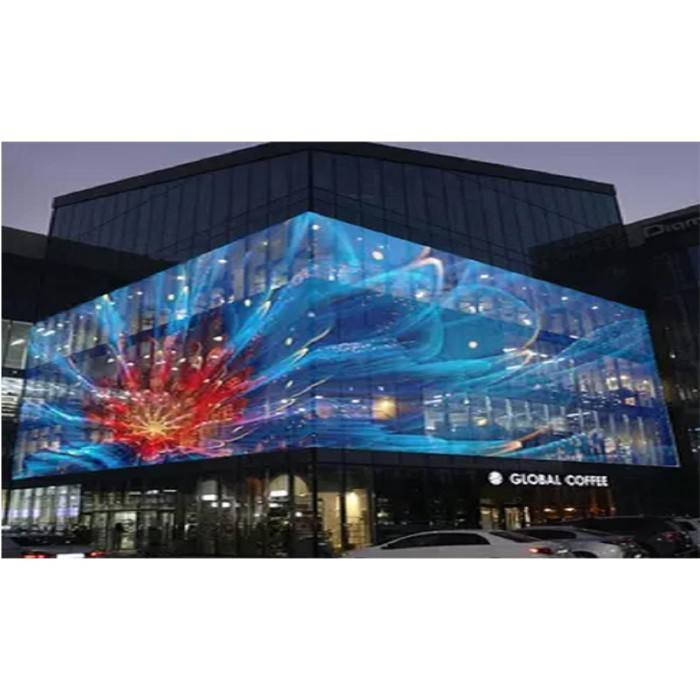

Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display 1

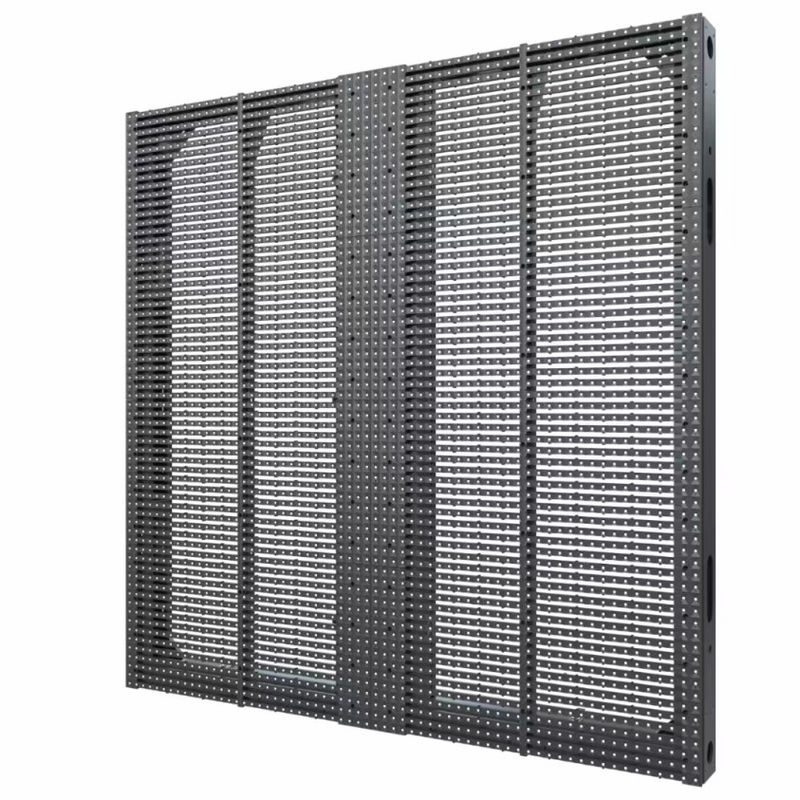

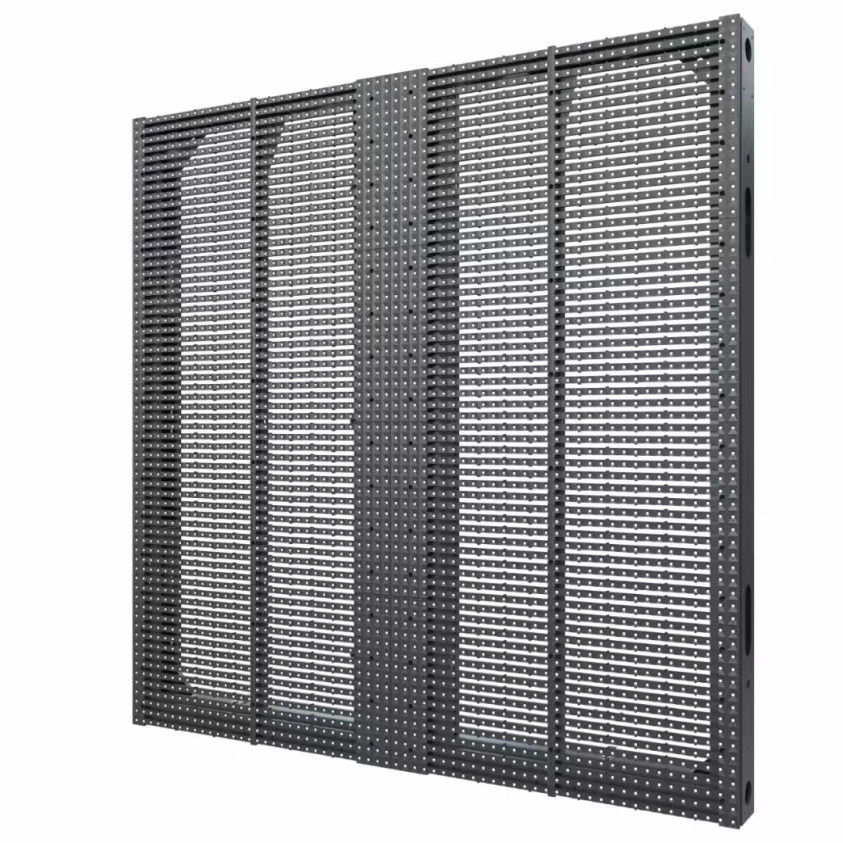

Outdoor transparent led screen mesh display panel glass wall curtain for Glass Advertising LED Display 2

Feature

1, IP65 Waterproof capacity;
2, front module service
3,non air cooling demand
4,see-throughness /light weight
5,low consumption


APPLICATION

Widely installed in hotels,exhibition display,wedding venue,outdoor stage,concert,launch,event,etc
Specification
Parameters
M0612
M0715
M1010
M1212
M1515
M1531
Pixel Pitch(mm)
6.2x12.5mm(H*V)
7.8x15.6mm(H*V)
10x10mm(H*V)
12.5x12.5mm(H*V)
15.6x15.6mm(H*V)
15.6x31.25mm(H*V)
LEDconfiguration
SMD2727
SMD2727
SMD2727
SMD3535
SMD3535
DIP346
Modulesize(mm)
500*125
500*125
500*250
500*125
500*125
500*250
Module resolution
80*10
64*8
50*25
40*10
32*8
32*8
Cabinet size(mm)
1000*1000*85
1000*1000*85
1000*1000*85
1000*1000*85
1000*1000*85
1000*1000*85
Cabinet resolution
160*80
128*64
100*100
80*80
64*64
64*32
Cabinetweight(kg)
19
19
19
19
20
22
Transparency Rate
40%
50%
50%
50%
50%
50%
Brightness(cd/m:)
6000
6000
6000
6000
6000
8000
Max Power Consumption
800w/m2
800w/m2
800w/m2
750w/m2
750w/m2
380w/m2
Avg PowerConsumption
266w/m2
266w/m2
266w/m2
250w/m2
250w/m2
126w/m2
Refresh rate
3840Hz
3840Hz
3840Hz
3840Hz
3840Hz
3840Hz
IP Rating(Front/Rear)
IP65/IP54
IP65/IP54
IP65/IP54
IP65/IP54
IP65/IP54
IP65/IP54
Installation type
Front/Back
Front/Back
Front/Back
Front/Back
Front/Back
Front/Back
Maintenance type
Front/Back
Front/Back
Front/Back
Front/Back
Front/Back
Front/Back
