Product Description

Outdoor Front Service Energy-saving LED Display

IP66 outdoor LED display is new genration of outdoor fix installation LED display.
High Protection Chassis Panel Design, Energy Saving LED Display, Standard size cabinet with 960*960mm dimension,
480mm*320mm module size. Ultra low heat and power consumption, saving and excellent visual experience.

.

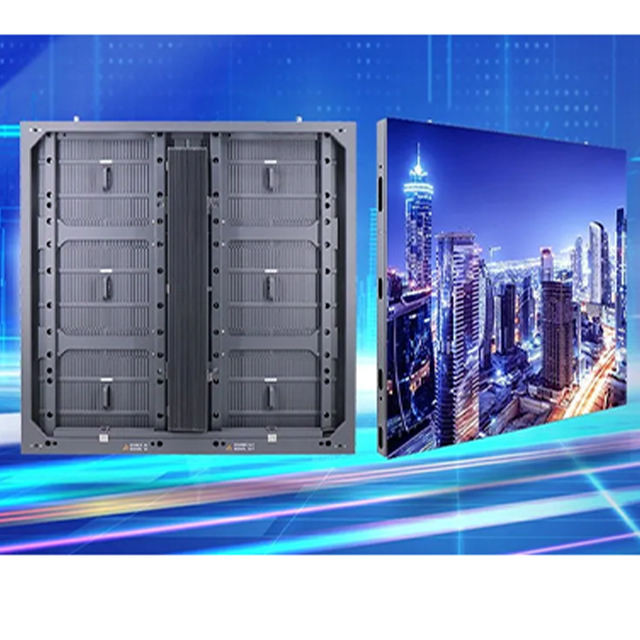

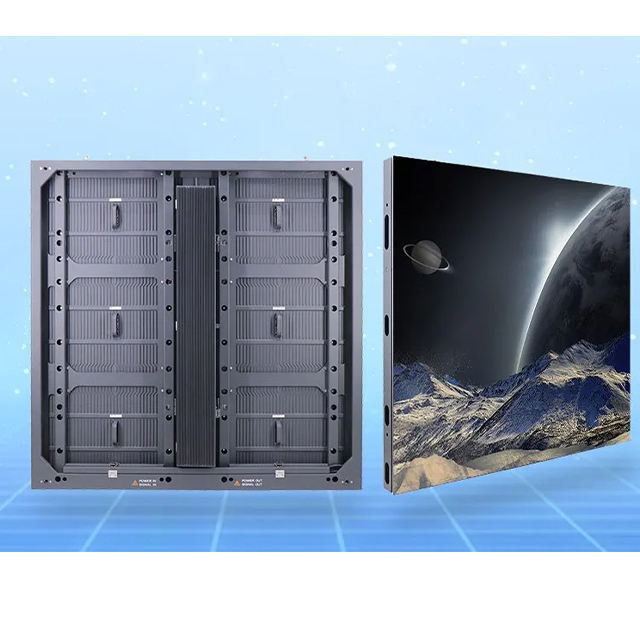

960X960mm Cabinet Design

Unique panel design with 480*320mm, and 960*960mm cabinet size,
Ultra thin thckness with 75mm design

Safety Harness Design

Each LED module is equipped with a safety harness to prevent the module from falling and hitting people

480*320mm Aluminum LED Panel

LED display adopts Aluminum Chasis design for panel.
Aluminum chasis adopt edge lock without screwing design. full sealed design, to protect its internal components.

Dual Service with Front and Rear Maintenance

Dual service mode of front and rear design to save you Maintenance Cost.
The LED panel can be assemble and disassemble easily and quickly.

Recycling, Environment and Economy

Die-casting aluminum chassis, recycle rate 90% for the whole product. Long lifetime, 30% Redundance while use 7000nits.
Using 10000nits,3000nits can sustain 7000nits using for 5 years, Good heat dissipation performance

Elegant Design

Cable-less deisgn with Power and data cables are hidden at the bottom of the panel.
Hard Connection: BTB connector replace data and power cables, high stability.

IP66 Dustproof, Waterproof

It’s for outdoor application with high waterproof level and dust-proof level. It can resist some bad weather during outdoor events.

High Protective Performance

Aluminum material LED module, high temperature durability, fast heat-dissipation.
The whole product can Reach 5VB fireproofing level.

Outdoor Fixed LED Screen Specification
Pixe Pictch	4mm	5mm	6mm	8mm
Led encapsulation	SMD1921	SMD2727	SMD2727	SMD2727/SMD3535
Scan Mode	1/8 Scan	1/8 Scan	1/8 Scan	1/4 Scan
Pixe Per Sq.m	62,500 Pixel	40,000 Pixel	27,777 Pixel	15,625 Pixel
Module Size(W*H)	256*128mm	320*160mm	192*192mm	320320mm/320160mm
Cabinet Size(WHD)	1024*768mm	960*960mm	960*960mm	960*960mm
Cabinet Weight	45KG/Pieces	40KG/Pieces	40KG/Pieces	45KG/Pieces
Max Power Consumption	900Watt/㎡	900Watt/㎡	900Watt/㎡	900Watt/㎡
Brightness(Nits/㎡)	5000Nits	5500Nits	6000Nits	6500Nits
Maintenance methods	Rear/Front Serviceable
Cabinet Material	Steel/Aluminun Option
Refresh Rate	1920hz-3840hz
Color temperature	6500K ±500(Adjustable)
Grey Scale	14-16bits
Average Power Consumption	500Watt/㎡
IP Protection	IP65 Front/Rear
Operating Temperature	-20°C to 50°C
Working Voltage	100-240Volt(50-60hz)

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	D10

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month
