| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | T-G Series |
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | Flight Cases/Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Pixel Pitch: | P4-P20mm | Transparency Rate: | Above 80% |
|---|---|---|---|
| Weight: | 3.5kg/sqm | Refresh Rate: | Above 3840hz |
| High Light: | Mesh Transparent LED Display Screen,Glass Transparent LED Display Screen,Multipurpose mesh led display |
||
Film Transparent LED Display Screen Glass LED Screen Glass LED Mesh
Film Transparent LED Screen, Glass LED Display
Features and Details
- High Transparency

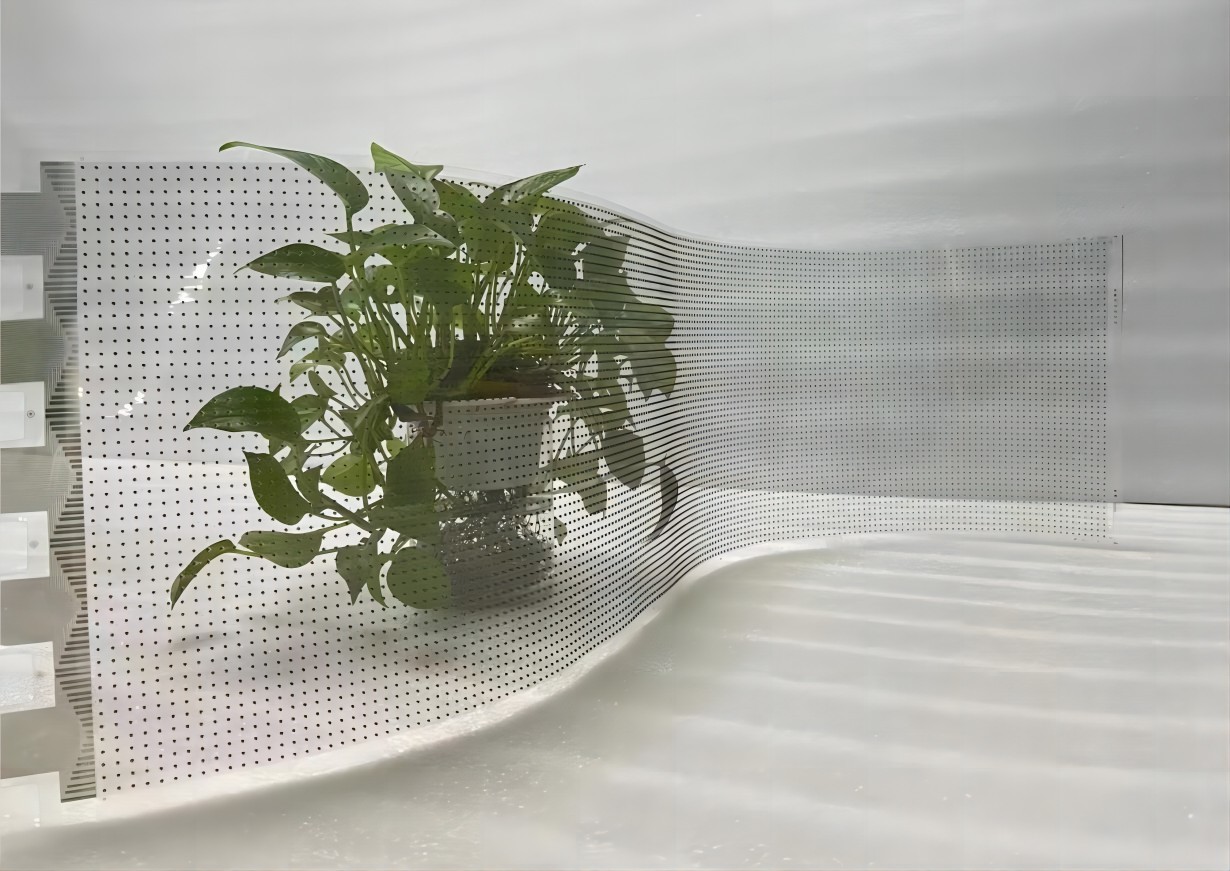

With transmittance of 85%. When playing the video,it does not affect theindoorlighting.
- Lightweight and easy to install
The thickness of the the display is 2mm. easy for install and maintain
- Application
Suitable for shopping malls, theaters, commercial streetshotels, municipal public buildings, and other places.

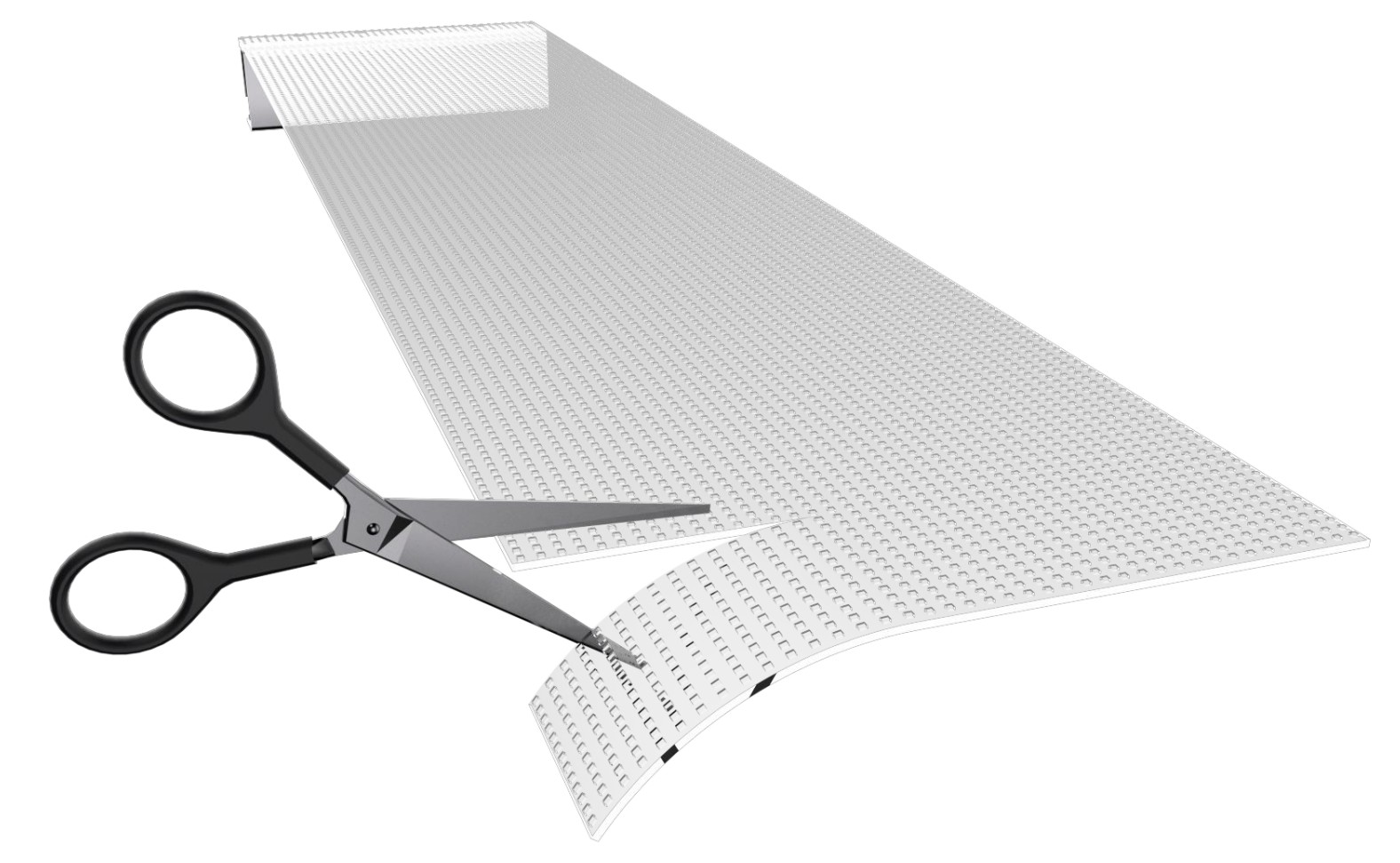

- It can be freely cut and seamless stitching,and screen sizes and shapes can be flexibly matched with a variety of mounting area carriers , such as triangular and ovals ...

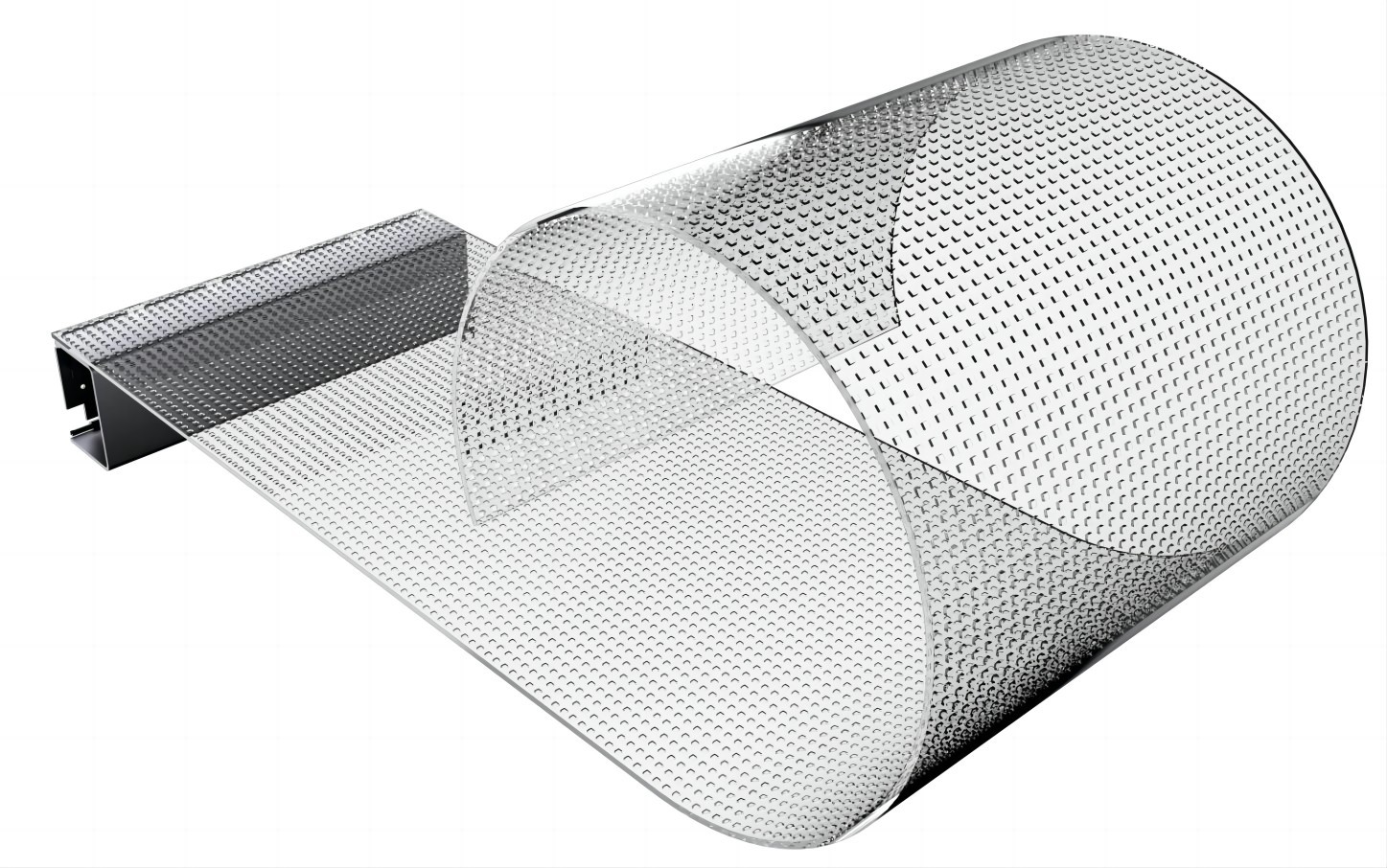

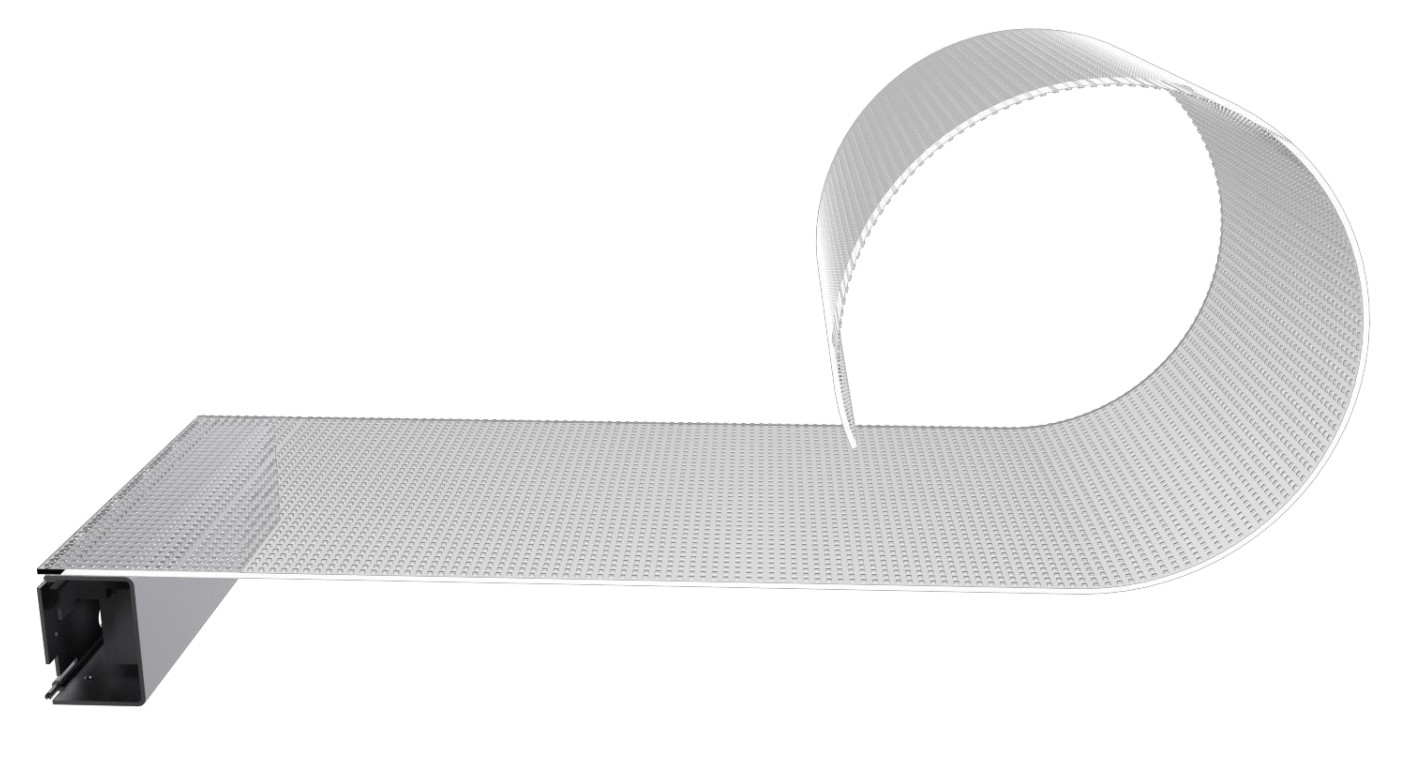

- Transparent LED film supports curvature up to 1100R and can be rolled into a cylinder.
Parameters:
| Model | T-G4 | T-G4-8 | T-G6 | T-G8 | T-G10 | T-G16 | T-G16-32 | T-G32 |
| Pixel Pitch | 4-4mm | 4-8mm | 6-6mm | 8-8mm | 10-10mm | 16-16mm | 16-32mm | 32-32mm |
| Transparency Rate | >80% | >80% | >80% | >80% | >85% | >85% | >90% | >90% |
| Module Size (mm) | 800X240 | 1000X240 | 1000X240 | 1000X240 | 1000X240 | 1000X240 | 1000X240 | 1000X240 |
| Module Resolution (dots) | 200X60 | 250X30 | 166X40 | 125X30 | 100X24 | 62X15 | 62X7 | 50X4 |
| Pixel Configuration | SMD1010 | SMD2121 | ||||||
| Pixel Density | 62,500 pixels/m2 | 31,250 pixels/m2 | 27,556 pixels/m2 | 15,625 pixels/m2 | 10,000 pixels/m2 | 3,844 pixels/m2 | 1,922 pixels/m2 | 961 pixels/m2 |
| Brightness | >3000 cd/sqm | >3000 cd/sqm | >3000 cd/sqm | >3500 cd/sqm | >3500 cd/sqm | >3500 cd/sqm | >2500cd /sqm | >1500cd /sqm |
| Weight | 3.5kg/sqm | |||||||
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz | >3,840 Hz |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | |||||||
More Different size choosing
Pictures
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
