| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | T-B Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Pixel Pitch: | P3mm-P10mm | Material: | Aluminum |
|---|---|---|---|
| Size: | 500X1000mm | Weight: | 12kg |
| Refresh Rate: | 3840hz | ||
| Highlight: | Indoor Transparent LED Display Screen,Transparent LED Display Screen 1000X1000mm,500X1000mm transparent led screen display |
||

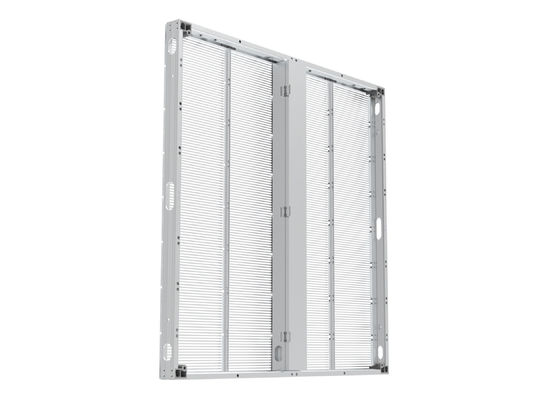

Indoor Transparent LED Display Screen 1000X1000mm 500X1000mm LED Display Panel
Indoor Crystal Transparent LED Display LED Screen
Features and Details
- Supported customized cabinet.
- Optional color: black or white.
- High transparent rate, the highest can reach 70%.
- Slim cabinet, space saving; light weight, no need to change architectural structure,adapt to different installation place.
- Environmental Projection: no need air-con.
- Easy maintenance: fast replaced module, support front and rear service.
- Stacking, hanging and fixed installation are supported.
- GOB surface is for option, what can reach IP43 and lamp protected.
- According to the actual installation site situation and demand, can use 1000x1000(mm) or 500x500 (mm) size of the cabinet.
- Support Front or Service
Parameters:
| Model | T-B3.9-7.8 | T-B7.8-7.8 | T-B5.2-10.4 | T-B10.4-10.4 |
| Pixel Pitch | W3.91mm-H7.82mm | 7.82mm-7.82mm | W5.21mm-H10.42mm | 10.42mm-10.42mm |
| Transparency Rate | 60% | 65% | 65% | 70% |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density | 32,768 pixels/m2 | 16,384pixels/m2 | 18,432 pixels/m2 | 9,216 pixels/m2 |
| Panel Dimensions (mm) | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 | 500x1000 or 1000x1000 |
| Cabinet Resolution | 256 x 128 | 128 x 128 | 192 x 96 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 12kg | 12kg | 12kg | 12kg |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 500 W /Sqm | 500 W /Sqm | 500 W /Sqm | 500 W /Sqm |
| Brightness | >2,000 nits | >2,000 nits | >2,000 nits | >2,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
