Outdoor Transparent LED Display Screen High Brightness 500X1000mm

Outdoor Transparent LED Display Screen High Brightness 500X1000mm
Outdoor Transparent LED Display Screen High Brightness 500X1000mm
Outdoor Transparent LED Display Screen High Brightness 500X1000mm Outdoor Transparent LED Display Screen High Brightness 500X1000mm Outdoor Transparent LED Display Screen High Brightness 500X1000mm Outdoor Transparent LED Display Screen High Brightness 500X1000mm
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: T-A Series
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 1,000 sqm per month
Contact Now
Material: Aluminum Pixel Pitch: P3.9mm-P15mm
Size: 500X1000mm Weight: 8kg
Refresh Rate: 3840hz
Highlight:

Outdoor Transparent LED Display Screen

,

Transparent LED Display Screen 1000mm

,

High Brightness transparent led screen

Outdoor High Brightness 500X1000mm Transparent LED Display LED Screen

Fixed outdoor transparent LED display LED screen

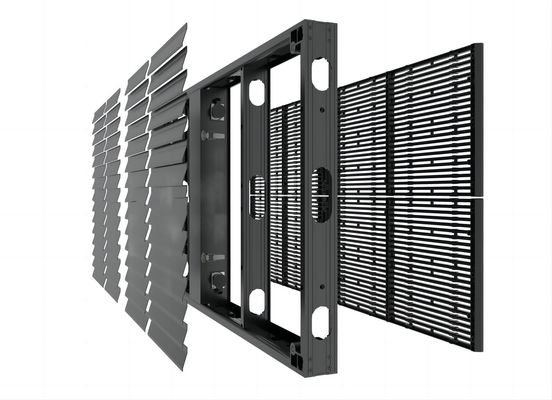

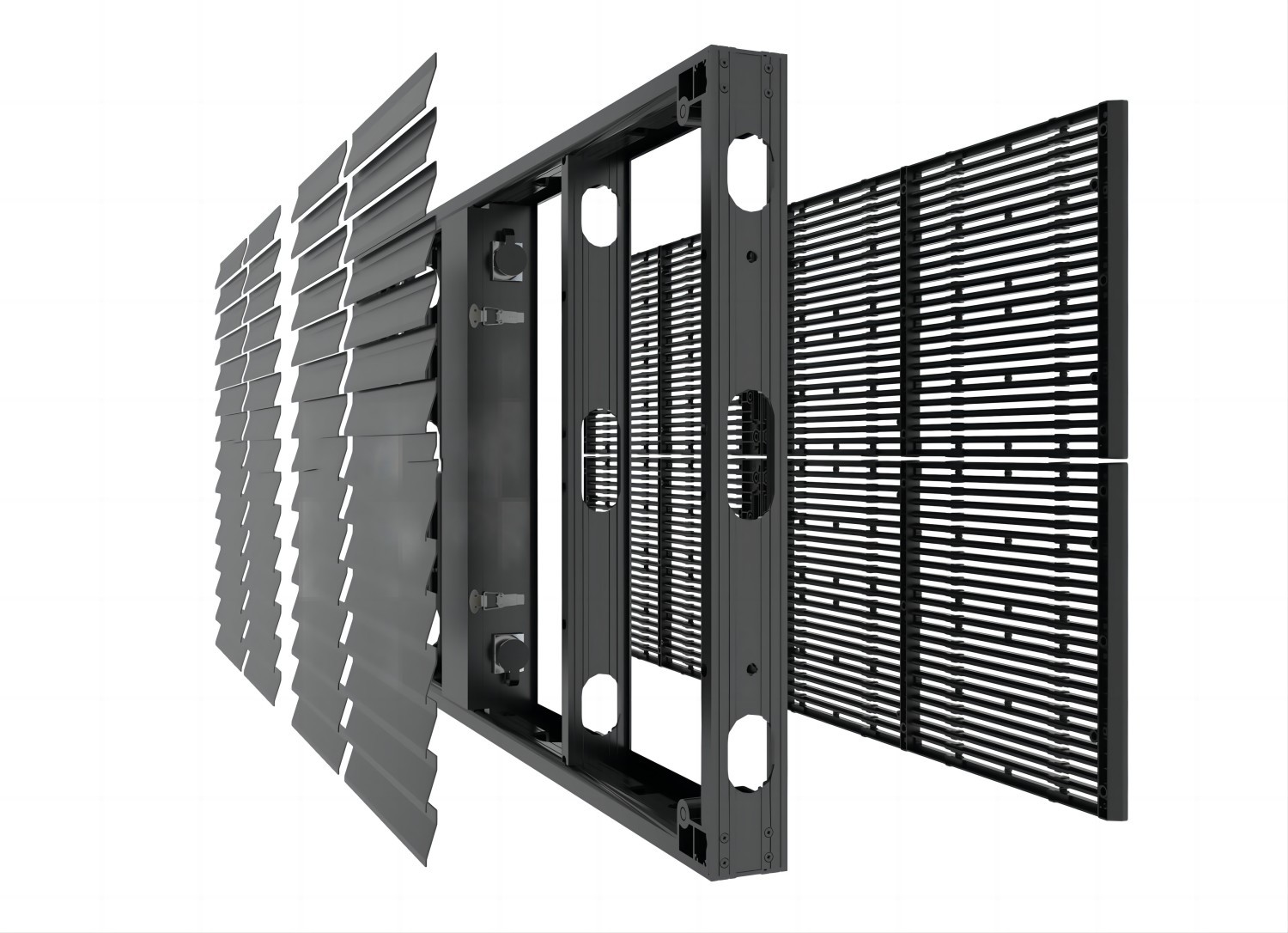

Features and Details:

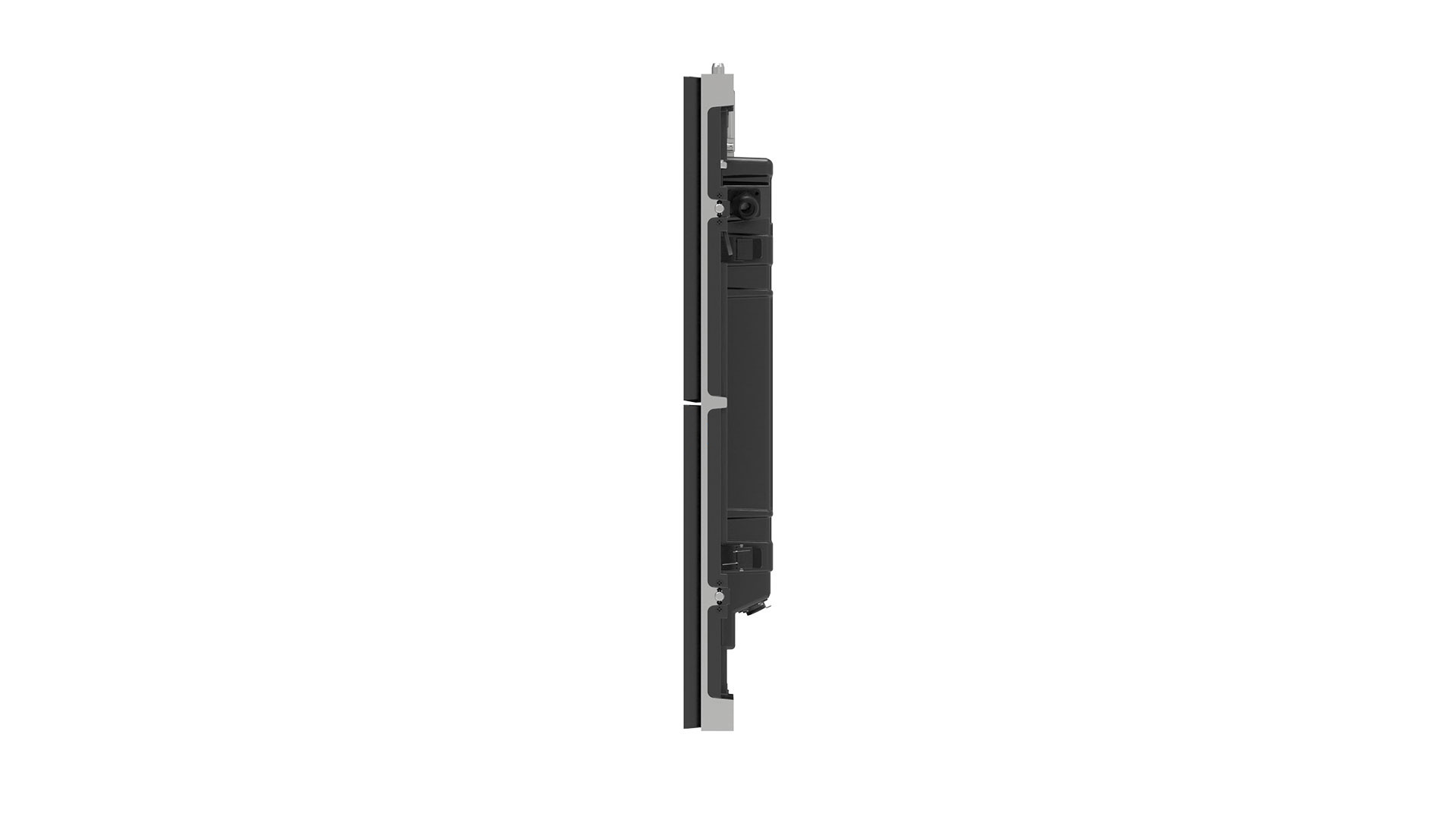

- Super Slim and Light Weight, cabinet thickness 82mm with 8kg/cabinet

- Aluminum cabinet with size 500X1000mm, save the transportation, installation cost(labor, steel structure)

  Also reduce the load-bearing requirements of buildings

- Support front or rear service, not restricted by the installation conditions

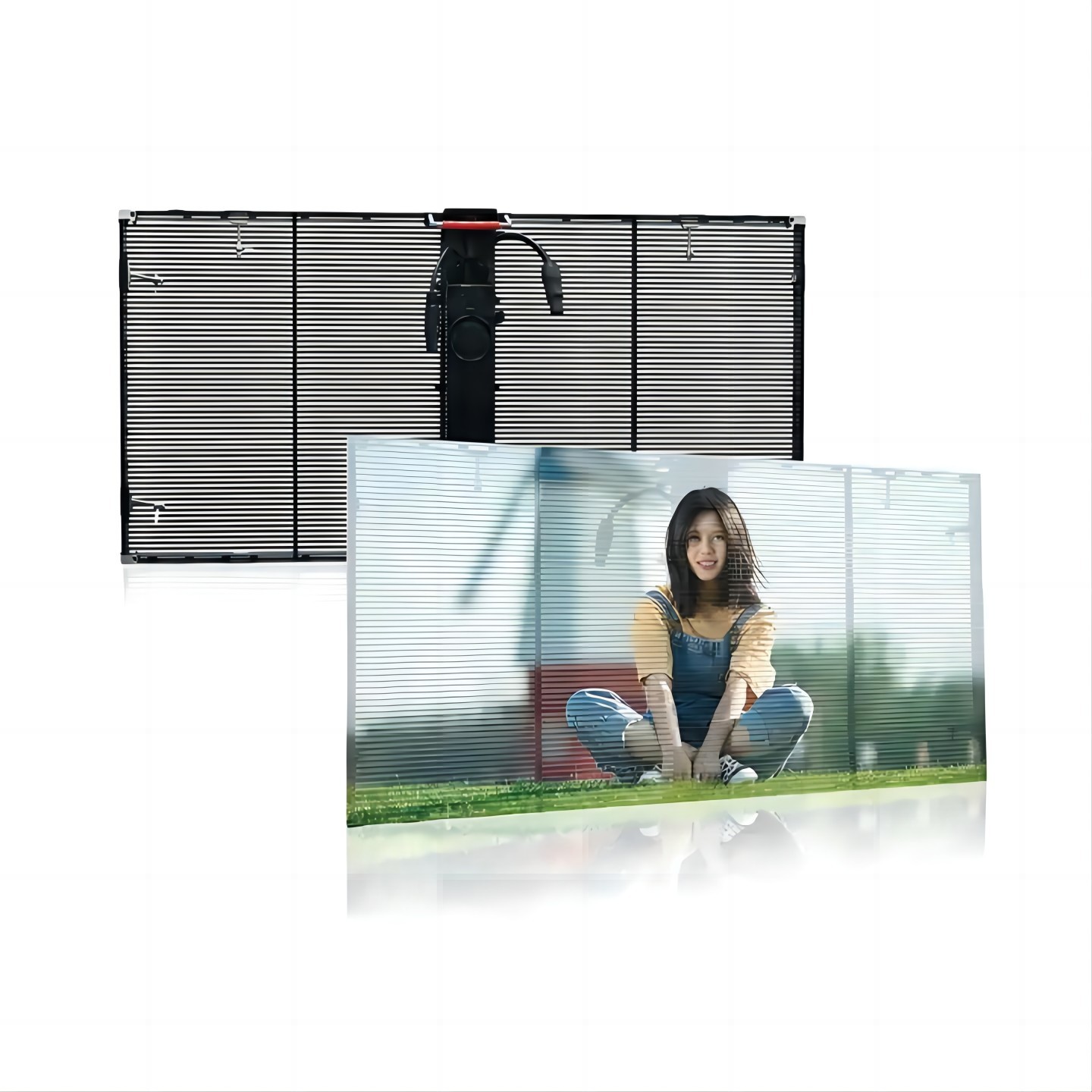

- High transparency rate, meet most glass buildings requirement.

- High temperature resistant materials and up to fireproof V0

- Flxible design, additional options for lightproof mask & background, it's up to you decide lightproof ,windproof or not.

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 0

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 1

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 2

- Waterproof IP65

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 3

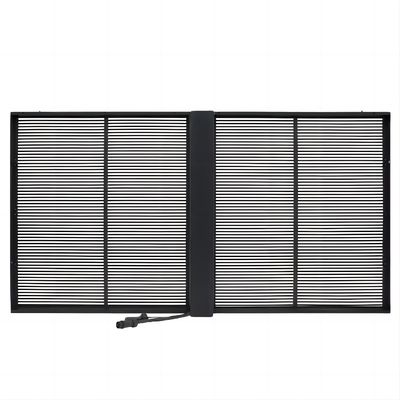

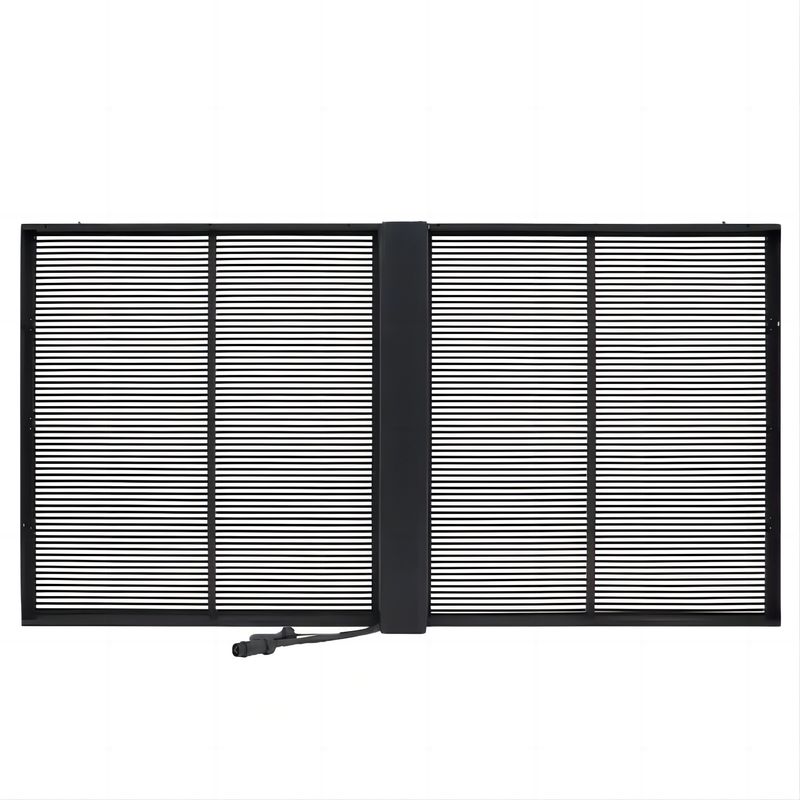

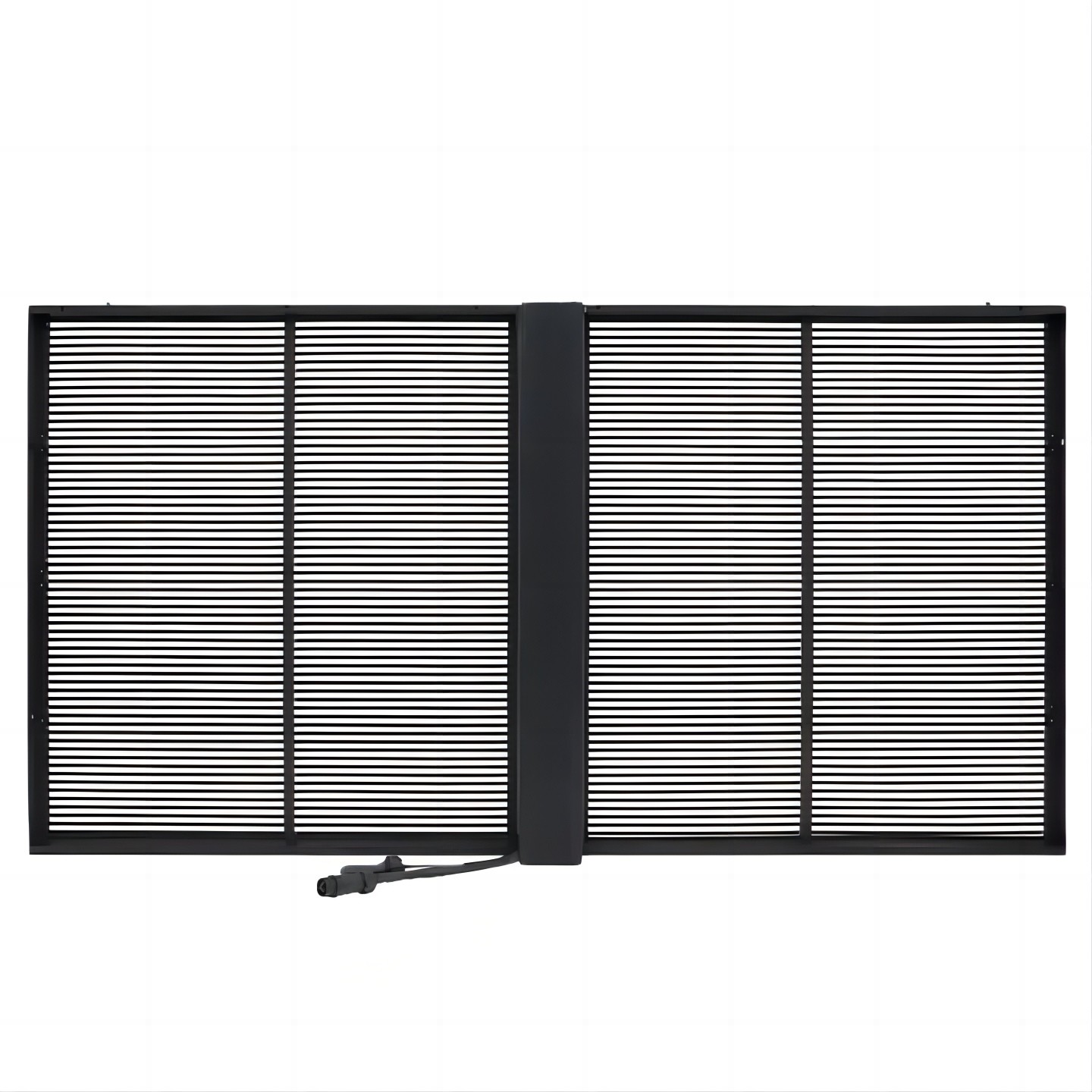

- Size 1000X1000mm and 500X1000mm could be choosed

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 4Outdoor Transparent LED Display Screen High Brightness 500X1000mm 5

- Support "Add Mask" or "Light Barries"

Adding Mask or Light Barries to achieve better contrast ratio compare with the pure transparent LED Screen.

So the transpate would be reduced.

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 6

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 7Outdoor Transparent LED Display Screen High Brightness 500X1000mm 8

Parameters

Model T-A3.9-7.8 T-A7.8-7.8 T-A5.2-10.4 T-A10.4-10.4 T-A15.6-15.6
Pixel Pitch W3.91mm-H7.82mm 7.82mm-7.82mm W5.21mm-H10.42mm 10.42mm-10.42mm 15.6mm-15.6mm
Transparency Rate 45%-50% 50% 55% 58% 65%
Pixel Configuration SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Pixel Density 32,768 pixels/m2 16,384pixels/m2 18,432 pixels/m2 9,216 pixels/m2 4,096 pixels/m2
Panel Dimensions (mm)  500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000 500x1000 or 1000x1000
Cabinet Resolution 256 x 128 128 x 128 192 x 96 96 x 96 64 x 64
Panel Material Aluminum Aluminum Aluminum Aluminum Aluminum
Weight per Cabinet 8kg 8kg 8kg 8kg 8kg
Colors 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Average Power Consumption 260 W /Sqm 260 W /Sqm 260 W /Sqm 260 W /Sqm 260 W /Sqm
Max Power Consumption 800 W /Sqm 800 W /Sqm 800 W /Sqm 800 W /Sqm 800 W /Sqm
Brightness >5,000 nits >5,000 nits >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz >3,840 Hz
Servicing Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating IP65 IP65 IP65 IP65 IP65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%

Pictures:

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 9

Outdoor Transparent LED Display Screen High Brightness 500X1000mm 10

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs online service
