Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen

Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen
Basic Information
Place of Origin: CHINA
Brand Name: CONWIN
Certification: CE,ROHS
Minimum Order Quantity: 1sqm
Contact Now
Pixel Pitch: 3.91mm Weight: 7.5 Kg/pc
Density: 65536dot/sqm Standard: CE/ROHS/FCC/GMC
Installation: Hanging On Truss / Stacking On Floor Ic Chip: ICN2153
Grey Level: 16Bits View Angel: Horizontal:140; Vertial:140
Expect Lifetime: 100,000Hrs Refresh Rate: ≥38400Hz
Temperature: -20~50℃ Installation Type: Magnetic Design

Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen

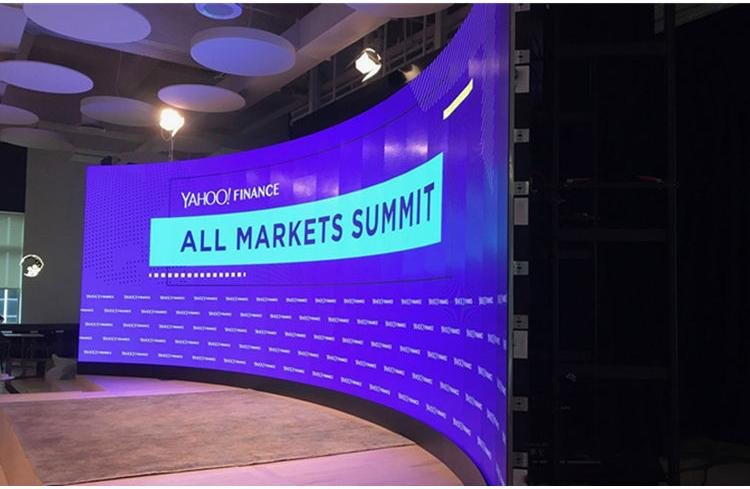

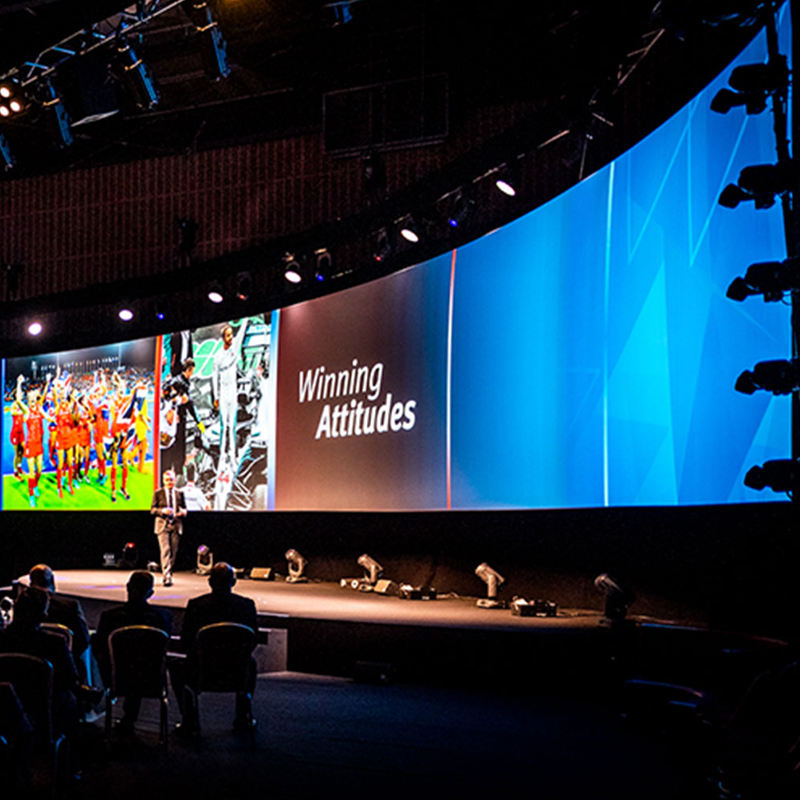

1. It has ultra-high flexibility and can be easily created whether it is a large-angle internal or external arc shape, a cylinder, or a 90° arc on stage.

2.Indoor and outdoor available P1.953mm P2.604mm P2.976mm P3.91mm
Wide viewing angle, ultra high definition picture quality.
Excellent display effect, vivid color reproduction and excellent display of details.
The viewing angle reaches 160° left and right and 140° up and down, with a complete picture



Products Specification
Pixel pitch
2.604mm
2.976mm
3.9mm
3.9mm (Outdoor)
Pixels per cabinet(500*500mm)
192×192 (HxV)
168×168 (HxV)
128×128 (HxV)
128x128(H×V)

LED lifetime
100000Hour
Brightness
800nits
4500nits
Module size
250*250mm
Module resolution
96*96dots
84*84dots
64*64dots
64*64dots
Refresh rate
3840-7,680Hz
Brightness uniformity
>98%
Dimming
0-100%
Grey Level
14-16bit
Curvature
±45°
Avg Power consumption
170 W/m²
170 W/㎡
150 W/㎡
200W/㎡
Max Power consumption
480 W/m²
530 W/m²
530 W/m²
600W/㎡
Operation power voltage
100-240V/50-60Hz
Operational temperature
,-20°-+50°
Operational humidity
10-80%
IP rating
IP40 for indoor, IP65 for outdoor
Dimensions
500 x 500 x 80 mm
Weight
7.25kg
Serviceability
Rear
Products Description
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 0

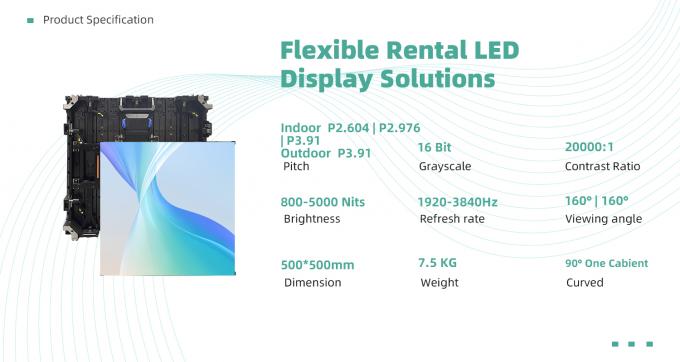

Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 1

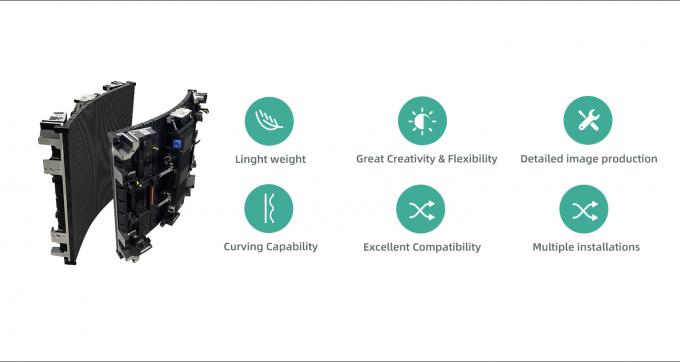

KEY FEATURES
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 2
Great compatibility with standard panel

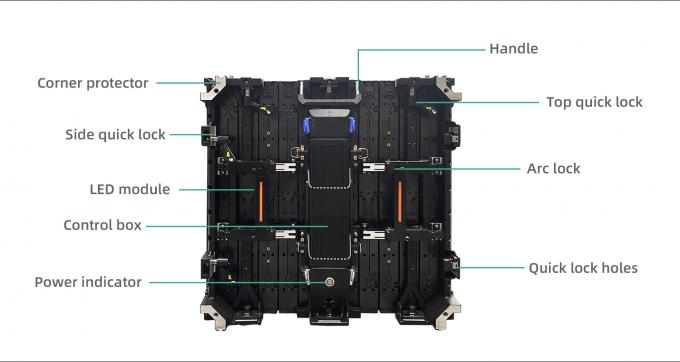

Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 3

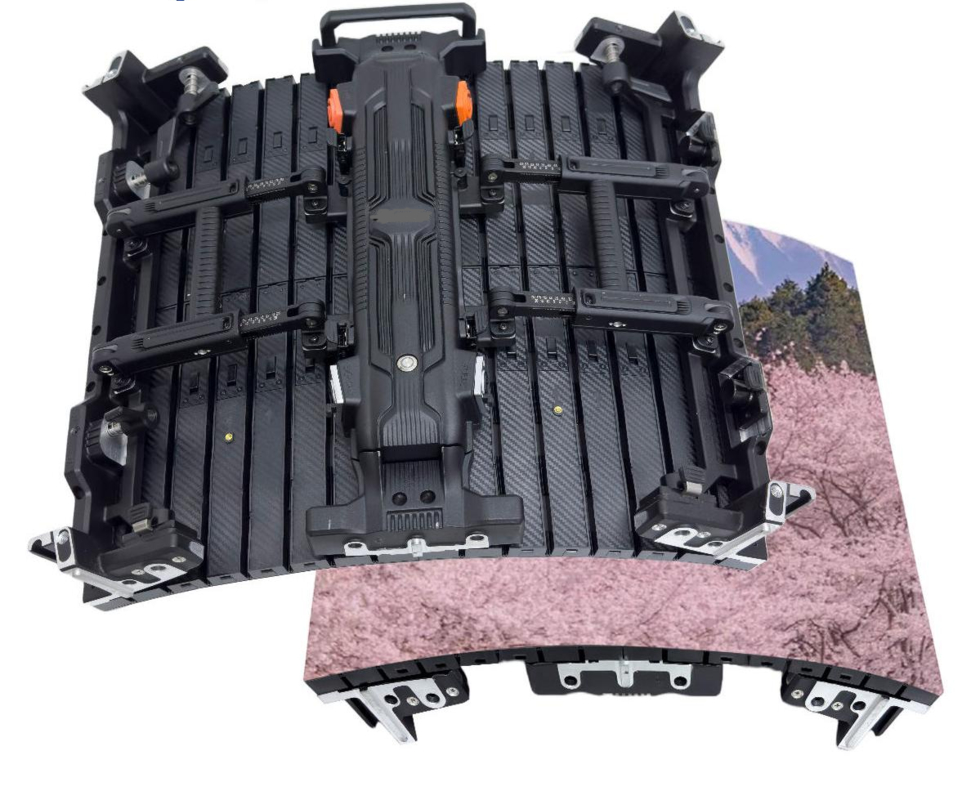

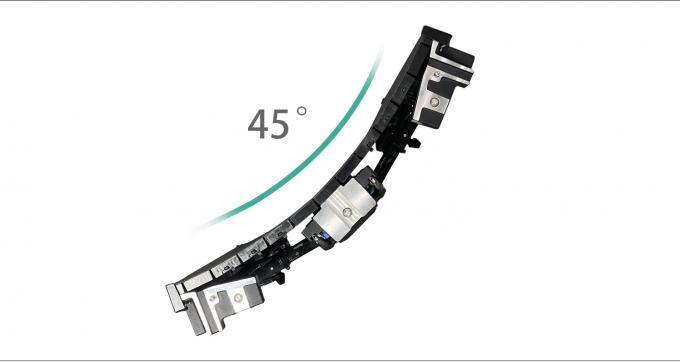

Each panel supports ±45° folding
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 4

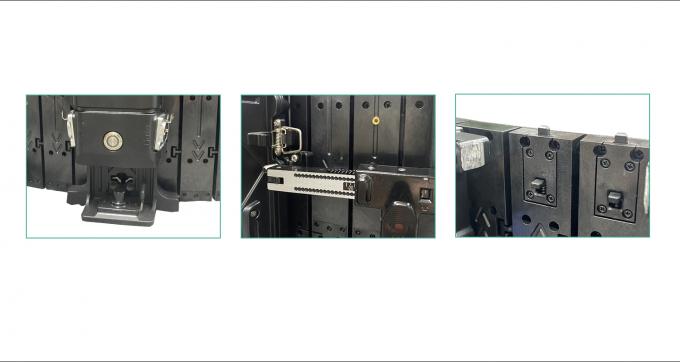

Modular design for quick maintenance
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 5

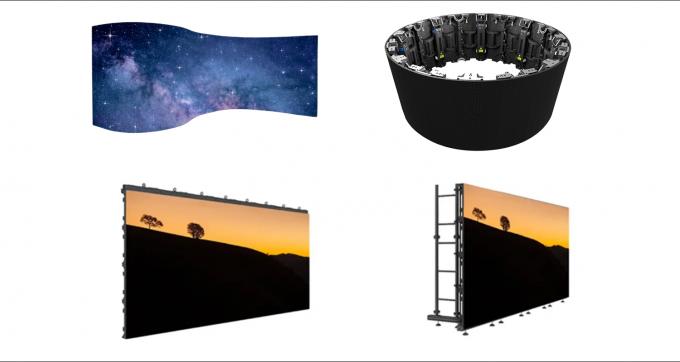

Multiple installations availabile
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 6

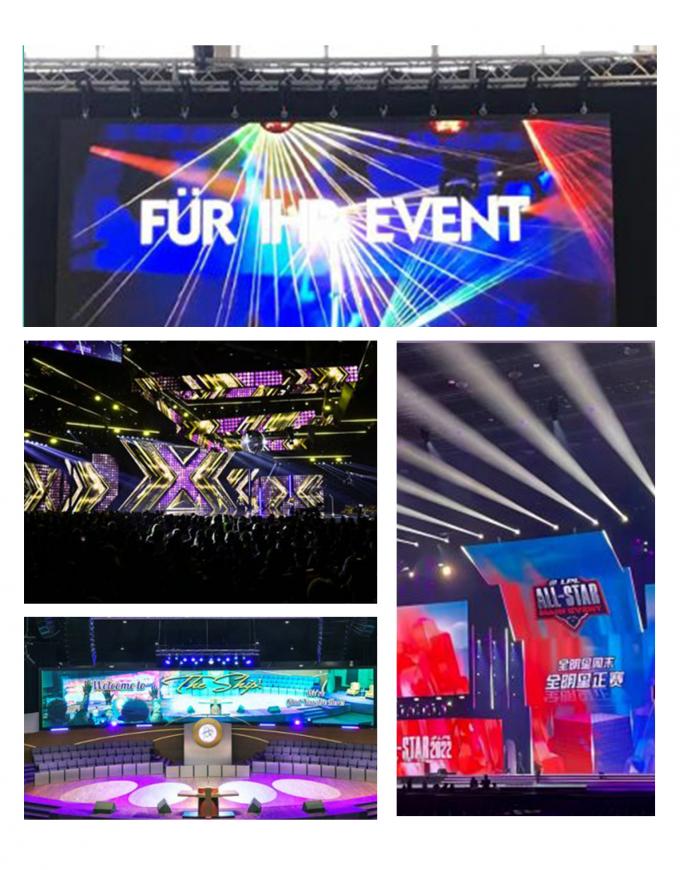

Project Sharing
Flexible Led Display Curved Screen P1.95 P2.976 Rental Led Display High Brightness Stage Screen 7
