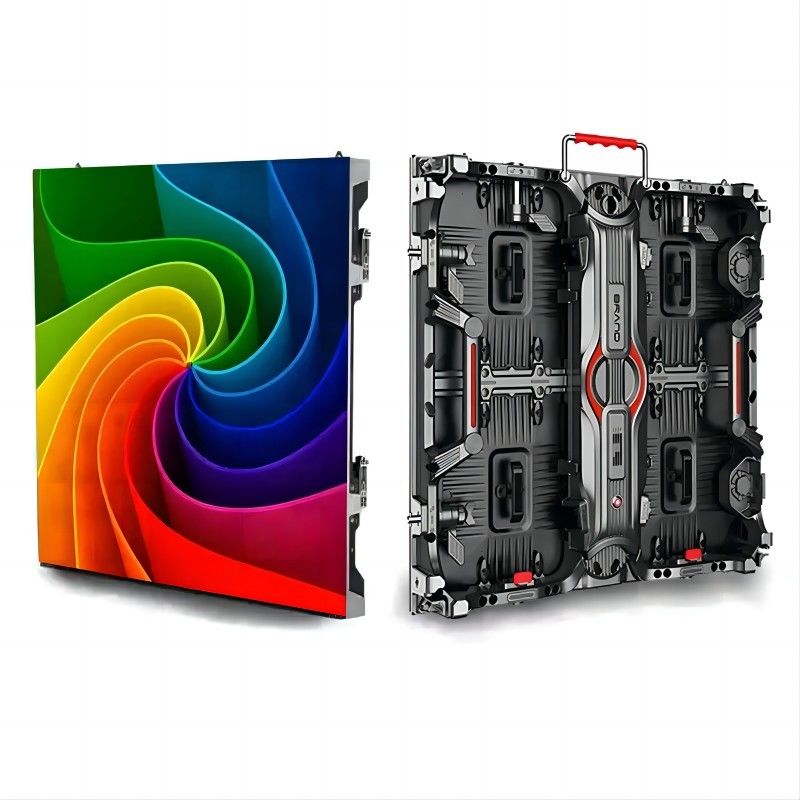

Smd Indoor Stage Rental Led Display Ultra Thin LED Panel 500X500mm
Description Of Indoor Rental LED Screen
- Integrated compact design, cableless design, fast replacement of power box.
- With fast lock design, 500x500mm and 500x1000mm cabinet can be easily spclied up and down, and mixed use.
- Reinforced connection design, all connection part is strong and reliable for all kinds of application.
- High precision, with high end CNC machine, the allowance is as small as within 0.1mm, which keeps the screen in perfect flat surface and create smooth image performance.
- Packing, with strong and high end flight cases, 8 in 1 or 6 in 1 as customer demand.

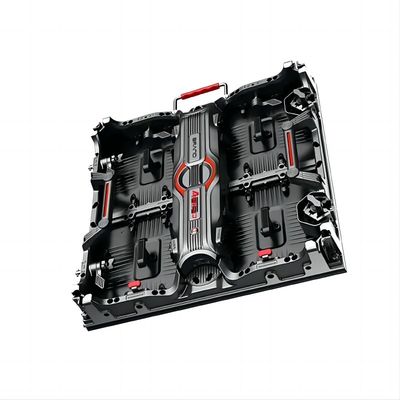

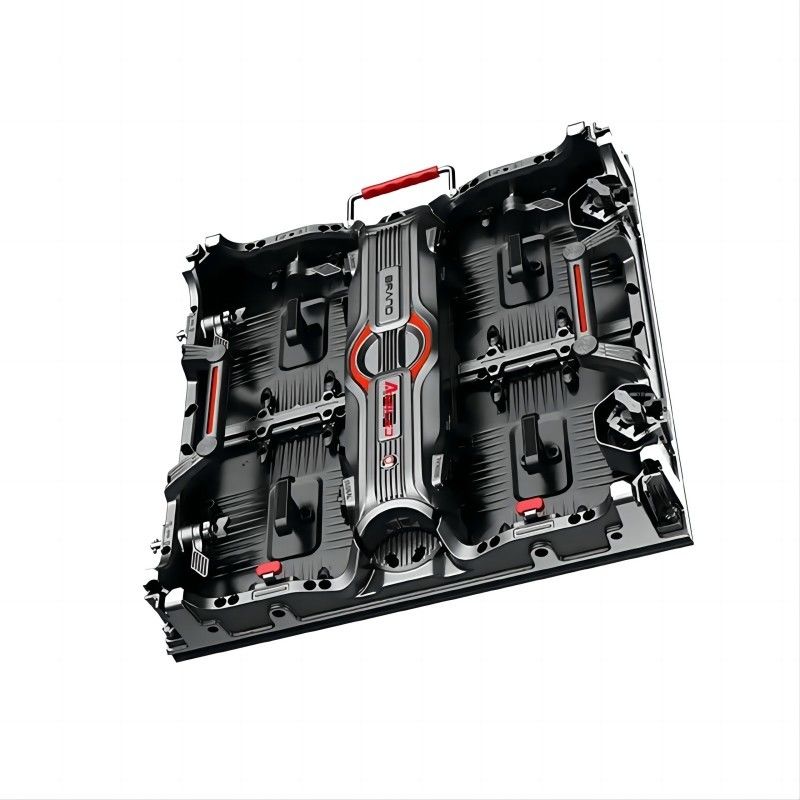

- Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,
magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

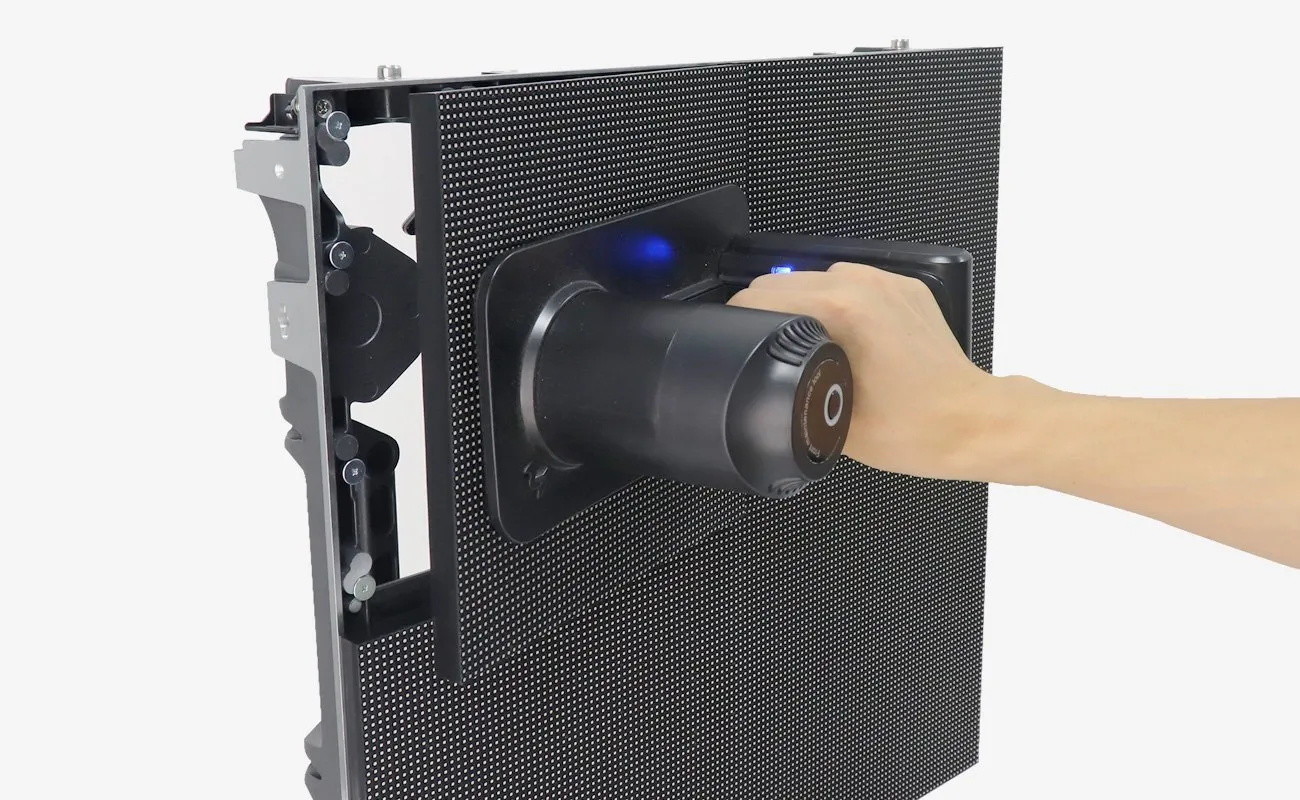

- Double Maintenance Design
Double Maintenance Rental LED Display adopts Magnet Adsorption LED Panel,
the cabinet is accessed with frontal & rear design, easy installation for LED panels.
- Detachable Back Cover
Hard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,
Quick Mounting of Buckles for assamble and disassamble of back cover

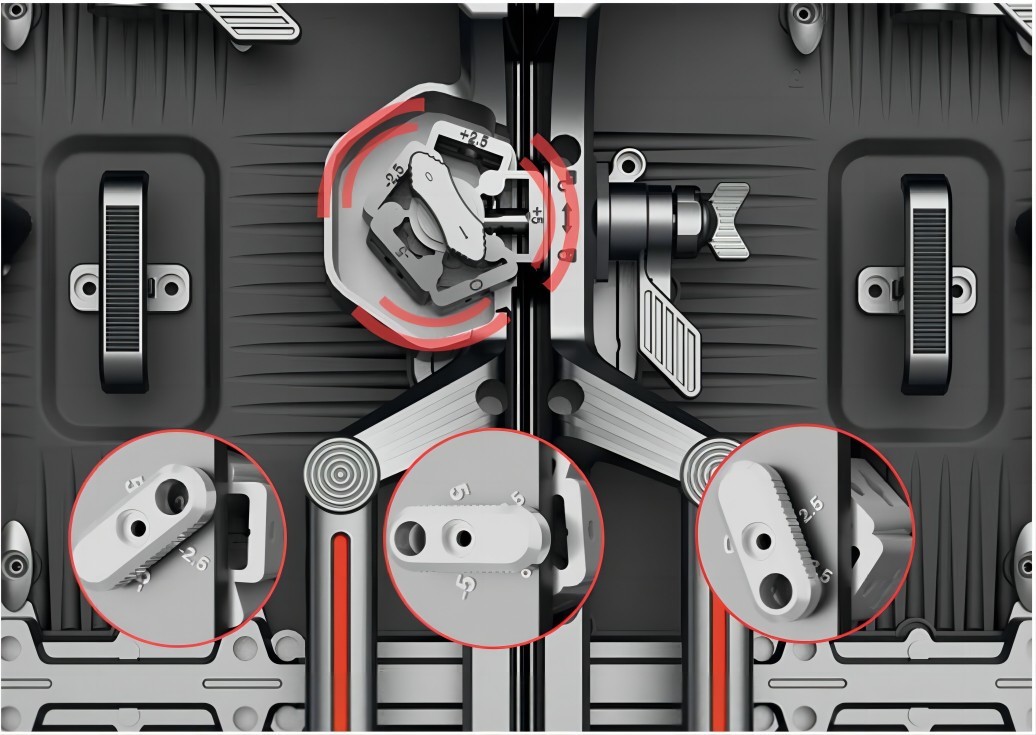

- High Precision Curve Lock
Adopt high-precision curve lock design (-10° to +10°), rotation control, more accurate,
easy to use, and quickly adjust the degree of curve.
- Corner Protector
The LED screen has four corners to prevent damage to the LED,Transportation, installation, operation,disassembly and assembly are more secure and easy to use.
Parameters:
| Model |
Di-LN2.6 |
Di-LN2.9 |
Di-LN3.9 |
Di-LN4.8 |
| Pixel Pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
| Pixel Configuration |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Pixel Density |
147,456 pixels/m2 |
112,896 pixels/m2 |
65,536 pixels/m2 |
43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) |
250 x 250 |
250 x 250 |
250 x 250 |
250 x 250 |
| Panel Dimensions (mm) |
500 x 500 x 80 |
500 x 500 x 80 |
500 x 500 x 80 |
500 x 500 x 80 |
| Modules Per Cabinet (W x H) |
2 x 2 |
2 x 2 |
2 x 2 |
2 x 2 |
| Module Resolution |
96 x 96 |
84 x 84 |
64 x 64 |
52 x 52 |
| Cabinet Resolution |
192 x 192 |
168 x 168 |
128 x 128 |
104 x 104 |
| Panel Material |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Weight per Cabinet |
7.5kg |
7.5kg |
7.5kg |
7.5kg |
| Colours |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
200 W /Sqm |
| Max Power Consumption |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
600 W /Sqm |
| Brightness |
>5,000 nits |
>5,000 nits |
>5,000 nits |
>5,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840 Hz |
>3,840 Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front/Rear |
Front/Rear |
Front/Rear |
Front/Rear |
| IP Rating (Front/Rear) |
IP 65 |
IP 65 |
IP 65 |
IP 65 |
| Operating Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. CE, ROHS, FCC, ETL, TUV certified supplier
