P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen
P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen
Basic Information
Place of Origin: CHINA
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: P2.5
Contact Now
Pixel Pitch: 2.5mm Pixel Composition: SMD 2020
Maintenain: Front Maintenance LED Module Module Size: 320*160mm
Input Voltage: AC 110~220 V Installation Method: Wall-mounted
Led Controller: Novastar Pixel: P1.56/ P1.875/ P2/ P2.5/ P3
Voltage: AC 110-240V Ic Driver: ICN2038S/ MBI5124 Etc.

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen





Specification
P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 0

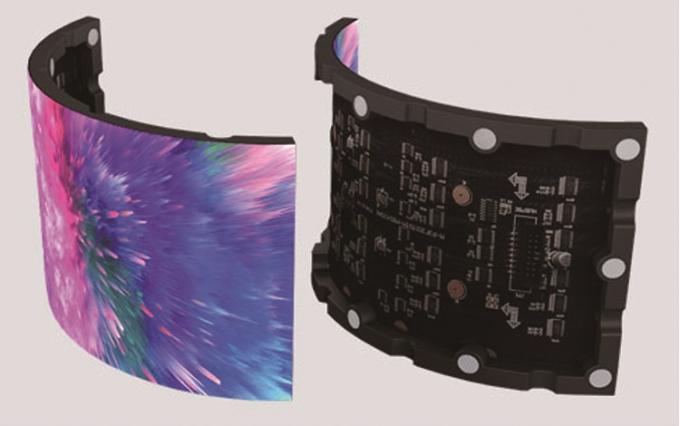

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 1
Products features:
1.add silicone frame + mask. Embedded magnet,
2.reduce stitching gap. Soft, thin, strong magnets column, flexible led module.
3.The use of advanced SMT technology reduced the bad solder and static issue significantly clean, exquisite and high color
reproduction effect for video and text.

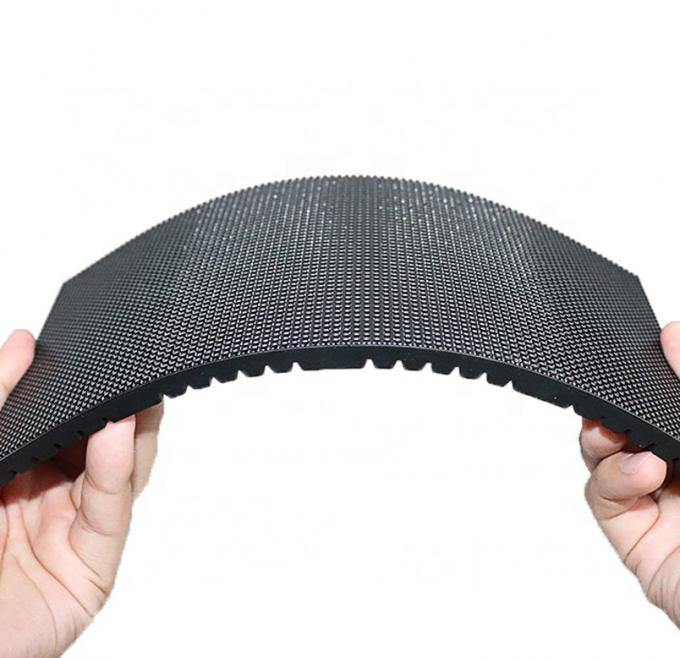

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 2

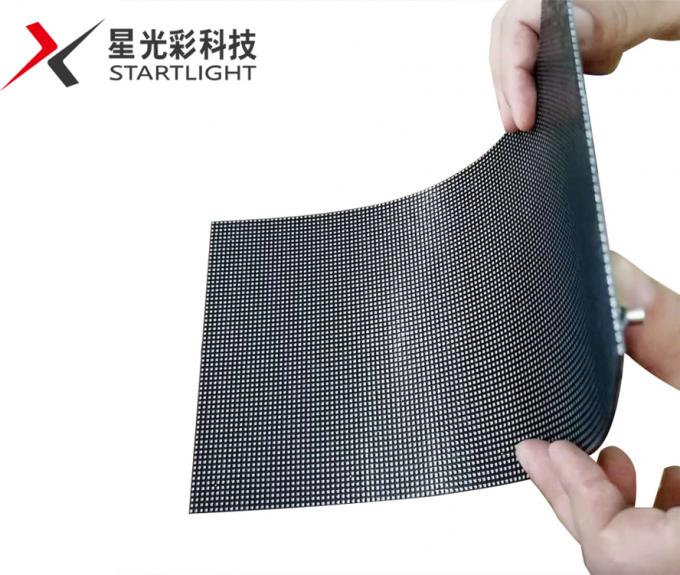

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 3

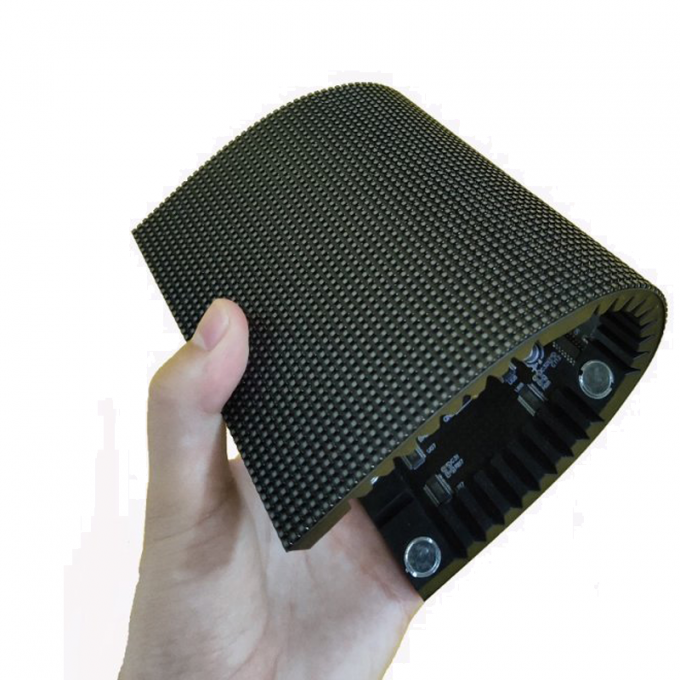

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 4
No mask,no cover,face mask,no bottom design.

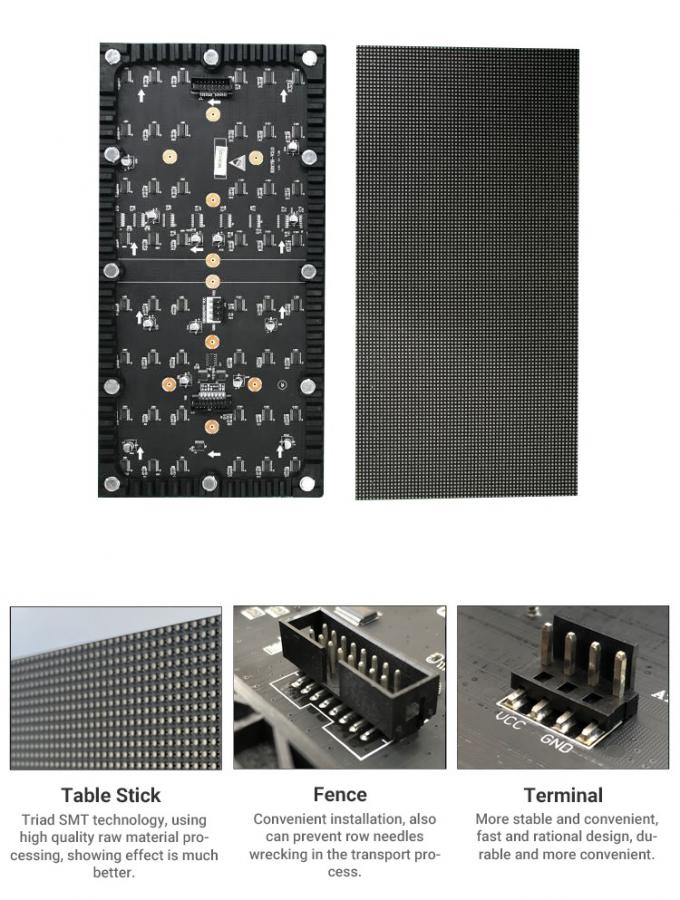

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 5

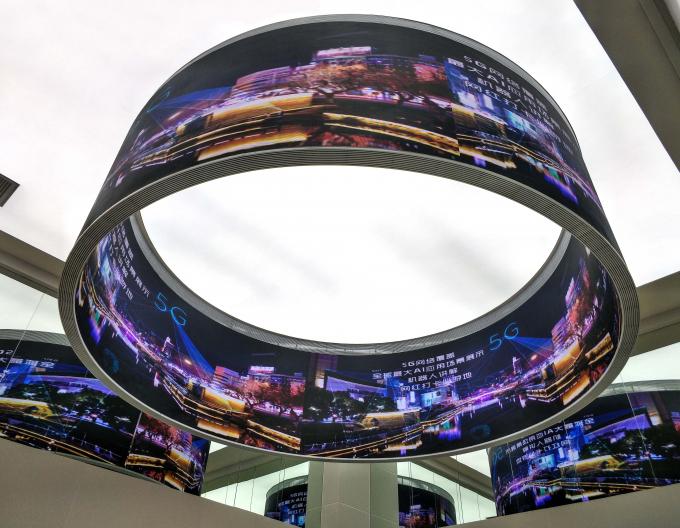

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 6
Flexible LED screen main advantage
1.The installation of the flexible LED display can be any curved surface, suitable for artistic modeling;
2.Suitable for surface display of stage backgrounds, exhibition halls, indoor conference rooms, etc.；
3.The installation of the flexible LED display completes the on-site installation structure, adopts a strong magnetic adsorption device, direct adsorption, convenient installation and convenient maintenance. Both safety and stability are high；
4.The PCB is made of flexible soft board, and the mask and the bottom case are made of rubber；
5.The connection between the modules uses a high-end connector - HDMI connector；
6.More reliable and stable with distributed scanning and modular design；
7.High gray level and high refresh rate design: the gray level can be 10-16bit, and the refresh frequency can be 400-1500Hz, so that the LED display screen has no delay and smear phenomenon.

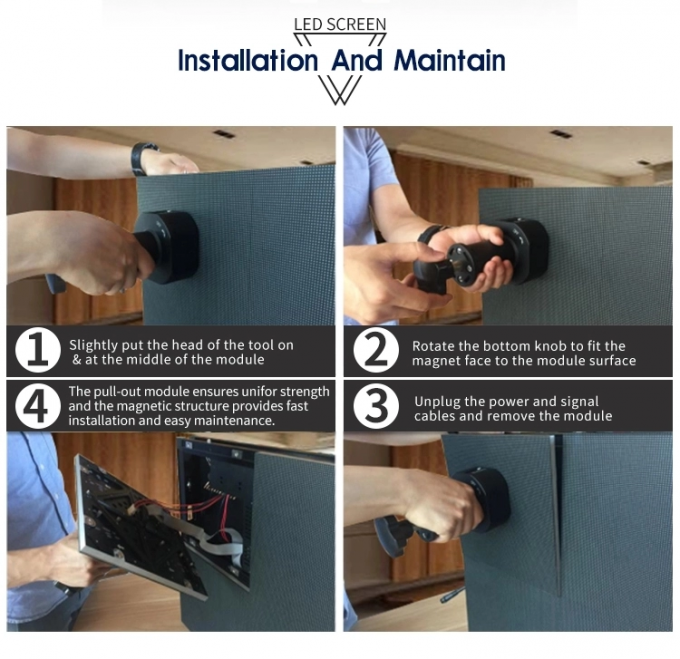

P1.5 P2.5 P4 Led Soft Screen Indoor Outdoor Led Curved Soft Vertical Flexible Ads Display Screen 7
Parameter
P2.5
Pixel Configuration ( 3in1 SMD )
2121
Pixel pitch(mm)
2.5
Module dimensions W*H(mm)
320*160
Module pixels W* H(Pixels)
128*64
Pixel density per sqm(Pixels)
160000
Cabinet weight(kg)
25
Driving Type(scan)
1/32
Brightness(cd/m2)
1200
Refresh Rate(Hz)
≥1200
Horizonta/Vertical Viewing Angle(°)
140/140
AC Input Operating Voltage(V)
110V/220V±15%
AC Input Frequency(Hz)
50/60
Storage Temperature(℃)
-40~+60
Operating Temperature(℃)
-10~+40
Storage Humidity/Operating Humidity(RH)
10%~90% / 10%~90%
IP rating (Front/Rear)
IP40
Lifetime Typical Value/MTBF(hrs)
100000/10000
Operating system
Windows 2000 / Windows Xp / Windows 7/Windows 8/Windows 10 and more
Accepting signal with video processor
PAL/NTSC/SECAMDVI,HDMI,VGA,SDI,HD-SDI,DP,AV,S-VIDEO
More options: P1.875/P2 /P3/P4/P5 etc.
