Name: Outdoor P3 - P10 Mm Custom Size LED Display Screen , Fixed Waterproof Advertising Digital Sign Billboard
Brand: Conwin Optoelectronic Co., Ltd.
SKU: E6
Price: 420.00 USD
Availability: InStock

Outdoor P3 - P10 Mm Custom Size LED Display Screen , Fixed Waterproof Advertising Digital Sign Billboard

Basic Information

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	E6

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Pixel Pitch:

P6.67MM

Led Chip Brand:

Kinglight

Protection Level:

IP 65

Input Voltage:

AC100-240V

Led:

Full Color

Maintenance Way:

Rear/Front

Module Size:

320mm X 320mm

Warranty:

3 Years

Highlight:

Custom Size LED Display Screen

Fixed Digital Sign Billboard

Waterproof Digital Sign Billboard

Product Description

P2 P3.076 P4 P5 outdoor Ip65 water proof advertising fixed installation video digital signage and displays

960x960mm LED panel Instroduction

Model : E6

Pixel pitch : 2mm/3.07mm/4mm/5mm

6.67mm/8mm/10mm

Weight : 25kg
Refresh Rate: >1920Hz/>3840Hz
Gray Scale: 14bit +/-
Control system : Novastar,Linsn ,Colorlight
Voltage: 110-230V
Protection Grade: IP65

Waterproof: Yes
Maintenance way: rear

Application:Most popular used in outdoor advertisment

Commercial LED Display Billboard

LED display with 960mmx960mm size cabinet design. The cabinet is made of magnesium alloy,

which is strong and durable.This LED display can be used for both indoor and outdoor applications,

including fixed installations and rentals.

Quick Assembly

There are two quick locks on the top and left side of the cabinet to support quick installation.

Hidden Line Design

The direct power lines and signal lines of the cabinet are connected through

the holes reserved on the side of the cabinet.

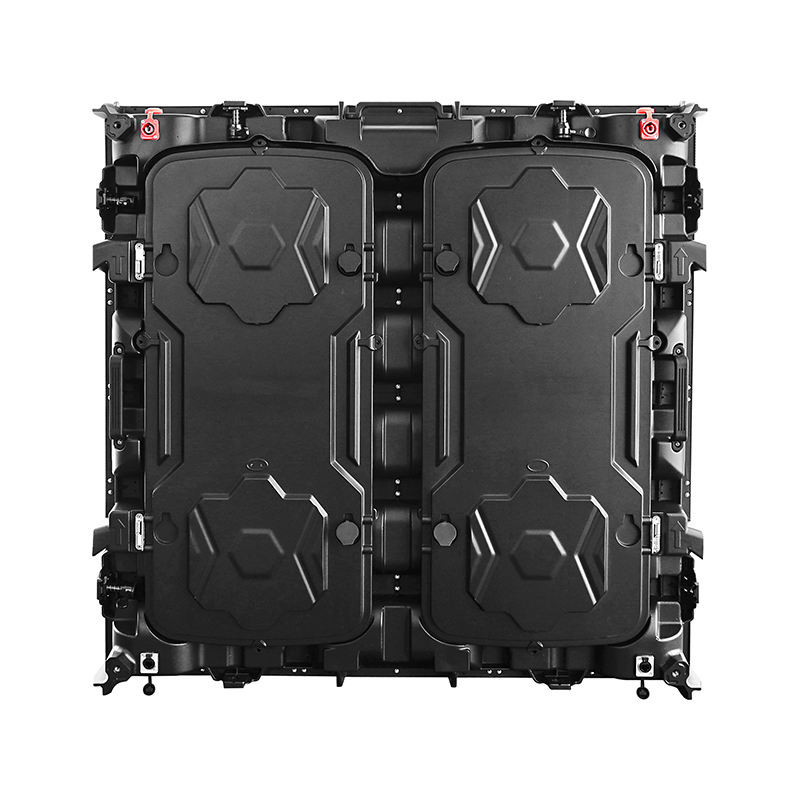

Openable Back Cover

EA960R3 LED display has a compact structure and the back cover can

be opened quickly for maintenance operations.

Fast Heat Dissipation

EA960R3 LED display is equipped with 4 wing fans on the back cover for quick heat dissipation.

Pixel Pitch (mm)	P2.5	P3.076	P4	P5	P6.67	P8
Model	E2.5	E3.076	E4	E5	E6.67	E8
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921	SMD3535	SMD3535
Density (Pixels/㎡)	160,000	105,625	62,500	40,000	22,500	15,625
Module Resolution (Pixel)	128x64	104x52	80x40	64x32	48x24	40x20
Module Size (mm)	320x160	320x160	320x160	320x160	320x160	320x160
Driving Mode (Duty)	1/16	1/13	1/10	1/8	1/6	1/5
Cabinet Size (mm)	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet Weight (KG)	29	29	29	29	29	29
Brightness (CD/㎡)	5,000	5,000	5,500	5,500	6,000	5,500
Viewing Angle (°)	140	140	140	140	140	140
Gray Grade (Bits)	14	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	690	786	909	836	892	600
Avg. Power Consumption (W/㎡)	230	262	303	280	298	200
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	3840	1920 / 3840	1920 / 3840	1920 / 3840	1920 / 3840	1920 / 3840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP65	IP65	IP65	IP65	IP65	IP65
