3D Naked Eye Outdoor LED Billboard Waterproof High Brightness High Refresh
960x960 Outdoor LED Billboard ,Outdoor Fixed LED Video Wall With 5VB Fireproofing Level
Outdoor 960x960mm Aluminum Cabinet High Brightness 10000nits With 3840Hz Refresh Rate
Features and Details of S-B Series Outdoor Fixed LED Screen
- Strong Fire Resistence:
Aluminum material, high temprature duribility, fast heat dissipation. Whole product reach 5VB fire proofing level
- IP66 protection level
Fully sealed die cast aluminum module chasis, waterproof connectors, drain holes designed at the bottom of each panel
- Front and Rear Maintenance available, support directly on wall
Easy matainance, save labor and time
- Cableless design
Waterproof connectors between modules, no visible cable seeing outside
- High brightness
above 5500 nits high brightness and low power consumption
- Pixel Pitch:4.44mm,5.7mm, 6.67mm, 8mm, 10mm
- Greyscale: 16bits with NOVA
- Wide viewing angle at H:160° / V: 160°. .
- Built-in ventilation design, excellent heat dissipation with aluminum LED module also.
- Aluminum LED Module size 480X320mm
- 960X960mm with light weight 28kg
Parameters:
| Model |
S-Pro4 |
S-Pro5 |
S-Pro6 |
S-Pro8 |
S-Pro10 |
| Pixel Pitch |
4.4mm |
5.7mm |
6.67mm |
8mm |
10mm |
| Pixel Configuration |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
SMD3535 |
| Pixel Density |
50625 pixels/m2 |
30625 pixels/m2 |
22500 pixels/m2 |
15625 pixels/m2 |
10000 pixels/m2 |
| Module Dimensions (W x H)(mm) |
480 x 320 |
480 x 320 |
480 x 320 |
320 x 320 |
480 x 320 |
| Panel Dimensions (mm) |
960 x960 x 90 |
960 x960 x 90 |
960 x960 x 90 |
960 x960 x 90 |
960 x960 x 90 |
| Modules Per Cabinet (W x H) |
2 x 3 |
2 x 3 |
2 x 3 |
3 x 3 |
2 x 3 |
| Module Resolution |
108 x 108 |
84 x 84 |
72 x 72 |
40 x 40 |
48 x 48 |
| Cabinet Resolution |
216 x 216 |
168 x 168 |
144 x 144 |
120 x 120 |
96 x 96 |
| Panel Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum l |
Aluminum |
| Weight per Cabinet |
28kgs |
28kgs |
28kgs |
28kgs |
28kgs |
| Colors |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
| Max Power Consumption |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
| Brightness |
>5,000 nits |
>5,500 nits |
>5,500 nits |
>5,500 nits |
>5,500 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Front / Rear |
Front / Rear |
Front / Rear |
Front / Rear |
Front / Rear |
| IP Rating (Front/Rear) |
IP66 / IP66 |
IP66 / IP66 |
IP66 / IP66 |
IP66 / IP66 |
IP66 / IP66 |

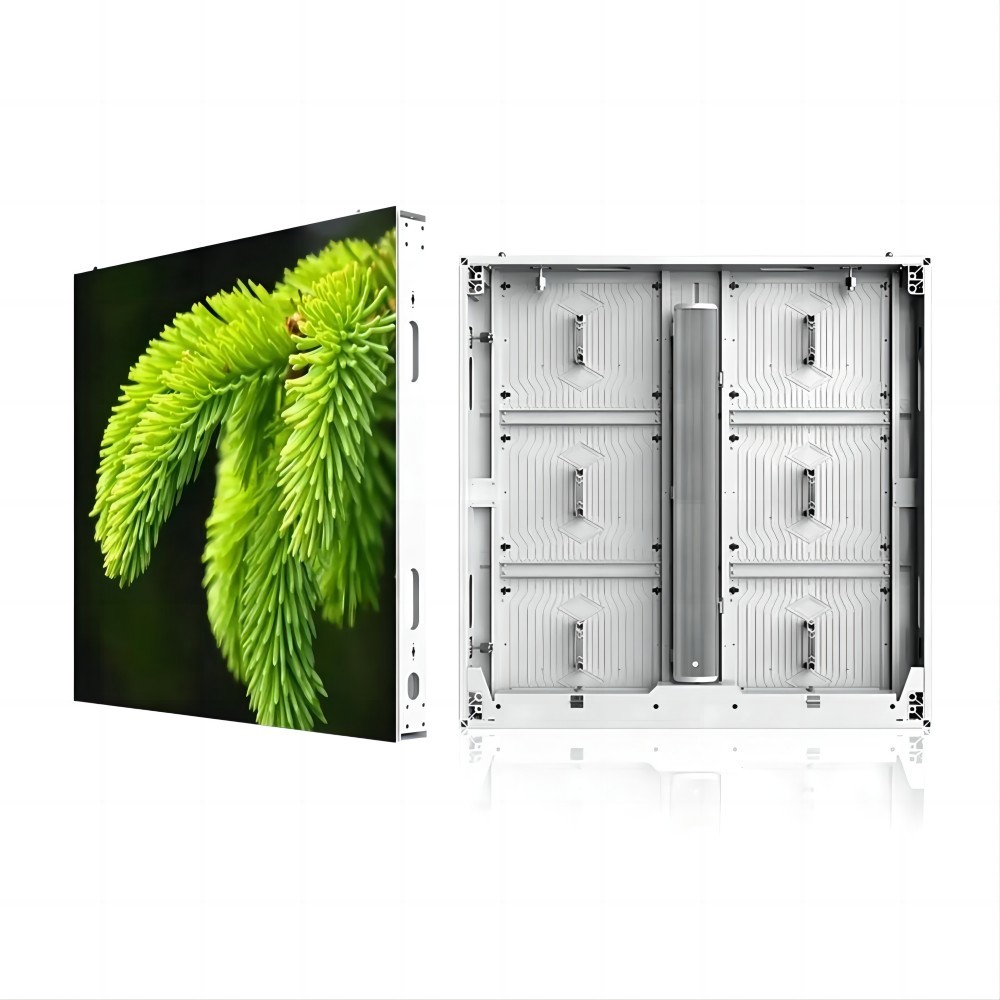

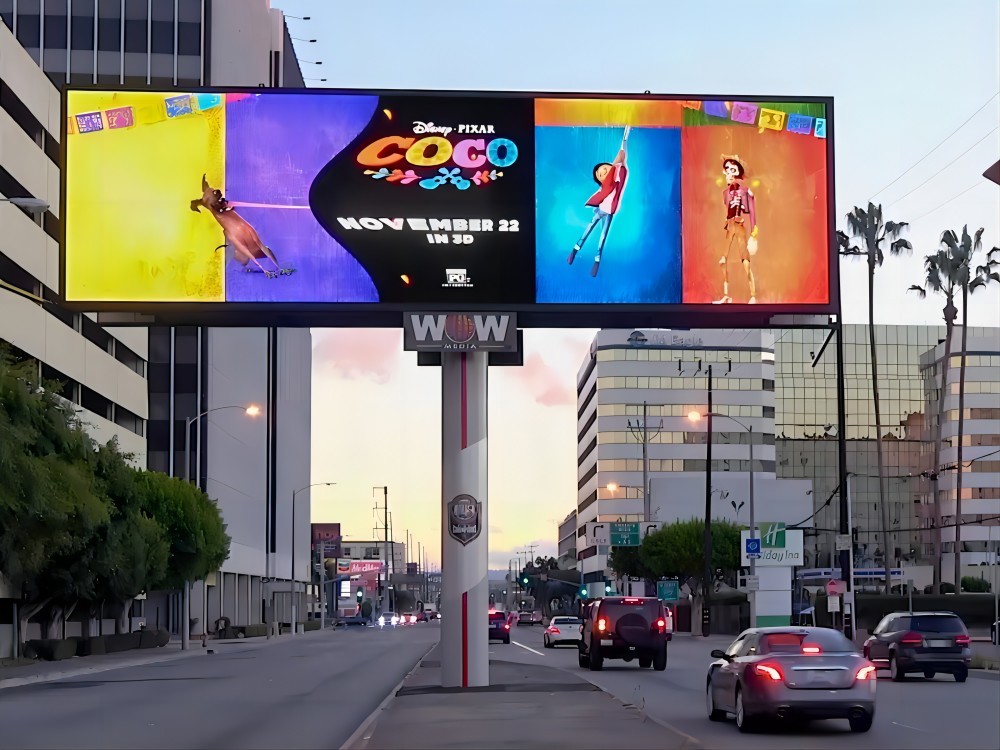

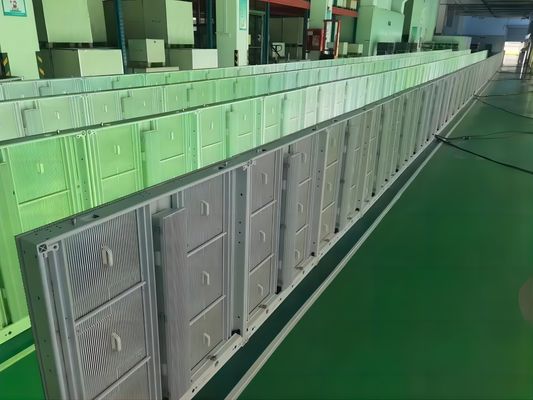

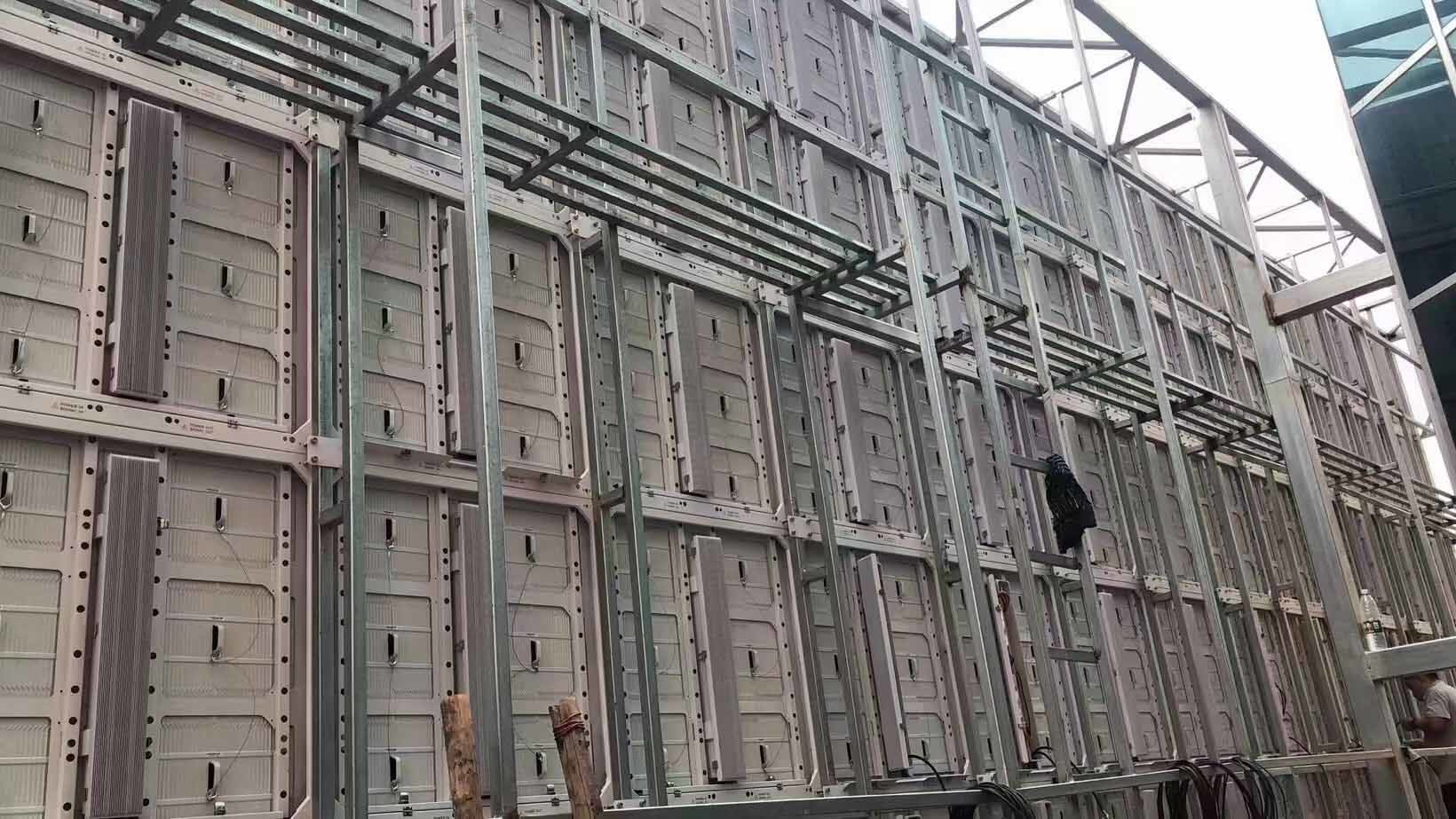

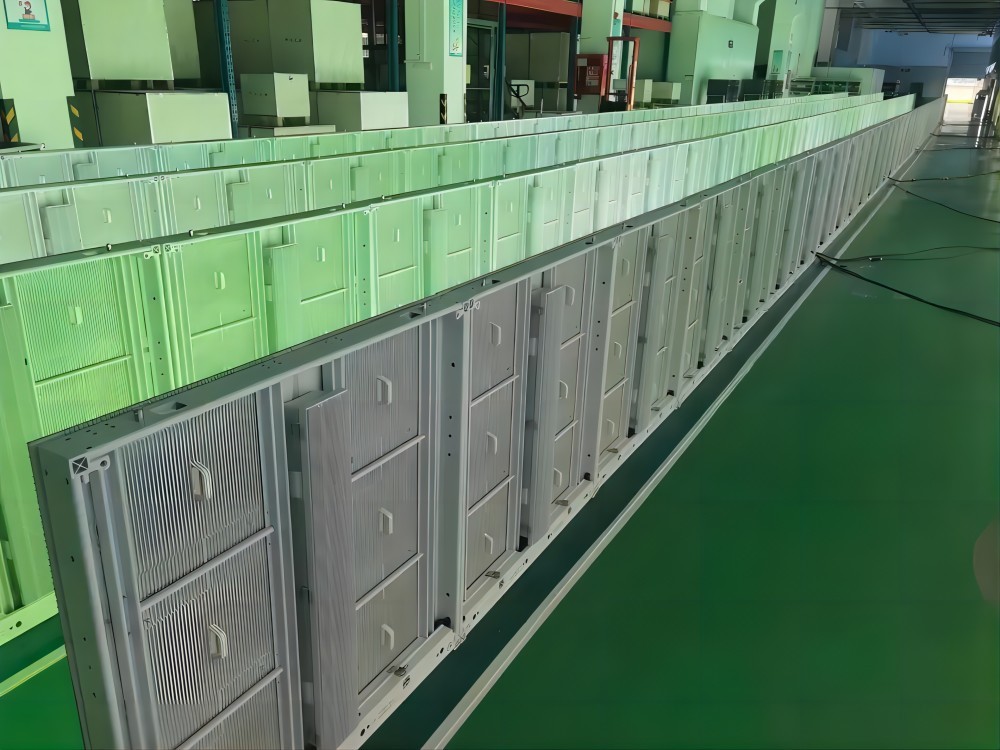

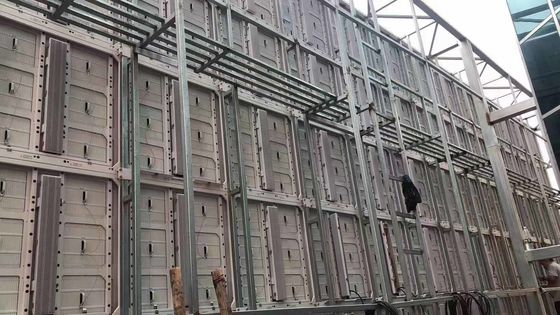

Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
