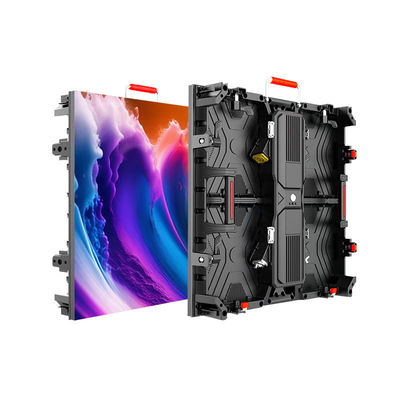

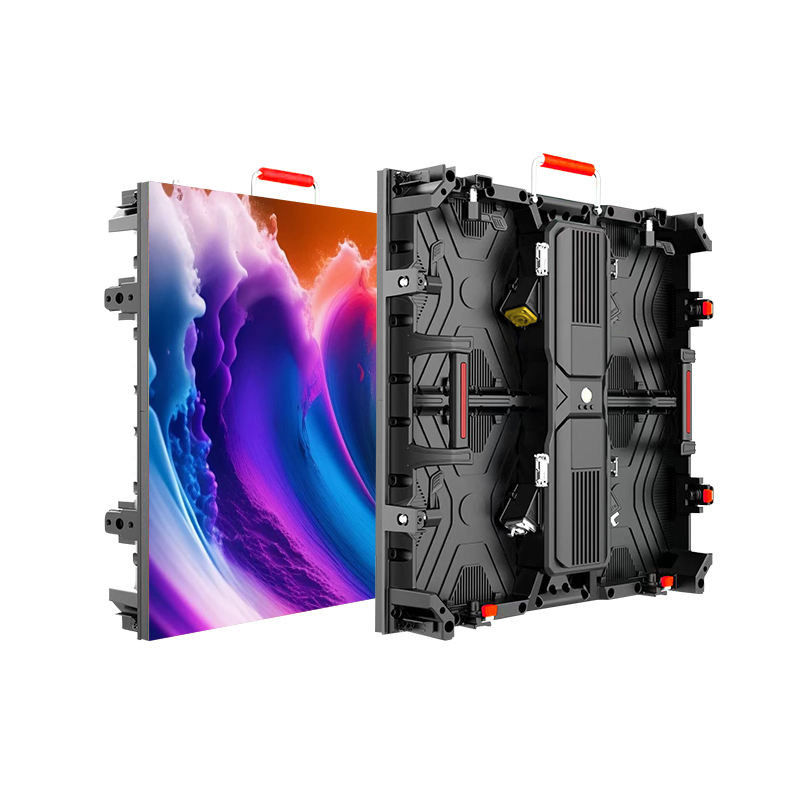

P3.91 500x500mm rental LED Screen Stage Backdrop LED Panel Outdoor Rental Event LED Display Wall

Basic Information

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	X2

Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Panel Material:	Die-casting Aluminium	Application:	Conference, Hotel, Shopping Mall
Led Spec:	SMD3in1	Servicing:	Front/rear
Port:	Shenzhen	Contrast Ratio:	2000:1
Screen Dimension:	500x500mm	Display Type:	P2LED Display Screen
Led Chip:	Nation Star,NationstarSMD2020	Panel Size:	500x500mmx57mm
Size Of Panel:	500mm X1000mm	Max Hanging:	20/10
Scanning Mode:	13S	Weight:	7kgs
Highlight:	P3.91 LED Display Wall , 500x500mm LED Display Wall , Outdoor Rental LED Display Wall

Product Description

Specification

Pixel pitch	1.953mm	2.604mm	2.976mm	3.91mm	4.81mm
Pixels per cabinet (HxV)	256×256	192×192	168×168	128×128	104×104
(500*500mm)
Pixels per cabinet (HxV)	256×512	192×384	168×336	128×256	104×208
(500*1000mm)
LED lifetime	100,000h
Brightness	Indoor:600-800 nits, Outdoor:4500-5000 nits
Module size	250*250mm
Module resolution	128*128dots	96*96dots	84*84dots	64*64dots	52*52dots
Refresh rate	3840-7,680Hz
Hor. viewing angle	140° +/-5° (@50% brightness)
Vert. viewing angle	140° +/-5° (@50% brightness)
Brightness uniformity	>98%
Dimming	0-100%
Grey Level	14 bits
Avg Power consumption	400 W/m²	350 W/m²	320 W/m²	300 W/m²	280 W/m²
Max Power consumption	720 W/m²	680 W/m²	640 W/m²	620 W/m²	600 W/m²
Operation power voltage	100-240V / 50-60Hz
Operational temperature	-10°C to +40°C / 14°F to 104°F
Operational humidity	10-80%

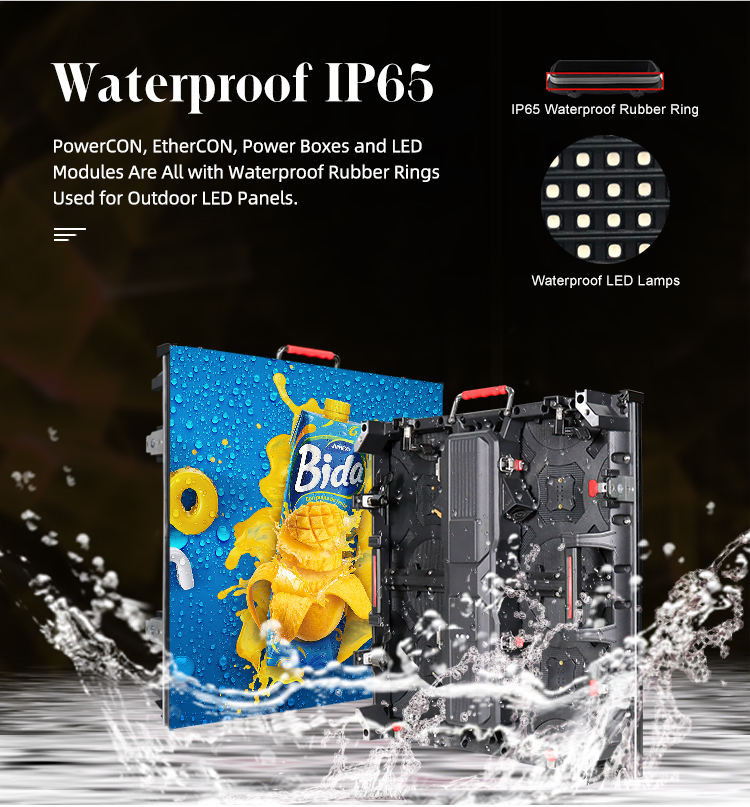

IP rating	IP54 for Indoor, IP65 for Outdoor
Dimensions	500 x 500 x 80 mm /500 x 1000 x 80 mm(WxHxD)
Weight	7.25kg(500 x 500mm cabinet)/ 12.5kg (500 x 1000mm cabinet)
Serviceability	Frontal & Rear Service Indoor. Rear Service For Outdoor.
Certifications	CE, UL, FCC class A, RoHS, WEE, REACH
Warranty	3 years standard product warranty
