Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall

Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: C1.2
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Cabinet Size: 600x30x337.5 Psu: 5V 40A
Pannel Material: Aluminum Processing: 16 Bit
Panel Material: Die-casting Aluminum Lifetime: 100,000 Hours
Power Consumption: Average 200W/sqm Standard: CE/ROHS/FCC/GMC
Pitch: 1.25mm Expected Lifetime: 100,000 Hrs
Scan Styple: 1/13
Highlight:

55 Inch Indoor LED Video Wall

,

P1.25 COB LED Panel

,

Full Color COB LED Panel

Chip On Board P0.9 P1.25 P1.56 LED Screen COB LED Panel LED Video Wall



Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 0

Product Description



Model P1.25 P1.5625
Pitch(mm) 1.25 1.5625
Density(dot/sqm) 640,000 409,600
Pixel Configuration 1RGB 1RGB
Module Size(mm*mm) 150*168.75 150*168.75
Dot Rank(px*px) 120*135 96*108
Scaning Method 1/30 1/48
Grayscale(bit) 14 14
Refresh Rate(Hz) 3840 3840
Driving Method Constant Current Drive
Horizontal Viewing Angle 170 170
Vertical Viewing Angle 170 170
Cabinet Weight(kg) 6
Cabinet Size(mmxmmxmm) 600x30x337.5
Cabinet Resolution(px*px)   384*360
Cabinet Material Die-casting Aluminium
Color(M) >16.7 >16.7
Output Voltage(V) AC110-220V+/-10%
Repetition Frequency(Hz) 50-60
Proof Level IP45
Usage Environment Indoor
Working Temperature(°C) -40 degree - +60 degree
Storage Humidity(RH) 40%-60%
Lifespan(H) 100,000








Our Advantage

This product adopts COB encapsulation technology, which is different from the traditional SMD surface-mount encapsulation. It integrates the light-emitting RGB chip on the PCB board instead of soldering LED lamp to the PCB one by one. This technology effectively improves the reliability, light color and protection performance of LED display.

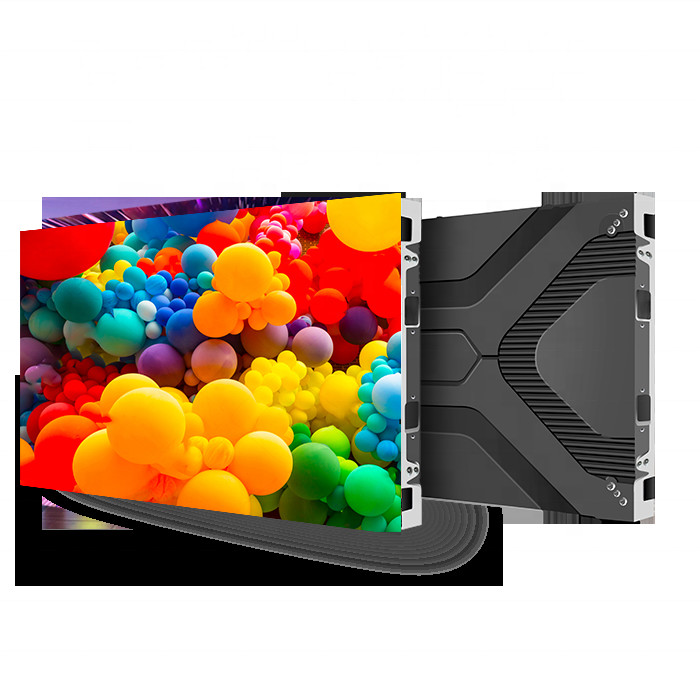

  • 600mm x 337.5mm die-casting aluminum cabinet with very thin thickness 32.5mm. compatible pitch 0.93/1.25/1.56/1.875.
  • Flip chip COB support common cathode solution, low consumption, and more stable.
  • The Horizontal and vertical viewing angle reach 170 degrees, wider than SMD screen.
  • Big high-quality chip, pure gold bonding wires, and pads are immersed gold technology, which is more reliable.
  • High refresh rate at low gray, refresh rate more than3840HZ, Grey scale more than 14Bit.
  • Excellent heat dissipation and low light decay, PCB board dissipate heat directly, extendedservice life.
  • Module face IP65,water-proof, dust-proof, anti-oxidation, anti-static, anti-impact.
  • 16:9 ratio cabinet design,2K/4K/8K dot to dot match resolution,100% front service.



Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 1Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 2



Front Maintenance
1. Front maintenance within 3 second,you can easier take out module within 3 seconds with professional tool,reduce maintenance costs.
2. Module, power supply and receiving card,can be front maintained. *Save time, labor & cost,Magnetic front service.
3. Disassemble a module in 1 second.

Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 3



Smart Module
Horizontal & vertical detection
Intelligent horizontal display module immediately shows the tilt angle when the individual cabinets are not leveled, so the installers can adjust in time according to the deviation data.
Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 4
Visible flatness adjustment
When the cabinet is installed, the horizontal and vertical angles of the cabinet can be displayed in real time. The staff can adjust the inclination according to the display data in time for the best cabinet position, improved flatness, and better visual effect.

Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 5





2K/ 4K /8 K dot to dot matching

Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 6

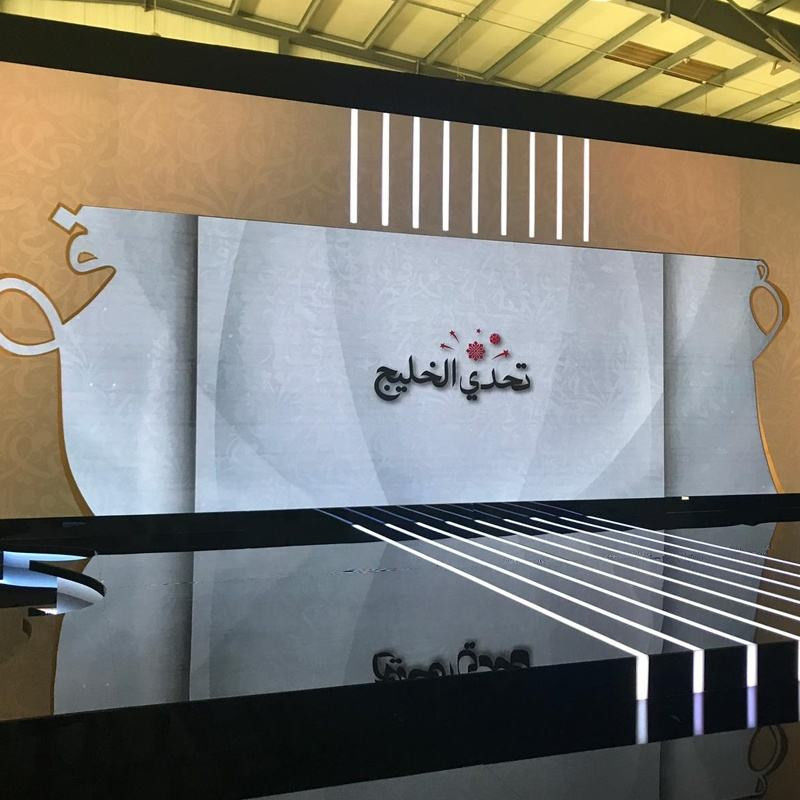

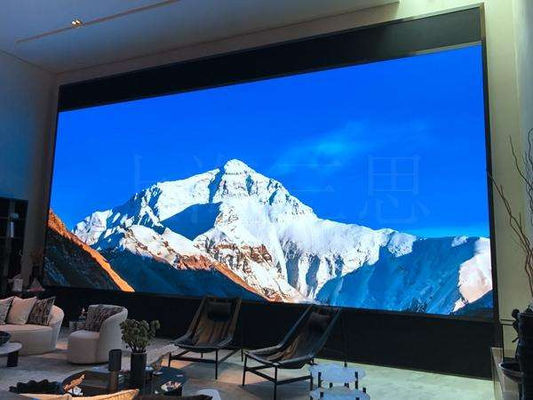

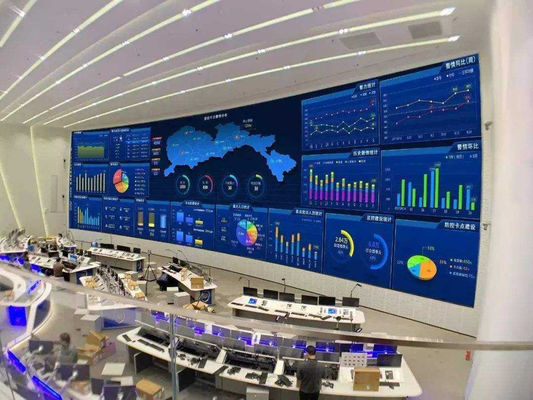

Our Related Cases

Full Color COB P0.9 P1.25 P1.56 LED Screen COB LED Panel 55 Inch Indoor LED Video Wall 7
