Home ProductsOutdoor LED BillboardP2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm
P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm
P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: E2.5
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Pixel Configuaration: 1R1G1B Screen Dimension: Customized
Average Life Span: 100,000 Hours Under Proper Use Control System: Asynchronous/Synchronous
Driving Method: 1/10 Scan, Constant Current Led Drive: Constant-current
Service Method: Rear Service Drive Duty: 1/8scan
Cabinet Size: 960mmx960mm Size: Customizable
Highlight:

960*960mm Outdoor LED Screen Display

,

Ultra HD Outdoor LED Screen Display

,

Full Color Outdoor LED Screen Display

Why Choose CONWIN LED?

1.Our factory has been focusing on Led display screen manufacturing for more than 15years,which could provide you with the most affordable price and guarantee high quality one.
2.Service:We always offer the most clear and flexible solution through professional reply to our customers.
3.Nice quality:Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Besides, we will do an aging test for at least 72 hours before shipment.
4.Installation guidance:We will offer you the CAD drawing to guide you for installation.After you receive the goods,there is a professional engineer team to help you operate the control system of our Led display screen.
5. Customized service:We do OEM&ODM in all kinds of led display screen designs to meet your varied requirements.
Products Description
Pixel Pitch
2.5mm
3.07mm
4mm
5mm
LED Configuration
SMD1415
SMD1921
SMD1921
SMD1921
Application
Outdoor
Outdoor
Outdoor
Outdoor
Pixel Density/sqm
160000dots
105625 dots
62500 dots
40000 dots
Module Size/mm
320 x 160
320 x 160
320 x 160
320 x 160
Module Resolution
128x 64 dots
104x 52 dots
80 x 40 dots
64 x 32 dots
Cabinet Size
960x960mm
960x960mm
960x960mm
960x960mm
Cabinet Resolution
384 x 384 dots
312x312dots
240x240dots
192x192dots
Cabinet Weight
26Kg
26Kg
26Kg
26Kg
IP Rating
IP65
IP65
IP65
IP65
Scan
1/16S
1/13S
1/8S
1/8S
Brightness /sqm
4500-5000 nits
4500-5000 nits
4500-5000 nits
4500-5000 nits
View Angle/°
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
Gray Scale/bit
16 bit
16 bit
16 bit
16 bit
Max. Power Consumption/W
640 W/sqm
640 W/sqm
640 W/sqm
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
192 W/sqm
192 W/sqm
192 W/sqm
Refresh Frequency/Hz
3840 Hz
3840 Hz
3840 Hz
3840 Hz
Operating Power
AC 96~242V 50/60Hz
Operating Temperature
-40℃~+60℃
Operating Humidity
10~90%RH
Operating Life
100,000Hours
Pixel Pitch
6.67mm
8mm
10mm
LED Configuration
SMD1415
SMD1921
SMD1921
Application
Outdoor
Outdoor
Outdoor
Pixel Density/sqm
160000dots
105625 dots
62500 dots
Module Size/mm
320 x 160
320 x 160
320 x 160
Module Resolution
128x 64 dots
104x 52 dots
80 x 40 dots
Cabinet Size
960x960mm
960x960mm
960x960mm
Cabinet Resolution
384 x 384 dots
312x312dots
240x240dots
Cabinet Weight
26Kg
26Kg
26Kg
IP Rating
IP65
IP65
IP65
Scan
1/16S
1/13S
1/8S
Brightness /sqm
4500-5000 nits
4500-5000 nits
4500-5000 nits
View Angle/°
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
Gray Scale/bit
16 bit
16 bit
16 bit
Max. Power Consumption/W
640 W/sqm
640 W/sqm
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
192 W/sqm
192 W/sqm
Refresh Frequency/Hz
3840 Hz
3840 Hz
3840 Hz
Operating Power
AC 96~242V 50/60Hz
Operating Temperature
-40℃~+60℃
Operating Humidity
10~90%RH
Operating Life
100,000Hours
LED Cabinet Specification
P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm 0
Details Images

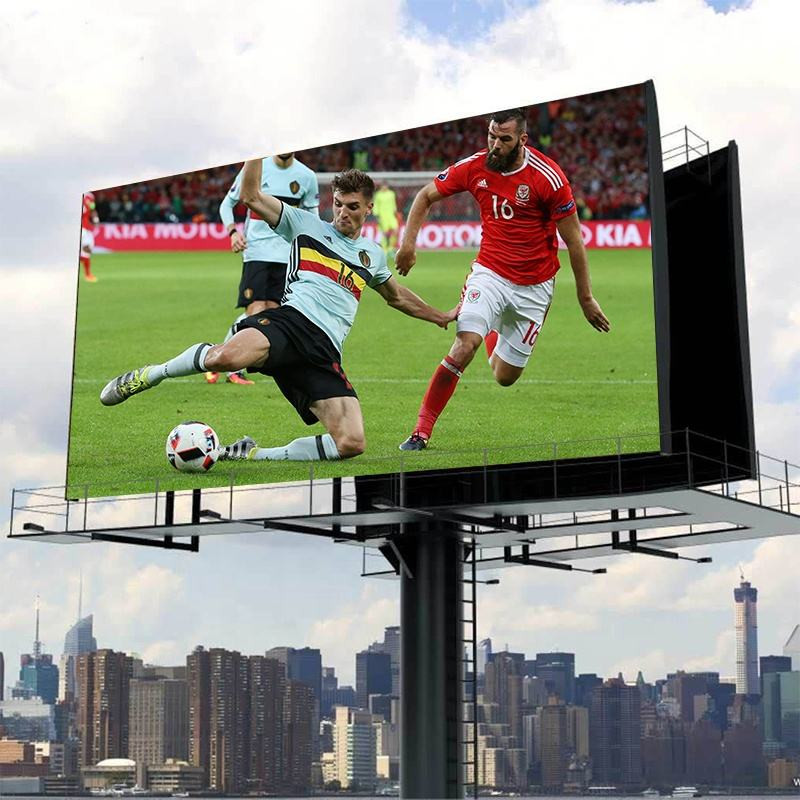

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm 1

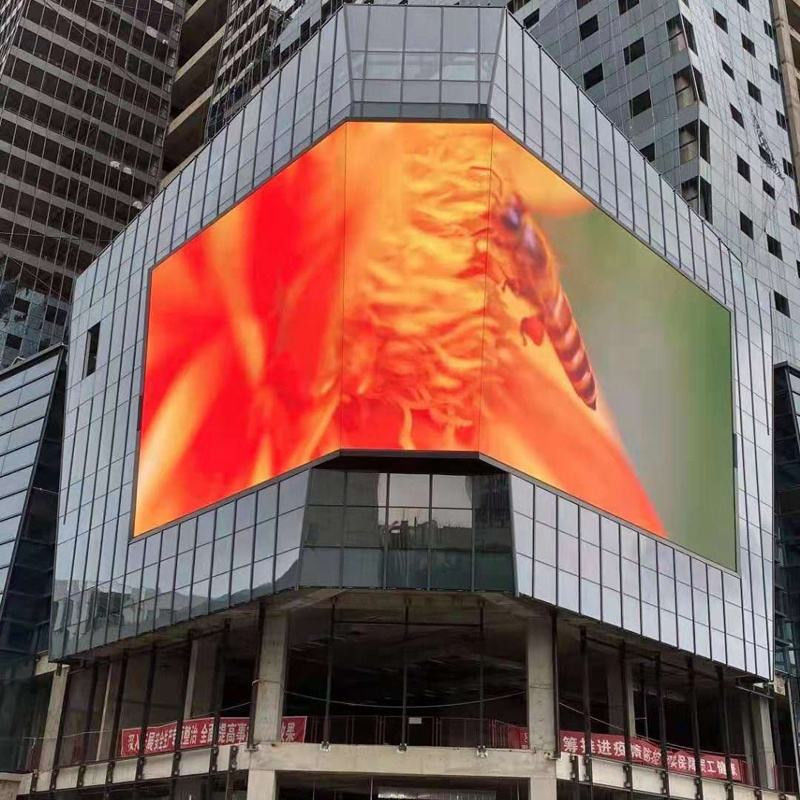

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm 2

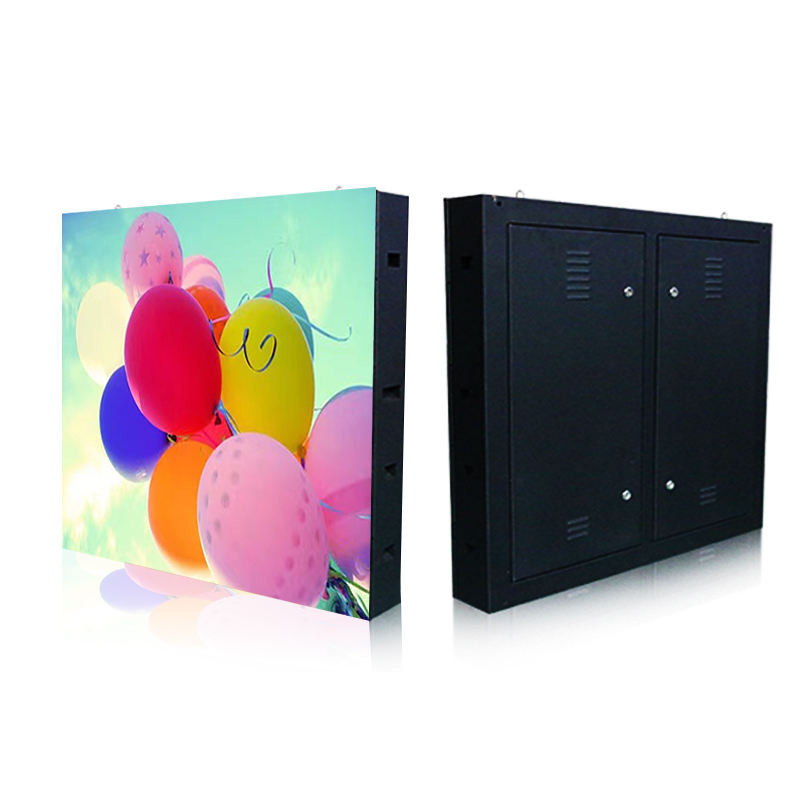

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm 3

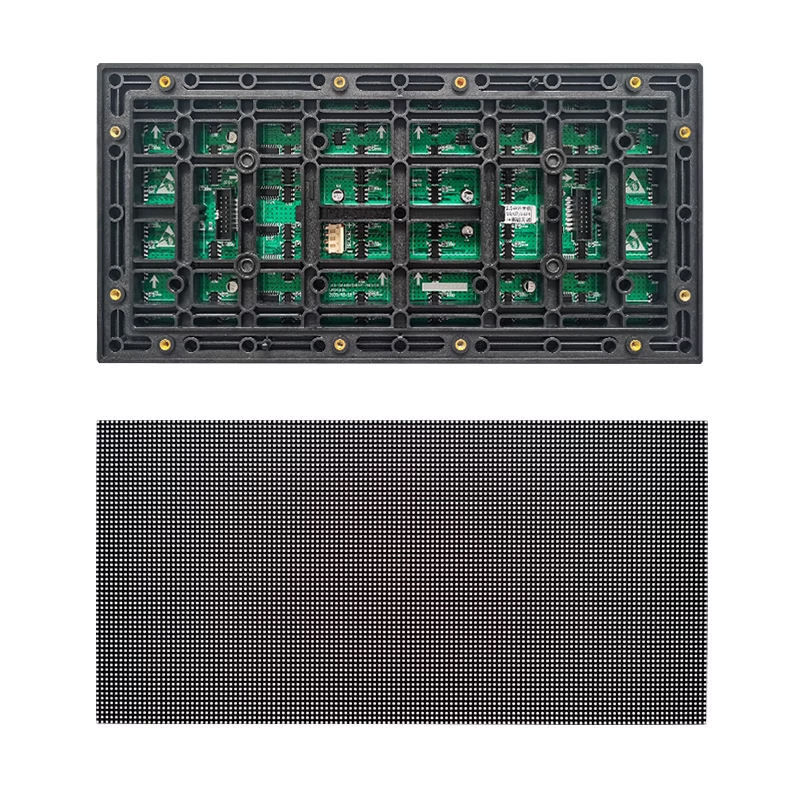

P2.5 Outdoor LED billboard Ultra HD Big LED Advertising Video Display Screen 960*960mm 4
