P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens

P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens
Basic Information
Place of Origin: China
Brand Name: CONWIN
Certification: CE,ROHS
Model Number: F10
Minimum Order Quantity: 1sqm
Packaging Details: wooden box or carton
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000sqm/month
Contact Now
Tube Chip Color: Full Color Items: LED Stadium Screen
Gray Scale: 16bit Signal Input: HDMI,DVI,VGA,SDI, Etc.
Warranty: 3years Grey Scale: 16.7M Color
IP Rating: IP65 Power Supply: AC110V/220V
Module Size: 320mm*160mm Cabinet Resolution: 384*384
Pixel Configuration: 1R1G1B Color Temperature: 3200-9300k
Driving Method: 1/4scan Panel Size: 1920*960mm/960*960mm
Highlight:

P10 Stadium LED Screen

,

Soccer Field Stadium LED Screen

,

Outdoor Stadium LED Screen

Product Details
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 0



High refresh rate, no flicker during live switch
Up to 3800Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras andcameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 1
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 2



320MMX160MM STANDARD SIZE MODULE
960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance. Also it is very convenient when you change the pixel pitch such as P5mm P8mm and P10mm. You dont need to change anything, just change the module as they have the same module size and structure.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 3

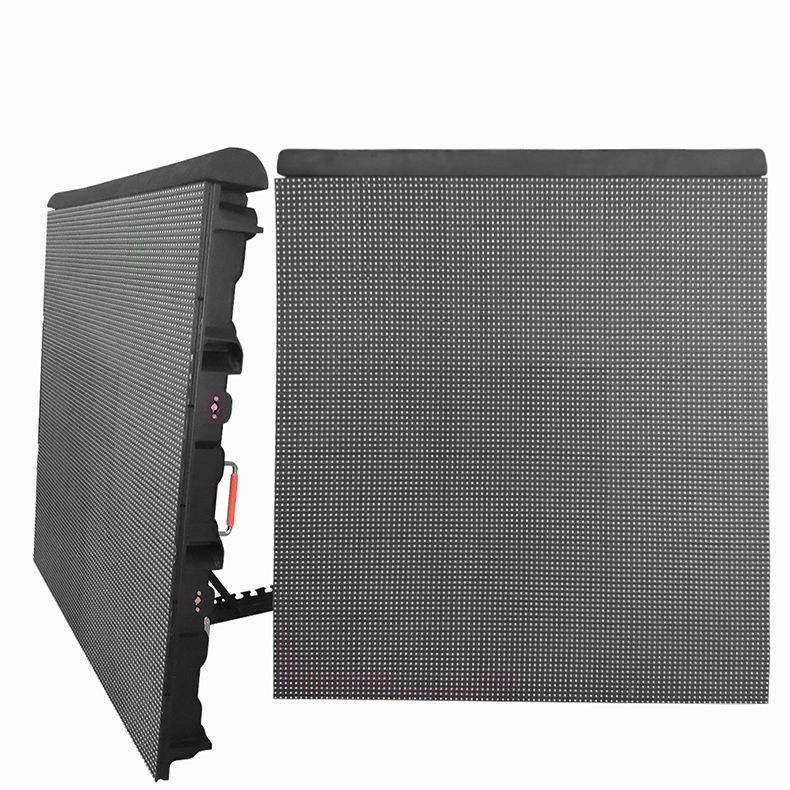

Exquisite cabinet design features
960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 4

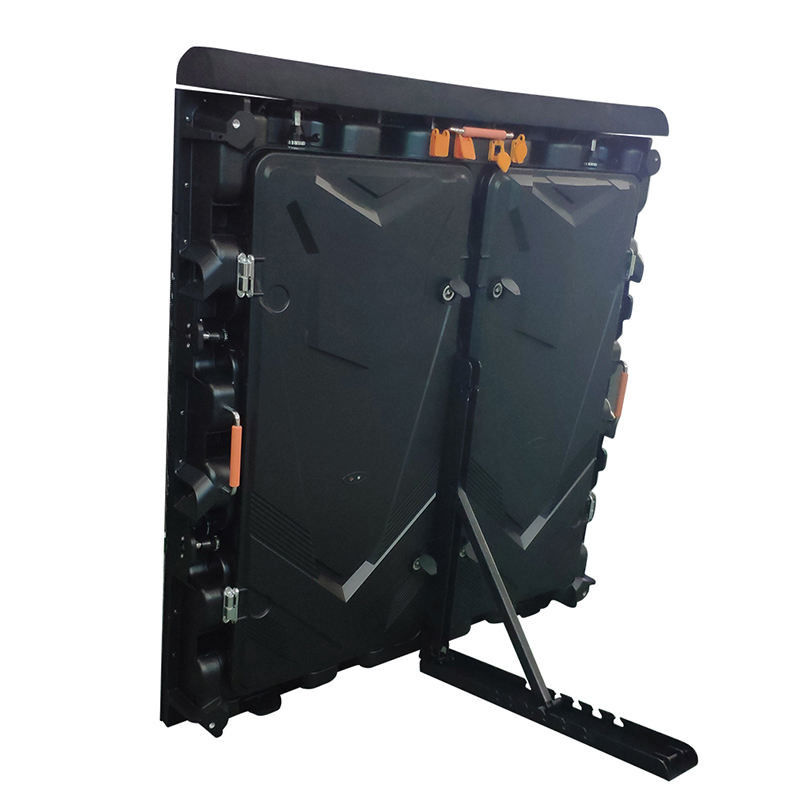

Independent support structure
There is an independent support structure that can be rotated and adjusted, and it can still stand even when subjected to a strong external impact. The installation angle of the cabinet can be adjusted according to the actual site conditions, and the angle can be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85 °/ 90 ° multi-angle adjustment.




Soft mask design(optional, extra charge)
The soft surface and unique soft protective pad can protect people’s safety, even if someone hits the LED screen, it is very effective to protect people’s safety.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 5
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 6
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 7




DUSTPROOF, WATERPROOF AND CORROSION RESISTANT
Pecific independent waterproof module and the waterproof enclosure with excellent sealing performance to protect cabinet, which is dustproof, waterproof and corrosion resistant, and the protection grade is up to IP65.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 8




ULTRA THIN BOX 126 MM
The outdoor stadium led box weighs only 28.5kg and its thickness is only 126mm. The ultra light cabinet body is made of aluminum alloy and has protective performance. The delicate design of the lightweight LED display makes it very easy to install. In addition, the quick lock feature can be installed and uninstalled without any technical skills.
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 9
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 10
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 11
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 12Application
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 13
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 14
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 15
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 16
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 17
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 18
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 19
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 20
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 21
P10 Football Stadium LED Screen Display Advertising Billboard Stadium Soccer Field advertising outdoor LED screens 22
Specification
Pixel Pitch
P10
Pixel Configuration
SMD3535
Density (Pixels/㎡)
10000
Module Resolution (Pixel)
32×16
Module Size (mm)
320x160
Driving Mode (Duty)
1/5
Cabinet Size (mm)
960x960
Cabinet Weight (KG)
28.5
Brightness (CD/㎡)
≥6,500
Viewing Angle (°)
120
Gray Grade (Bits)
14
Operation Power
AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)
550
Avg. Power Consumption (W/㎡)
300
Frame Frequency (Hz)
≥60
Refresh Frequency (Hz)
≥3,840
Working Temperature (ºC)
-20～+60
Lifetime (Hours)
100,000
Protecting Grade
IP65(front),IP54(rear)
