Football Stadium LED Display Screen Perimeter Advertising Digital Banner
Outdoor Led Sport Perimeter Stadium LED Display Screen with High Resolution3840Hz
Application:
Q-A series is most classic design of led stadium perimeter, it's durable, reliable and easy to use, widely applied for all kinds of football, basket ball stadium.
Features and Advantages:
- Easy maintenance. Module / cabinet change time <1 min, without affecting running system – i.e. hot-swappable.
- Special designed mechanism for access gates at several locations (optional), with no signal interruption.
- Mechanical system to align the cabinets, and minimise gaps between cabinets..
- IP65 front and IP54 rear
- Soft rubber louvers front and cushion top to protect cabinets from impact and players from injury
- Wooden box or Flight case designed for efficient storage and shipping (for transportable systems).
- Content Control / Data Interfacing
Optional: Individual control of brightness, gamma, colours of every single pixel/ module/cabinet.
Default pictures (auto-switch feature) installed and enabled (set to static shared-rotation) in case of total connection loss with server.
System viewed and operated as one single screen by control software.
Back-up data system for non-stop displaying.
- Angle Adjustable with best viewing performance
- High refresh rate, no strip for camera shooting and live show broadcasting.
- Wide viewing angle 160°/160°
- Pixle Pitch P2mm,P2.5mm,P3mm,P4mm,P5mm,P6.67mm,P8mm,P10mm. With LED Module size 320X160mm rear service
- Rotating base and wheers could be added
- LED Module surface with soft mask for protecting players from injuiry
- IP65 waterproof front
- Different size could be choosed.
960X960mm, 1280X960mm, 1600X960mm, 1920X960mm
Parameters:
| Model |
Q-A2.5 |
Q-A3 |
Q-A4 |
Q-A5 |
Q-A6 |
Q-A8 |
Q-A10 |
| Pixel Pitch |
2.5mm |
3.0769mm |
4mm |
5mm |
6.67mm |
8mm |
10mm |
| Pixel Configuration |
SMD1415 |
SMD1921 |
SMD1921 |
SMD1921 |
SMD2727 |
SMD3535 |
SMD3535 |
| Pixel Density |
160000 pixels/m2 |
105625 pixels/m2 |
62500 pixels/m2 |
40000 pixels/m2 |
22500 pixels/m2 |
15625 pixels/m2 |
10000 pixels/m2 |
| Module Dimensions (W x H)(mm) |
320 x 160 |
320 x 160 |
320 x 160 |
320 x 160 |
320 x 160 |
320 x 160 |
320 x 160 |
| Module Resolution |
128 x 64 |
104 x 52 |
80 x 40 |
64 x 32 |
48 x 24 |
40 x 20 |
32 x 16 |
| Cabinet Resolution |
768 x 384 |
624 x 312 |
480 x 240 |
384 x 192 |
288 x 144 |
240 x 120 |
192 x 96 |
| Panel Material |
Cold steel |
Cold steel |
Cold steel |
Cold steel |
Cold steel |
Cold steel |
Cold steel |
| Colours |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Contrast Ratio |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
5,000 : 1 |
| Average Power Consumption |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
330 W /Sqm |
| Max Power Consumption |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
950 W /Sqm |
| Brightness |
>6,000 nits |
>6,000 nits |
>6,000 nits |
>6,000 nits |
>6,000 nits |
>6,000 nits |
>6,000 nits |
| Refresh Rate |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
>3,840Hz |
| Vertical Viewing Angle |
160° |
160° |
160° |
160° |
160° |
160° |
160° |
| Horizontal Viewing Angle |
160° |
160° |
160° |
160° |
160° |
160° |
160° |
| Expected Lifetime |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
100,000 Hrs |
| Servicing |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
Rear |
| IP Rating (Front/Rear) |
IP65 / IP54 |
IP65 / IP54 |
IP65 / IP54 |
IP65 / IP54 |
IP65 / IP54 |
IP65 / IP54 |
IP65 / IP54 |

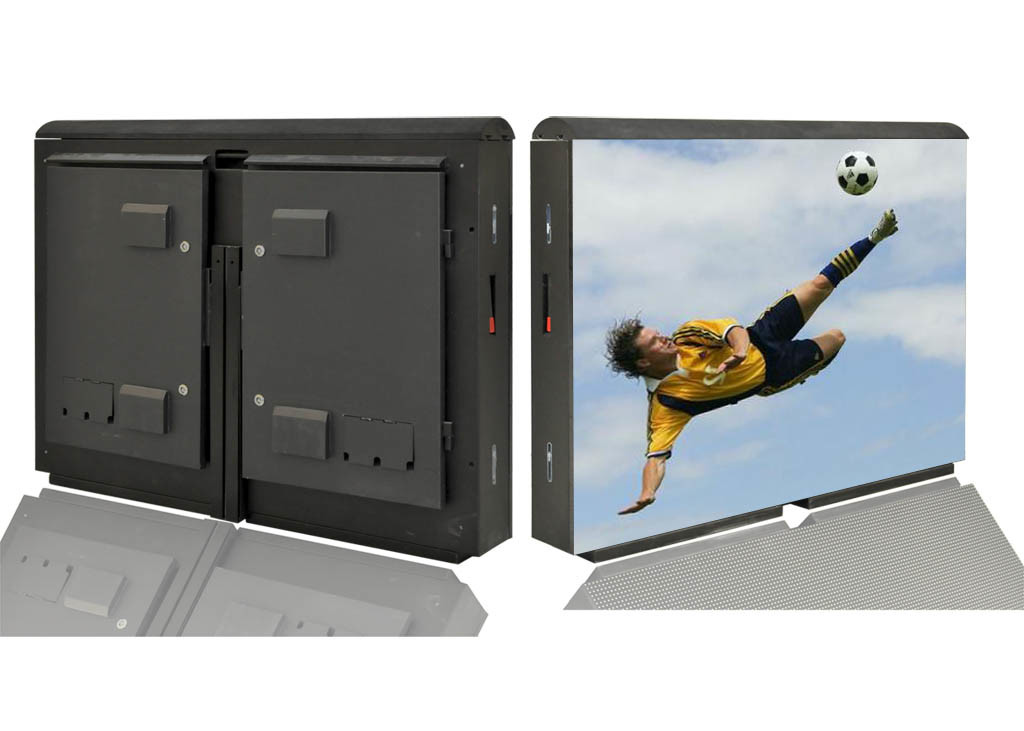

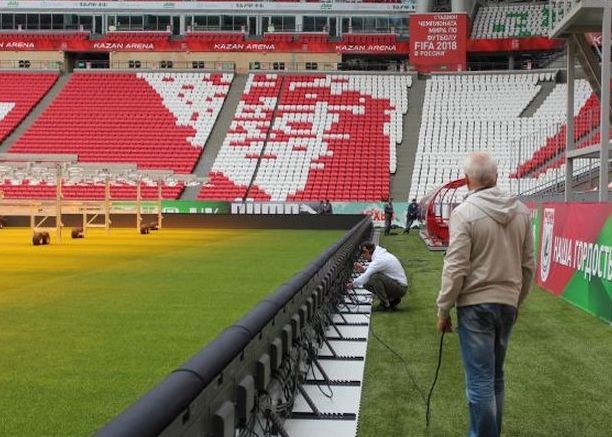

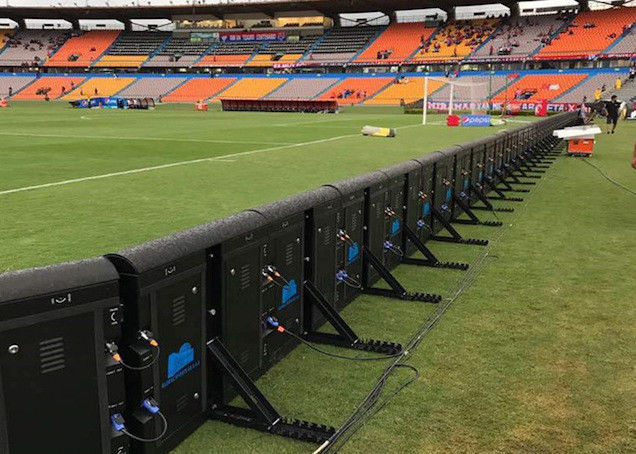

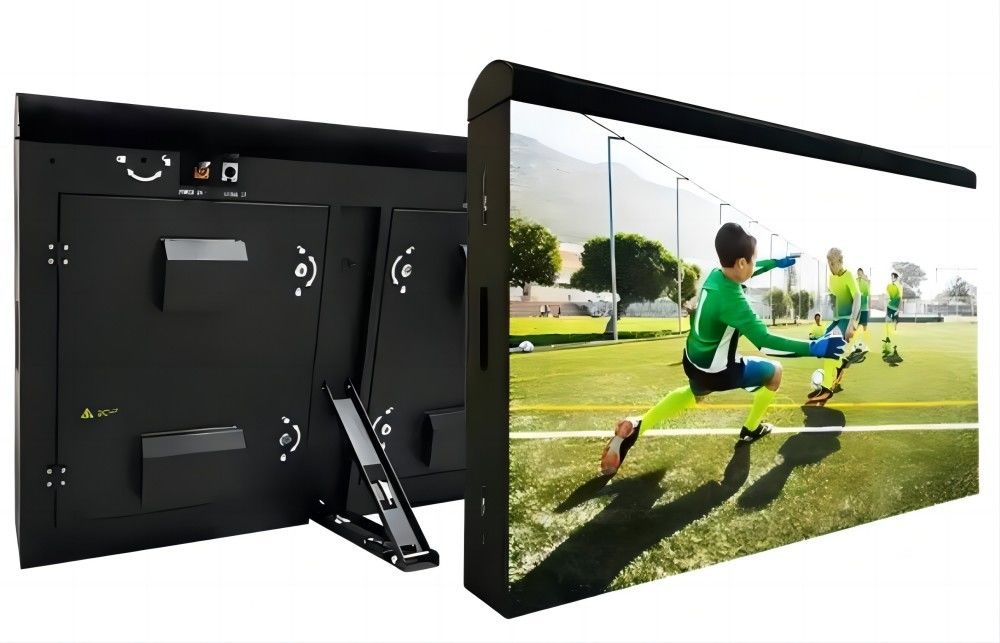

Pictures
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
6. 24/7 hrs online service
