Name: Glass LED screen p3.91-7.81 HD Transparent Advertising flexible led mesh screen
Brand: Conwin Optoelectronic Co., Ltd.
SKU: H3.9-7.8
Price: 420.00 USD
Availability: InStock

Glass LED screen p3.91-7.81 HD Transparent Advertising flexible led mesh screen

Basic Information

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	H3.9-7.8

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Contact Now

Model Number:

P3.9-7.8

Product Name:

Transparebt Led Screen

Module Size:

250*250mm

Brightness:

3500cd/sqm

Refresh Rate:

1920hz-3840hz

Warranty:

2 Years

Highlight:

p3.91 LED Mesh Screen

Flexible LED Mesh Screen

flexible led mesh screen

Product Description

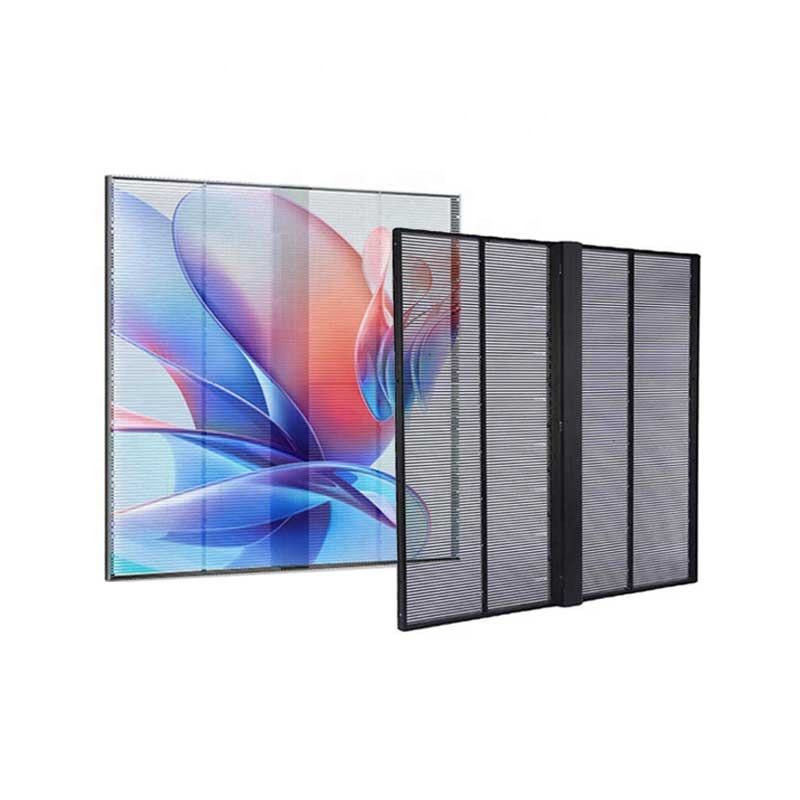

Transparent LED Screen

Simple operation, New configuration, High Contrast ratio, Smart control, Super transparent

Features

1. High transparent effect, does not take up space, light weight It has a very high perspective rate, with 60%-95% permeability, which ensures the lighting requirements and viewing Angle range of lighting structures between floors, glass facades, Windows, and so on, and ensures the original lighting perspective function of the glass curtain wall.

2. No steel frame is required Ultra-thin screen body, directly fixed in the glass curtain wall, no steel frame structure, saving space and installation costs.

3. Unique display effect The transparent display background makes the advertising picture give people the feeling of suspended on the glass curtain wall, and has a good advertising effect and artistic effect.

4. Easy maintenance Fast indoor maintenance, both fast and safe, saving manpower and material resources.

5. Energy saving and environmental protection No need for traditional refrigeration

system and air conditioning heat dissipation, 35% energy saving than ordinary LED display.

Model	P2.9	P3.125	P3.91	P7.82	P7.82	P10.4
Pixel pitch	2.9-6.25mm	3.125-3.125mm	3.91-7.82mm	7.82-7.82mm	7.82-15.64mm	10.4-10.4mm
Module size	500*125mm
Cabinet size	10001000mm/1000500mm
Pixel density	53760PX/m²	102400PX/m²	32768PX/m²	16384PX/m²	8192PX/m²	9216PX/m²
Color	1R1G1B
The optimal viewing distance	5-100m	5-100m	8-100m	10-100m	10-100m	15-120m
Transparency	60%	70%	75%	80%	80%	80%
Weight	6KG/m²
Viewing angle	140°-140°
Thickness	8cm
Average power	100-200w/m²
Max consumption	300-800w/m²
Refresh rate	≥3840HZ
Drive mode	1/14s	1/16s	1/8s	1/4s	1/2s	1/2s
White balance brightness	≥800-4500cdm²	≥800-5000cdm²	≥4500cdm²	≥4500cdm²	≥4500cdm²	≥4500cdm²
Meantime of falilure	≥6500
Life	100000hrs
Installation	Adhering to glass, Hanging installation, fixed installation.
Protection class	IP45

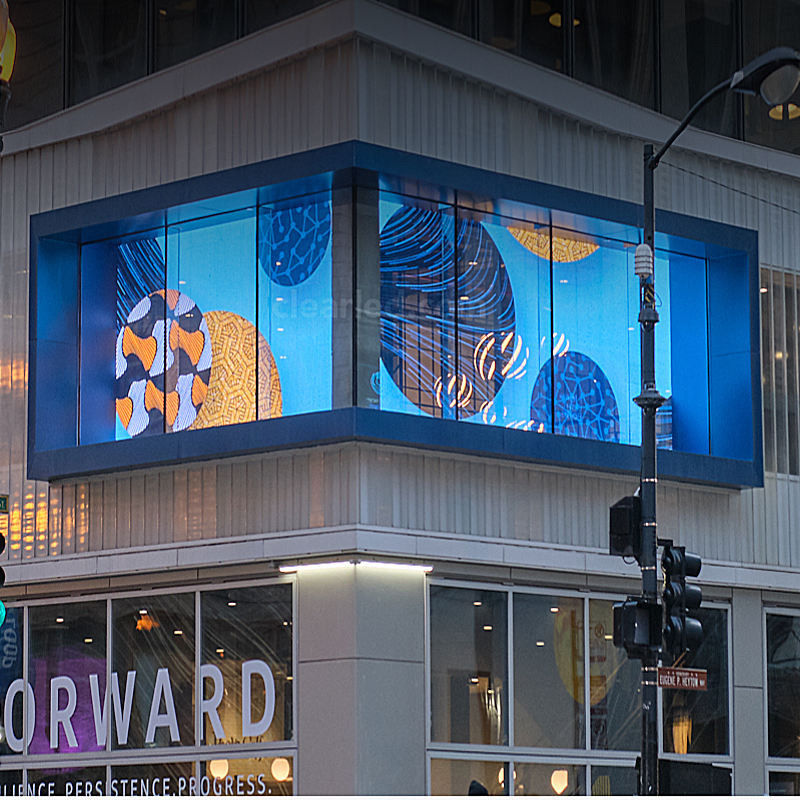

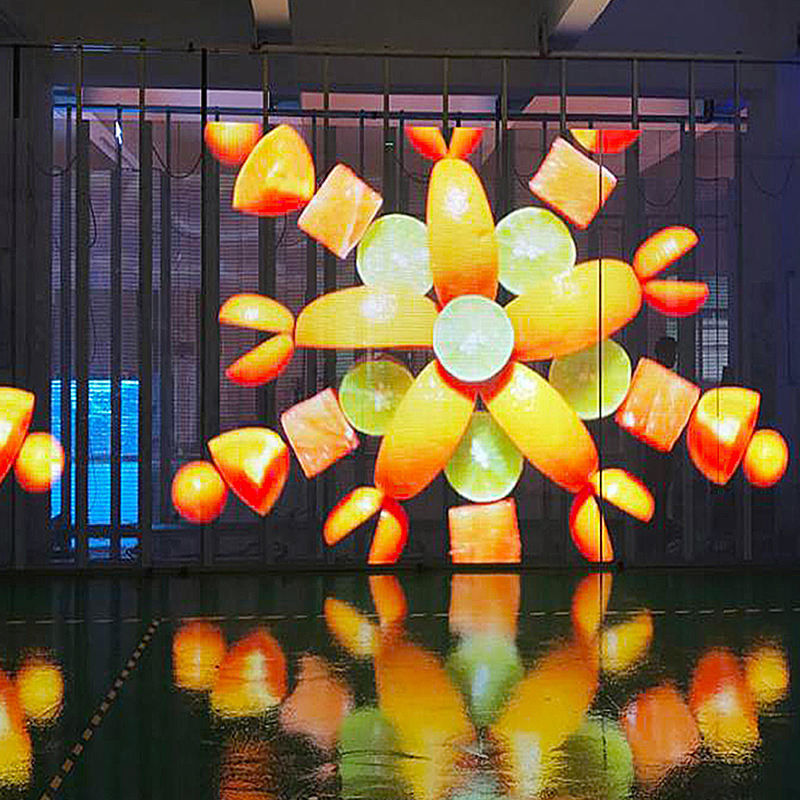

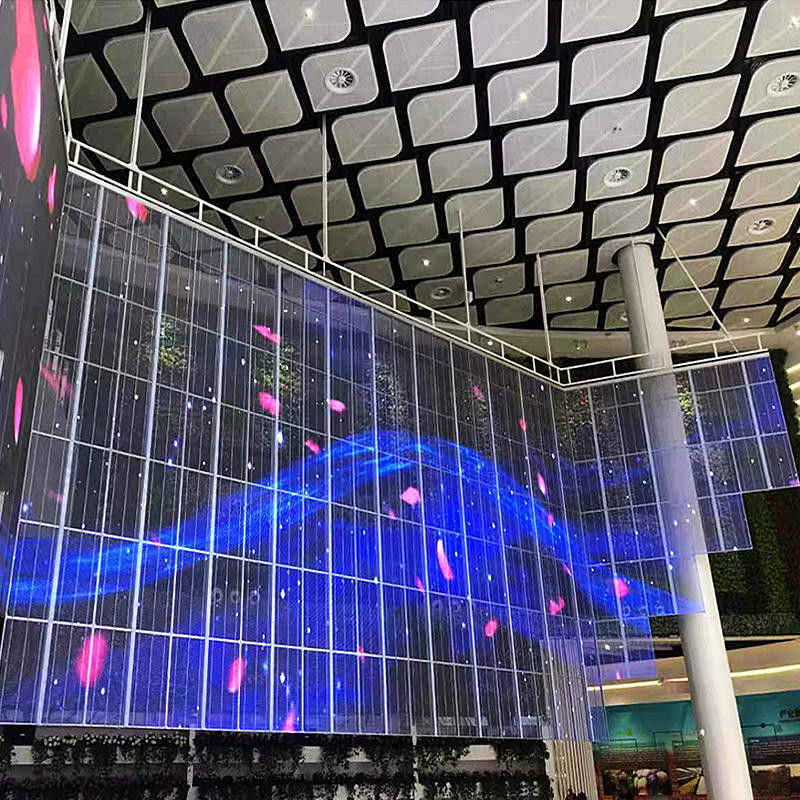

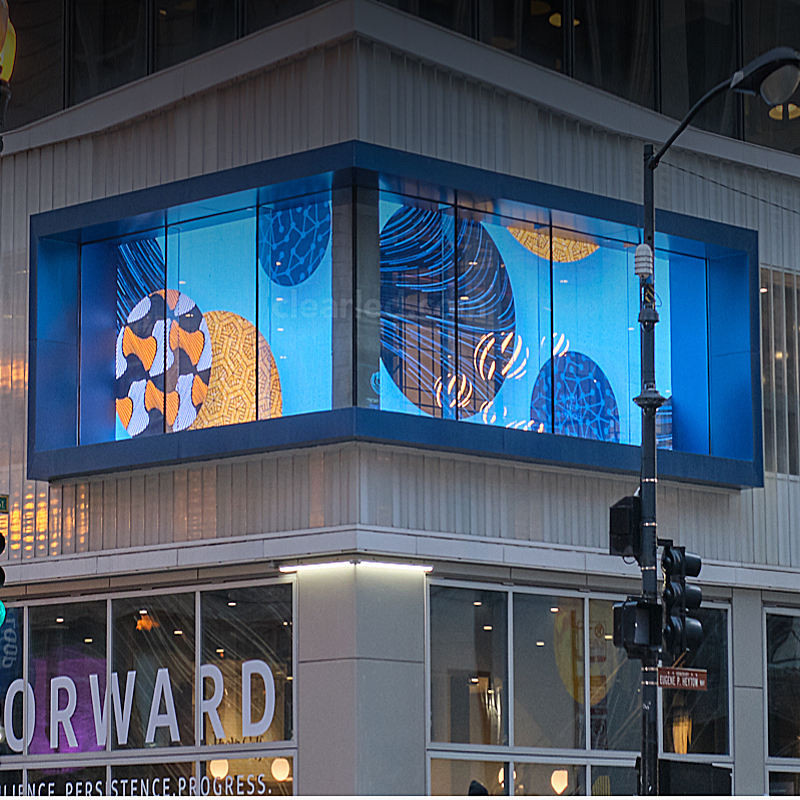

Products use
