| Place of Origin: | China |
|---|---|
| Brand Name: | CONWIN |
| Certification: | CE.ROHS |
| Model Number: | M5 |
| Minimum Order Quantity: | 1sqm |
| Packaging Details: | wooden box |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000sqm/month |
| Pixels: | 5mm | Led Tube Chip: | Full Color |
|---|---|---|---|
| Service Method: | Front | Brightness: | 6000-8000 Nits |
| Cabinet: | Iron Waterproof Cabinet | Usage: | Outdoor Advertising, Information Display, Or Wayfinding |
| Warranty: | 3 Years | Module Units Resolution: | 64X32 Pixel |
| Cabinet Material: | IRON/ALUMINUM | ||
| Highlight: | P4 Mobile trailer led screen,HD Mobile trailer led screen,Mobile trailer led screen |
||

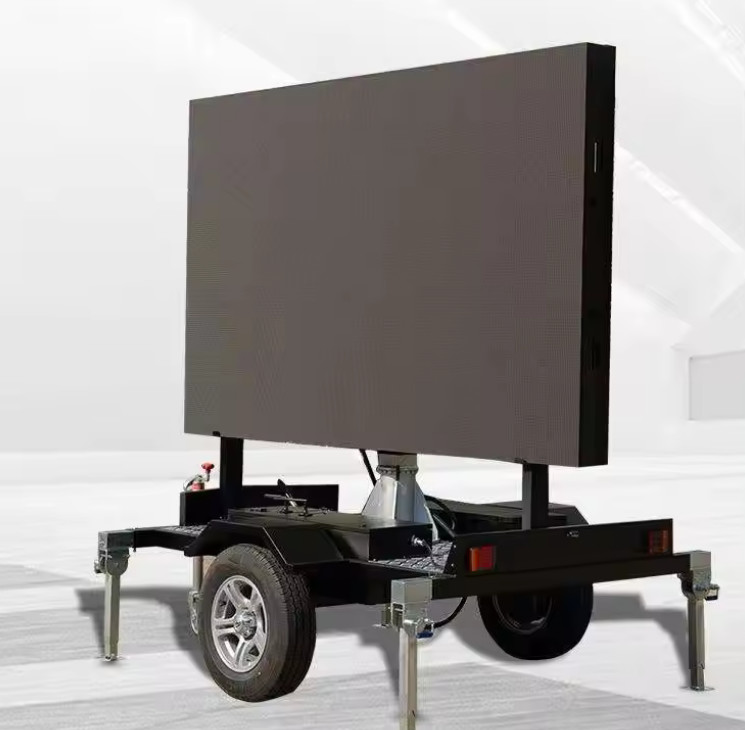

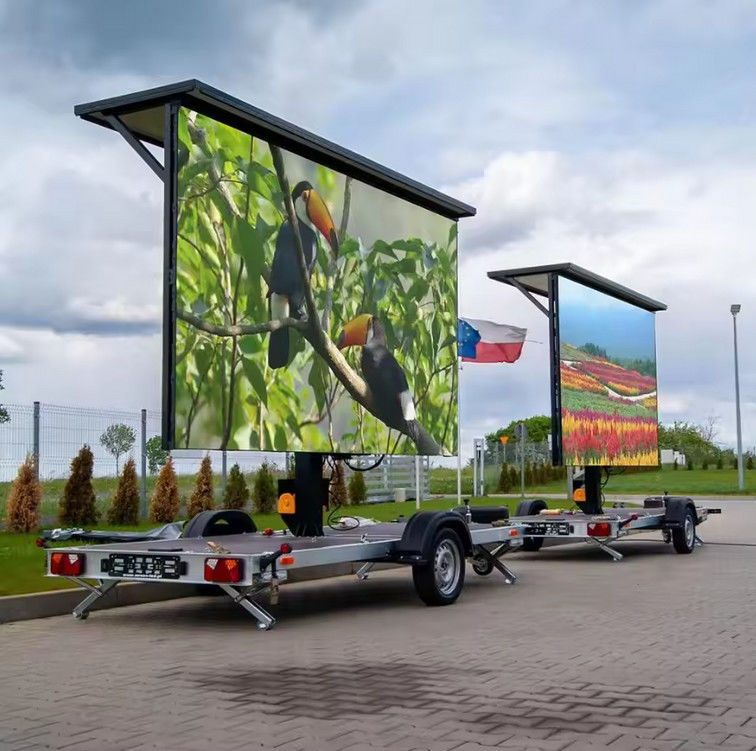

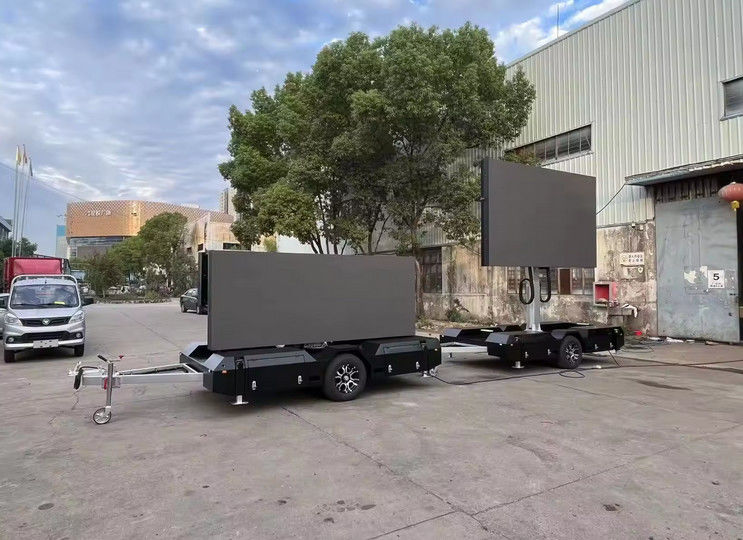

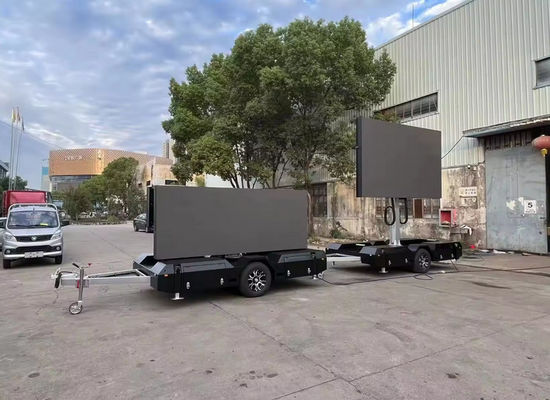

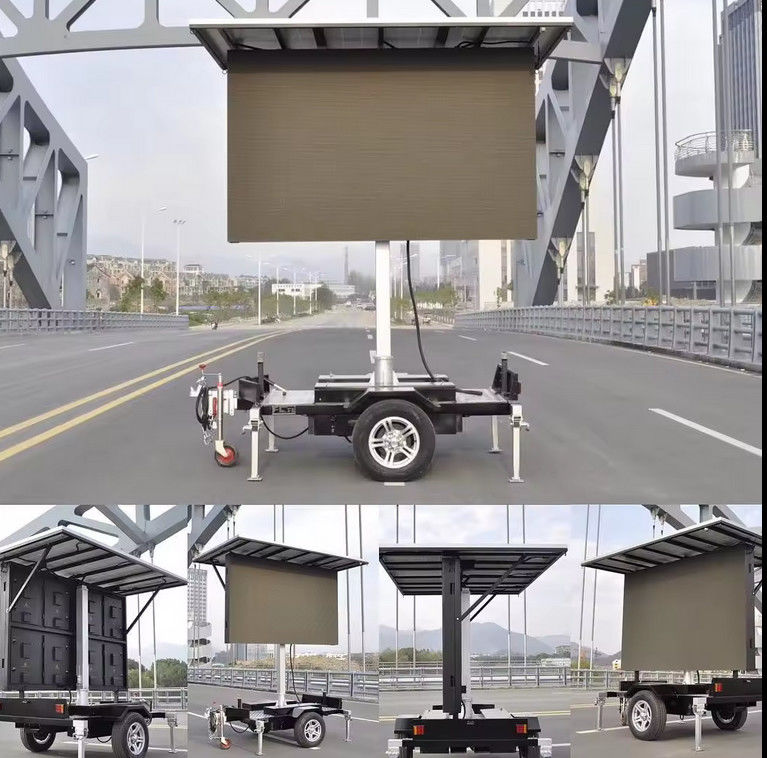

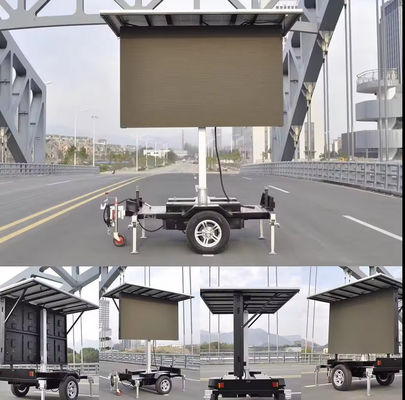

Mobile trailer led screen HD P4 P5 P6 advertising led signage display
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
| Parameter | Unit | Value |
| Pixel Pitch | mm | 5 |
| LED Lamp | Red( Eipstar) Green Blue (shilan) | SMD2727 |
| Brightness | (static driving)nits | 6,000~6,500 |
| Pixel density | sqm | 40,000 |
| Viewing angle | angle | 140°H and 140°v |
| Lifetime | hour | 100,000 hrs |
| Power consumption | (1/8 Scan)w/m2 | average 230w/m2, max 650w/m2 |
| Operation power voltage | HZ | 200-240 V / 50-60 HZ |
| IP rating | IP65 | outdoor |
| Processing | bit | 16bit |
| Refresh rate | Hz | 2,000Hz |
| Operating temperature | degree | -10-30 degree |
| Storage temperature | degree | -20-60 degree |
| Operation humidity | 35-85% | |
| Storage humidity | 10-90% |
