Hot sale EagerLED LED display led wall led panel easy moving stage event movable P4.8 P3.9 4.8mm 3.9mm 500x1000 500*1000mm

500x1000mm Rental LED panel Specification

Model : EA1000C3

LED lamp brand : HS,Kinglight,Nationstar

Pixel pitch : 2.6/2.97/3.91/4.81mm

Weight :13kg
Refresh Rate: >1920Hz/>3840Hz
Gray Scale: 16bit +/-
Control system : Novastar,Linsn
Voltage: 110-230V
Connection from card to modules: Cables
Maintenance way: rear service
Curved screen option : Yes.
Cabinet Corner protection option : No.

Hanging bar : 500mm or 1000mm

Protection grade : IP65 outdoor , IP31 indoor

Good quality cables bewteen cabinets

Good quality fast locks

Famous power supply brand CZCL

Famous Control system Novastar

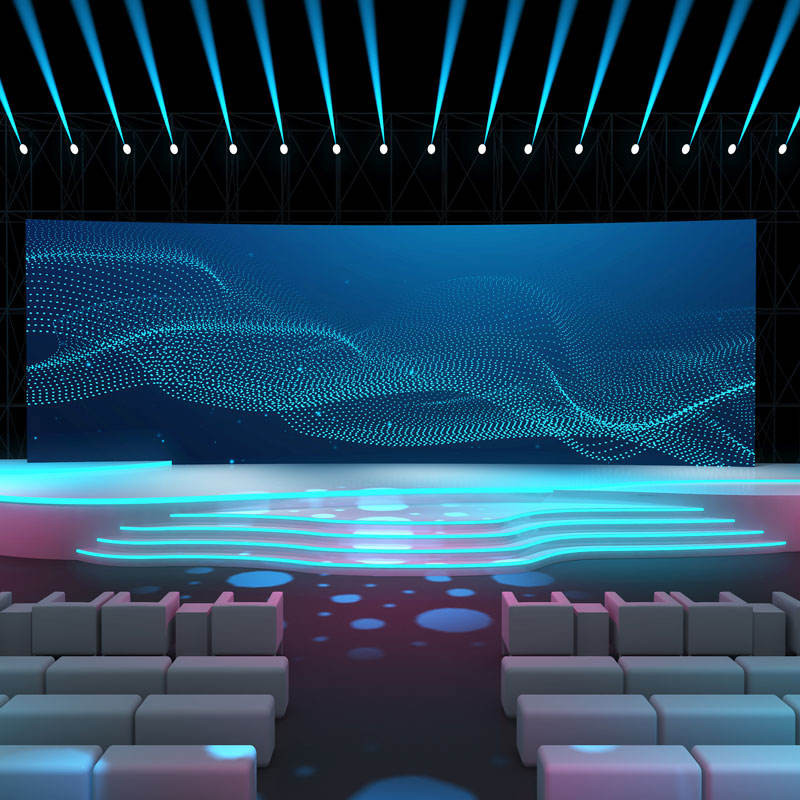

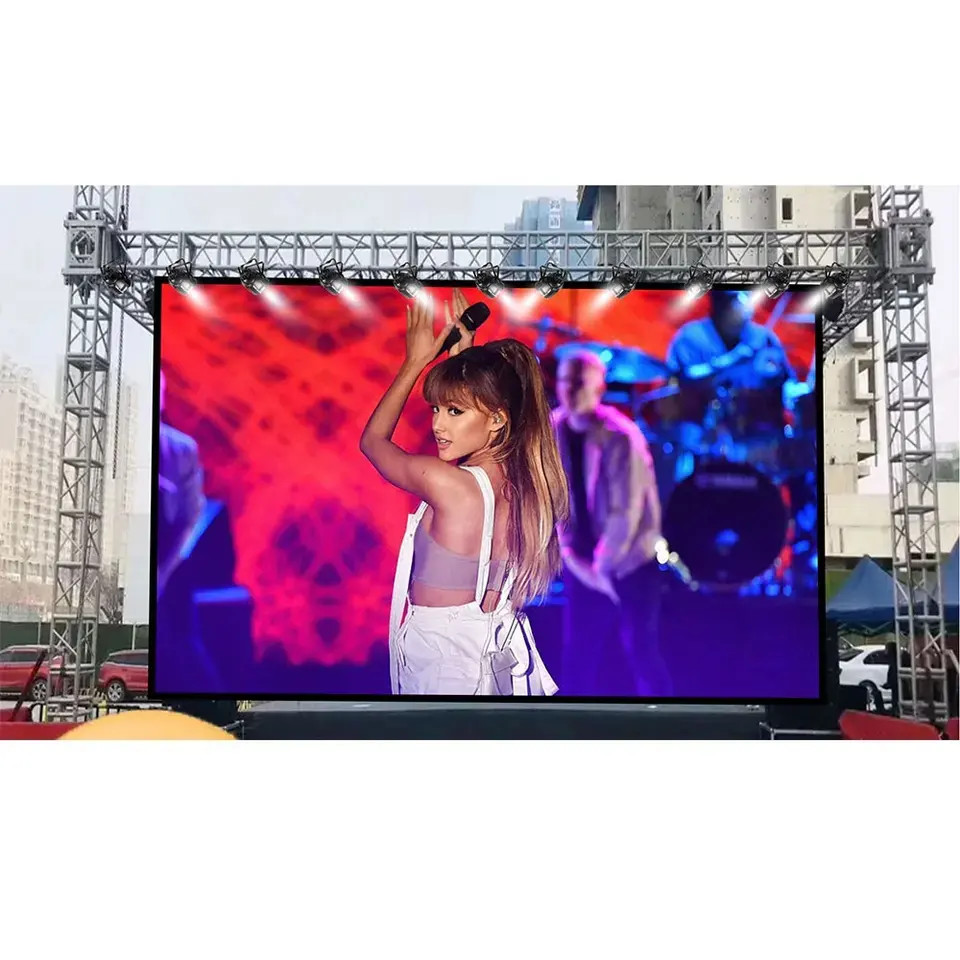

LED rental screen use cases

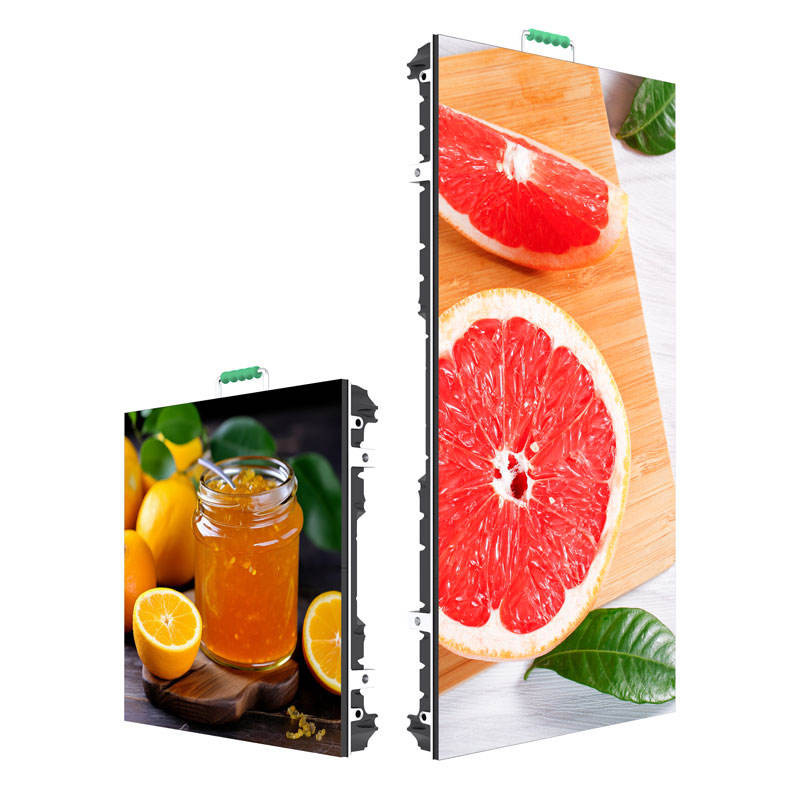

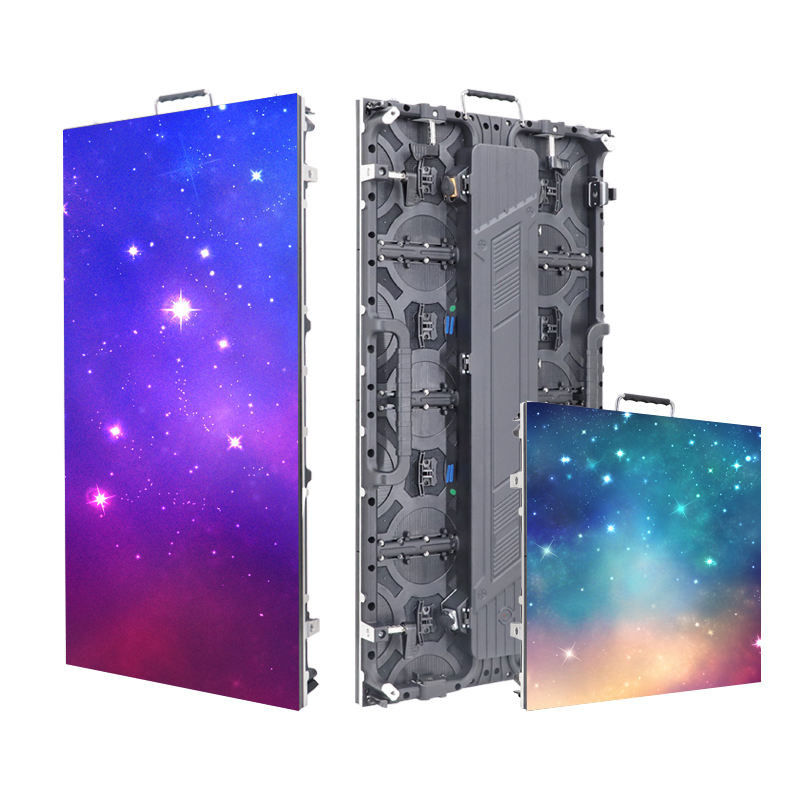

500x1000mm Graceful Rental LED Display EA1000C3 Series

The EA1000C3 series is made of sturdy and beautiful materials,

and there are two quick locking devices on the left and right sides, which can ensure faster assembly speed and better screenflatness.

It also has bumper feet on the bottom of the cabinet to protect the edges of the LED modules.

Corner Protector for LED

EA1000C3 series LED sign has four corner protectors in each corner to prevent LED to be damaged,

more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

Excellent Heat Dissipation Performance

We launched this cost-effective EA1000C3 series, with a special heat dissipation structure,

the heat dissipation is excellent. Fanless design, absolutely silent operation.

Suitable For 250x250mm Standard Size Modules

EA1000C1 supports standard size panel : 250x250mm.Standard LED screens are quick to assemble and maintain. Changing the pixel spacing is also very convenient, just change the modules because they are the same size and same screw position.

Outdoor 500x1000mm Rental LED Display (EA1000C1 Series) Parameter
Pixel Pitch (mm)	P2.6	P2.97	P3.91	P4.81
Pixel Configuration	SMD1415	SMD1415	SMD1921	SMD1921
Density (Pixels/㎡)	147,928	112,896	65,536	43,264
Module Resolution (Pixel)	96x96	84x84	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250
Cabinet Size (mm)	500x1000	500x1000	500x1000	500x1000
Cabinet Weight (KG)	13	13	13	13
Brightness (CD/㎡)	≥6,000	≥6,000	≥6,000	≥6,000
Viewing Angle (°)	120	120	120	120
Gray Grade (Bits)	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	720	720	720	560
Avg. Power Consumption (W/㎡)	240	240	240	190
Frame Frequency (Hz)	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000
Protection Grade	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)	IP65(front), IP54(rear)
Indoor 500x1000mm Rental LED Display (EA1000C1 Series) Parameter
Pixel Pitch (mm)	P1.95	P2.5	P2.6	P2.97	P3.91	P4.81
Pixel Configuration	SMD1515	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121
Density (Pixels/㎡)	262,144	160,000	147,928	112,896	65,536	43,264
Module Resolution (Pixel)	128x128	100x100	96x96	84x84	64x64	52x52
Module Size (mm)	250x250	250x250	250x250	250x250	250x250	250x250
Driving Mode (Duty)	1/32	1月25日	1/32	1月28日	1月16日	1月13日
Cabinet Size (mm)	500x1000	500x1000	500x1000	500x1000	500x1000	500x1000
Cabinet Weight (KG)	12	12	12	12	12	12
Brightness (CD/㎡)	≥1000	≥1000	≥1200	≥1,000	≥1,200	≥1,000
Viewing Angle (°)	120	120	120	120	120	120
Gray Grade (Bits)	14	14	14	14	14	14
Operation Power	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz	AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)	480	480	480	480	576	560
Avg. Power Consumption (W/㎡)	160	160	160	160	192	190
Frame Frequency (Hz)	≥60	≥60	≥60	≥60	≥60	≥60
Refresh Frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840	≥3,840
Working Temperature (ºC)	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60	-20～+60
Lifetime (Hours)	100,000	100,000	100,000	100,000	100,000	100,000
Protection Grade	IP31	IP31	IP31	IP31	IP31	IP31

Product packaging

Place of Origin:	China
Brand Name:	CONWIN
Certification:	CE,ROHS
Model Number:	DX3.91

Minimum Order Quantity:	1sqm
Packaging Details:	wooden box or carton
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month

Module Dimension:	250mm*250mm	Waterproof Level:	IP43
Pitch:	3.91mm	Mtbf:	≥1000hrs
Maximum Power Consumption:	800	Refresh:	3200hz
Tube Chip Color:	Full Color	Led Lamp:	SMD3528
Average Power:	185W/ M2	Pixel Configuration:	SMD 1921/2727
Gray Scale:	16bit	Pannel Material:	Die-Casting Aluminum
Input Voltage:	AC110-220V	Specification:	500 * 500 / 1000
Module Weight:	180g
Highlight:	P3.91 Indoor Rental LED Screen , 500x1000mm Indoor Rental LED Screen , Double Side Outdoor Screen Display
