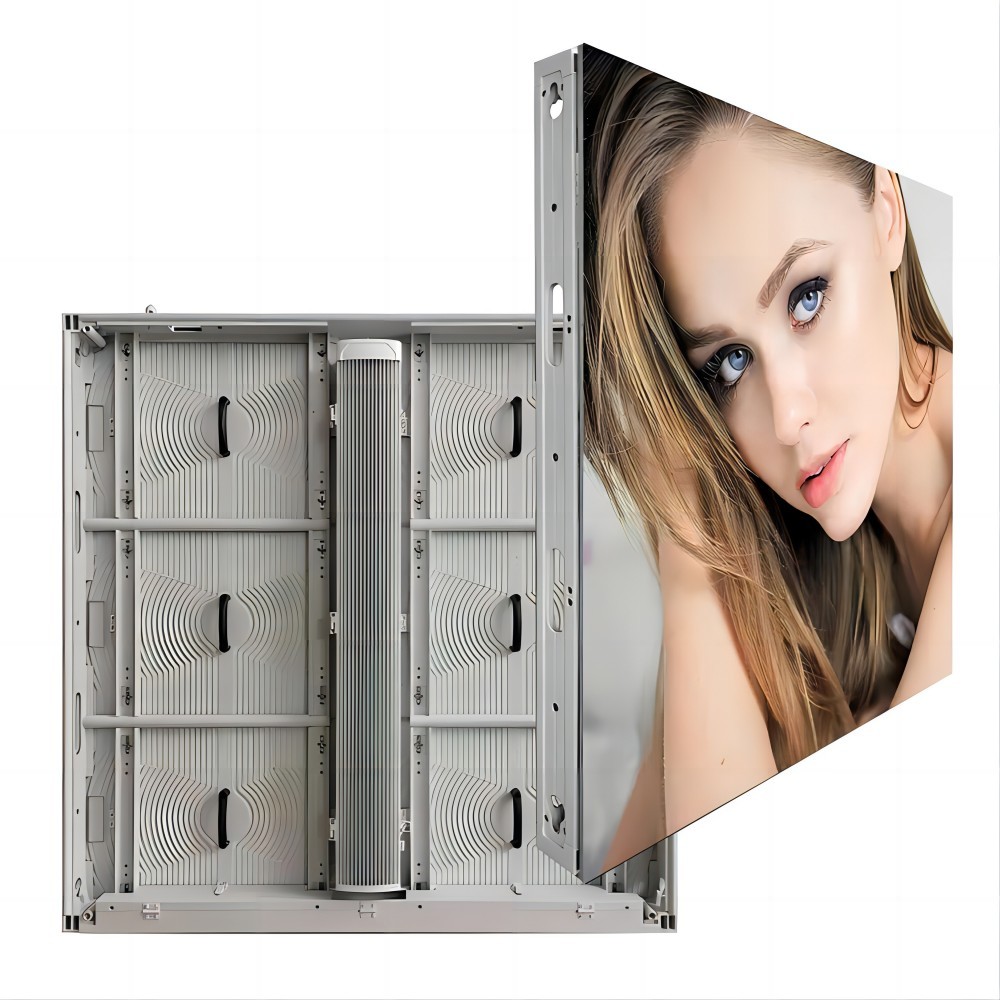

3840Hz Refresh Rate LED Digital Signs Outdoor Display With IP66 Waterproof

New Design Outdoor LED Display LED Sign with IP66 Waterproof LED Panel

Outdoor Fixed LED Display Signs, Road LED Sign

S-B Series is widely used in government agencies for government affairs, stations, banks, taxation, post and telecommunications, hospitals, securities markets, bidding markets, schools, factories, ports, stadiums, airports, the entertainment industry, and real estate tradingcenters and other window industries that need publicity, as well as highways, urban traffic management, urban environmental index display, etc.

- Strong Fire Resistence:

  Aluminum material, high temprature duribility, fast heat dissipation. Whole product reach 5VB fire proofing level

- IP66 protection level

  Fully sealed die cast aluminum module chasis, waterproof connectors, drain holes designed at the bottom of each panel

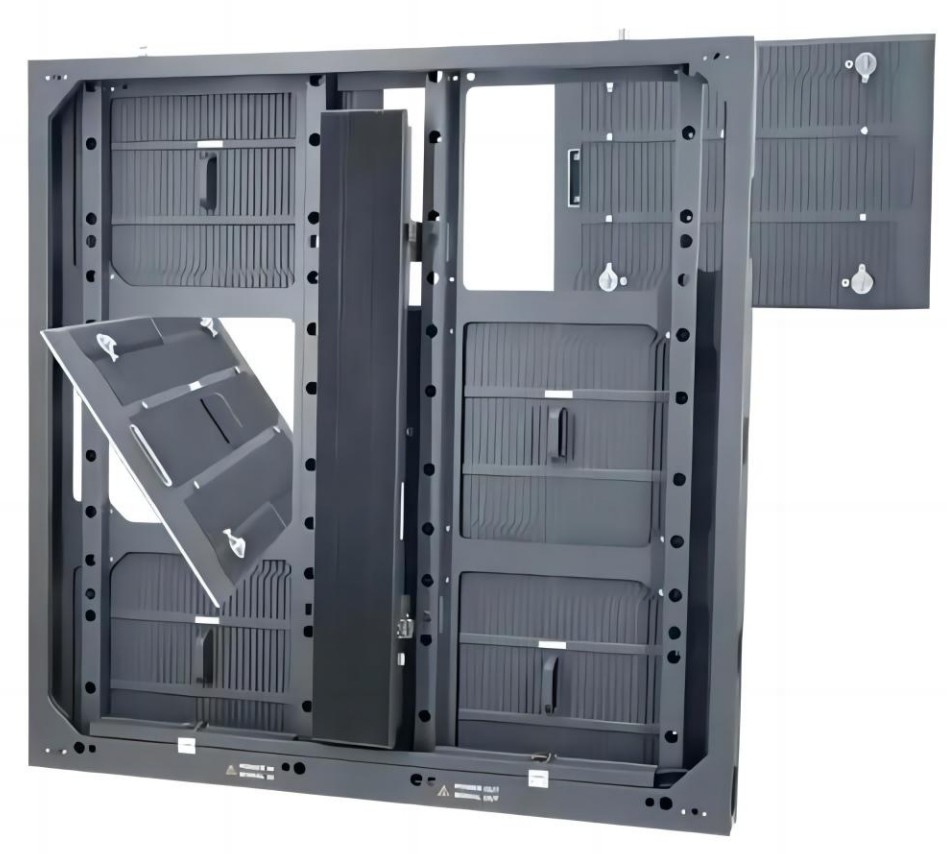

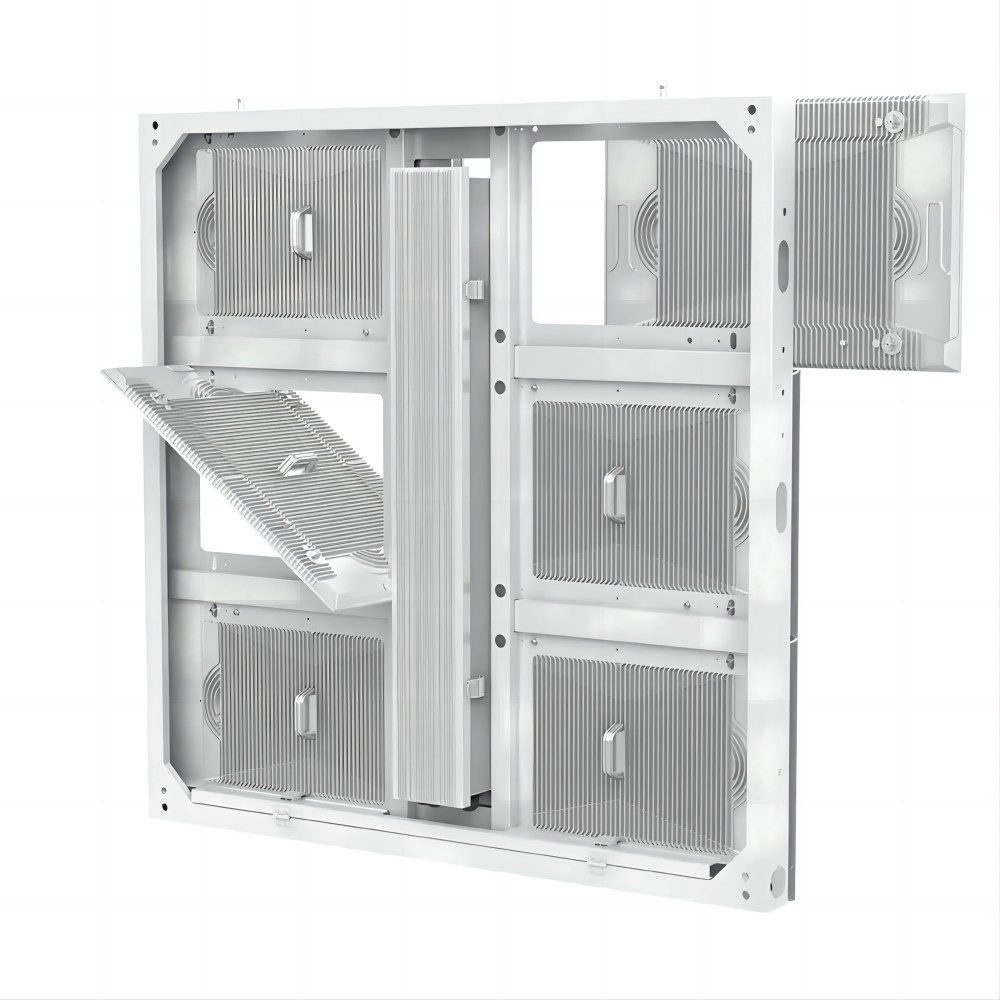

- Front and Rear Maintenance available, support directly on wall

  Easy matainance, save labor and time

- Cableless design

  Waterproof connectors between modules, no visible cable seeing outside

- High brightness

  Above 5500 nits high brightness and low power consumption

- Pixel Pitch:P4.44mm,P5.7mm, P6.67mm, P8mm, P10mm
- Greyscale: 16bits with NOVA

- Wide viewing angle at H:160° / V: 160°. .

- Built-in ventilation design, excellent heat dissipation with aluminum LED module also.

- Aluminum LED Module size 480X320mm

- 960X960mm with light weight 28kg

- Reliable - high strength and hardness, good heat dissipation

- Cost - light weight of the box, the required installation costs are low; low power consumption of the box, saving operating costs and reducing labor costs

Parameters:

Model	S-B4	S-B5	S-B6	S-B8	S-B10
Pixel Pitch	4.4mm	5.7mm	6.67mm	8mm	10mm
Pixel Configuration	SMD1921	SMD2727	SMD2727	SMD2727	SMD3535
Pixel Density	50625 pixels/m2	30625 pixels/m2	22500 pixels/m2	15625 pixels/m2	10000 pixels/m2
Module Dimensions (W x H)(mm)	480 x 320	480 x 320	480 x 320	320 x 320	480 x 320
Panel Dimensions (mm)	960 x960 x 90	960 x960 x 90	960 x960 x 90	960 x960 x 90	960 x960 x 90
Modules Per Cabinet (W x H)	2 x 3	2 x 3	2 x 3	3 x 3	2 x 3
Module Resolution	108 x 108	84 x 84	72 x 72	40 x 40	48 x 48
Cabinet Resolution	216 x 216	168 x 168	144 x 144	120 x 120	96 x 96
Panel Material	Aluminum	Aluminum	Aluminum	Aluminum l	Aluminum
Weight per Cabinet	28kgs	28kgs	28kgs	28kgs	28kgs
Colors	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	5,000 : 1	5,000 : 1	5,000 : 1	5,000 : 1	5,000 : 1
Average Power Consumption	330 W /Sqm	330 W /Sqm	330 W /Sqm	330 W /Sqm	330 W /Sqm
Max Power Consumption	950 W /Sqm	950 W /Sqm	950 W /Sqm	950 W /Sqm	950 W /Sqm
Brightness	>5,000 nits	>5,500 nits	>5,500 nits	>5,500 nits	>5,500 nits
Refresh Rate	>3,840Hz	>3,840Hz	>3,840Hz	>3,840Hz	>3,840Hz
Vertical Viewing Angle	160°	160°	160°	160°	160°
Horizontal Viewing Angle	160°	160°	160°	160°	160°
Expected Lifetime	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs	100,000 Hrs
Servicing	Front / Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear
IP Rating (Front/Rear)	IP66 / IP66	IP66 / IP66	IP66 / IP66	IP66 / IP66	IP66 / IP66

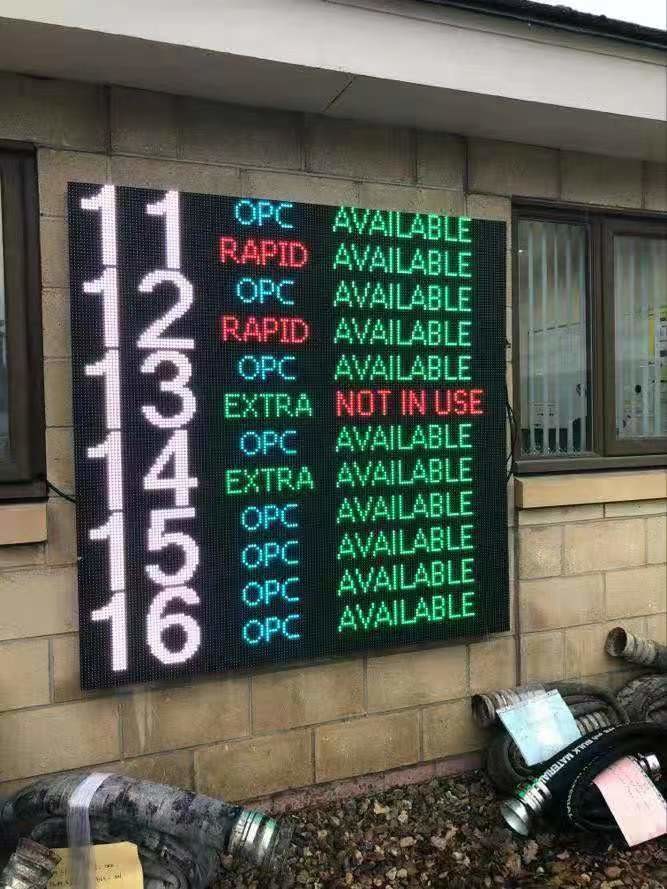

Pictures:

Our Services

1. 20 Years professional led display manufacturer

2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price

4. OEM and ODM service
5. Customizable product upon request

6. 24/7 hrs Service Online
