| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | S-A Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P5-P10mm | Module Size: | 320x320mm |
|---|---|---|---|
| Material: | Aluminum | Service Type: | Front/Rear |
| Refresh Rate: | 3840hz | ||
| Highlight: | IP68 Outdoor LED Signs,Waterproof Outdoor LED Signs,Aluminum waterproof led signs |
||
IP68 Waterproof Outdoor LED Signs Aluminum LED Module with Good Heat Radiation
Waterproof Road LED Sign, LED Display
The box is light and stable. Aluminum cabinet is lighter, stronger and more stable, box weighs only 29 KG for Aluminum cabinet.It is generally applicable to commercial centers, airport terminals, large-scale summits, city landmarks, exhibition centers and other outdoor places. Also welcome using for road, small install places LED Signs.
- Pixel Pitch: 5.33mm,6.67mm, 8mm, 10mm
- SMD LED, high brightness and durable for outdoor use
- Greyscale: 16bits
- Cabinet size: 960x960mm Steel Or Aluminum Cabinet, size also could be customized
- Cabinet Material: Cold Rolled Steel Cabinet 36kg per Panel, Aluminum 29kg
- Refresh Rate: 3840Hz
- Ingress Rate: IP68 Outdoor Standard Connectors
- Brightness:>5500-6000cd/sqm
- Curve Installation: Yes, Concave and Convex Available
- Support Common Cathode Aluminum Display: Energy-Saving by 75%

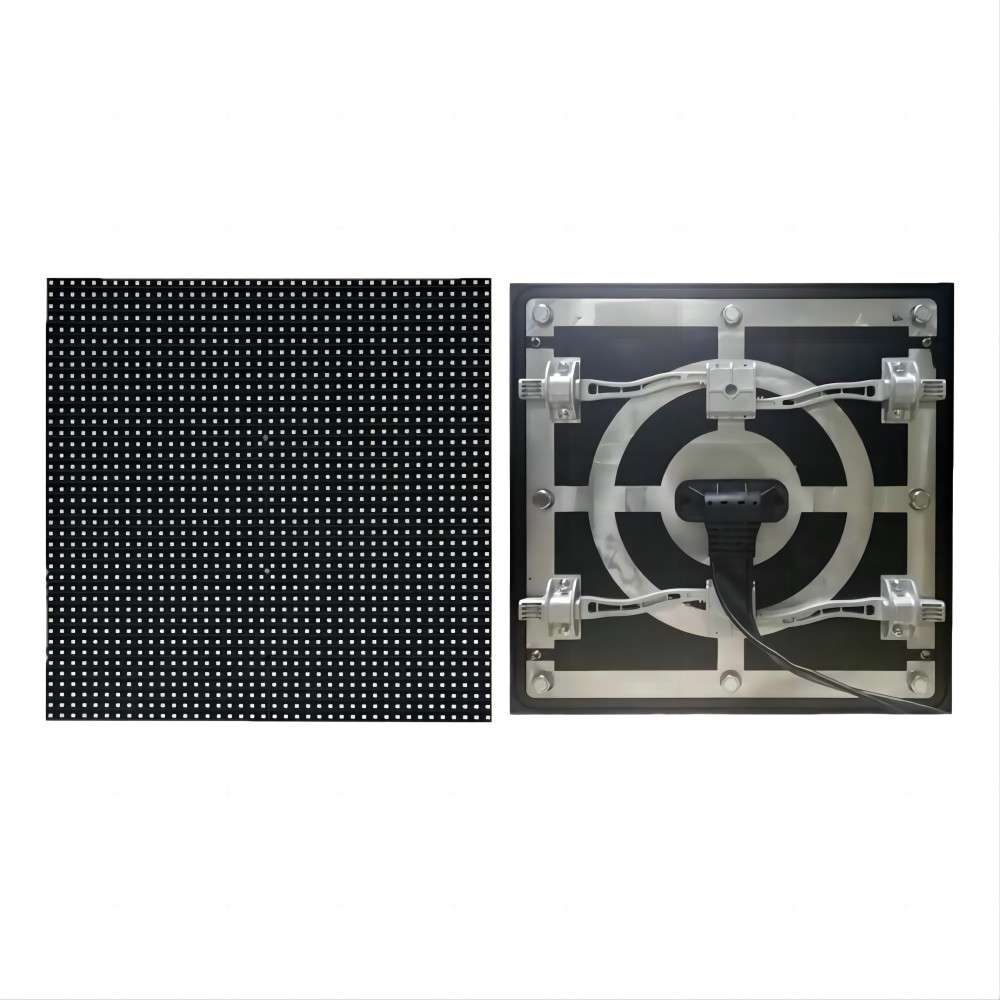

- LED Module Advantages
a. Aluminum bottom shell, good heat radiation
b. Waterproof front and rear IP68.
c. Support front and rear service.

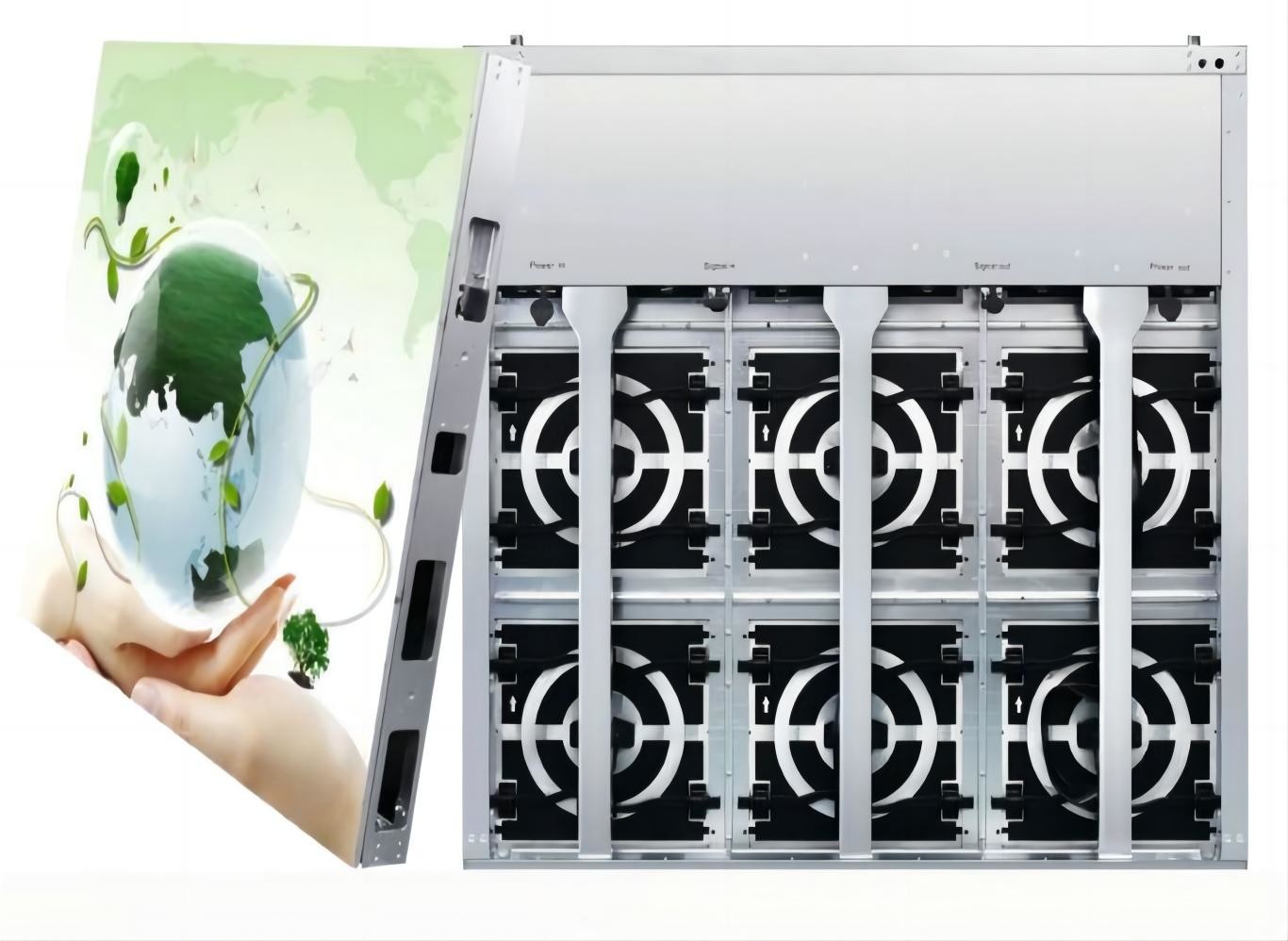

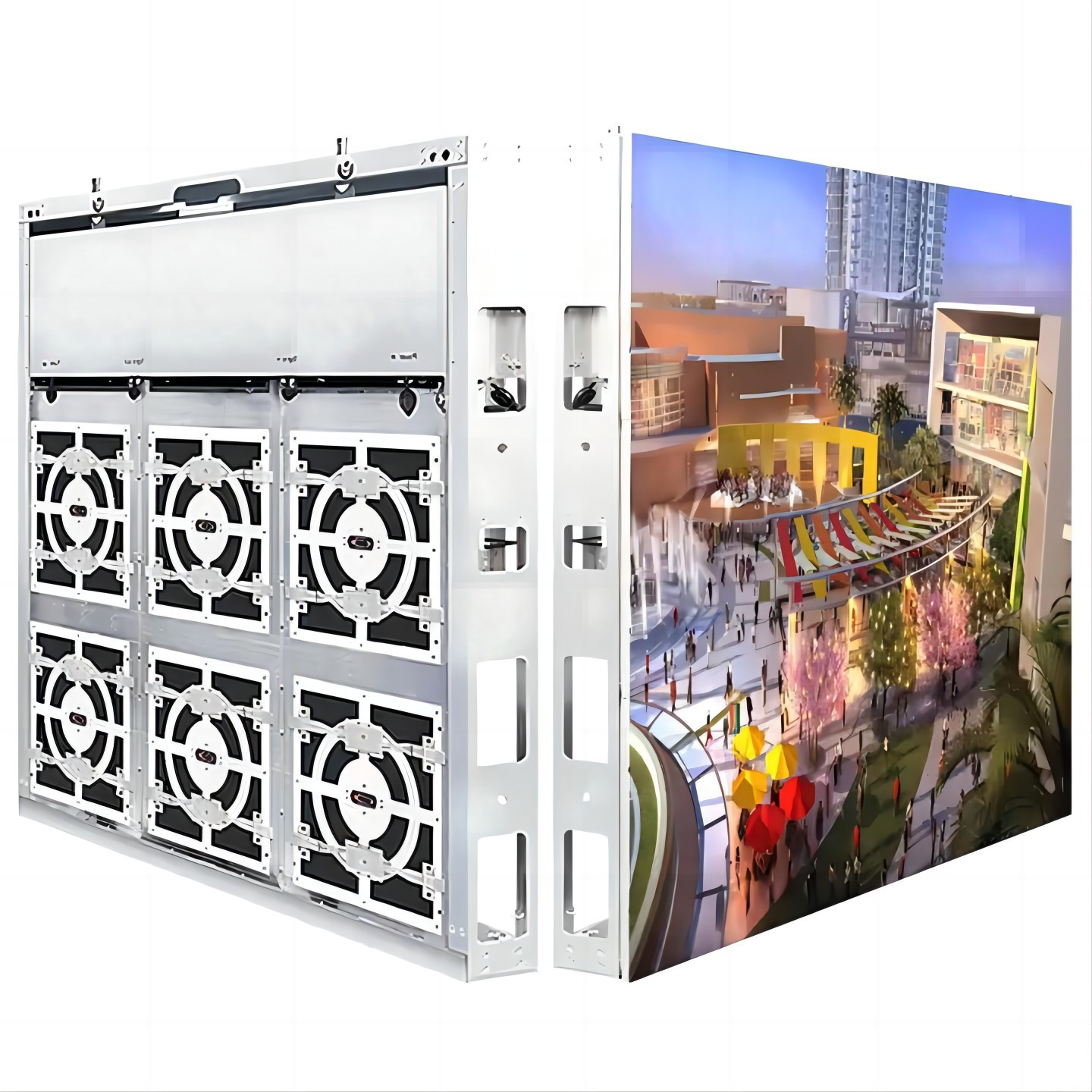

- LED Cabinet advantage
Cabinet Could be designed all Aluminum with 28.5kg for 960X960mm cabinet. also could be design steel cabinet 36kg.
Also could be designed for different size according to LED Module size(320X320mm). Like 640X960mm, 640X640mm,1280X640mm....
Brilliant cabinet design making installation easy and with enough installation space.

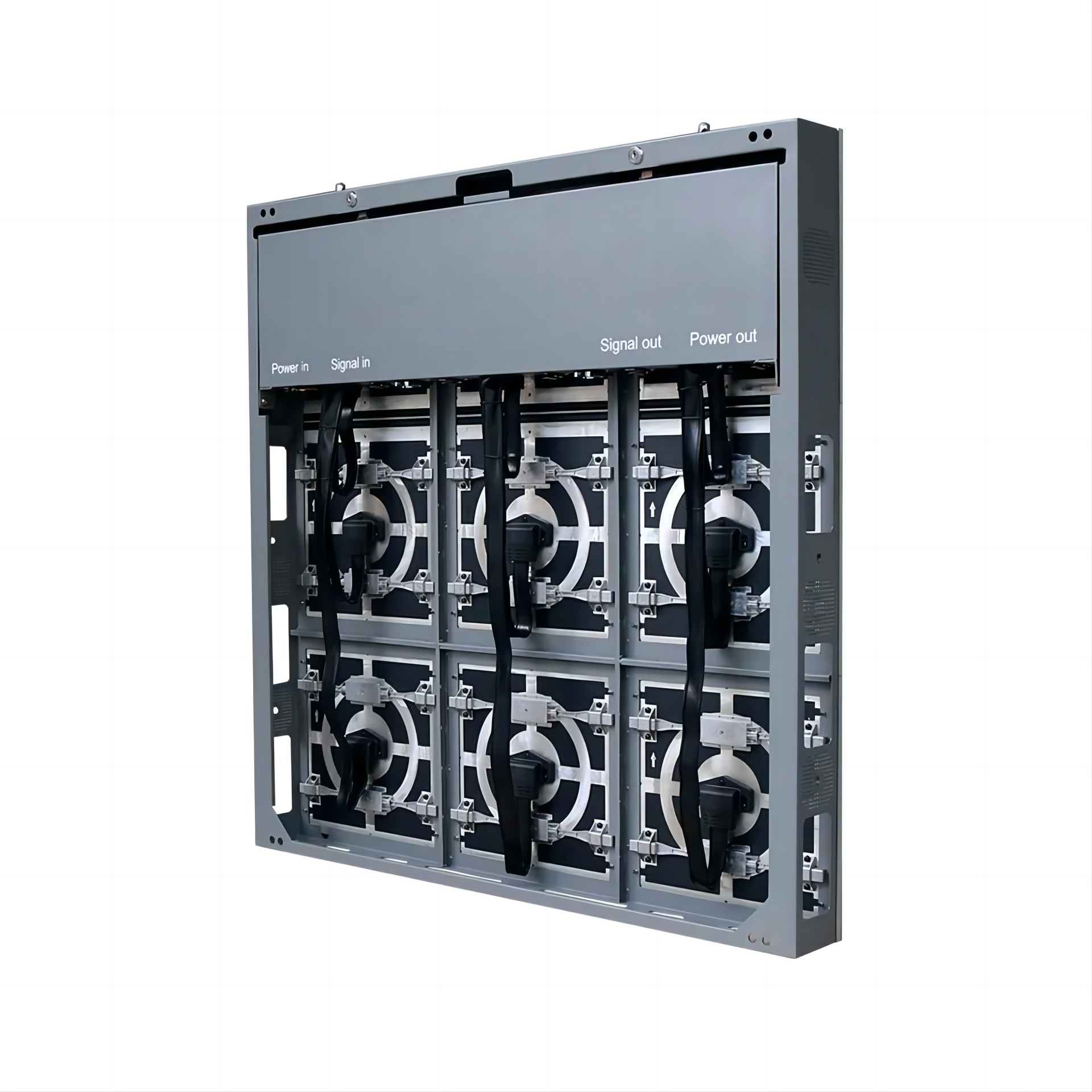

Fast Assemble with plugs, Marked “Power in/out” “Signal in/out” on cabinet. Keep safe and save install time.
IP68 front and rear, Moisture-proof, water-proof, anti-corrosion, dust-proof.
| Model | S-A5 | S-A6 | S-A8 | S-A10 |
| Pixel Pitch | 5.33mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 35156 pixels/m2 | 22500 pixels/m2 | 15625 pixels/m2 | 10000 pixels/m2 |
| Module Dimensions (W x H)(mm) | 320 x 320 | 320 x 320 | 320 x 320 | 320 x 320 |
| Panel Dimensions (mm) | 960 x960 x 100 | 960 x960 x 100 | 960 x960 x 100 | 960 x960 x 100 |
| Modules Per Cabinet (W x H) | 3 x 3 | 3 x 3 | 3 x 3 | 3 x 3 |
| Module Resolution | 60 x 60 | 48 x 48 | 40 x 40 | 32 x 32 |
| Cabinet Resolution | 180 x 180 | 144 x 144 | 120 x 120 | 96 x 96 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight per Cabinet | 29kgs | 29kgs | 29kgs | 29kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm | 330 W /Sqm |
| Max Power Consumption | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm | 950 W /Sqm |
| Brightness | >5,500 nits | >5,500 nits | >5,500 nits | >5,500 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 | IP68 / IP68 |
