| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-XH2.6, Di-XH2.9, Di-XH3.9, Di-XH4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2.604mm, P2.976mm, P3.91mm, P4.81mm | Size: | 500X1000mm |
|---|---|---|---|
| Weight: | 14kg | LED Module: | 250X250mm |
| Material: | Die-casting Aluminum | Refresh Rate: | 3840hz |
| Highlight: | 1000mm Indoor LED Screen Rental,1000nits Indoor LED Screen Rental |
||
500X1000mm Indoor Rental LED Display with High Brightness 1000nits
Indoor 500X1000mm stage rental LED Display
Welcome useing in stage planning, fashion conferences, art and literature groups, cinemas, theatres, television stations, wedding celebrations, enterprise annual conferences, industry exhibitions, museums, large conferences, etc
Features:
- Smart Cabinet Design
Cabinet with ultra slim and lightweight design, removable back cover ,high-precision curve lock for curved installation, LED corner protector, magnetic module, waterproof IP65.
500X1000mm standard cabinet size, Die-casting aluminum with thickness 80mm. For easy transport and portable;

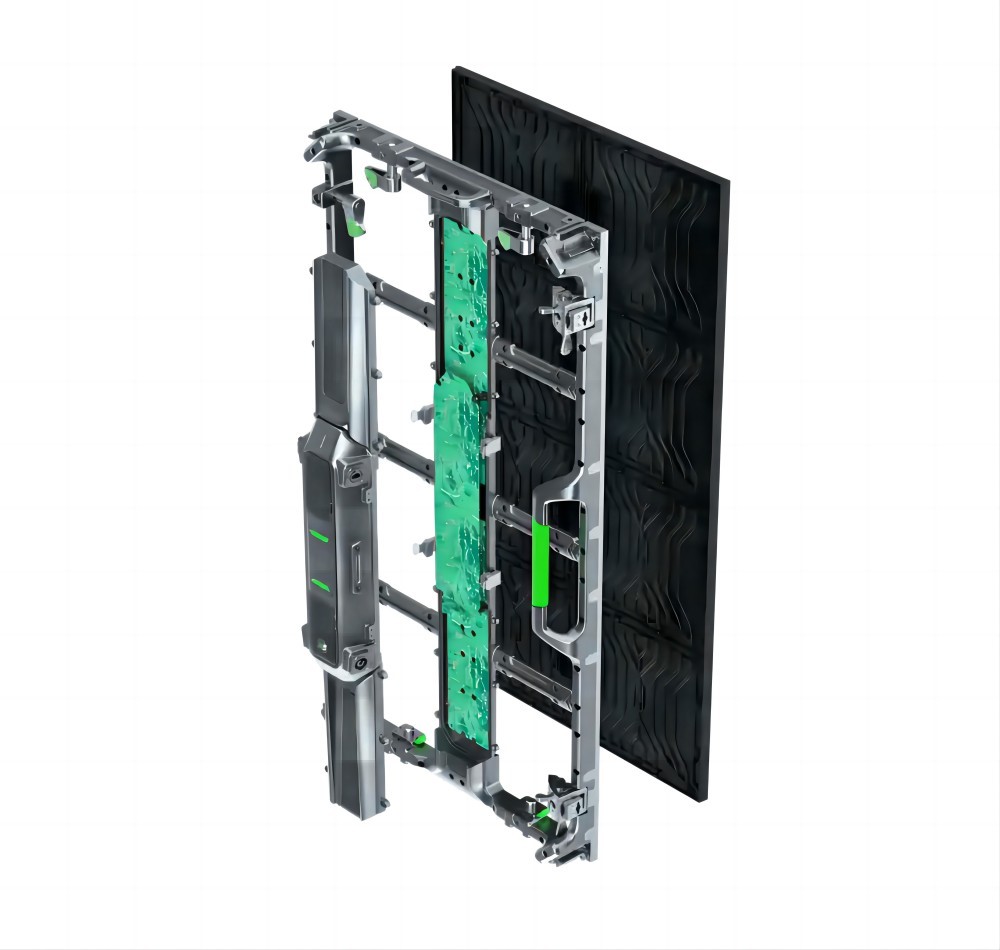

Excellent product came in all details from cabinet handle - cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, power& signal connector, detachable power boxing, and more
- Front and Rear Service Design
Cabinet with corner protector
- Support Curve Shape
- Mix Use

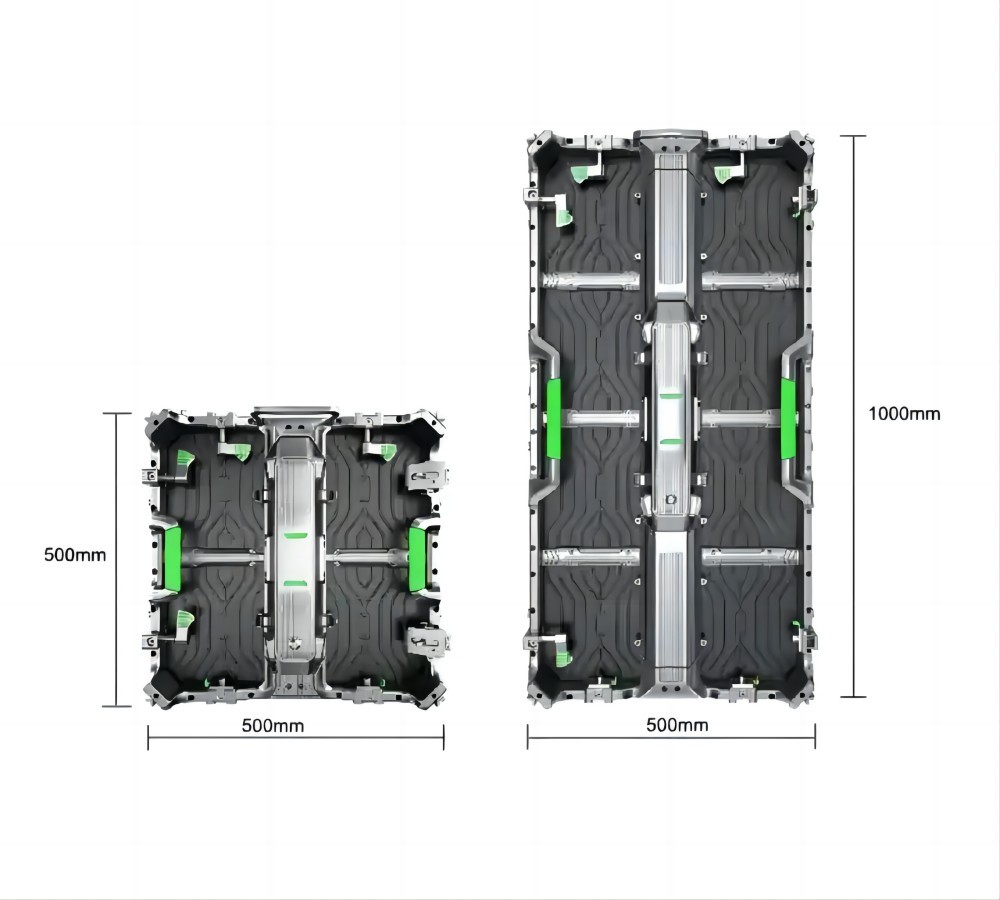

500x500mm and 500x1000mm cabinet can mix assembling, more flexible to create the exact size customer want
Parameters:
| Model | Di-XH2.6 | Di-XH2.9 | Di-XH3.9 | Di-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
