| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-LN2.6, Di-LN2.9, Di-LN3.9,Di-LN4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P2.604mm, P2.976mm, P3.91mm, P4.81mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 500X1000mm | Weight: | 14kg |
| Usage: | Indoor | Refresh Rate: | 3840hz |
| Highlight: | Multipurpose Indoor Rental LED Display,Aluminum Indoor Rental LED Display,1000mm rental indoor led display |
||

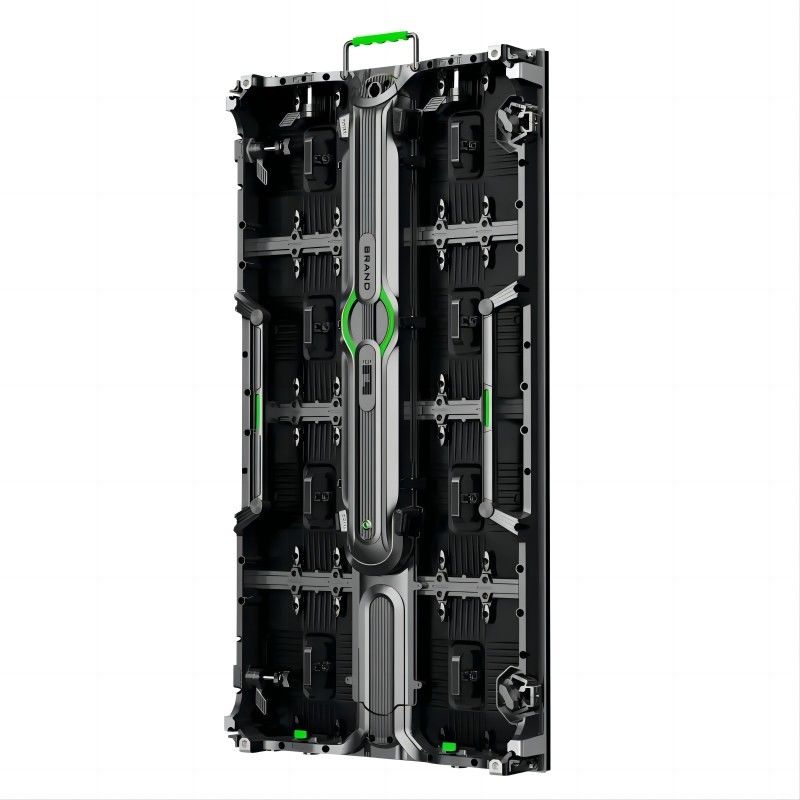

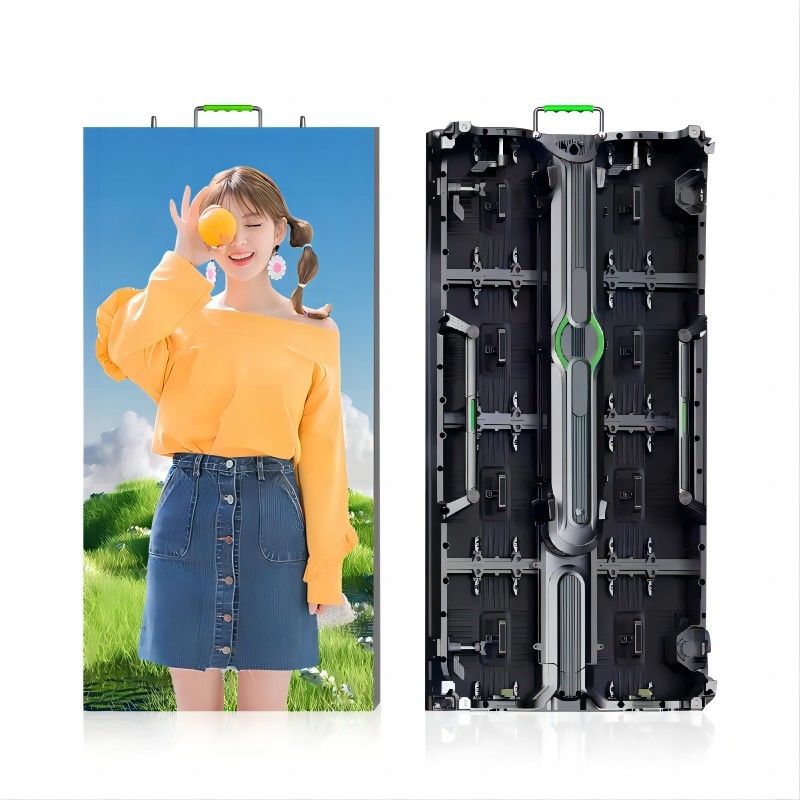

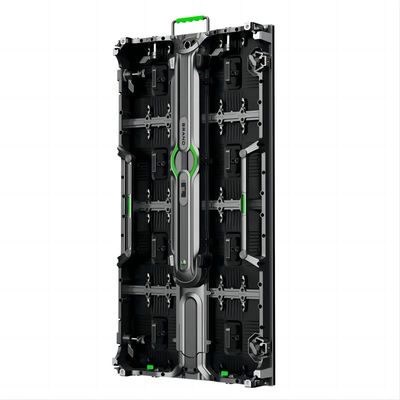

Multipurpose Indoor Rental Display LED Cabinet Die Cast Aluminum 500X1000mm
500X1000mm Indoor Rental LED Display, Stage Events LED Display
Product Features:
- Module size:250x250mm, compatible pitch:P2.604mm,P2.976mm,P3.91mm and P4.81mm
- 500x1000mm cabinet, stable die-casting alloy structure, not easy to deform.
- Cable-less and pluggable power supply, easy to change.
- Intelligent cabinet handle lock, single operation design, time-saving and labor-saving.
- Foldable all-around corner protectors, effectively protect the edge led lamps and modules.
- Adopt high end big chip pure black led lamps, ultra-high contrast, high gray scale and high refresh rate.

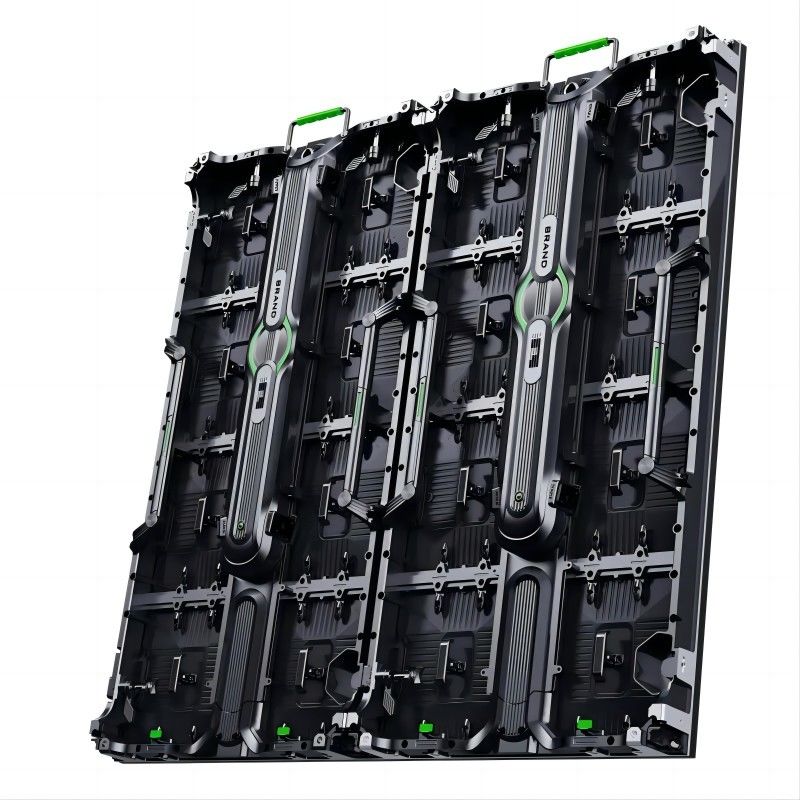

- Curved function cabinet option, no need curved lock, can realize arc/ special-shaped, suitable for different rental events.
often used for concerts, sporting events, trade shows, and other live events where high-quality video content is desired.
- Corner Protector

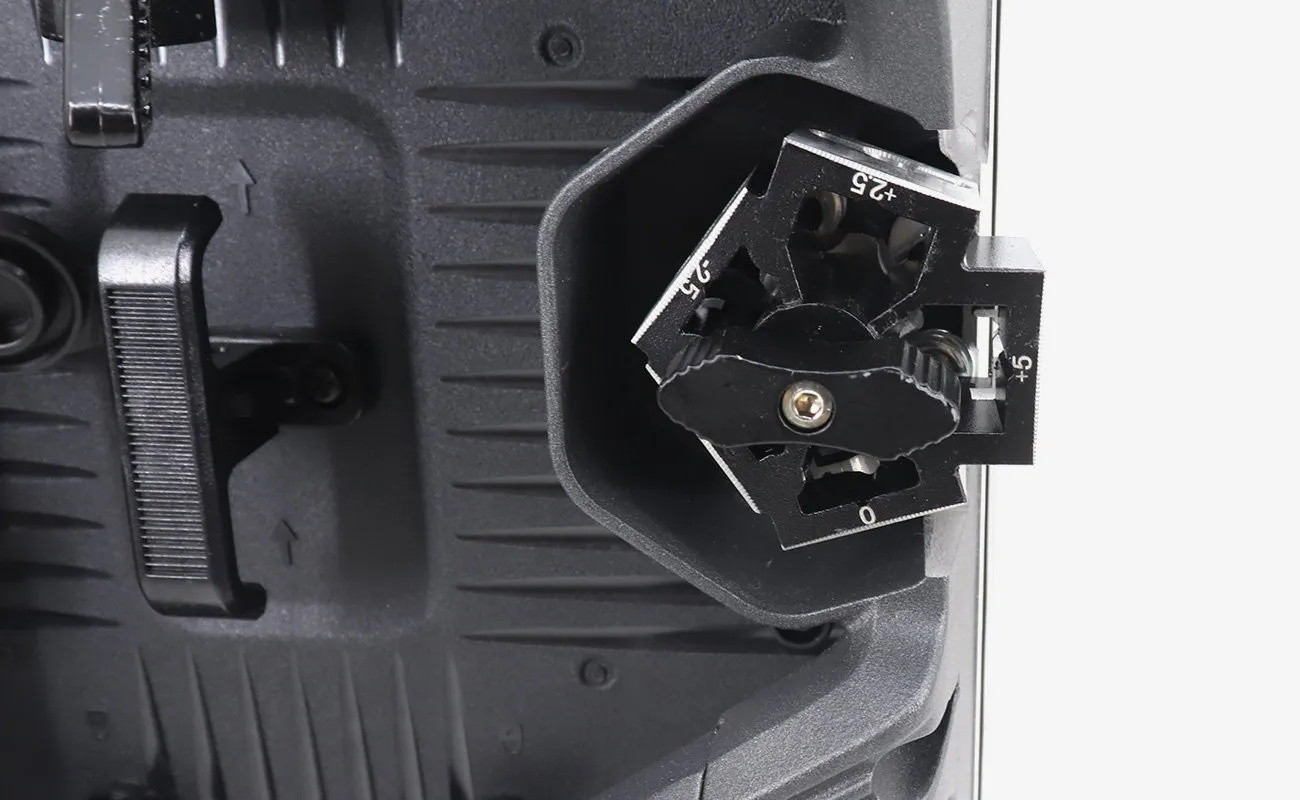

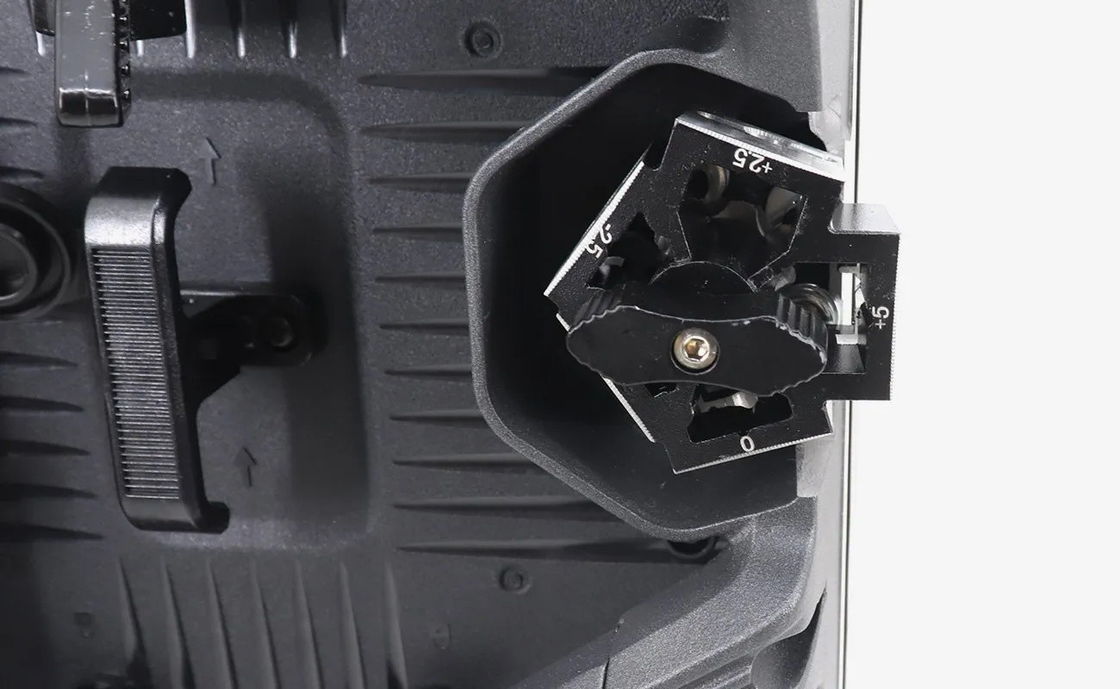

- Support curve design with angle adjust lock
- Support front service
| Model | Di-LN2.6 | Di-LN2.9 | Di-LN3.9 | Di-LN4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Service
1. Free online technical training and support for installation
2. Free spare parts if the screen broken because of quality issues .
3. 24/7 online service for any inquiry and question
