| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-HH3.9, Di-HH4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P3.91mm, P4.81mm | Size: | 500X500mm |
|---|---|---|---|
| Weight: | 7.5kg | Service Type: | Front/Rear |
| Refresh Rate: | 3840hz | System: | Nova |
| Highlight: | Indoor Rental LED Screen P3.9,Indoor Rental LED Screen P4.8,Full Color P3.9 Led Screen |
||
Full color 500X500mm Indoor Rental LED Display P3.9 P4.8 Panel for Events
Features:

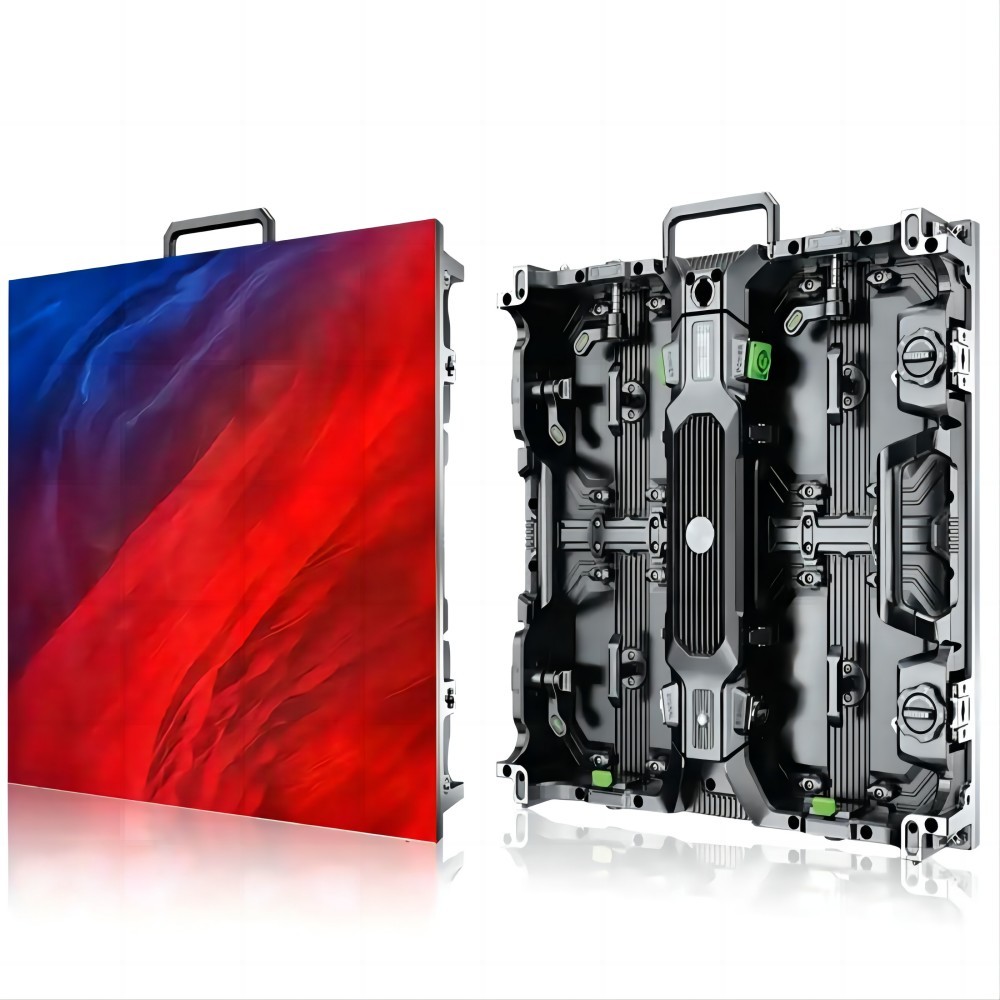

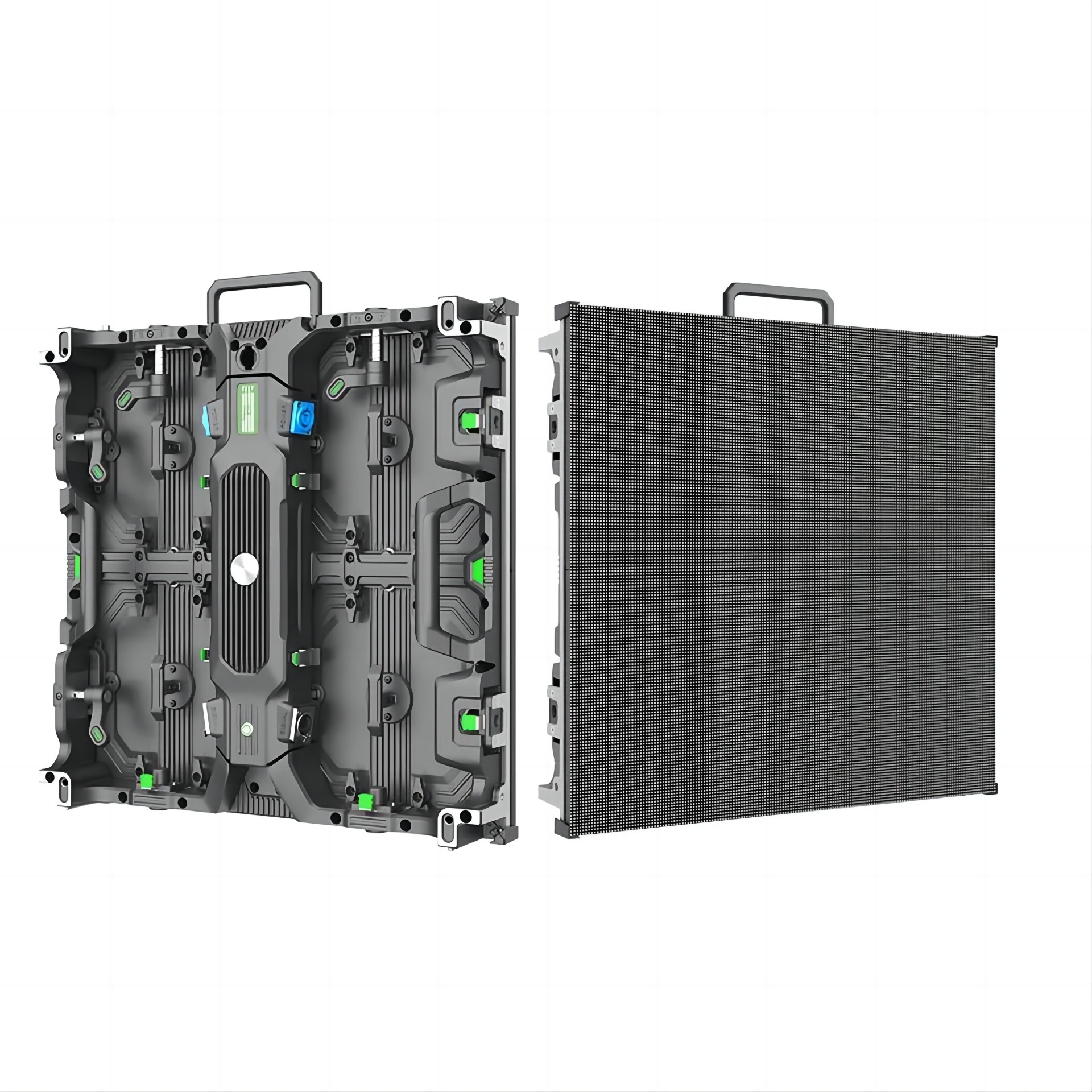

- Slim and Light Weight Cabinet Design
Die cast aluminum cabinet, perfect splicing without gaps. Weight only 7.5kg, easy to handle. Fast locking makes assembly and disassembly extremely easy. High-quality plugs ensure reliability.
- Front Service Magnetic Module For Quick and Easy Maintenance
Independent card and power supply box , maintenance and installation is more efficient and convenient.
High contrast 5000:1 and ultra-high-definition perfect picture quality, bring you absolute visual enjoyment.easily attract attention, greatly enhance the value of advertising.
- Quick Setup and Disassebmly
Unique brake lock design, the upper and lower cabinet connection can be completed in only one second, use the method to watch the video below.
- Adjustable Angle Lock

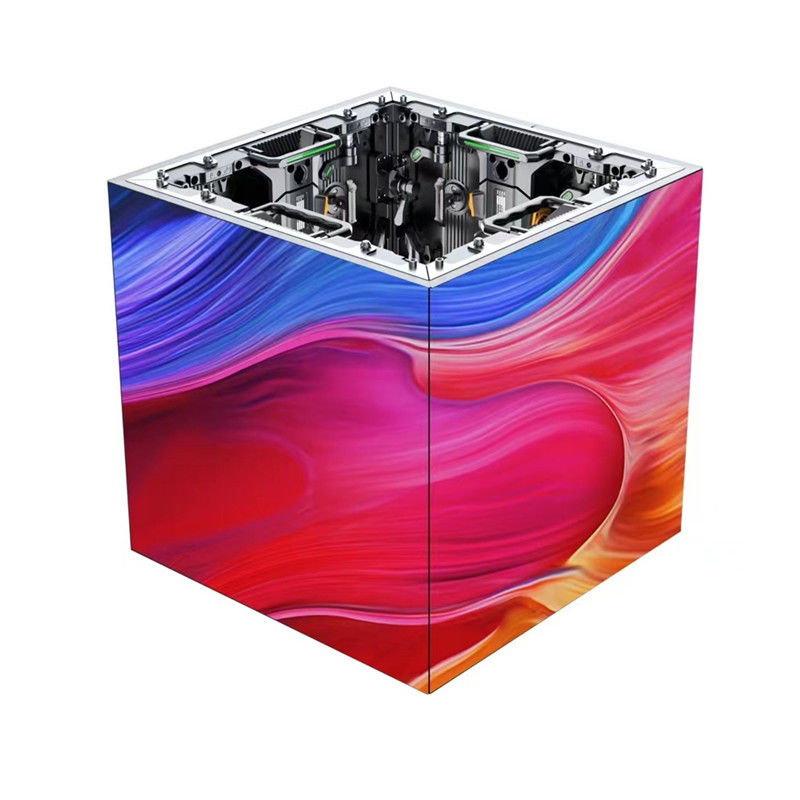

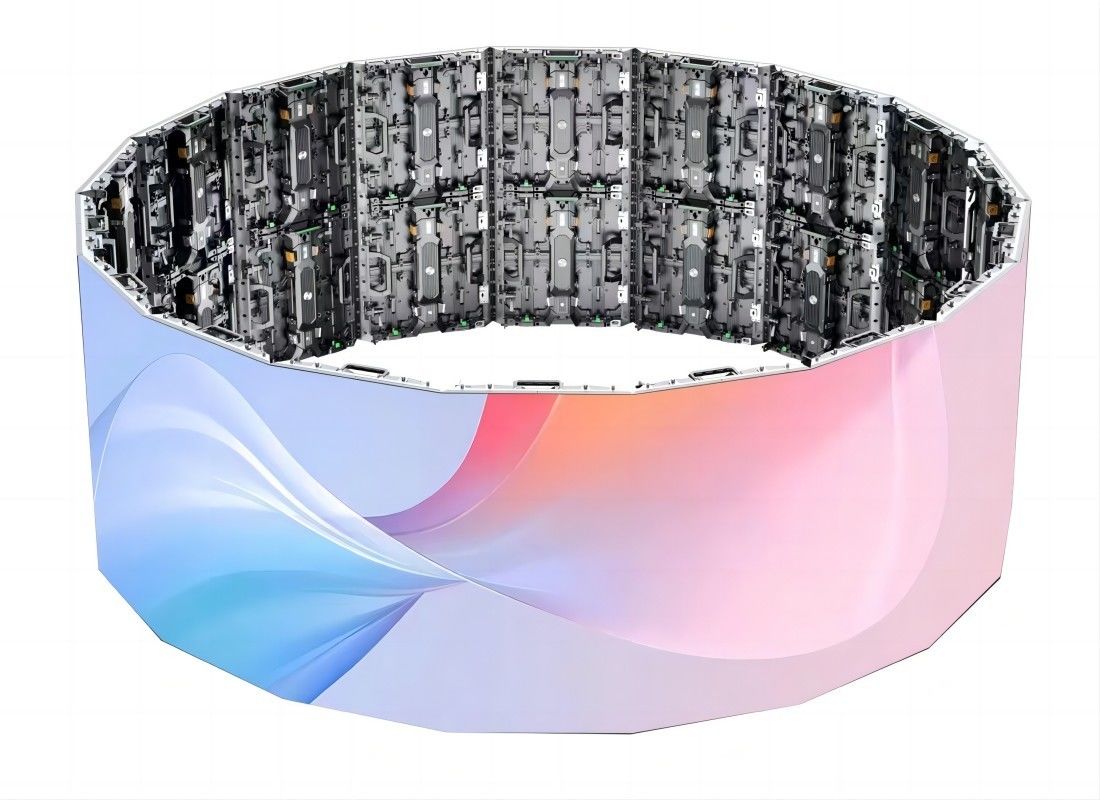

The cabinet can be arc-shaped connected, with its own angle adjustment device, can achieve concave and convex 10 degrees of adjustment to meet the different arc connection requirements.
- Corner Protector
Making LED cabinet lamps anti-collison when do assemble and shipping
- Power card box with cableless design, LED module support front/rear service.
- Seamless screen splicing and Support ±15 degree installation
- 45 degree edge make right design is available.
Parameters:
| Model | Di-HH2.6 | Di-HH2.9 | Di-HH3.9 | Di-HH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
