| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | Di-YB2.6, Di-YB2.9, Di-YB3.9, Di-YB4.8, |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Pixel Pitch: | P2.604mm, P2.976mm, P3.91mm, P4.81mm | Size: | 500X1000mm |
|---|---|---|---|
| Material: | Die-casting Aluminum | Weight: | 14kg |
| Service Type: | Front/Rear | Refresh Rate: | 3840hz |
| Highlight: | Events LED Display Screen 500X1000mm,Indoor Stage LED Display Screen,P4.8 Stage LED Display Screen |
||

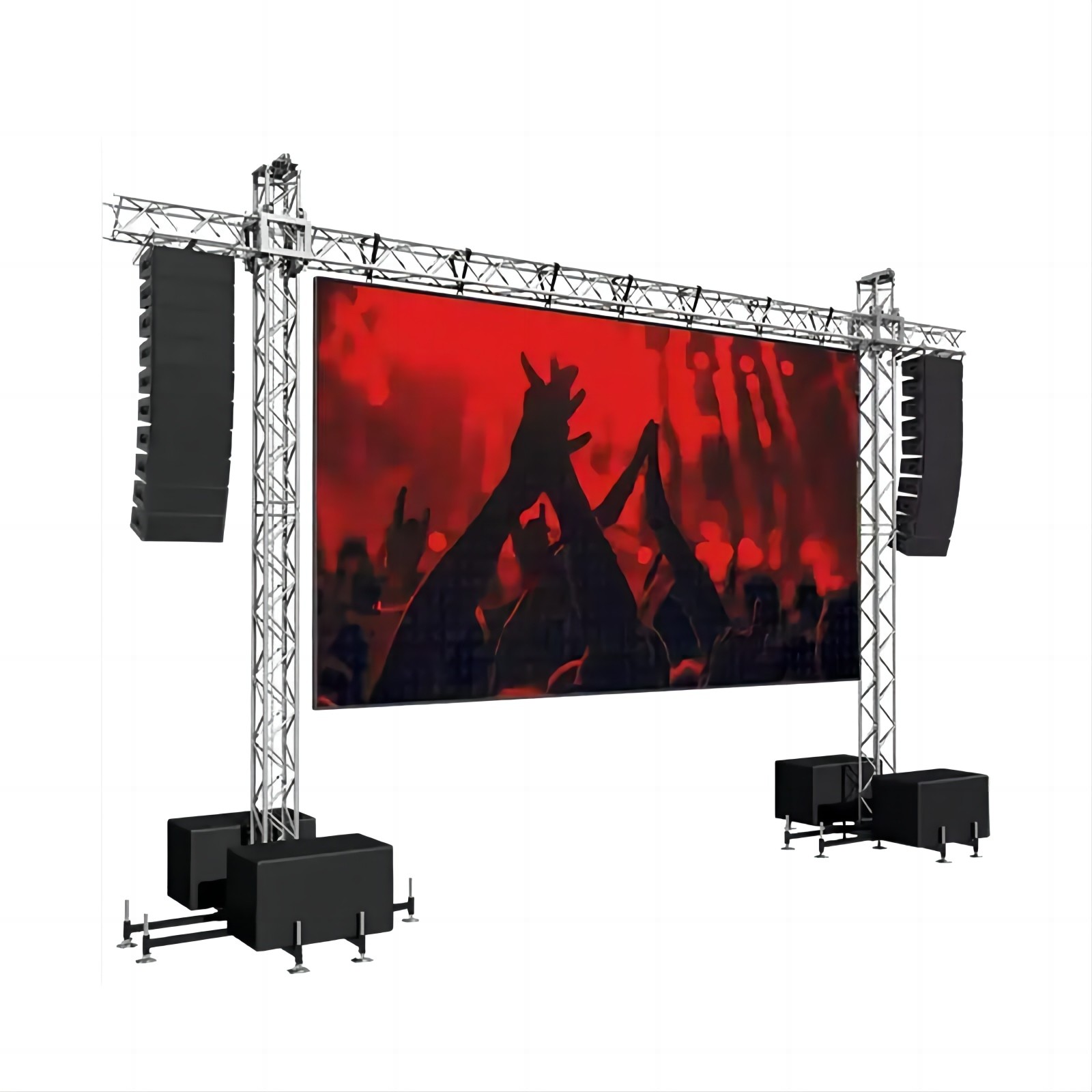

500X1000mm P2.6 P2.9 P3.9 P4.8 Indoor Stage Events LED Display Screen
Quick Details:

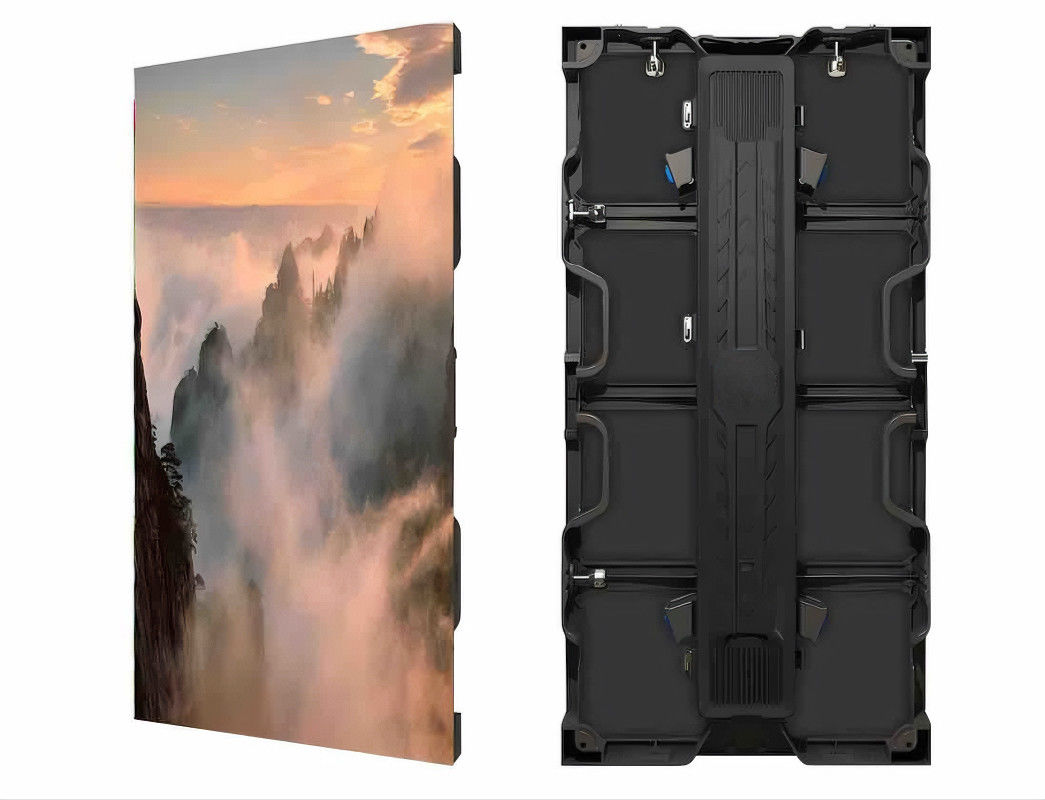

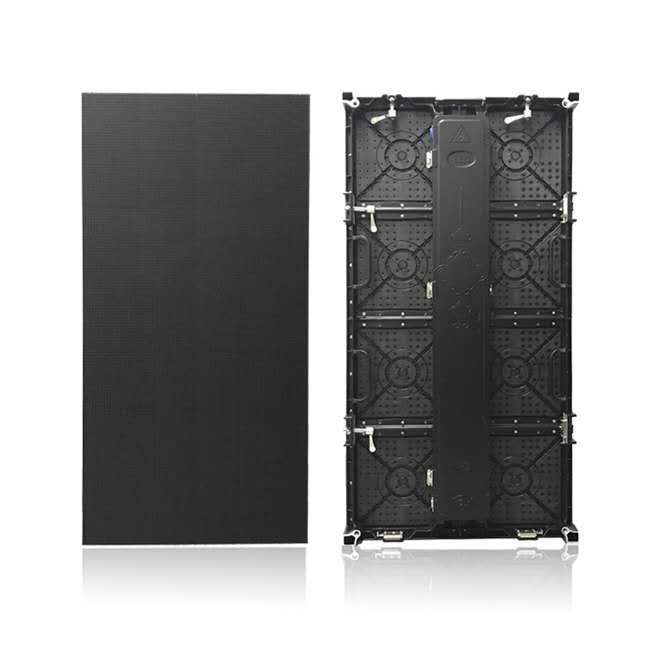

- 500X1000mm Slim light cabinet with 13-14kg
- Pixel Pitch covers hot selling P2.604mm,P2.976mm,P3.91mm and P4.81mm
- Support angle adjustable side lock for making LED screen curve shape
- Support LED corner protectors making LED lamps anti-collison when shipping and assemble.
- High Refresh rate 3840hz, High greyscale and high contrast ratio
Advantages Of Indoor Rental LED Video Wall
- High pixel, fine and realistic picture quality, pure and thick color.
- Good flatness, even and consistent picture, pleasing to the eye.
- High grayscale, high refresh, realistic video effect of the studio.
- Safety performance structure, enhanced design is not easy to deformation.
- large viewing angle imaging display technology, to meet a wide range of angles to view without color deviation.
- Can be front and back design maintenance, light and fast, easy maintenance.
- Energy saving ≥ 36%:
Using the industry's top low-power ultra-bright LED lights, energy saving ≥ 30%, with industrial-grade high-power power switch core patented technology, the overall energy saving ≥ 36%, energy saving and environmental protection.
Parameters:
| Model | Di-YB2.6 | Di-YB2.9 | Di-YB3.9 | Di-YB4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 14kg | 14kg | 14kg | 14kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm | 200 W /Sqm |
| Max Power Consumption | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm | 600 W /Sqm |
| Brightness | >1,000 nits | >1,000 nits | >1,000 nits | >1,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 43 | IP 43 | IP 43 | IP 43 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Q: How Can We Guarantee Quality?
A: Seven quality control steps ensure your ordered screens good:
1).Suppliers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
