| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-LM4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P4.81mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 500X1000mm | Weight: | 15kg |
| Refresh Rate: | 3840hz | Module Size: | 250X250mm |
| Highlight: | Waterproof Outdoor Rental LED Display,P4.81 Outdoor Rental LED Display,Indoor Outdoor Rental LED Display |
||

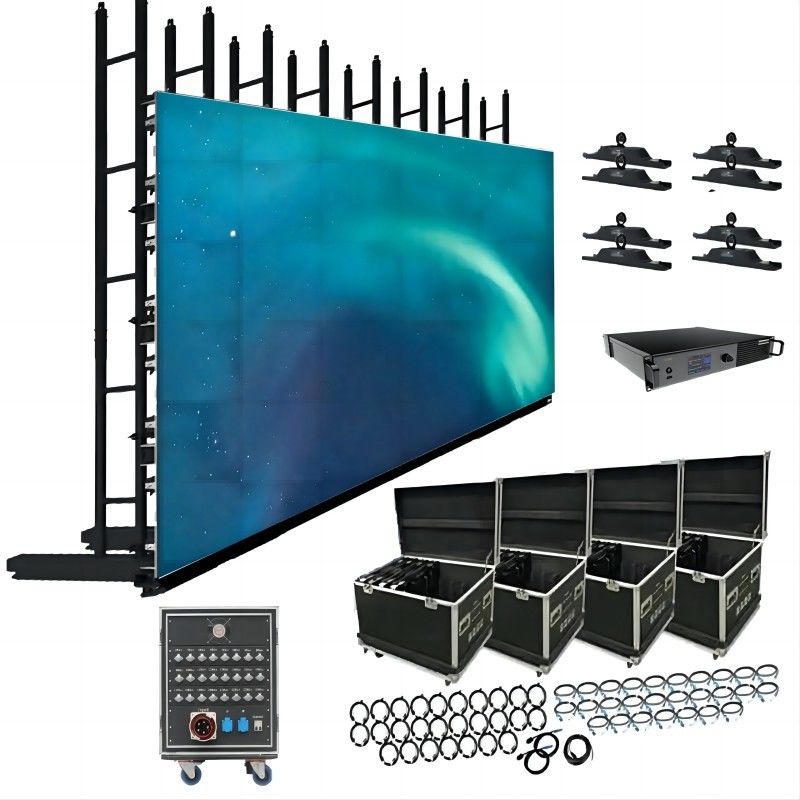

P4.81 Waterproof Indoor / Outdoor Rental LED Display Stage Background
Application:
Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture.
Light and strong cabinet design with quick locate handle lock can be quickly and easily assembled in various ways, it can be used in variety of occasions ,to meet different customer requirement for a variety of applications.
Features:
- Front /Rear service, Quick installation and maintenance
- No fans, noiseless, lower power consumption,energy saving
- Good heat dissipation design
- Less noise during working
- Curved design optional, meet the needs of different users in different scenarios
- Plug in power supply
- 3840 High refresh rate
- Extremely light weight
- High brightness
Parameters:
| Model | D-LM2.6 | D-LM2.9 | D-LM3.9 | D-LM4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |

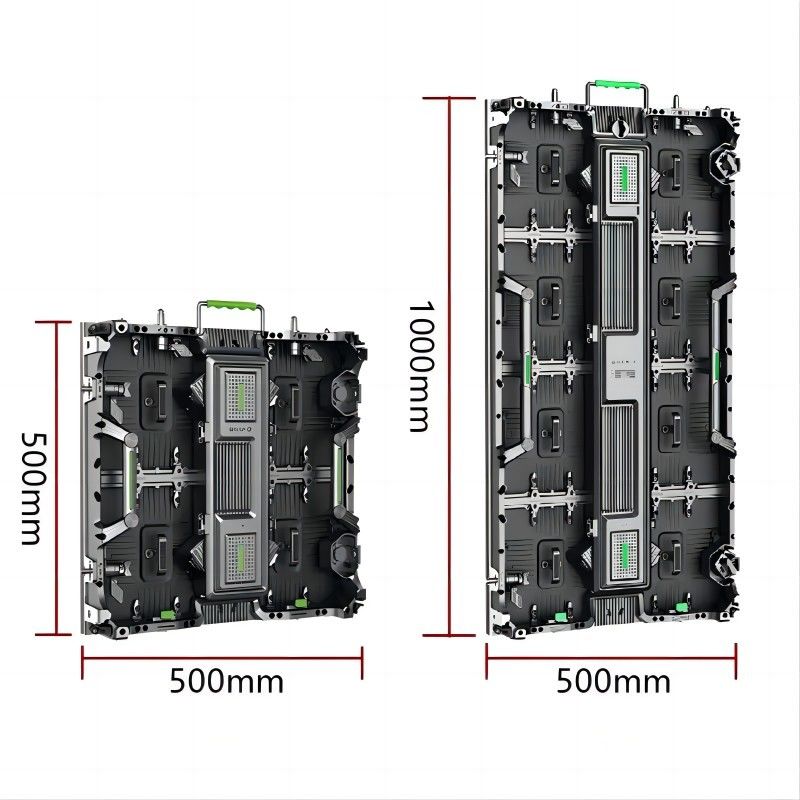

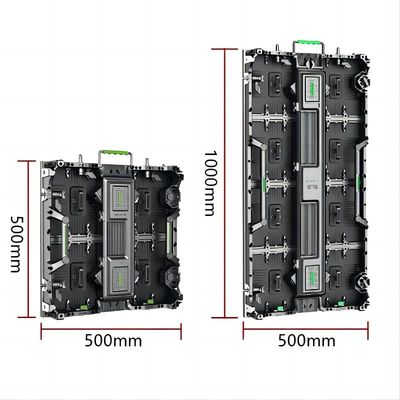

| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /panel | 280 W /panel |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /panel | 800 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
Service
1. Free online technical training and support for installation
2. Free spare parts if the screen broken because of quality issues .
3. 24/7 online service for any inquiry and question
