P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box
P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box
P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box
Basic Information
Place of Origin: China
Brand Name: Conwin LED Display
Certification: FCC, CE, ROHS
Model Number: D-XH2.6
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: Plywood box/Flight case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1,000 sqm per month
Contact Now
Type: Stage Rental LED Screen Pixel Pitch: P2.604mm
Cabinet Size: 500x500mm Service: Front/Rear Service
Weight: 8kg Module Size: 250x250mm
Highlight:

500x500mm Rental Outdoor LED Display

,

Rental Outdoor LED Display 3840Hz

P2.6mm 500x500mm Outdoor Rental LED Display 3840Hz With Removable Power Box

Features and Details below:

- Lightweight and Slim

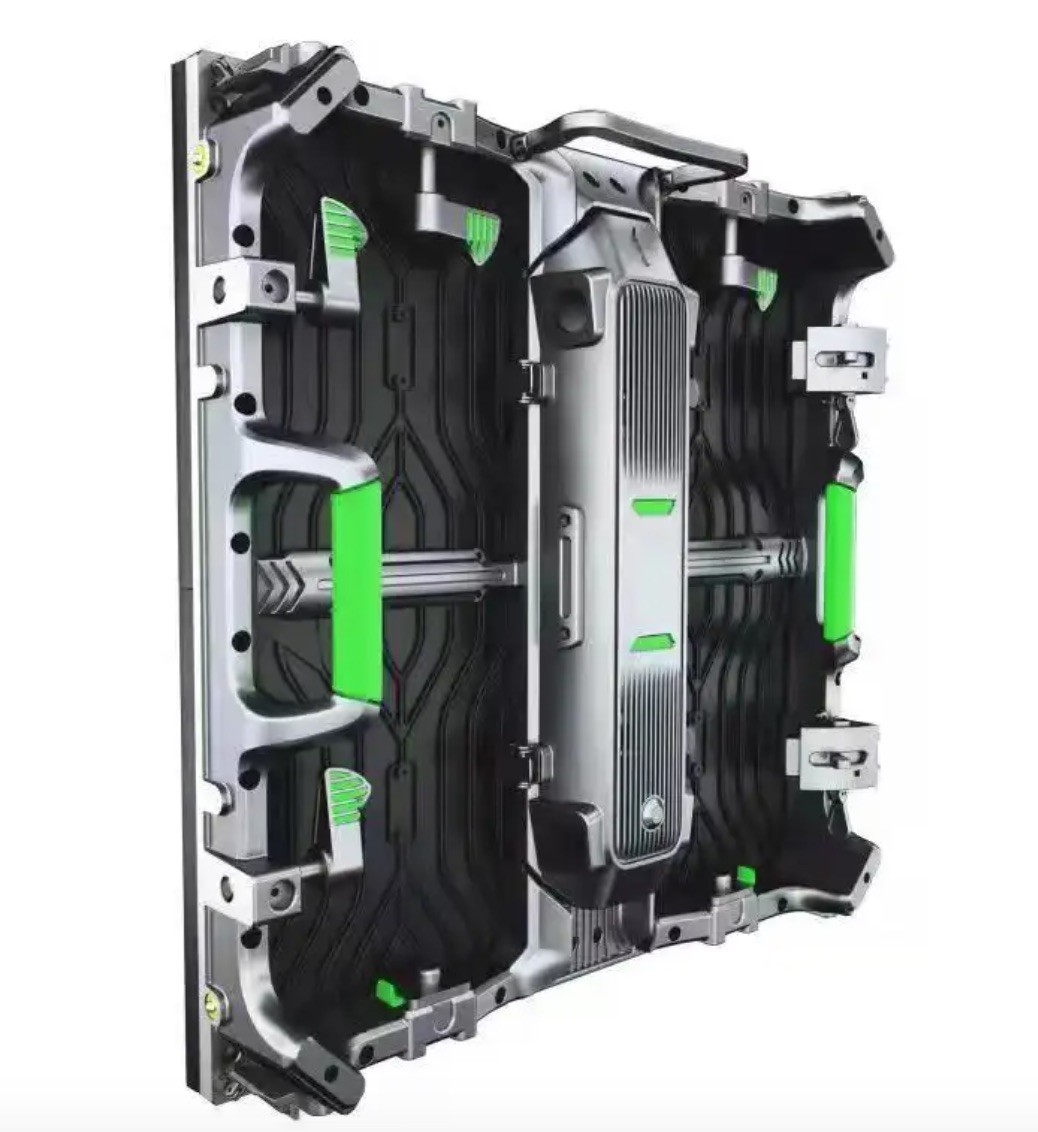

  Die cast aluminum cabinet with weight of 8kg/cabinet and thickness of 80mm. Easy to operate, transport and assembling, saving time and labor cost.

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 0

- Seamless 90 Degree Angle Installation

  Corner cabinet can be 45 degree edge, to create seamless 90 degree corner

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 1

- Removable Power Box

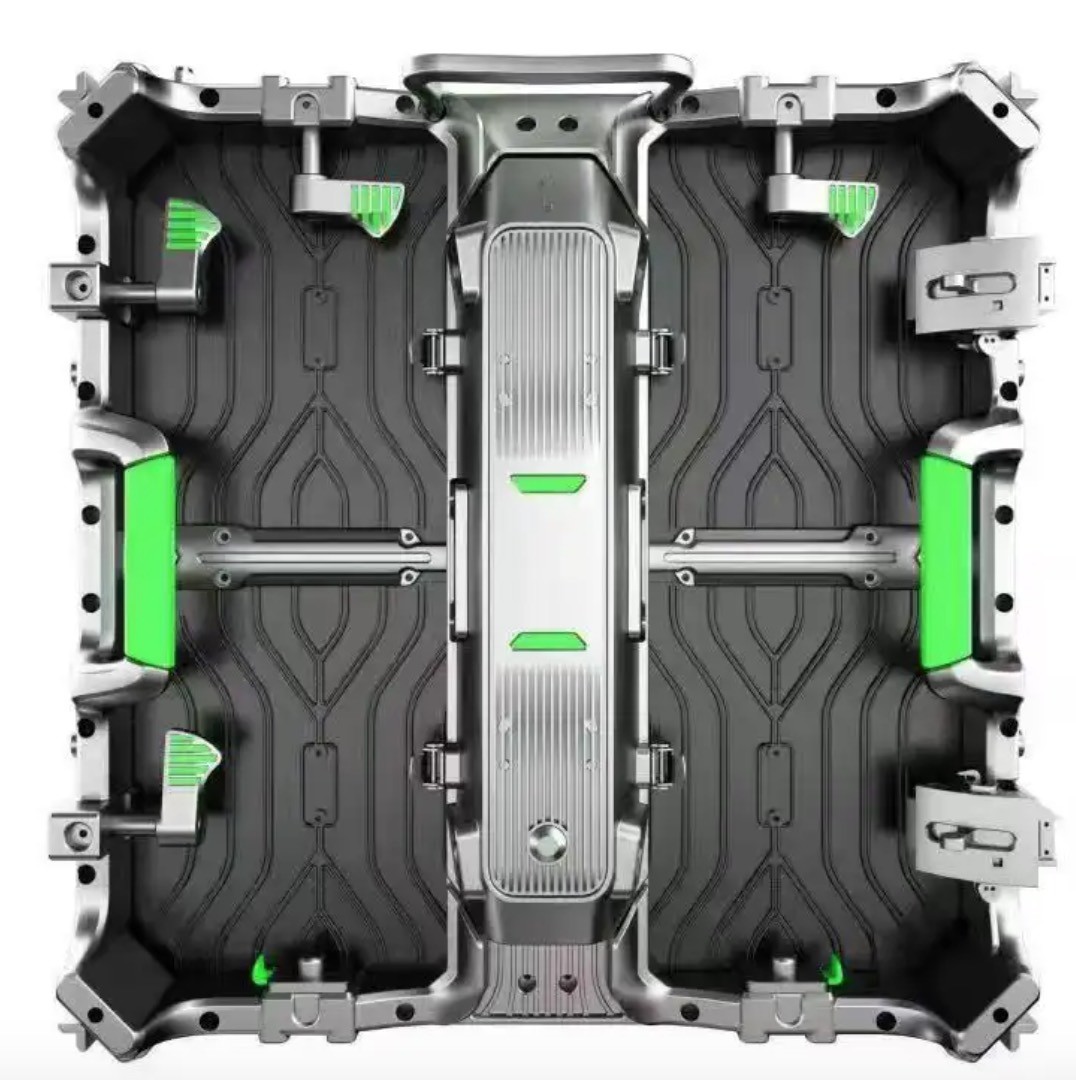

  Removable Power Box with pin connection design, better image quality and easy for maintenance

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 2

- Concave and Convex Installation

  Flexible Installation method to meet different applicatioin scenarios. Curved with every 2.5° between -10°and 10°, which can make convex and concave.

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 3



- Front & Rear Maintenance

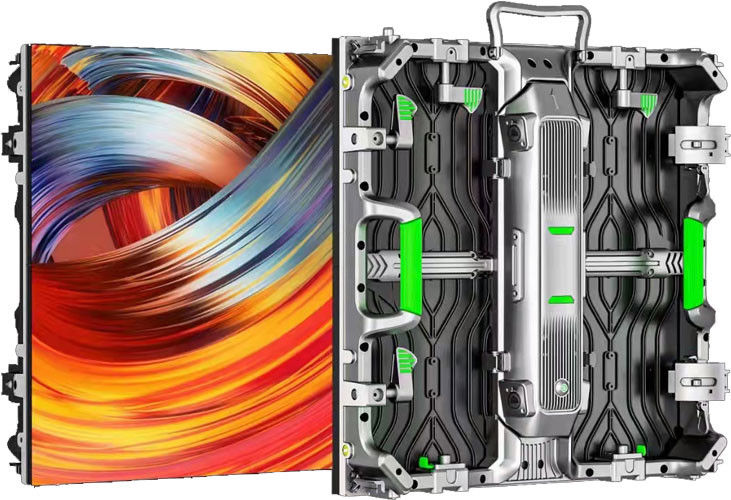

  Giant Series Rental LED Display is dual maintenance product, the LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 4

- Mix Use

  500x500mm and 500x1000mm cabinet can mix assembling, more flexible to create the exact size customer want

P2.6mm 500x500mm Rental Outdoor LED Display 3840Hz With Removable Power Box 5

Parameters:

Model D-XH2.6 D-XH2.9 D-XH3.9 D-XH4.8
Pixel Pitch 2.604mm 2.976mm 3.91mm 4.81mm
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Pixel Density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
     Module Dimensions       (W x H) (mm) 250 x 250 250 x 250 250 x 250 250 x 250
Panel Dimensions (mm) 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80 500 x 500 x 80
  Modules Per Cabinet        (W x H) 2 x 2 2 x 2 2 x 2 2 x 2
Module Resolution 96 x 96 84 x 84 64 x 64 52 x 52
Cabinet Resolution 192 x 192 168 x 168 128 x 128 104 x 104
Panel Material Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum Die Cast Aluminum
Weight per Cabinet 8kg 8kg 8kg 8kg
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 5,000 : 1 5,000 : 1 5,000 : 1 5,000 : 1
Average Power Consumption 280 W /Sqm 260 W /Sqm 250 W /Sqm 220 W /Sqm
Max Power Consumption 680 W /Sqm 650 W /Sqm 620 W /Sqm 600 W /Sqm
Brightness >5,000 nits >5,000 nits >5,000 nits >5,000 nits
Refresh Rate >3,840Hz >3,840Hz >3,840 Hz >3,840 Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 160° 160° 160° 160°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP 65 IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
Storage Temp/Humidity -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90% -20ºC - 50ºC / 10% - 90%
