| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | D-LP3.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P3.91mm | Raw Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 500X1000mm | Weight: | 15kg |
| Service Type: | Front/Rear | Refresh Rate: | 3840hz |
| Highlight: | Events Video Wall Panel |
||
P3.91 High Definition 500X1000mm Outdoor Full Color Events Video Wall Panel
Application:
Rental led screen is widely used in advertising leasing, video conference, product release,stage background, wedding celebration and so on , it use die-casting aluminum, hoisting, stowage,back frame fixed installation requirements. ,it has high refresh and gray-scale ,high contrast ,high quality fine picture.
Light and strong cabinet design with quick locate handle lock can be quickly and easily assembled in various ways, it can be used in variety of occasions ,to meet different customer requirement for a variety of applications.
Features:
- Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency
- It delivers an image which is super subtle and without getting tired after a longtime watching
- Super High Refresh Rate, High Frame Frequency, No Ghosting &Twisting or Smear
- Front Serviceable Module allows easy Maintenance, Saving Time & Space
- 14-16 Bit Grey Grade Processing, the color transition will be more natural
- Pixel pitch: P2.6,P2.9,P3.9,P4.8
Parameters:
| Model | D-LP2.6 | D-LP2.9 | D-LP3.9 | D-LP4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

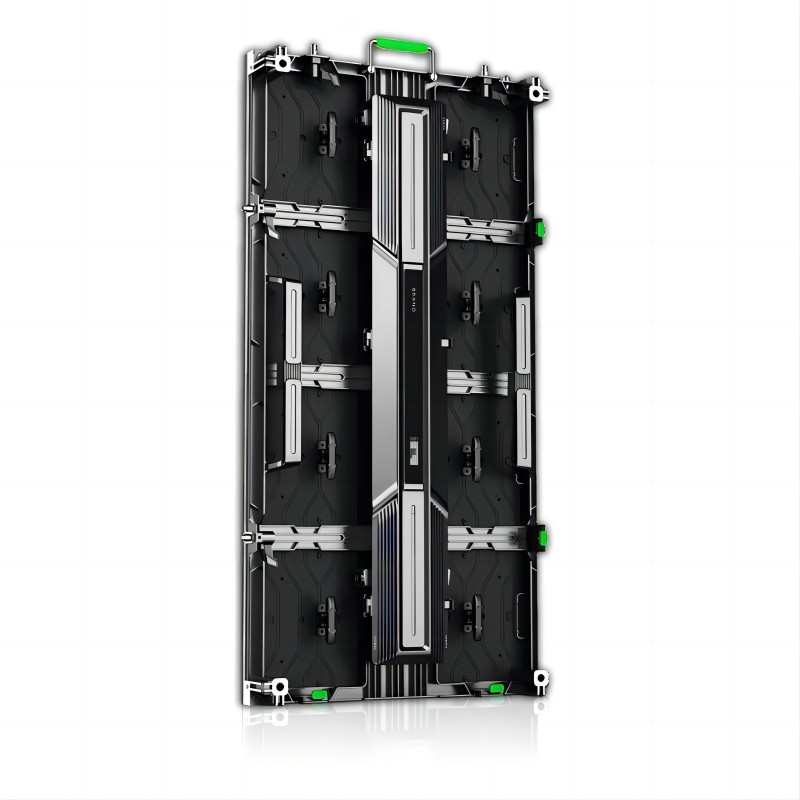

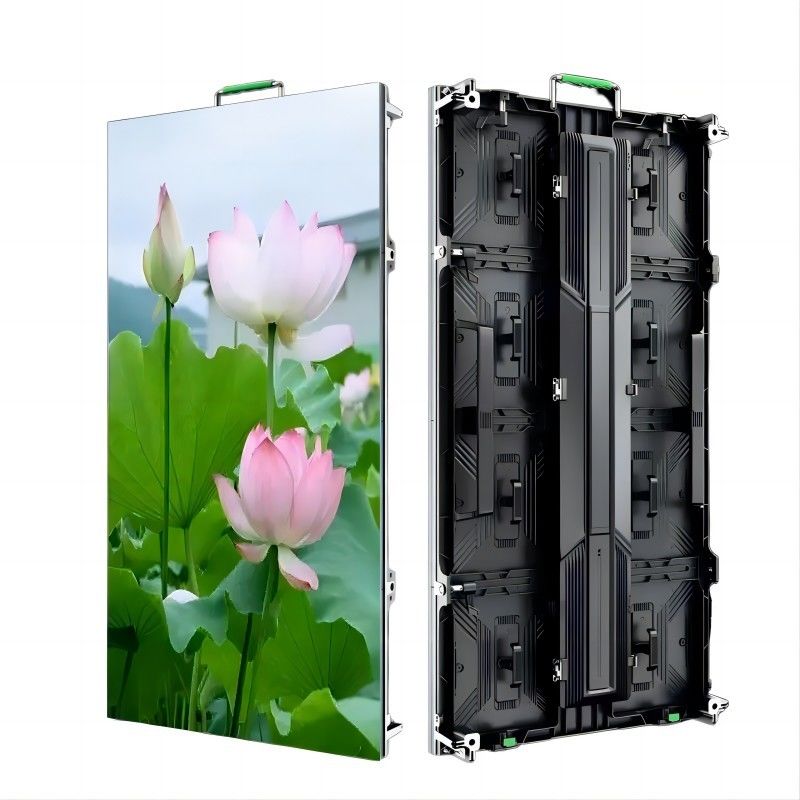

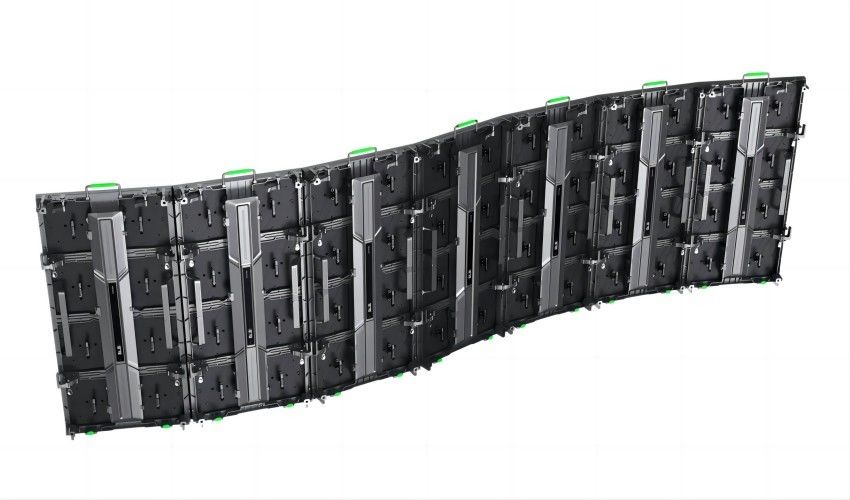

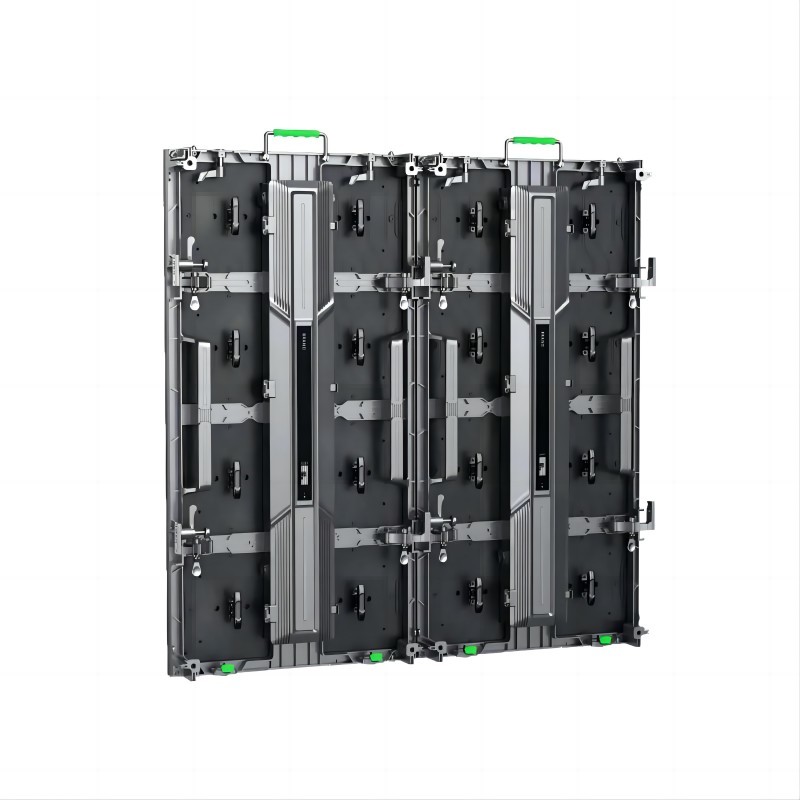

Pictures:
