| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-LK4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight Case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel Pitch: | P4.81mm | Size: | 500X1000mm |
|---|---|---|---|
| Weight: | 15kg | Material: | Die-casting Aluminum |
| Refresh Rate: | 3840hz | Serice: | Front/Rear |
| Highlight: | P4.81 LED Video Wall |
||

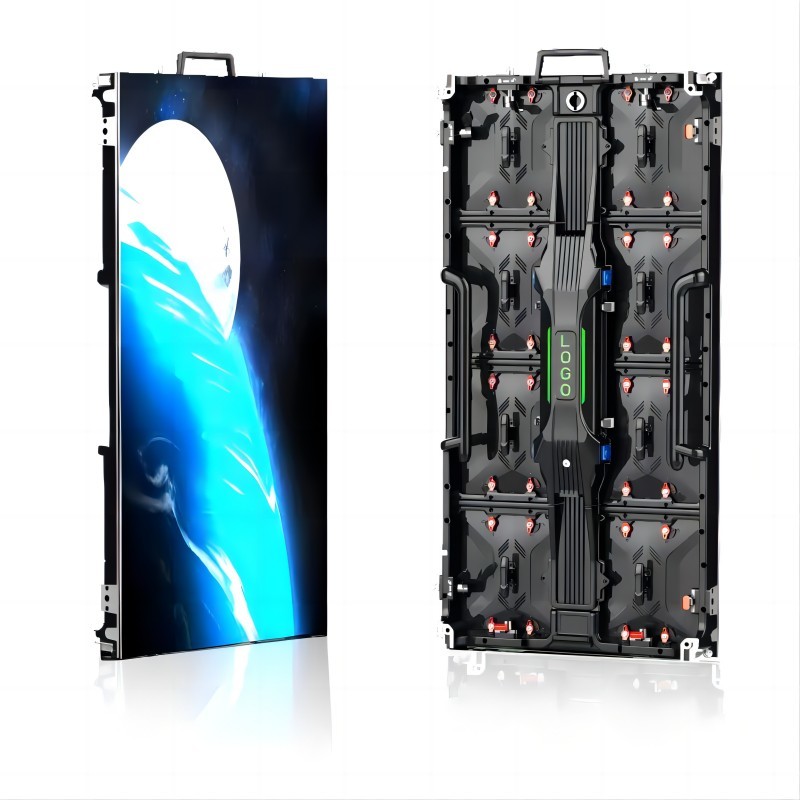

Die-casting Aluminum Cabinet Outdoor 500x1000mm P4.81 LED Video Wall
Application:

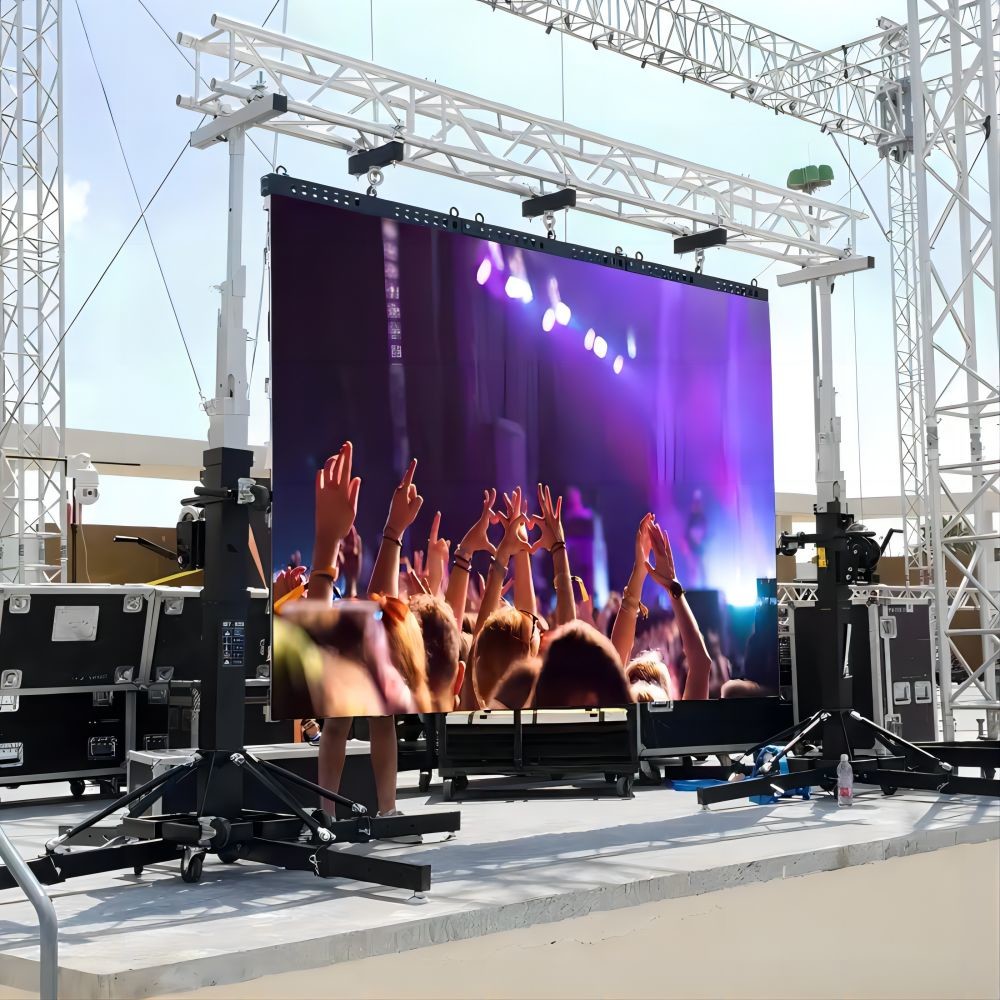

● Stage performance ● Business evening ● Music Festival ● Wedding decoration ● Exhibition ● Church It is so particularly significant for the stage performance to get the support of the right background...
Features
- Slim and light , front maintenance, zero maintenance, zero noise.
- High density , high contrast, high brightness , high ash and high brush.
- High precision, seamless stitching, wide viewing angle, low power Consumption, high life, the picture is real natural.
- Replace LED mosaic wall and DLP projection splicing products, for customers have listened to information dissemination, brand advertising effects, etc. Aspect of high quality services.
- Applied to monitor the command, advertising, television, senior Frequency conference, cinema, shopping malls, hotels, monopoly and other venues.
Quick Details:
- Die-casting aluminum , Front Maintenance
- Fast Assembling
- Anti-damage Design
- High-efficiency cooling, No fan ,mute design, noise-free.
- High refresh rate
- Straight/Curve Design
- Lightweight - weighs only 15kgs, single person can be a single portable, and extremely easy to install;
- Compatible - the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements
- High Protective Grade And Strong Durability
Parameters:
| Model | D-LK2.6 | D-LK2.9 | D-LK3.9 | D-LK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |

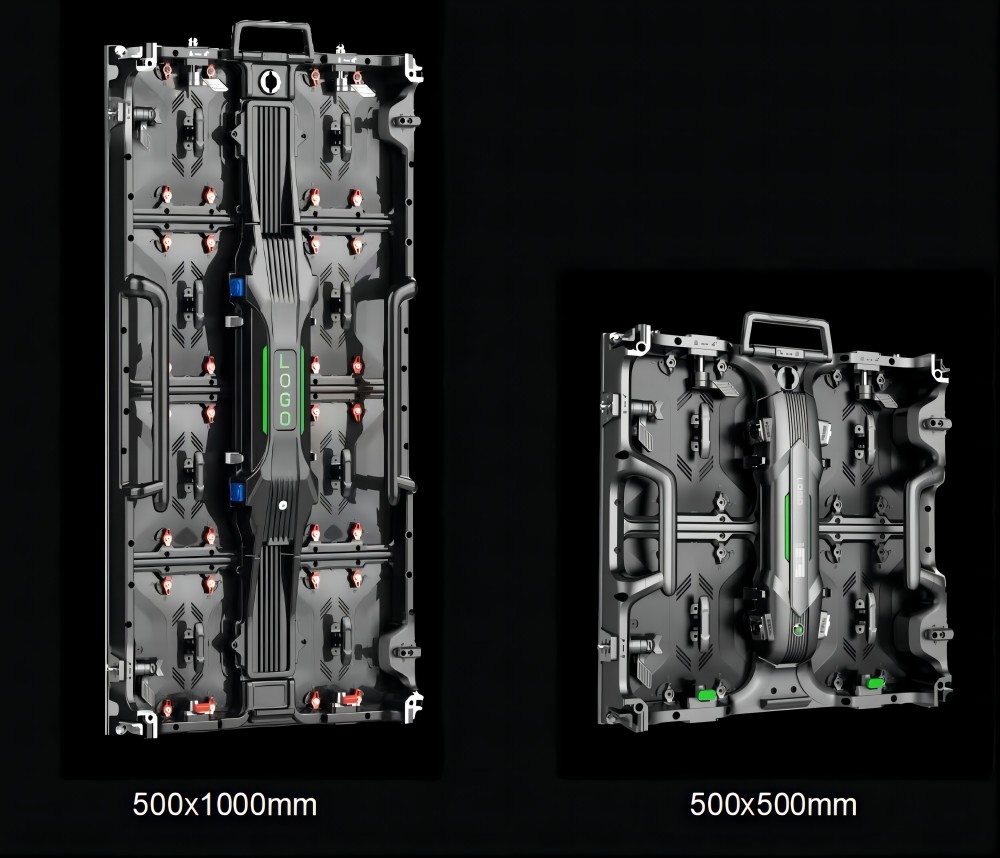

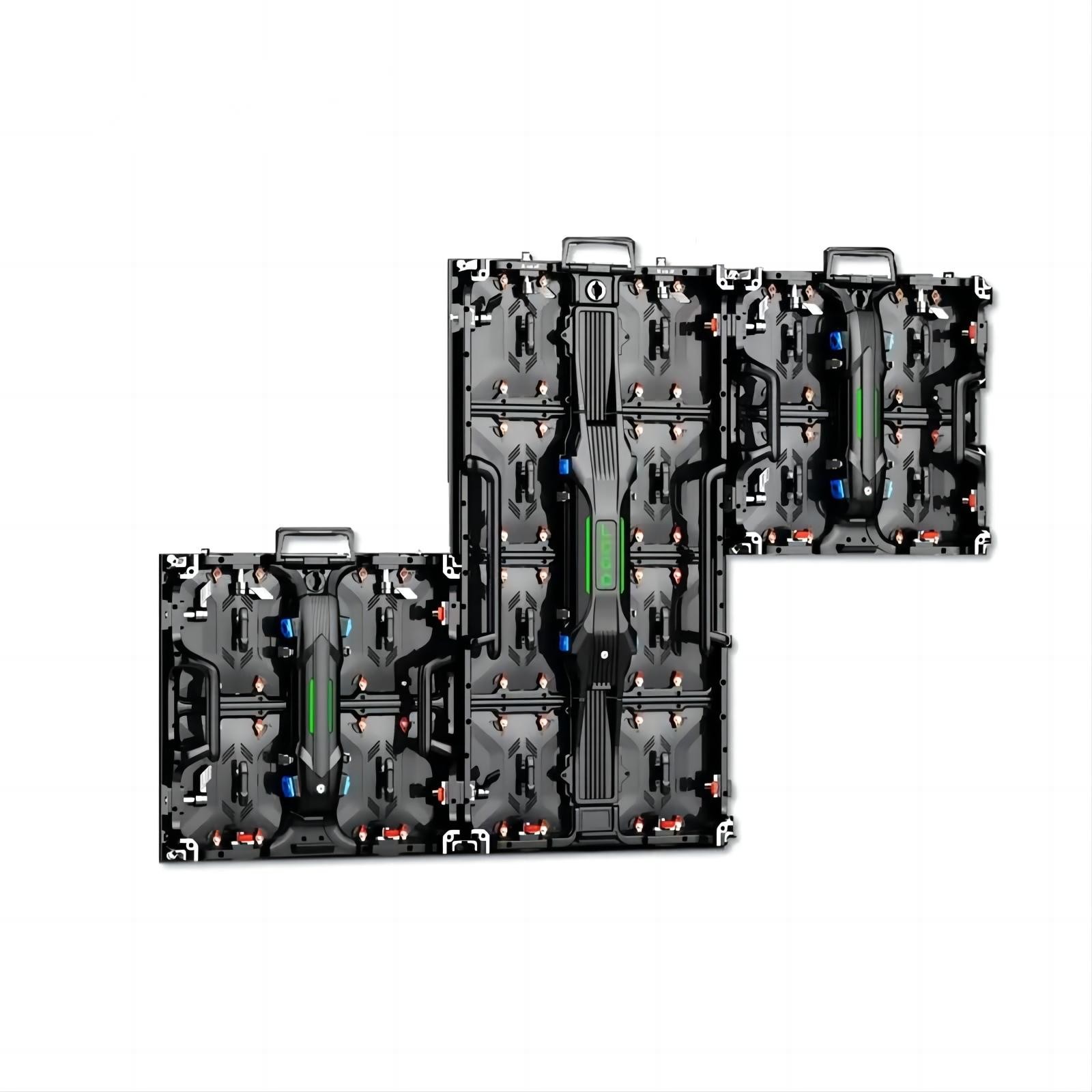

Pictures:
