| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-HH2.6, D-HH2.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box/Flight case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Type: | Outdoor Rental LED Display | Pixel Pitch: | P2.604mm, P2.976mm |
|---|---|---|---|
| Size: | 500X1000X80mm | Weight: | 15kg |
| Raw Material: | Die-casting Aluminum | Refresh Rate: | 3840hz |
| Highlight: | 500X1000mm LED Rental Cabinet,Outdoor Using LED Rental Cabinet,P2.6mm LED Rental Cabinet |
||

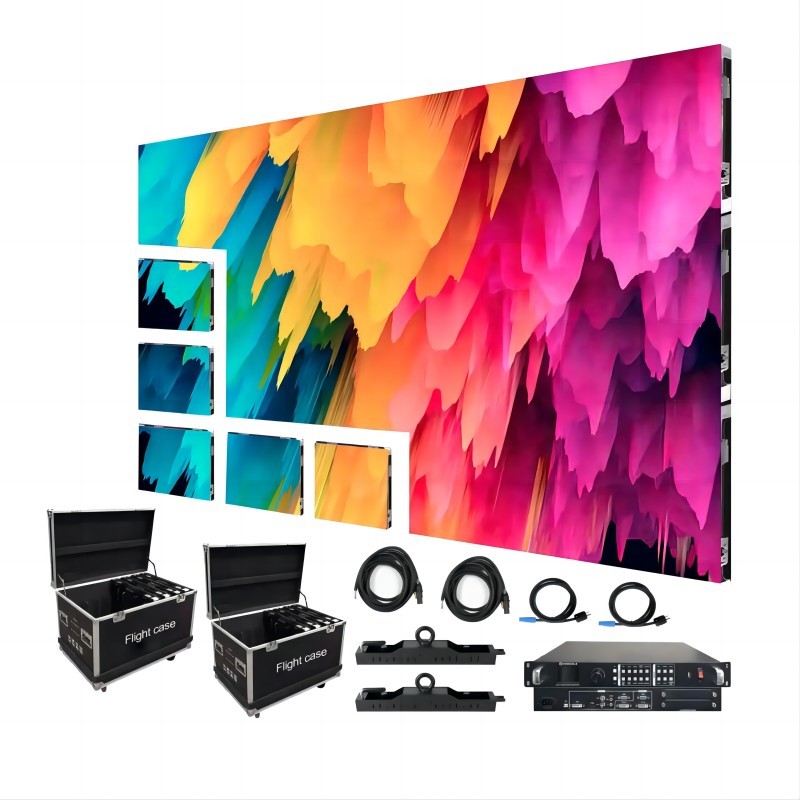

500X1000mm Stage LED Display LED Rental Cabinet P2.6mm P2.9mm Outdoor Using
Application:
Outdoor full color rental LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dust-proof, static-proof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Product Features:
- Module size:250x250mm, compatible pitch:P2.6,P2.9,P3.9 and P4.8

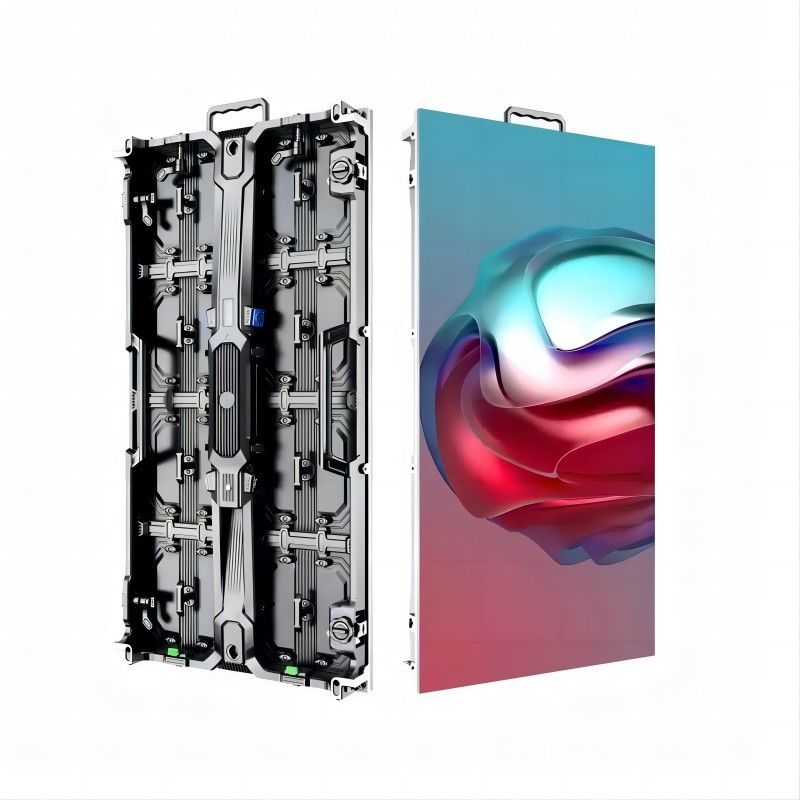

- 500x500mm, 500x1000mm cabinet, stable die-casting alloy structure, not easy to deform.
- Cable-less and pluggable power supply, easy to change.
- Intelligent cabinet handle lock, single operation design, time-saving and labor-saving.
- Foldable all-around corner protectors, effectively protect the edge led lamps and modules.
- Adopt high end big chip pure black led lamps, ultra-high contrast, high gray scale and high refresh rate.
- Curved function cabinet option, no need curved lock, can realize arc/ special-shaped, suitable for different rental events.
- Support 500X500mm and 500X1000mm splicing together with different shape
- From -2.5 °(convex) to +7.5°(concave), wide range of curving, creative screen shapes and sizes.
Whether the audience stands in the centre, right, or left, you can see the similar Display from all angles.
Parameters:
| Model | D-HH2.6 | D-HH2.9 | D-HH3.9 | D-HH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
