| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-XH4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight Case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Pixel Pitch: | P4.81mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 500X1000mm | Weight: | 15kg |
| Module Size: | 250X250mm | Service Type: | Front/Rear |
| Highlight: | P4.8mm Outdoor Rental LED Display,1000mm Outdoor Rental LED Display,Full Color stage rental led display |
||
P4.8mm 500X1000mm Outdoor Full Color LED Stage Display High Refresh Events Using
Application:

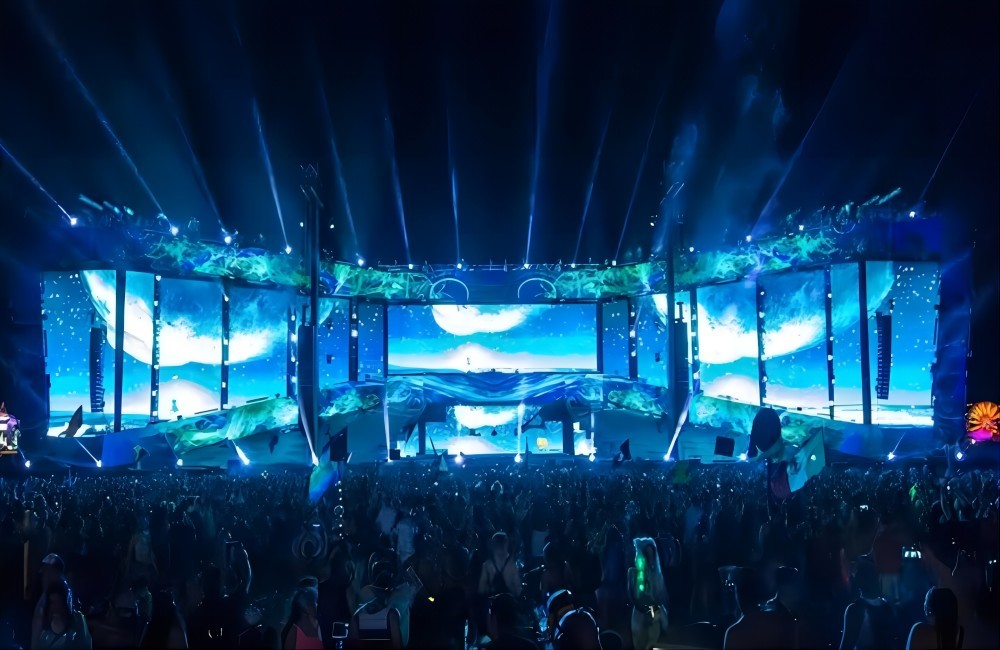

The D-XH Series rental LED screen is mainly used as stage backdrop or used to live broadcast the on-site grand occasion in some events and activities, such as Wedding, Ceremony, Concert, Sports competition, Commercial promotional activity, Expo., Show, Grand party, Carnival and so on.
Features:
- Smart Cabinet Design
- High Brightness-the brightness of outdoor LED displays can reach 4500-5000nits, higher than projectors and TV. Moreover, the adjustable brightness level also benefits people’s eyesight.
- High contrast & high visibility-High contrast often comes from the comparative high brightness. High contrast means clearer and more vivid images and can bring higher visibility on many occasions such as when the screen is placed under direct sunlight.The high contrast makes LED rental displays have outstanding performance in visibility and color contrast.
- High Refresh rate-Using brand IC upgrade the refresh rate from 1920hz to 3840hz already
- SMD tech lamps with wide wiewing angle
- High protection capability Waterproof D-XH Stage Led Video Wall Panel Screen For Concert Price P3.91 Rental Outdoor Led Display
For indoor rental LED display, the protection level can reach IP54, and for outdoor rental LED display, that can be up to IP65.
High protection capability prevents the display from natural elements such as dust and moisture effectively, which can prolong the service life, and avoid unnecessary degradation of play effect.
Parameters:
| Model | D-XH2.6 | D-XH2.9 | D-XH3.9 | D-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
