| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-XH3.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C |
| Pixel Pitch: | P3.91mm | Material: | Die-casting Aluminum |
|---|---|---|---|
| Size: | 500X500mm | Weight: | 8kg |
| Refresh: | 3840 | Service: | Front/Rear |
| Highlight: | Outdoor Stage LED Display Screen,Stage LED Display Screen P3.9mm,500mm stage rental led screen |
||

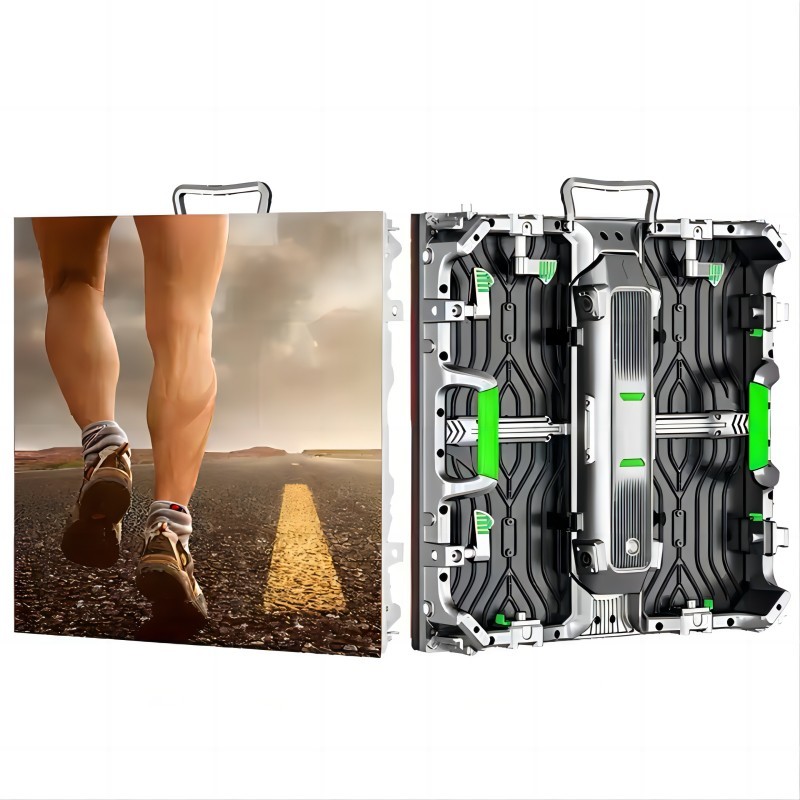

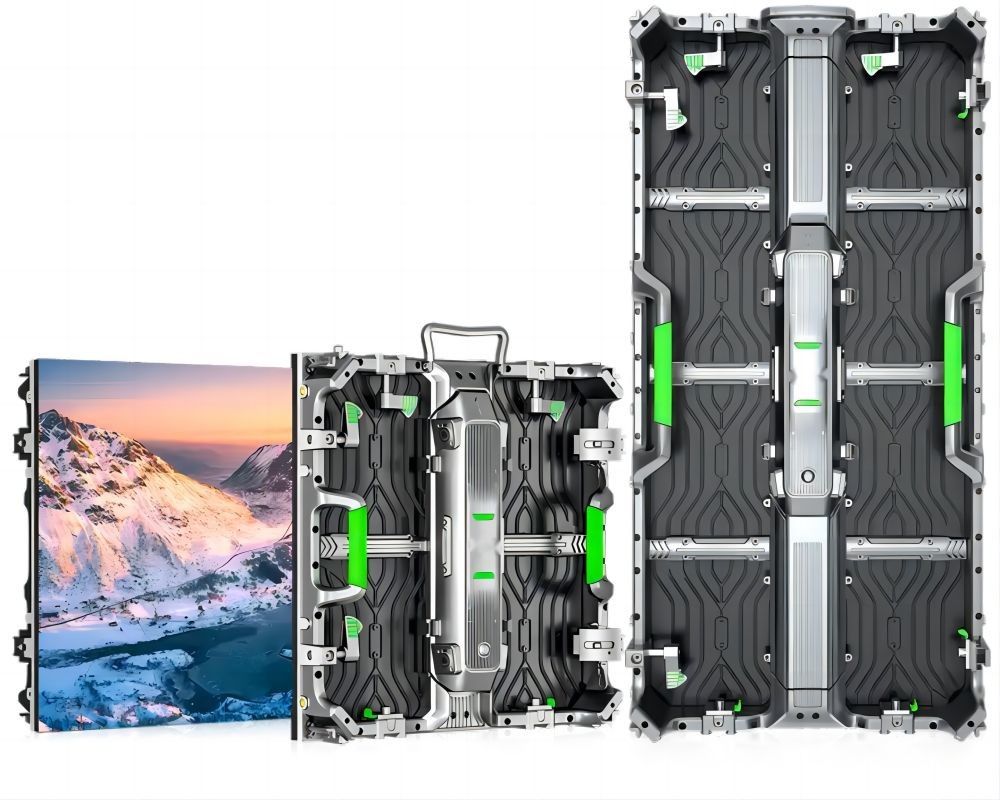

Outdoor Rental Stage led Display Screen P3.9mm 500X500mm for Events Backdrop
Description and Features:

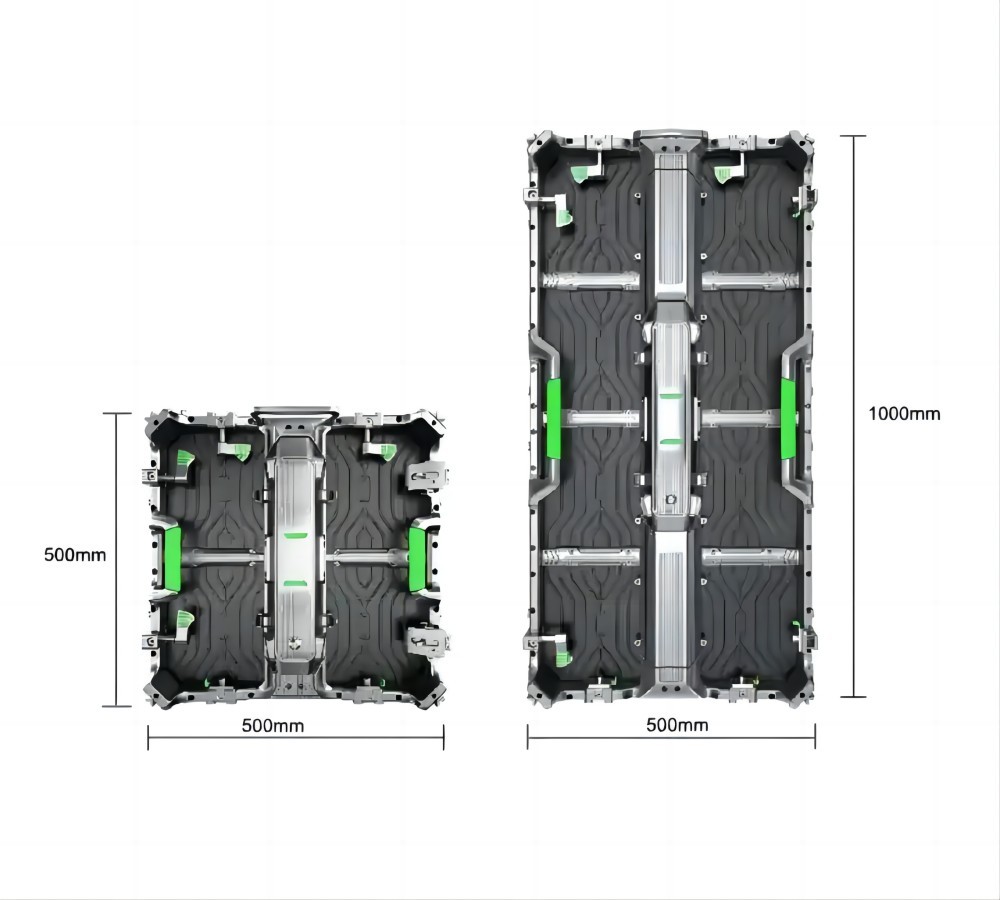

- Perfect Cabinet Design
Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, Power& signal connector,detachable power boxing, and more
- Detachable Back Cover
Hard Connection Design with detachable Power box and HUB Poard, High IP65 Waterproof with Double Sealing Rubber Ring,Quick Mounting of Buckles for assambleand disassamble of back cover.
- High Precision Curve Lock, Support Curve Installation
Adopt high-precision curve lock design (-15° to+15°), rotation control, moreaccurate,easy to use, and quickly adjust the degree of curve.
- Corner Protector
The LED screen has four corners to prevent damage to the LED,Transportation,installation, operation,disassembly and assembly are more secure and easy to use.
- IP65 Dustproof And Waterproof
CA-H Series outdoor LED display supports IP65 dustproof and waterproof,it can resists severe weather conditions during outdoor activities.And die-casting aluminum is corrosion resistant.
-Wide Viewing Angle
Viewing angle is up to 160°vertical and horizontal, providing a wide viewing angle.Ultra-wide viewing angle give you the largest screen viewing area. It offers you clearand natural images in all directions.
- High Refresh, High Grey scale, High Contrast Ratio with excellent visual effect.
Parematers:
| Model | D-XH2.6 | D-XH2.9 | D-XH3.9 | D-XH4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
