| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Model Number: | E-C Series |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000sqm/month |
| Pixel: | 2.9mm,3.9mm,4.mm | Color: | 281trillions Full Color |
|---|---|---|---|
| Size: | 100X1000mm | IP Grade: | Front: IP65, Rear: IP54 |
| LEDs: | SMD RGB 3in1 | Module Size: | 250X250mm |
| Highlight: | LED Billboard Panel P2.9,Waterproof LED Billboard Panel,P4.8 led digital billboards |
||
1X1m Outdoor Waterproof LED Display Screen LED Billboard Panel P2.9 P3.9 P4.8
Outdoor Digital LED Billboard High Brightness HD Social Media Display

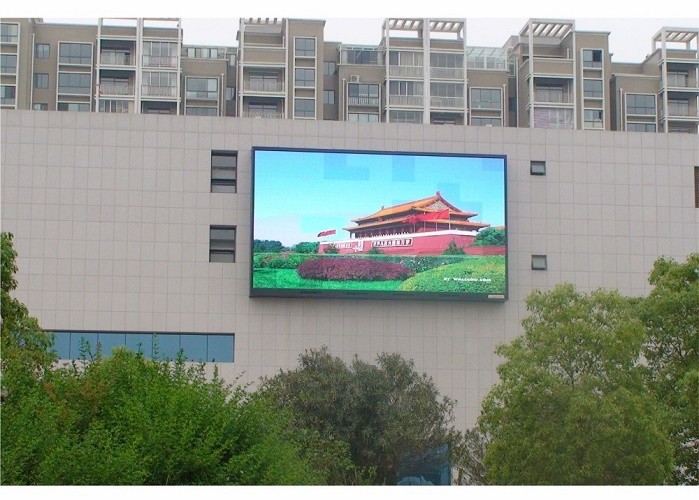

Conwin outdoor led billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.
Features and Details
- Smart Cabinet Design
IP65 Ingress rate for extreme weather protection,Cold rolled steel with extra powder coating for anti-rust Side handle convienent design for easy installation
- High Visibility
Brighter even when in sunny days,High color uniformity and consistence,High definition and contrast
- High Clarity SMD Technology
Closer viewing distance,Wider viewing angle,Front or rear serviceable
- Wide Viewing angle 160/160 H/V
- LED Module size 250X250 front service
- IP rating: front: IP65/ rear: IP54, waterproof
- Input voltage: 110V/220V AC, 50/60Hz
- Steel cabinet or Aluminum cabinet
- Power ,signal plug choosed
- Cabinet size customized according to LED module size 250X250mm
Regular size 1000X1000mm, other size 1000X750mm,1000X500mm,1250X1000mm....
- High fresh rate up to 3,840Hz, high contrast to 5,000:1
- Pixel Pitch 2.976mm, 3.91mm,4.81mm
Parameters:
| Model | E-C2.9 | E-C3.9 | E-C4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1515 | SMD1921 | SMD1921 |
| Pixel Density | 112896 pixels/m2 | 65536 pixels/m2 | 43264 pixels/m2 |
| Module Dimensions (W x H)(mm) | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 1000 x 1000 x 150 | 1000 x 1000 x 150 | 1000 x 1000 x 150 |
| Modules Per Cabinet (W x H) | 4 x 4 | 4 x 4 | 4 x 4 |
| Module Resolution | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 336 x 336 | 256 x 256 | 208 x 208 |
| Panel Material | Cold steel | Cold steel | Cold steel |
| Weight per Cabinet | 44kgs | 44kgs | 44kgs |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 300 W /Sqm | 300 W /Sqm | 300 W /Sqm |
| Max Power Consumption | 900 W /Sqm | 900 W /Sqm | 900 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
-20ºC - 50ºC / 10% - 90% |
Pictures:
Our Services
1. 20 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
