| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-HK4.8 |
| Minimum Order Quantity: | 10qm |
| Price: | Negotiable |
| Packaging Details: | flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1，000 sqm per month |
| Service: | Front/Rear Service | Weight: | 15kg |
|---|---|---|---|
| Module Size: | 250x250mm | Type: | OutdoorRental LED Screen |
| Pixel Pitch: | 4.81mm | Cabinet Size: | 500x1000mm |
| Highlight: | 4.81mm Outdoor Rental LED Display,Stage Backdrop Outdoor Rental LED Display,LED Stage Backdrop Screen 500x1000mm |
||
P4.81mm Outdoor Rental LED Display LED Stage Backdrop Screen 500x1000mm
High Brightness 4.81mm Led Stage Backdrop Screen 500x1000mm Pantalla Led Exterior
Quick Details:
- Pixel Pitch: P4.81
- Quality and High Contrast SMD LEDs, Wide viewing angle: 160°/ 160°.
- Greyscale: 16bits with NOVA Star MRV328

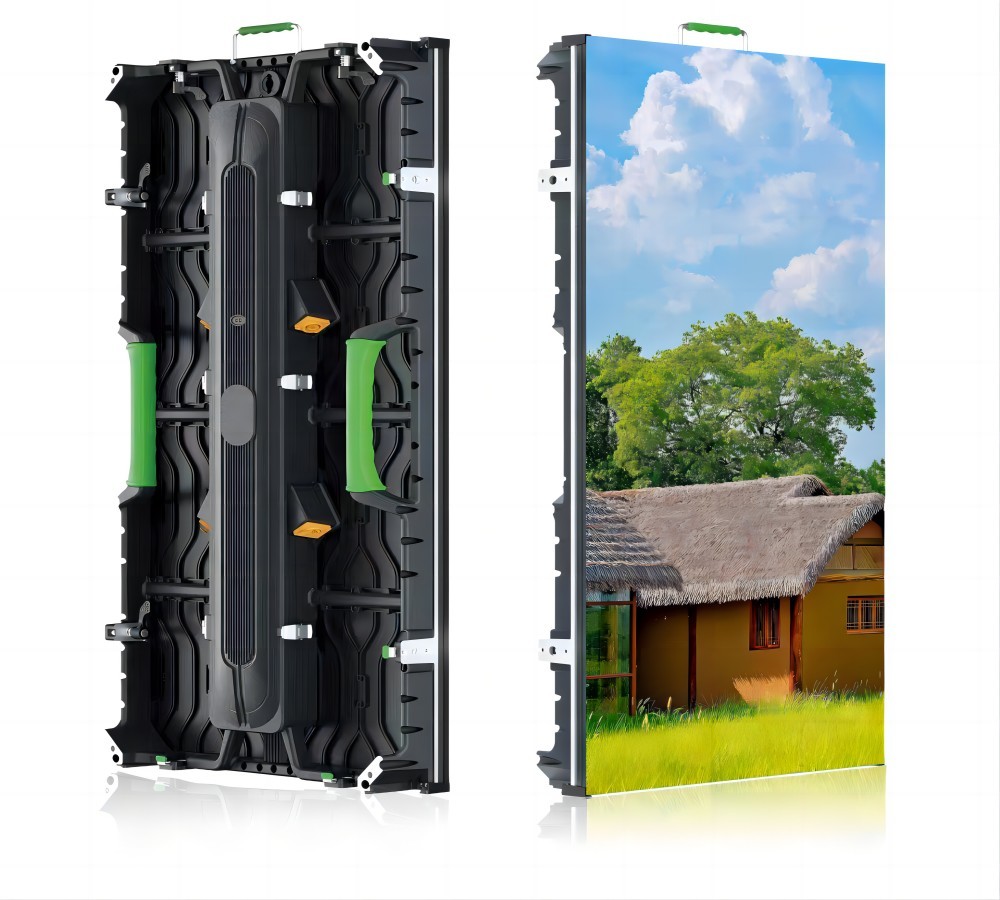

- Cabinet size: 500x1000mm Die Cast Aluminum
- Best minium viewing Distance: 4m.
- Cabinet Material: Die Cast Aluminum Cabinet, 15kg Weight
- Refresh Rate: 3840Hz
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>5,000nits
- Curve Installation: Yes, Concave and Convex Available
- Corner Protector: Available
Parameters:
| Model | D-HK2.6 | D-HK2.9 | D-HK3.9 | D-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 | 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 2 x 4 | 2 x 4 | 2 x 4 | 2 x 4 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 384 | 168 x 336 | 128 x 256 | 104 x 208 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 15kg | 15kg | 15kg | 15kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |

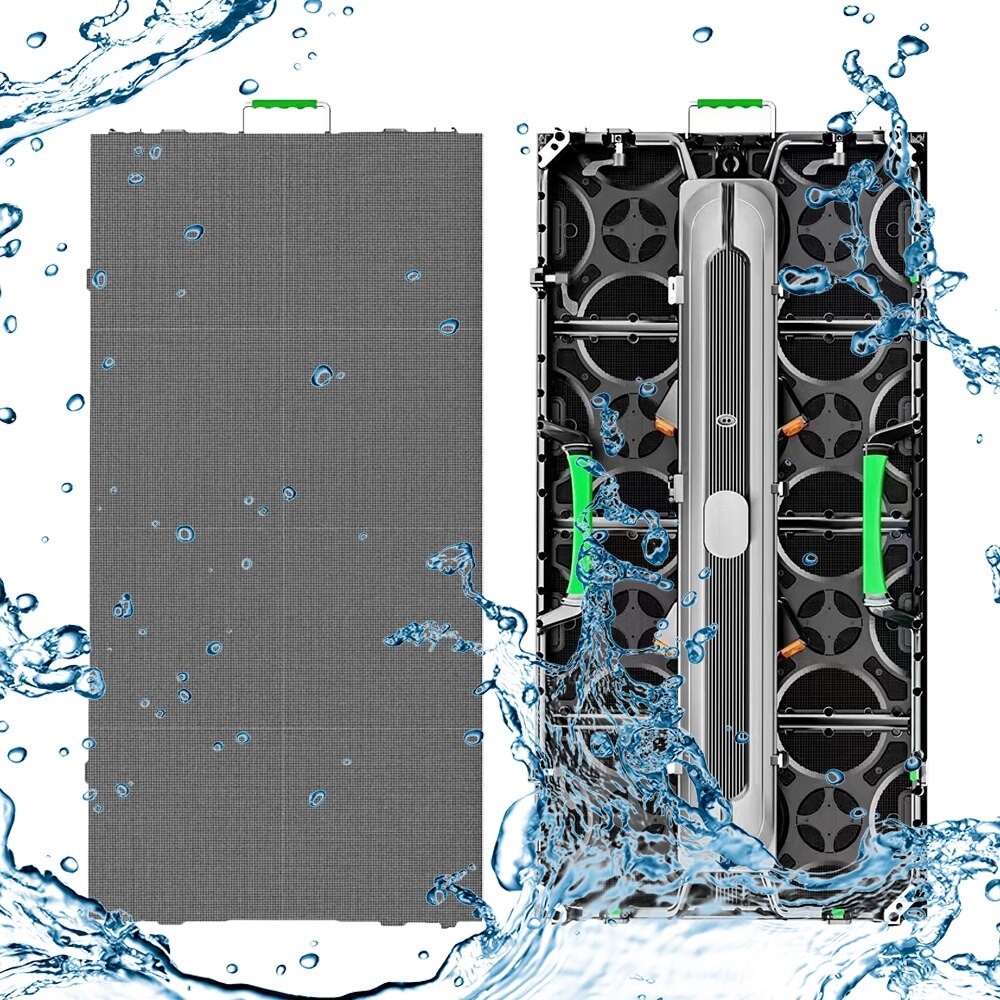

| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Our Services
- 20 Years professional led display manufacturer
- Short delivery time: 5-15 working days, adjustable according to customer request
- Wholesale price
- OEM and ODM service
- CE, ROHS, FCC, ETL, TUV certified supplier
