| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-HK4.8 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1,000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P4.81mm |
|---|---|---|---|
| Cabinet Size: | 500x500mm/500x1000mm | Service: | Rear/Front Service |
| Pixel Configuration: | SMD1921 | Module Size: | 250x250mm |
| Highlight: | 500mm Outdoor Rental LED Display,Outdoor Rental LED Display P4.81mm,Stage outdoor led display panel |
||

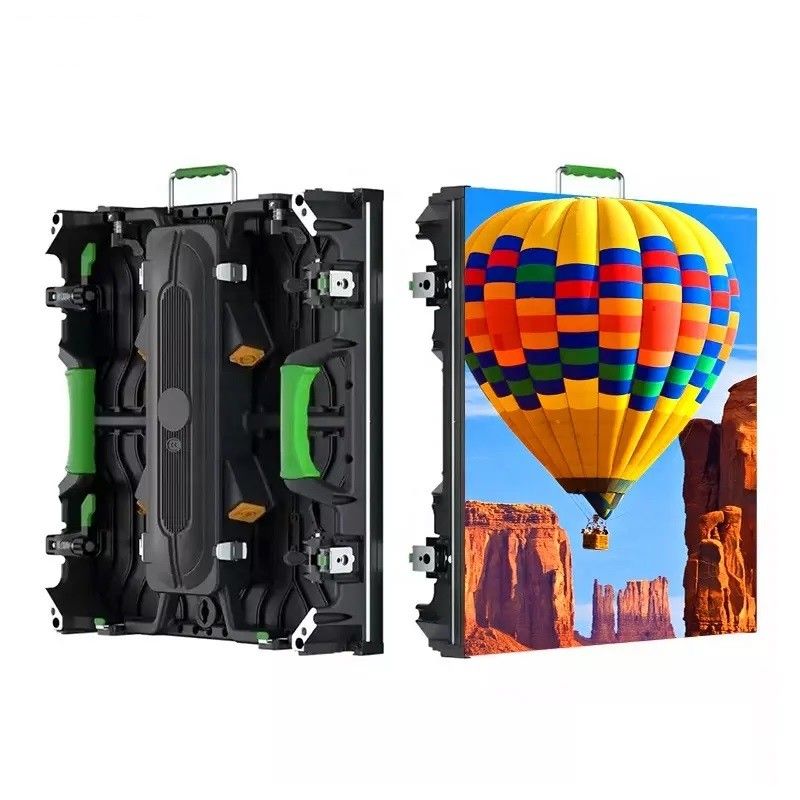

500x500mm Outdoor Rental LED Display P4.81mm LED panel for Stage Events
Description:

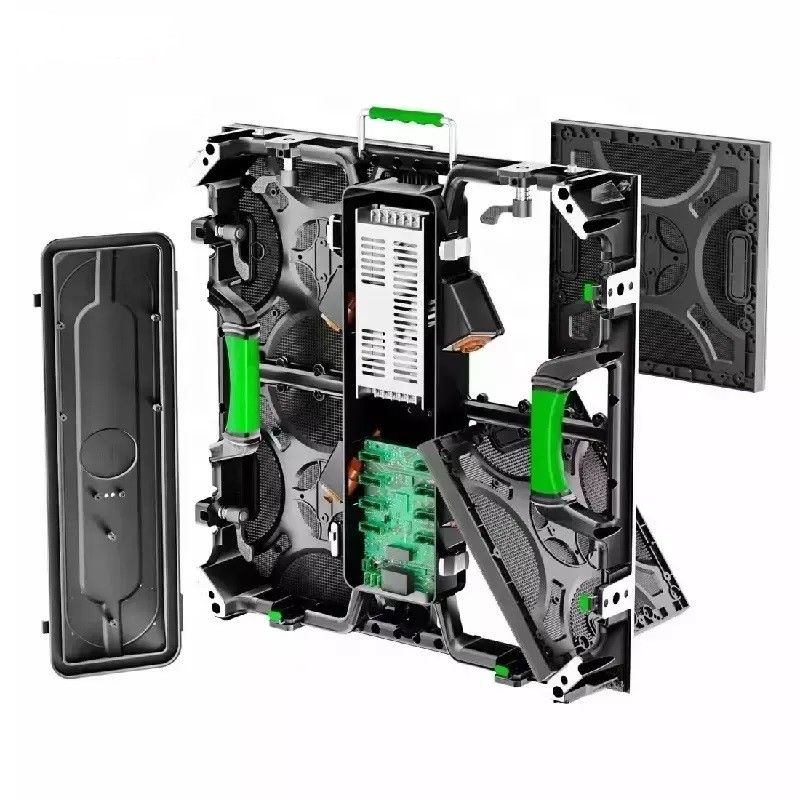

Die Cast aluminum light weight Structure
Through thoughtful engineering and craftsmanship, the D-HK series features with thin, lightweight, high-strength die-casting in a modular design to fit a wide range of simple or complex applications. The unique structural design of Outdoor Rental has pioneered, patented and perfected the use of die casting in the construction of LED video wall displays.

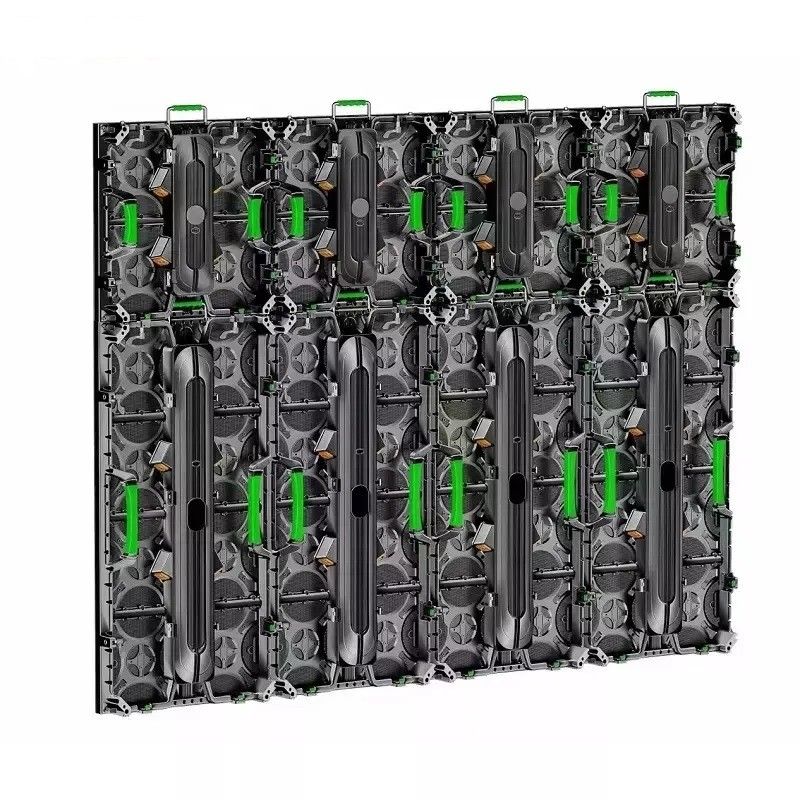

Seamless Screen Splicing and Support ±15 degree installation
Arc shaped panel edge, seamless splicing and no angle acquirement,perfect arc-bending panel technology. Double-side 15 degree oblique angle design,support ±15 degree assembly.
High Refresh Rate, High Contrast Ratio, High Grey Scale with excellent viewing effect
Parameters:
| Model | D-HK2.6 | D-HK2.9 | D-HK3.9 | D-HK4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 650 W /Sqm | 620 W /panel | 600 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Pictures:
