| Place of Origin: | China |
|---|---|
| Brand Name: | Conwin LED Display |
| Certification: | FCC, CE, ROHS |
| Model Number: | D-XG3.9 |
| Minimum Order Quantity: | 1sqm |
| Price: | Negotiable |
| Packaging Details: | Plywood box/Flight case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 sqm per month |
| Type: | Outdoor Rental LED Screen | Pixel Pitch: | P3.91mm |
|---|---|---|---|
| Cabinet Size: | 500x500 | Service: | Front/Rear Service |
| Weight: | 8kg | Module Size: | 250x500mm |
| Highlight: | Outdoor LED Screen Panels Rental,LED Screen Panels Rental 5000 Nits,led panel screen rental P3.91mm |
||

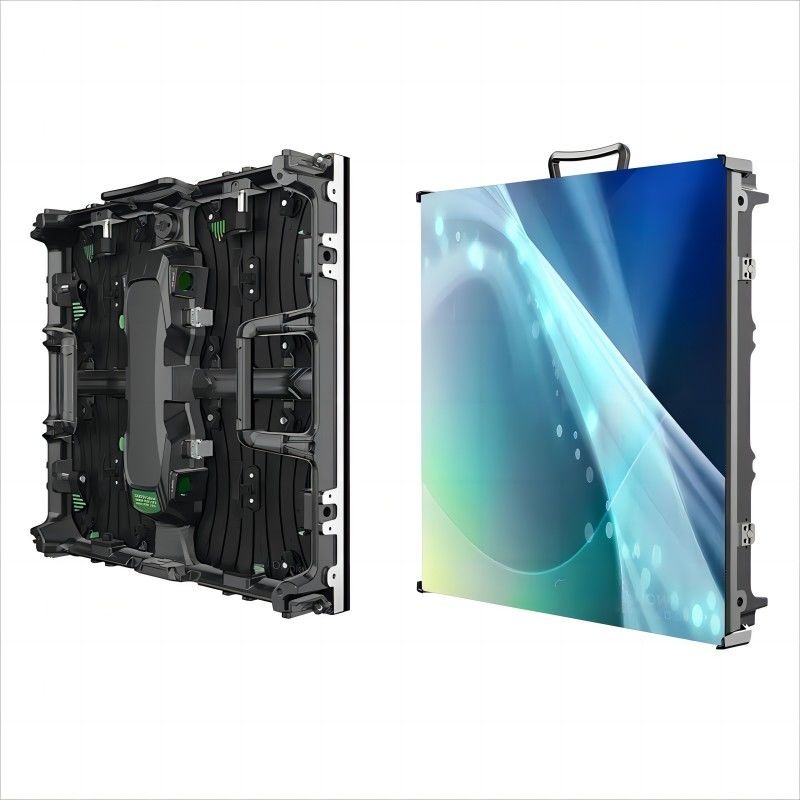

Outdoor Stage LED Screen Panels Rental Front Magnetic Service 5000 Nits P3.91mm
Quick Details Of Outdoor Rental LED Screen
- Pixel Pitch: 3.91mm
- Waterproof brand SMD LEDs, high brightness and high reliability
- Greyscale: 14bits - 16bits with Nova system
- Cabinet size: 500x500mm and 500x1000mm Die Cast Aluminum Cabinet

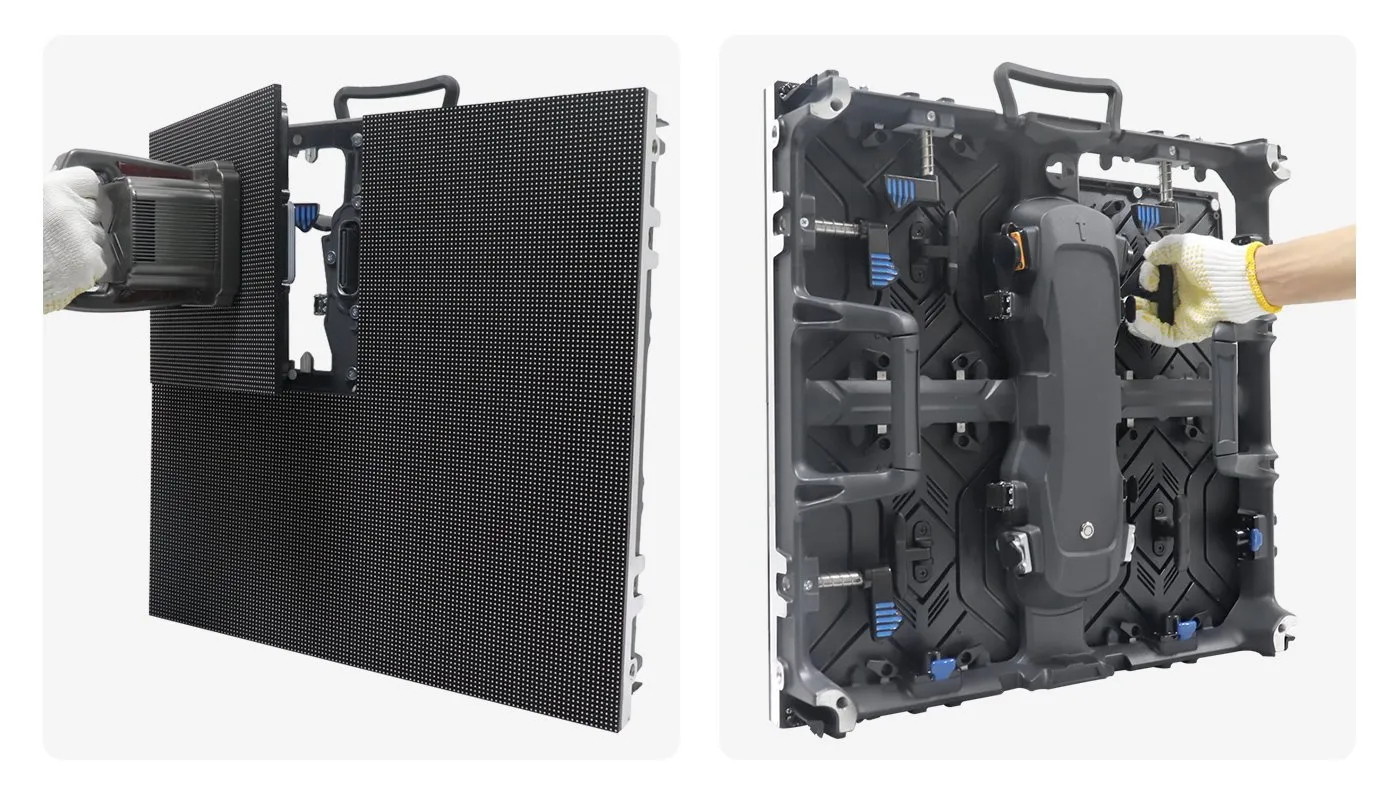

- Service type: Waterproof and magnetic front service
- PSU: Pin connection independent power box, easily and evenly remove and put on
- Refresh Rate: 3840hz
- Ingress Rate: IP65 Outdoor standard and magnetic front service
- Quality Certificate:CE, RoHS,FCC, ETL
- Brightness:>5000cd/sqm

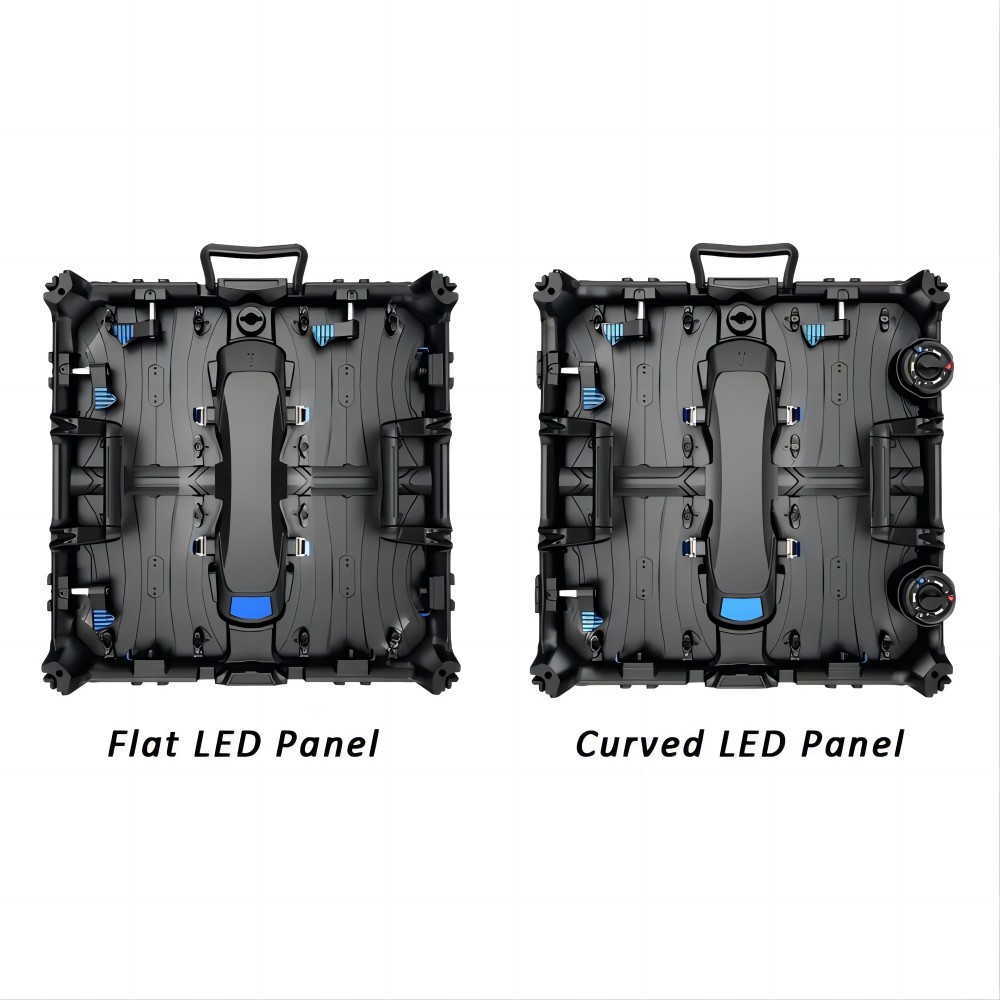

- Curve Installation: Rotary lock for +- 15 degree Concave and Convex shape
Adjustable Angle lock for curve Application via Rotary Lock
- Corner Protector: Semi-auto Corner Protector, gently push and release the protector for the max security of LEDs
Parameters:
| Model | D-XG2.6 | D-XG2.9 | D-XG3.9 | D-XG4.8 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions (W x H) (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 | 500 x 500 x 80 |
| Modules Per Cabinet (W x H) | 2 x 2 | 2 x 2 | 2 x 2 | 2 x 2 |
| Module Resolution | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Cabinet Resolution | 192 x 192 | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 8kg | 8kg | 8kg | 8kg |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm | 280 W /Sqm |
| Max Power Consumption | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm | 800 W /Sqm |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
